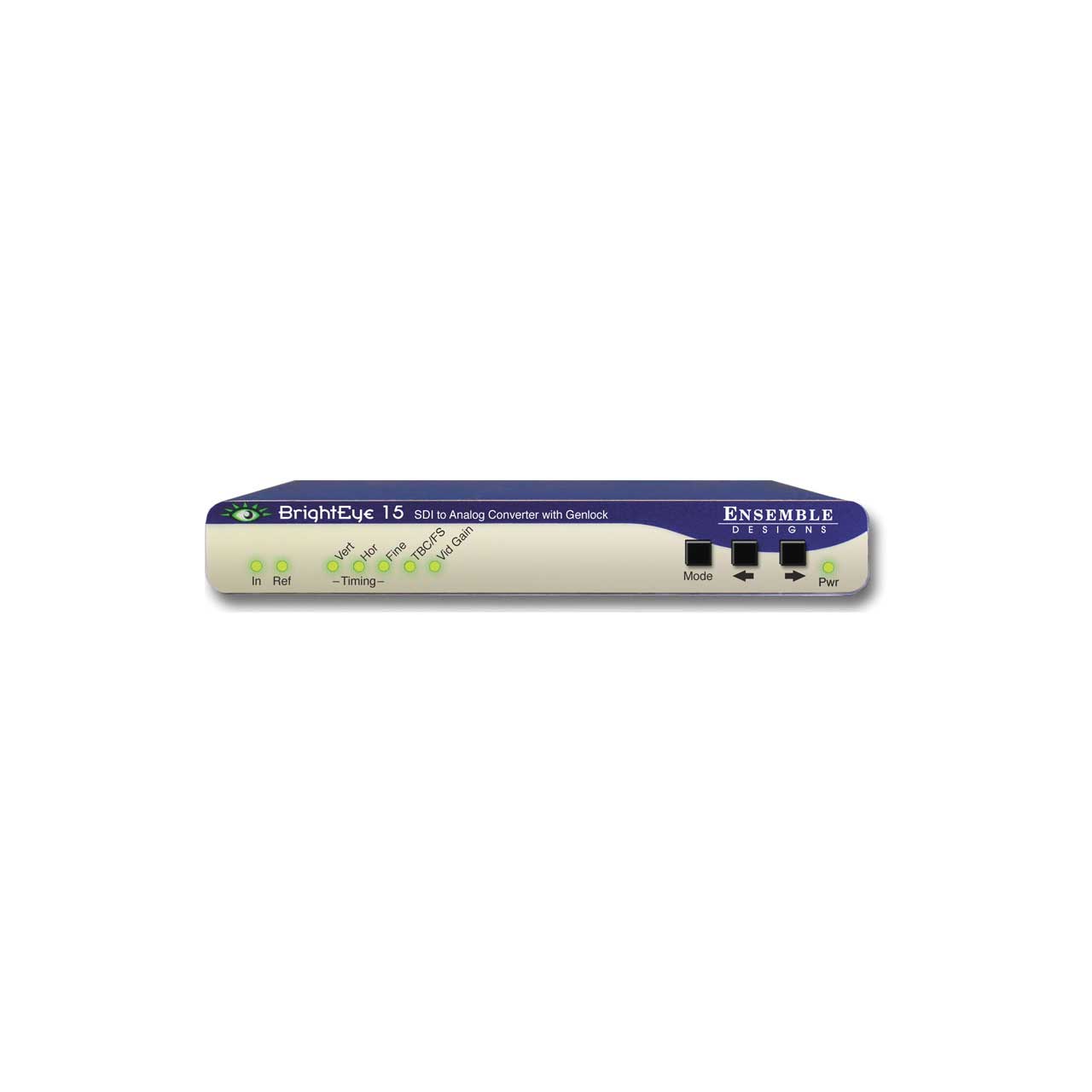

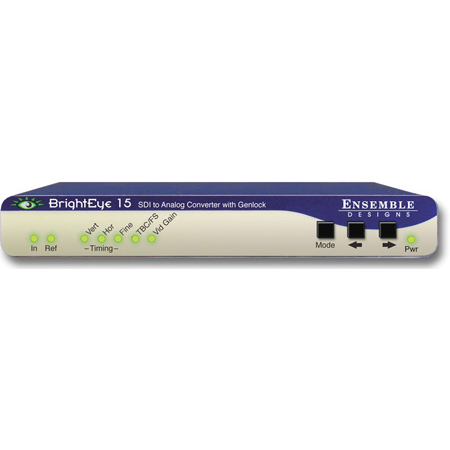

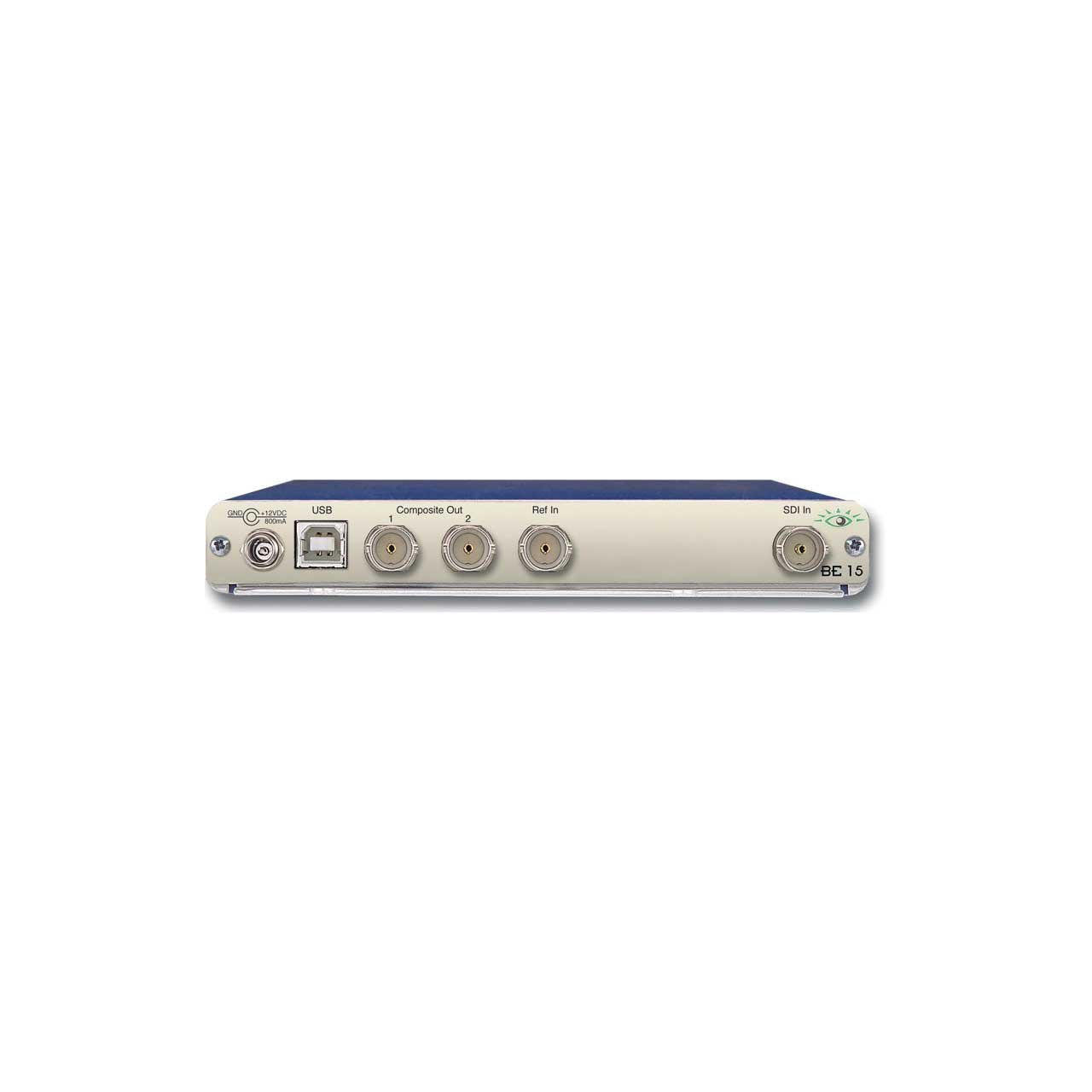

Ensemble Designs BrightEye 15 SDI to Analog Converter with Genlock

BE15 - Overview

• Features:

  • Feed Analog Switchers and Routers
  • SD SDI Input
  • Analog Video Output
  • Timing Control for Output


• Specifications:

  • Serial Digital Input
  • Number One
  • Signal Type 270 Mb/s SD Serial Digital
  • SMPTE 259M
  • Impedance 75 U
  • Return Loss >15dB
  • Max Cable Length 300 meters
  • Automatic Input Cable Equalization

    Reference Input
  • Number One
  • Type 1 V P-P Composite Video, PAL or NTSC
  • Impedance 75 U
  • Return Loss >40 dB

    Analog Video Output
  • Number Two
  • Type Composite PAL or NTSC (follows input)
  • Delay Adjustable from < 90 Sec to 1 frame
  • Return Loss >40 dB
  • Output DC < 100 mV

    SDI to Analog Performance
  • Bit Resolution 12 bit output reconstruction
  • 8 x oversampling
  • Signal to Noise >65 dB
  • Timing Window Infinite (with respect to reference)
  • Output ScH Phase matches reference
  • Timing Resolution Adjustable to within 1 degree of subcarrier
  • Frequency Response ±0.1 dB, 0 to 5.5 MHz
  • K Factor <1%
  • ScH Phase Error <±2 degrees
  • Differential Phase <1 degree
  • Differential Gain <1%

    General Specifications
  • Size 5.63" W x 0.8" H x 5.98" D
  • (143 mm x 21 mm x 152 mm)
  • including connectors and flange
  • Weight 14 oz
  • Power 12 volts, 3 watts
  • (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95° non-condensing
  • Altitude 0 to 10,000 ft.
