Blackmagic Design CONVNTRM/BB/ANSDI Teranex Mini - Analog to SDI 12G

ITEM #: BMD-CTMBBANSDI MFG #: CONVNTRM/BB/ANSDI

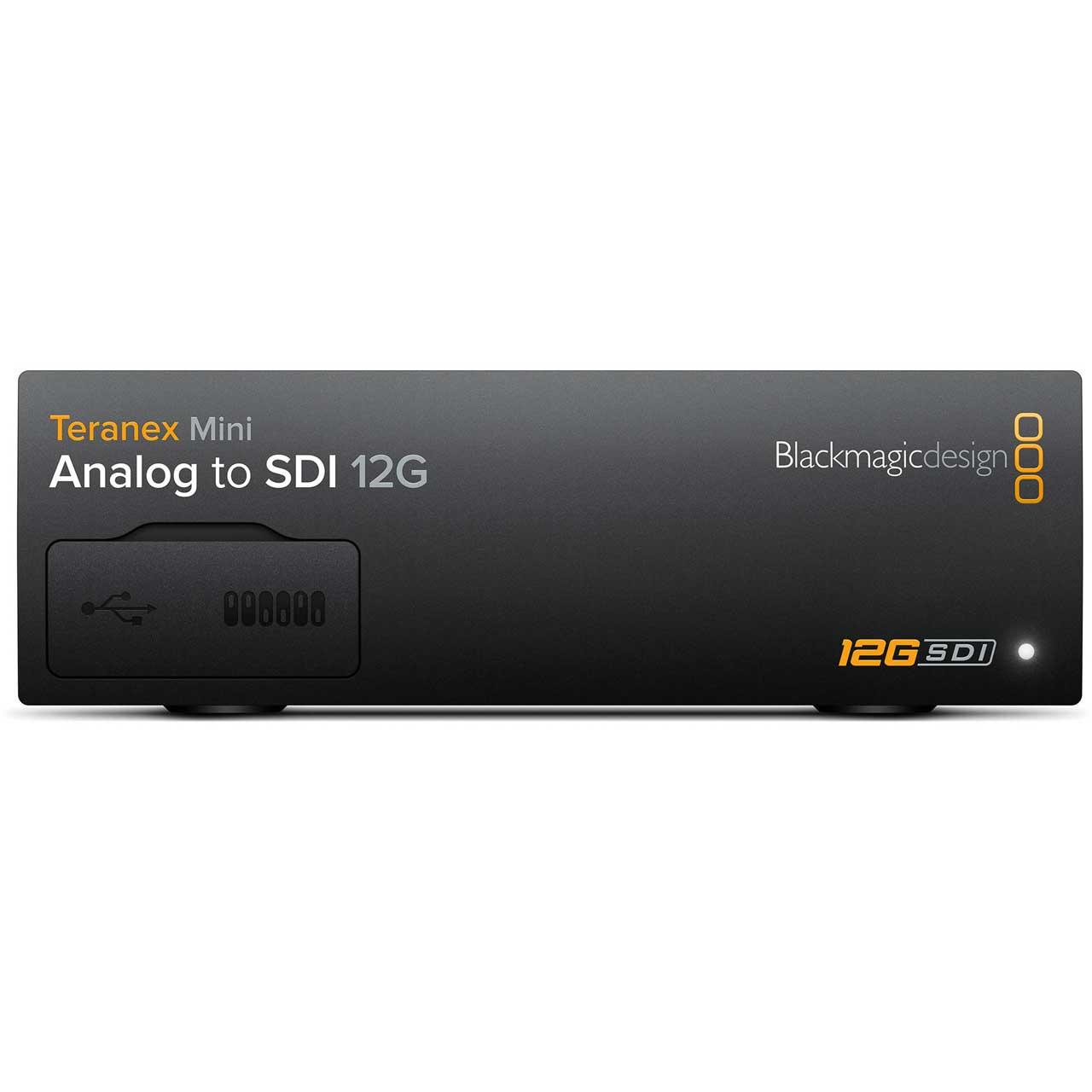

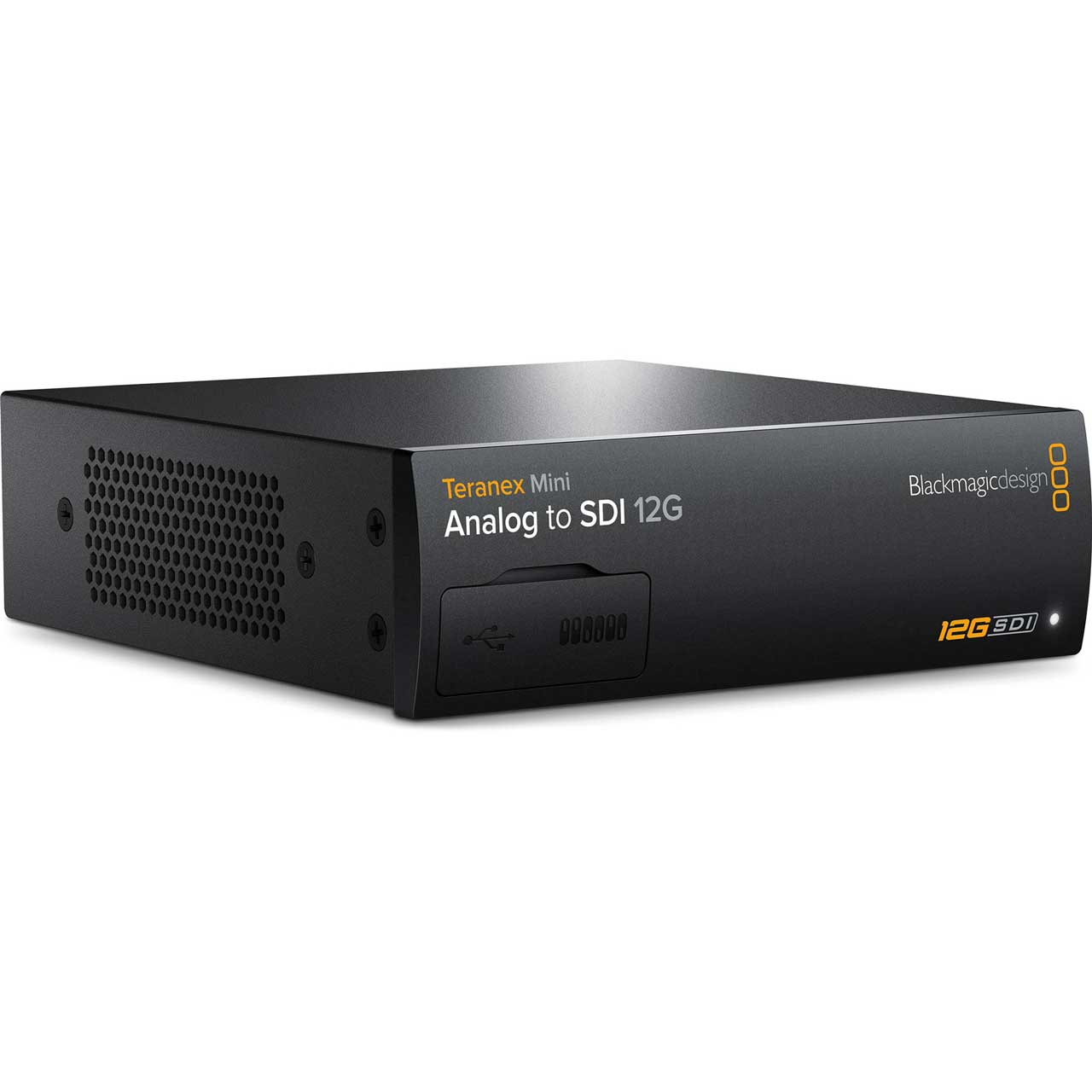

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVNTRM/BB/ANSDI - Overview

The world's most versatile converters!

The Blackmagic BMD-CONVNTRM/BB/ANSDI Teranex Mini Analog to SDI 12G converts from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

Teranex Mini converters feature cutting edge, multi rate 12G-SDI technology that's 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

  • Specifications:

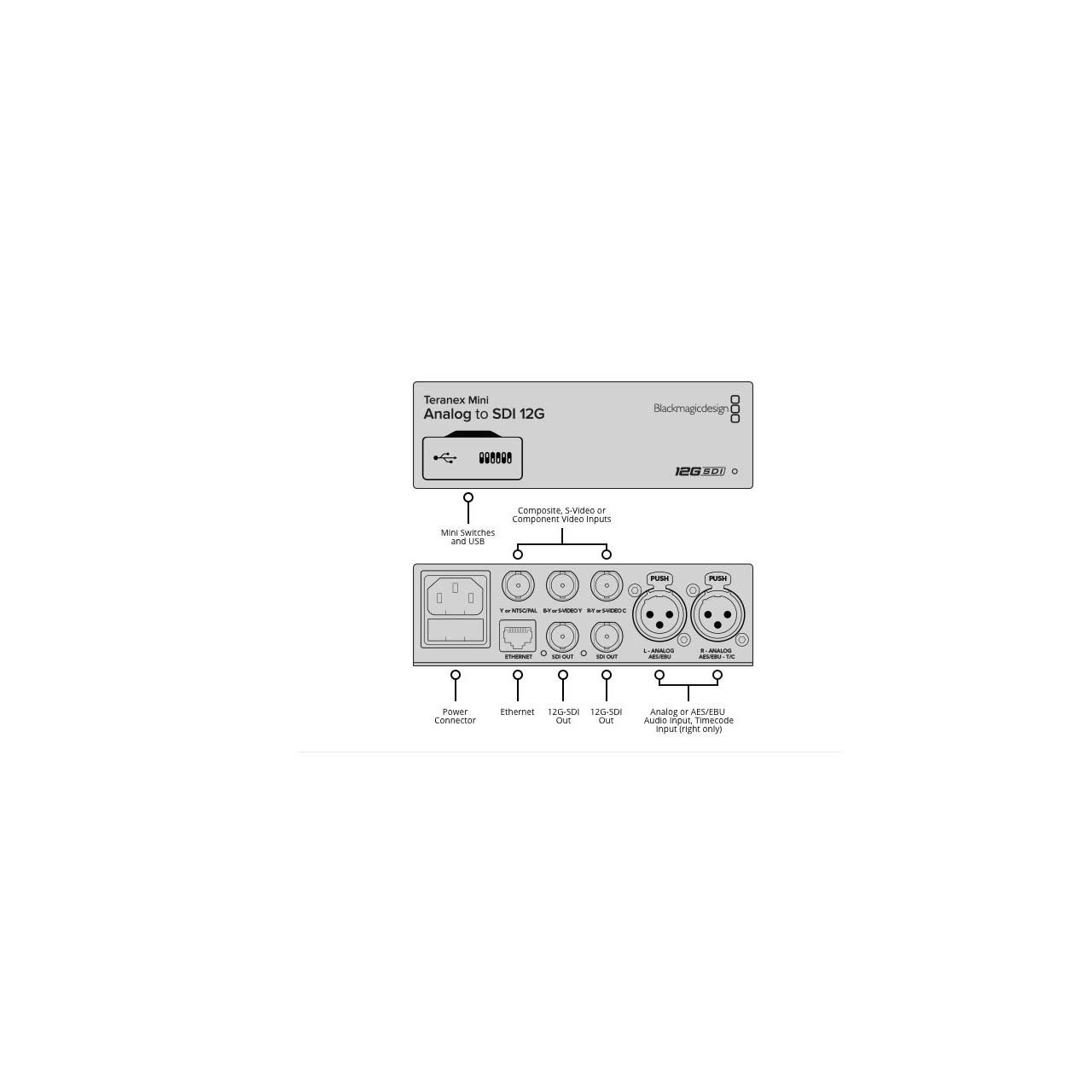

    • Connections
    • Analog Video Input:Component SD/HD, NTSC, PAL and S Video.
    • SDI Video Output: User selectable to SD, HD and 12G-SDI.
    • Analog Audio Input: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
    • AES/EBU Audio Input: 4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
    • Multi Rate Support: SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.
    • Updates and Configuration: USB or Ethernet.
    • Re-Clocking: Yes

      Standards
    • SDI Compliance: SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-B,ITU-R BT.656 and ITU-R BT.601
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
    • SDI Video Sampling: 4:2:2 and 4:4:4.
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • SDI Color Space: REC 601, REC 709
    • SDI Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.
    • Analog Format Support: 625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60.
    • Analog Color Space: REC 601, REC 709
    • Analog Color Precision: 4:2:2

      Software
    • Software Control: Mac OS X ™ and Windows ™ software upgrade via USB and Ethernet
    • Internal Software Upgrade: Via included updater application.

      Settings Control
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

      Power Requirements
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    • Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet).
    • Power Consumption: 15 Watts
    • Operational Voltage Range: 90 - 240V AC


  • Item Includes:

    • Teranex Mini Analog to SDI 12G
    • SD card with software and manual


  • Warranty:

    • 3 year Limited Manufacturer's Warranty


  • GTIN:

    9338716003277
