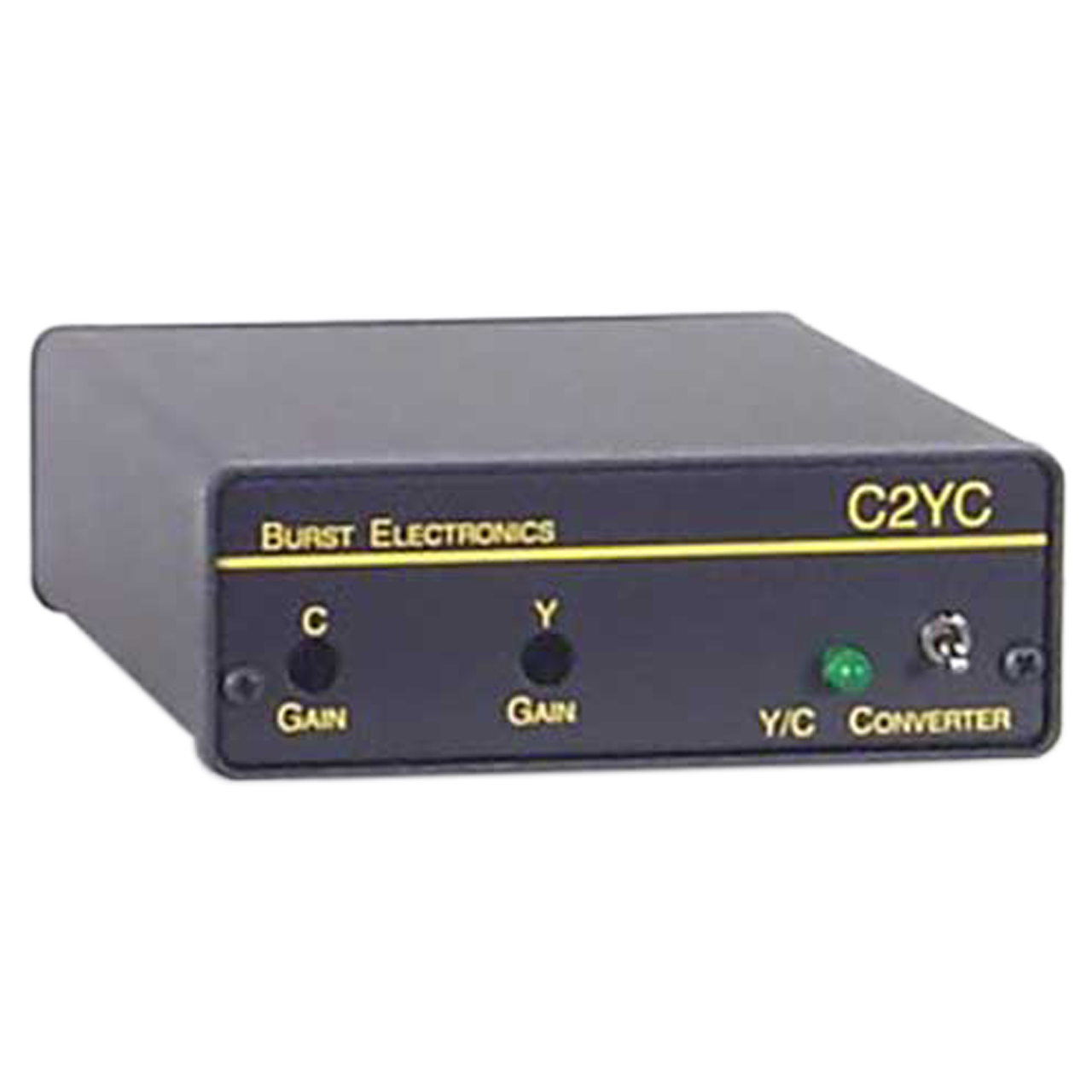

Burst C2YC Composite to S-Video Y/C Converter

ITEM #: C2YC MFG #: C2YC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$495.00

Our Price:

$445.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    C2YC - Overview

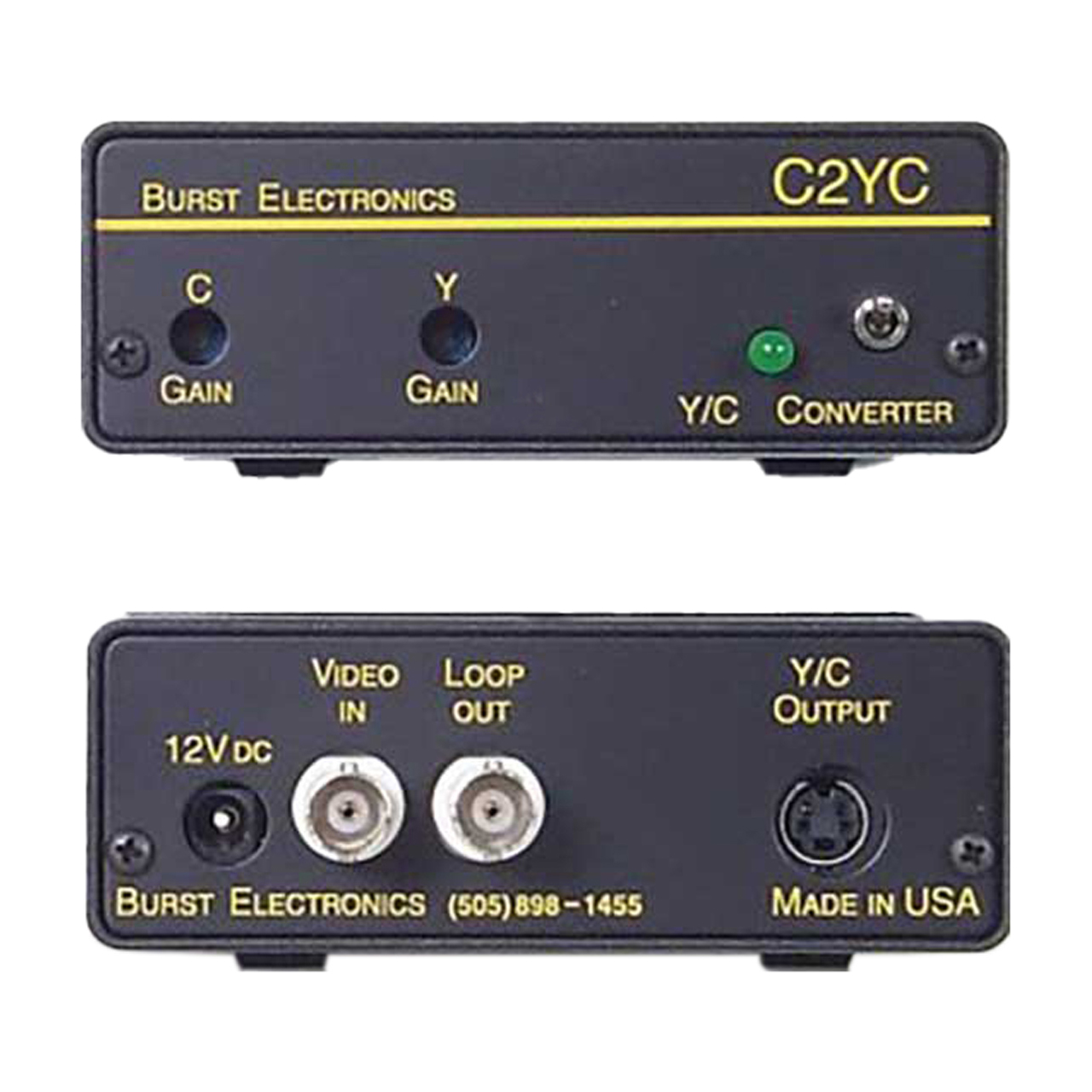

    The C2YC converter accepts Composite video and splits the signal into the Luminance "Y" and the Chroma "C" components or S-VHS (S-Video). Send a Composite video signal to the Video Input connector (BNC) on the rear panel. The separated "Y" and "C" video signals are obtained from the "Y/C Output" connector on the rear panel. The "Y" and "C" output is 75 Ohms and utilizes a standard 4 pin S-Video din connection.

    • Specifications:

      • Input/Output: 1 Volt Standard Video.
      • Input Connector: Composite Video, BNC.
      • Input Impedance: HiZ or 75 Ohms 1%.
      • Bandwidth: 10MHz @ 0.5 dB.
      • Output Impedance: 75 Ohms 1%.
      • Output Connector: 4 pin MiniDIN.
      • Output Protection: Open or Short, infinite duration.
      • S/N: 60 dB.
      • Size: 4.1W x 1.5H x 5.5D inches.
      • DC Powered: 11-14 Vdc Wall Module: 120VAC 60Hz, 12Vd (included) 500mA, UL Listed.
