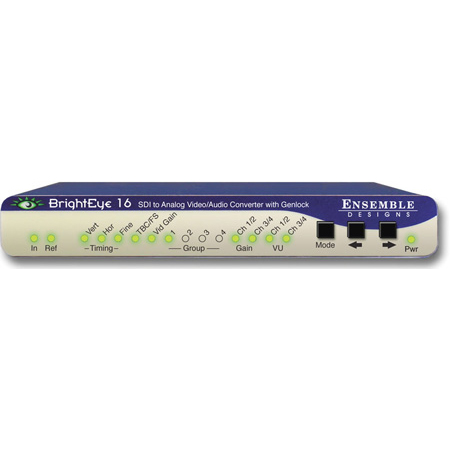

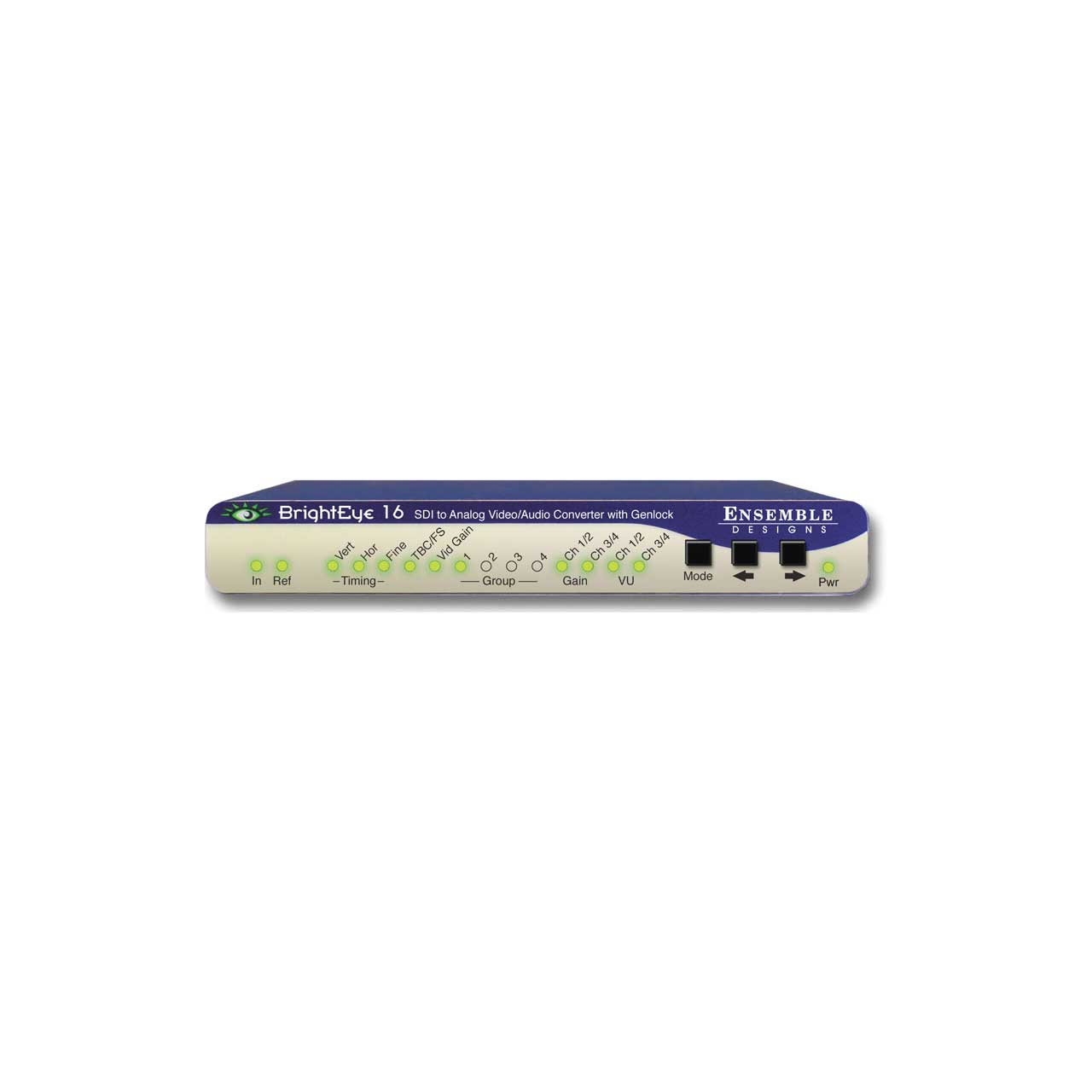

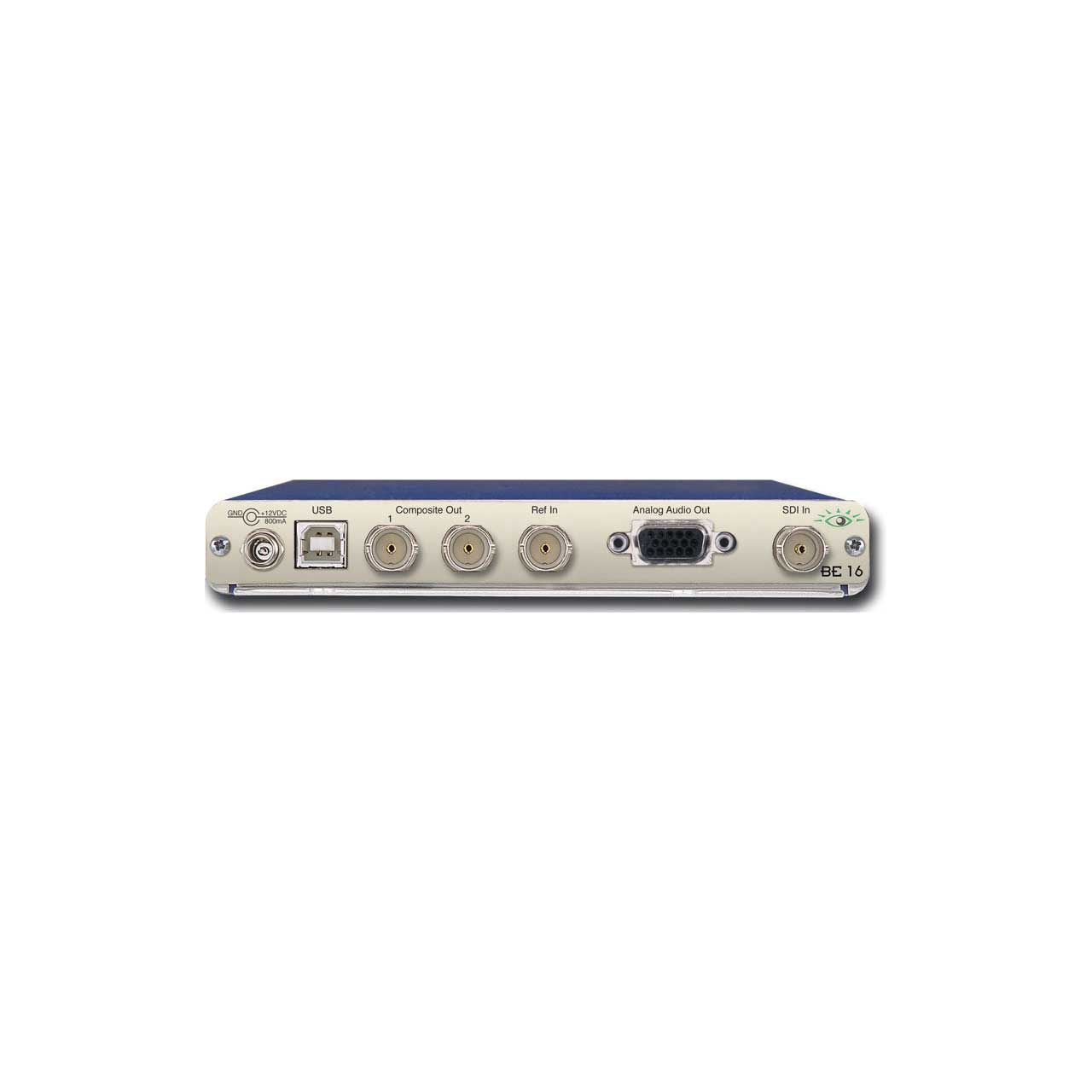

Ensemble Designs BrightEye 16 SDI to Analog Converter

BE16 - Overview

• Features:

  • Feed analog switchers and routers
  • SD SDI input
  • Analog video output
  • Timing control for output
  • Audio disembedding
  • Analog audio outputsReclockerDeserializerDisembedderSD


• Specifications:

  • Serial Digital Input
  • Number One
  • Signal Type 270 Mb/s SD Serial Digital
  • SMPTE 259M
  • Impedance 75 U
  • Return Loss >15dB
  • Max Cable Length 300 meters
  • Automatic Input Cable Equalization

    Reference Input
  • Number One
  • Type 1 V P-P Composite Video, PAL or NTSC
  • Impedance 75 U
  • Return Loss >40 dB

    Analog Video Output
  • Number Two
  • Type Composite PAL or NTSC (follows input)
  • Delay Adjustable from < 90 Sec to 1 frame
  • Return Loss >40 dB
  • Output DC < 100 mV

    SDI to Analog Performance
  • Bit Resolution 12 bit output reconstruction
  • 8 x oversampling
  • Signal to Noise >65 dB
  • Timing Window Infinite (with respect to reference)
  • Output ScH Phase matches reference
  • Timing Resolution Adjustable to within 1 degree of subcarrier
  • Frequency Response ±0.1 dB, 0 to 5.5 MHz
  • K Factor <1%
  • ScH Phase Error <±2 degrees
  • Differential Phase <1 degree
  • Differential Gain <1%

    Analog Audio Outputs
  • Number Four
  • Type Balanced, transformerless
  • Impedance 30 U
  • Max Output Level 24 dBu
  • Resolution 24 bits, 128 x oversampled
  • Reference Level -10 dBu to +4 dBu
  • Frequency Response ± 0.1dB, 20 Hz to 20 KHz
  • Crosstalk <106 dB
  • Dynamic Range >106 dB

    General Specifications
  • Size 5.63" W x 0.8" H x 5.98" D
  • (143 mm x 21 mm x 152 mm)
  • including connectors and flange
  • Weight 1 lb
  • Power 12 volts, 5 watts
  • (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95° non-condensing
  • Altitude 0 to 10,000 ft.
