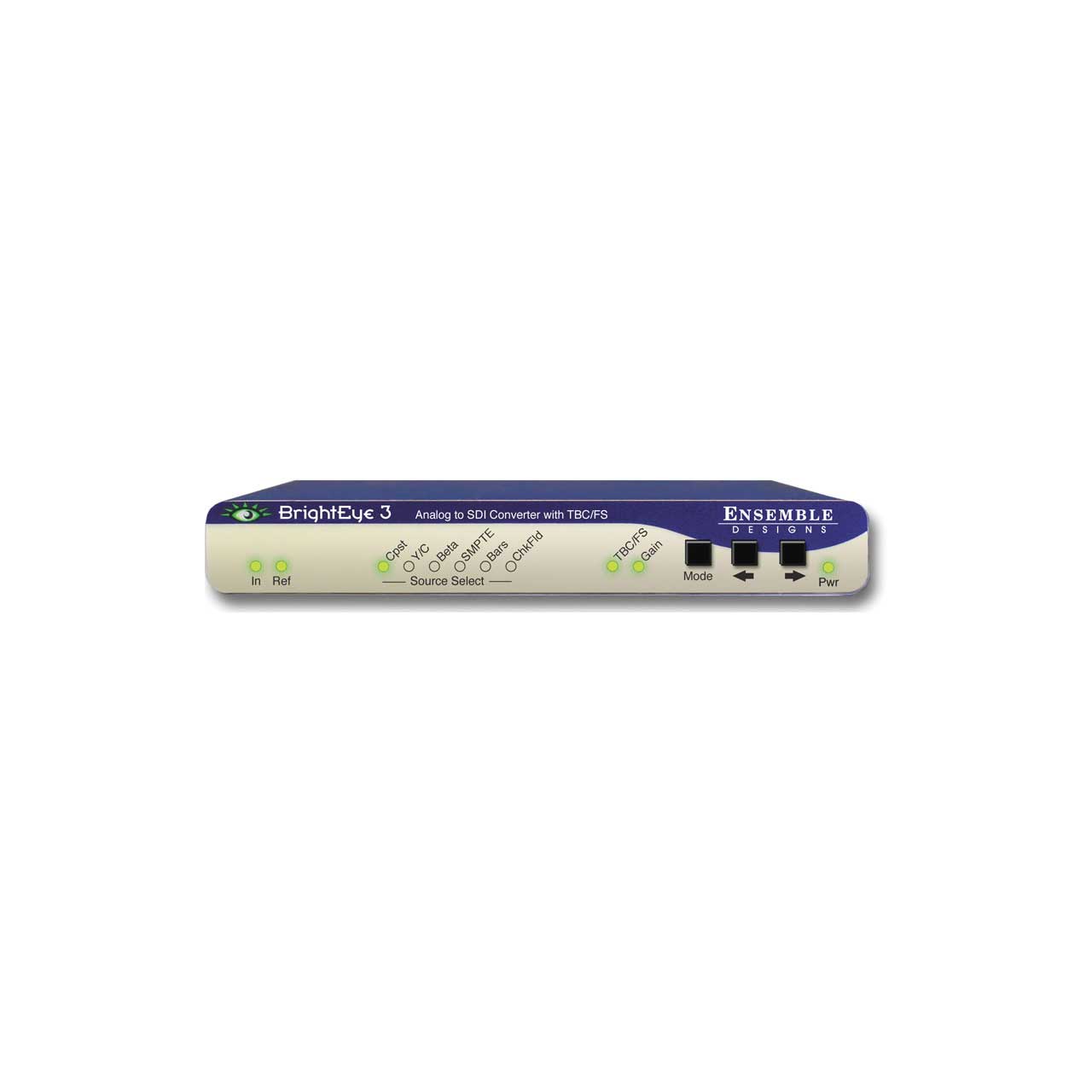

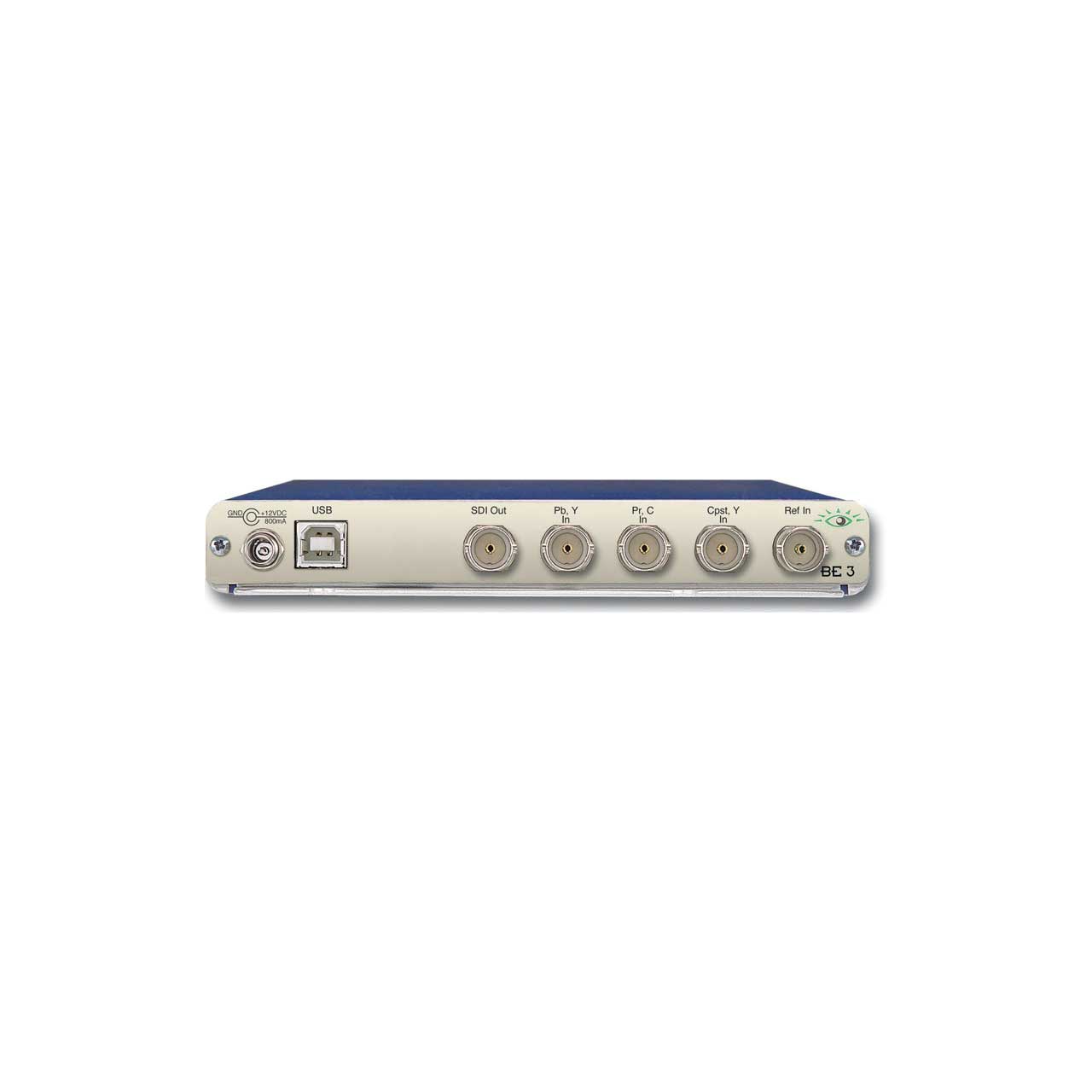

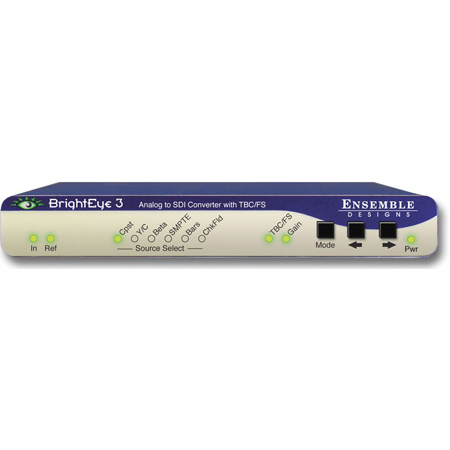

Ensemble Designs BrightEye 3 Analog to SDI Converter with TBC

BE3 - Overview

• Features:

  • Use with cameras, satellite receivers and VHS decks
  • Analog input
  • SD SDI output
  • TBC and frame sync
  • 12 bit processing


• Specifications:

  • Analog Input
  • Number One
  • Type Beta/SMPTE, Y, Pr, Pb
  • NTSC, PAL Composite
  • NTSC, PAL S-Video
  • Impedance 75 U
  • Return Loss >40 dB
  • Input DC +/-1 volt DC
  • Input Hum <100 mV

    Serial Digital Output
  • Number One
  • Type 270 Mb/s SD Serial Digital
  • (SMPTE 259M)
  • Delay Adjustable from < 90 Sec to 1 frame
  • Impedance 75 U
  • Return Loss >15 dB
  • Output DC None (AC coupled)

    Analog to SDI Performance
  • Bit Resolution 12 bit input quantization
  • 4 x oversampling
  • Signal to Noise >62 dB, weighted
  • Frequency Response
  • Composite and Y ±0.1 dB, 0 to 5.5 MHz
  • Pr, Pb ±0.1 dB, 0 to 2.75 MHz
  • Delay Adjustable from < 90 Sec to 1 frame

    Reference Input
  • Number One
  • Type 1 V P-P Composite Video, PAL or NTSC
  • Impedance 75 U
  • Return Loss >40 dB

    General Specifications
  • Size 5.63" W x 0.8" H x 5.98" D
  • (143 mm x 21 mm x 152 mm)
  • including connectors and flange
  • Weight 14 oz
  • Power 12 volts, 5 watts
  • (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95%, non-condensing
  • Altitude 0 to 10,000 ft.
