Ensemble Designs BEM-2-H BrightEye Mitto HD / SD Scan Converter with HDCP Support

BEM-2-H - Overview

• Features:

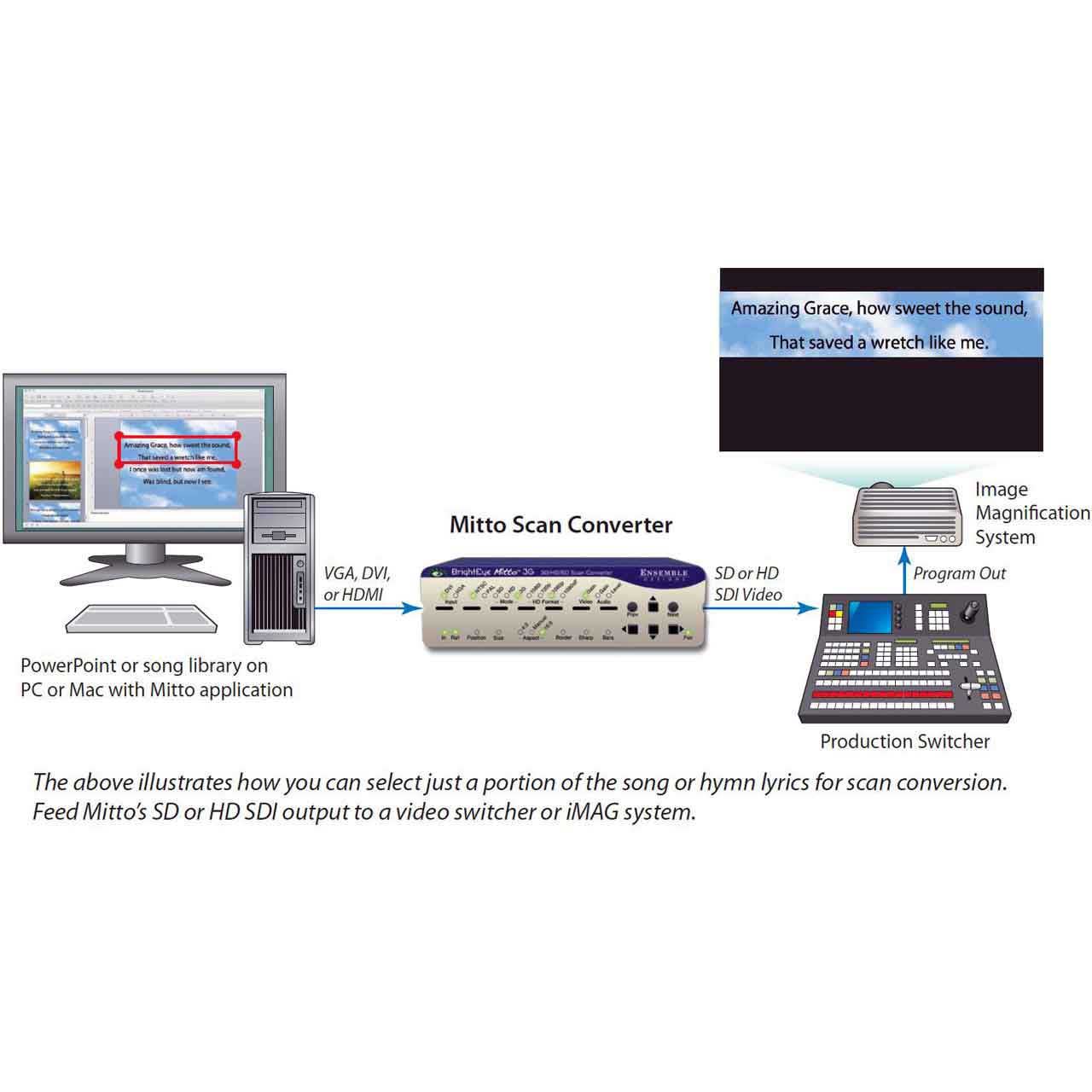

  • High Performance Scan Converter for PC and Mac

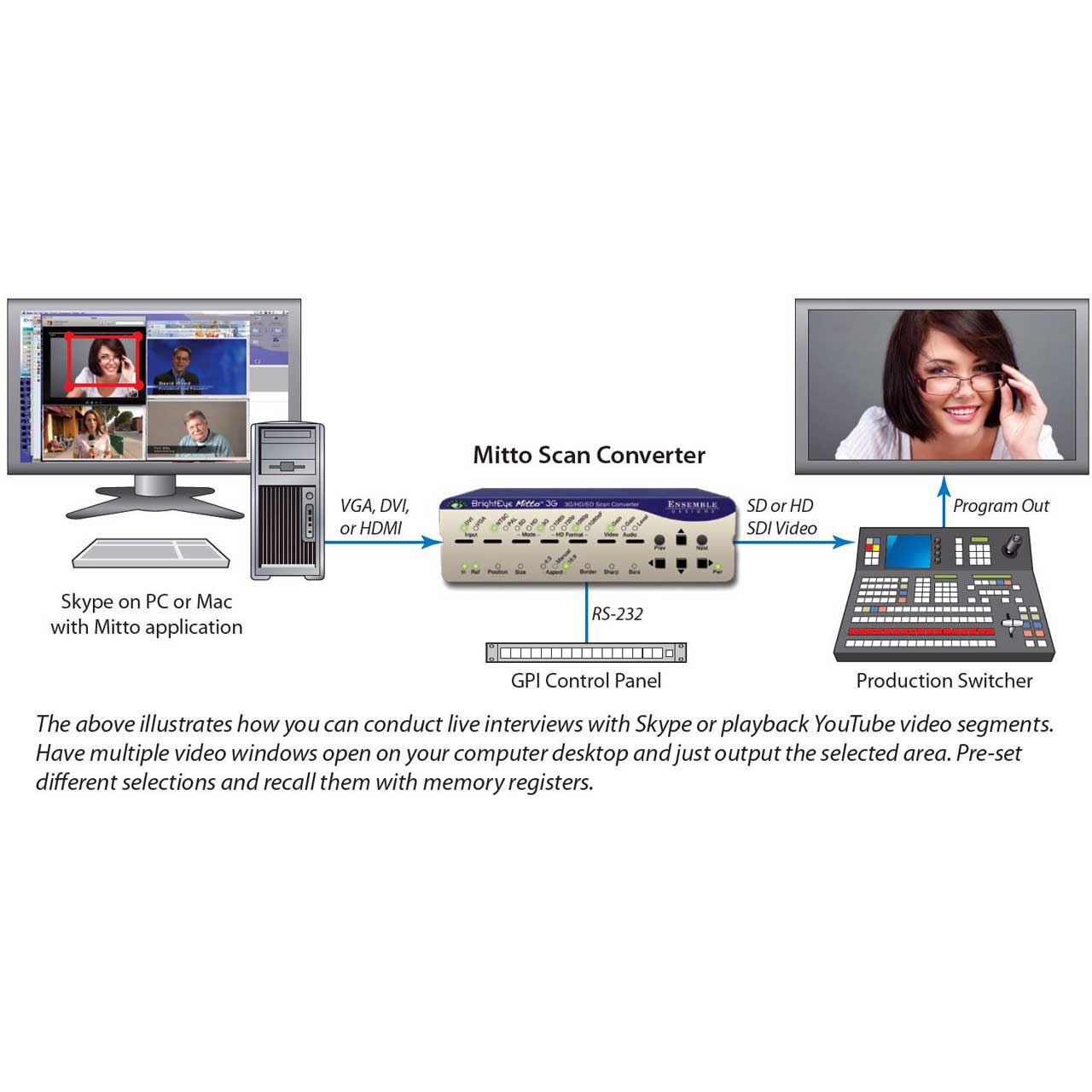

  • Best way to bring YouTube, Skype, Weather Radar, Maps and Emails to Video for Production Use
  • Superior Quality - Proprietary Scaling and Filtering System Provides Maximum Detail, Flicker-Free Video Output

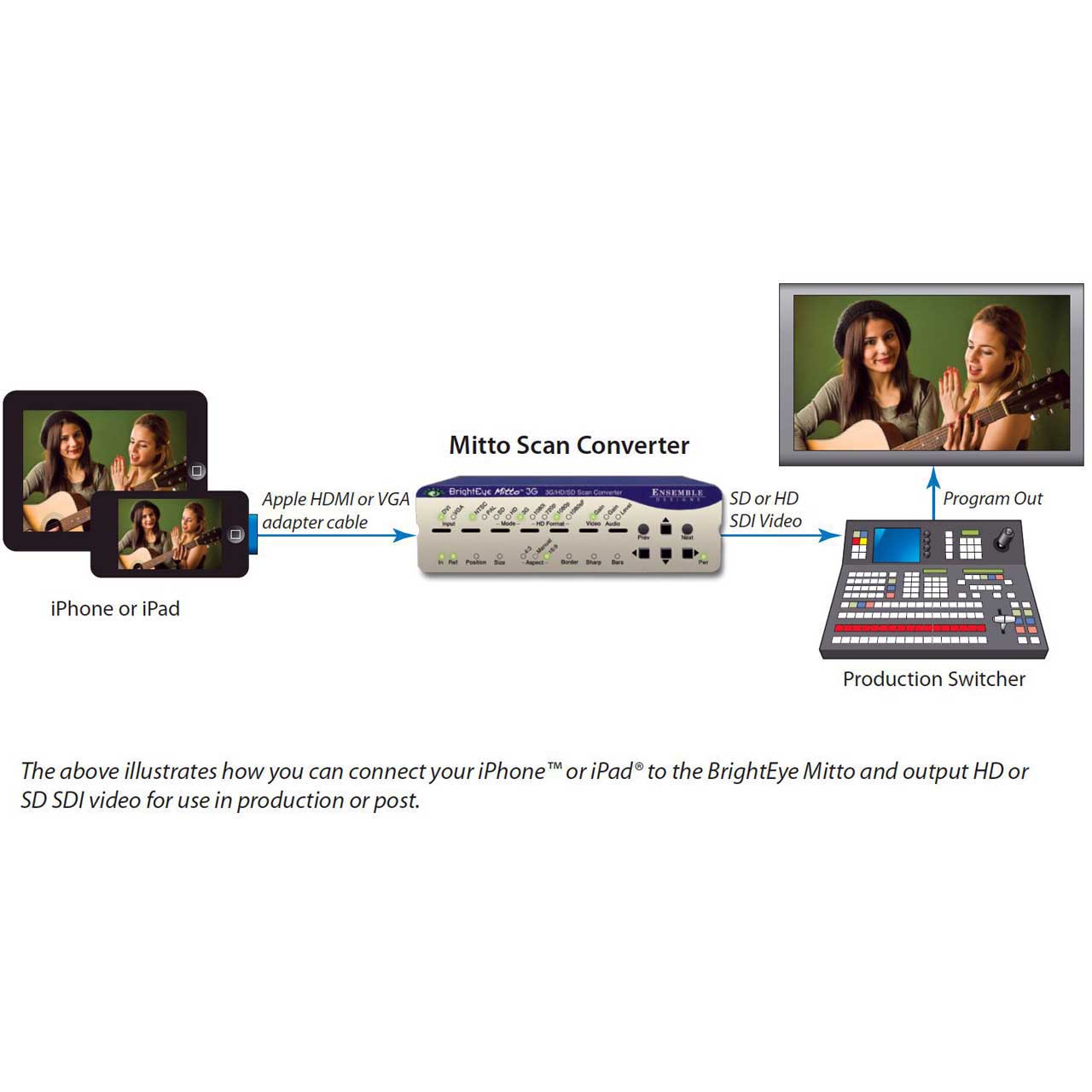

  • Use with all Types of Macs and PCs including Laptops, iPhone and iPad

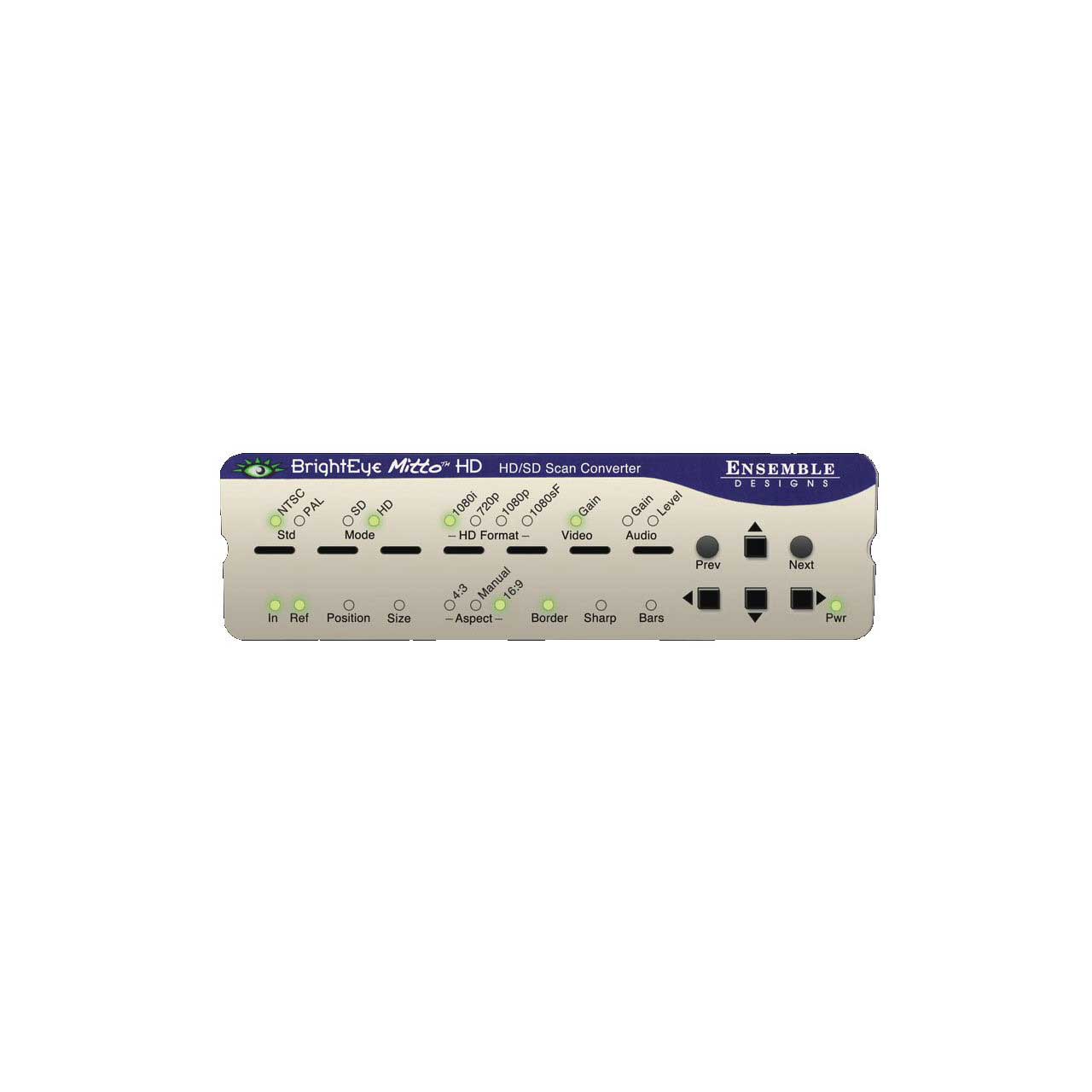

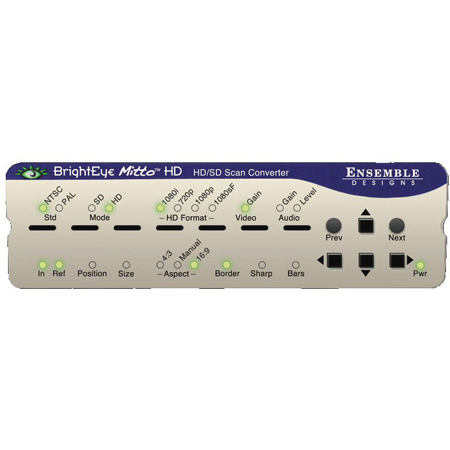

  • Intuitive Front Panel Controls
  • Output Choices: 1.5 and 3 Gb/s HD, SD SDI, Composite Video, Fiber Optic
  • DVI I/O, VGA and HDMI Support with an Adapter
  • Auto senses DVI or VGA
  • Choose a Mitto with Adjustable Audio Delay for Skype and Broadcast Applications
  • Use a Mouse to Select the Part of the Video You Want to Output
  • Easily Adjust Video Parameters and Select Video Output Format
  • Genlock and Time to House Reference, Fully Timeable
  • Rackmountable
  • Memory Presets for Your Favorite Settings
  • 5-Year Warranty and Free Software Upgrades


• Specifications:

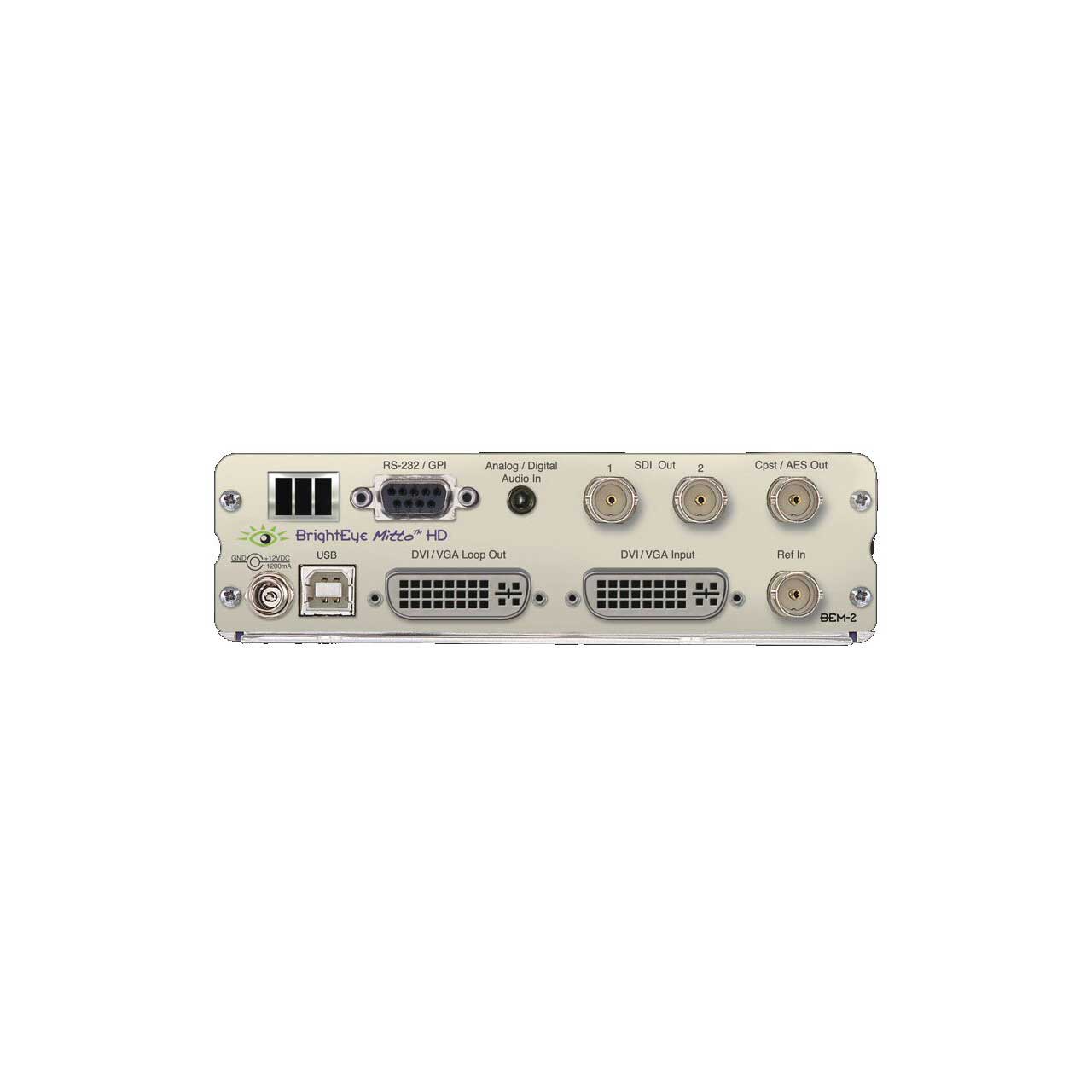

  • Computer Input:
  • Number of inputs: One
  • Type of input: DVI (Supports HDMI or VGA with adapter)
  • Connector: DVI-I, Resolution Up to 1920 x 1200

    Reference Input
  • Number of Inputs: One BNC
  • Type: 1 V P-P Composite Video, PAL, NTSC, Tri-Level Sync
  • Impedance: 75 Ω
  • Return Loss: >40 dB, Note: When no reference is provided, Mitto runs from an internal "sync gen grade" precision frequency reference

    Analog Audio Inputs
  • Number of audio inputs: One stereo pair
  • Connector Type: 1/8" mini jack
  • Impedance: >15K Ohm
  • Max Input Level: 24 dBu
  • Quantization: 24 bits, 128 x oversampled, Sample Rate 48 KHz
  • Reference Level: -10 dBu or +4 dBu
  • Frequency Response: ±0.1 dB, 20 Hz to 20 KHz
  • Crosstalk: <106 dB
  • Dynamic Range: >106 dB

    AES/EBU Digital Inputs (BEM-1, 1F, 2, 2F)
  • Number of Inputs: Two (four channels)
  • Type: AES3id, S/PDIF
  • Connector Type: 1/8" mini jack
  • Bit Depth: 20 and 24 Bit
  • Sample Rate: 30 KHz to 192 KHz (Sample Rate Converted Internally to 48 KHz)

    Serial Digital Output
  • Number of Outputs: Two BNC's. (One on the BEM-1F and 2F).
  • Signal Type: 270 Mb/s SD SDI, SMPTE 259M, 1.485 Gb/s HD, SDI,SMPTE 274M, 292M, 296M, 2.97 Gb/s HD SDI (BEM-1 and BEM-1F only), SMPTE 424M, 425M
  • Processing: 16 bit processing,12 and 14 bit upconversion
  • Delay: Adjustable from 16 msec to 40 msec, Note: Output is fully timeable with respect to the reference input
  • Audio Embedded
  • Impedance 75 Ω
  • Return Loss >15 dB to 1.485 GHz, >10 dB to 2.97 GHz
  • Output DC None (AC coupled)

    Standards Supported
  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
  • 525i, 625i (SMPTE 259M)
  • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A (BEM-1 and BEM-1F only)

    Optical Output (BEM-1F, 2F)
  • Number One, LC/UPC
  • Type Follows SDI configuration
  • Wavelength 1310 nm (non-CWDM)
  • Wavelengths 170 nm -1610 nm at 20 nm CWDM spacing available.
  • Power -7 dBm
  • Max Cable Length: 20 km.
  • Fiber Type: Single Mode. Multi-mode compatible with attenuation at transmit end

    Analog Video Output
  • Number One, BNC
  • Type: Composite PAL or NTSC (when SD is selected on the SDI output)
  • Return Loss: >40 dB
  • Output: DC <100 mV

    Computer Monitor Output
  • Number One, looping
  • Type DVI (Supports HDMI or VGA with adapter)
  • Connector DVI-I
  • Format Follows input

    Control (BEM-1, 1F, 2, 2F)
  • Number: One
  • Connector: 9 pin D
  • Type: RS-232, GPI

    General
  • Size 5.63" W x 0.8" H x 5.98" D including connectors and flange
  • Weight: 1lb 6oz
  • Power :12 volts, 12 watts (100-230 VAC modular power supply)
  • Temperature Range: 0 to 40° C ambient (all specs met)
  • Relative Humidity: 0 to 95° non-condensing
  • Altitude: 0 to 10,000 ft


• Item Includes:

  • 1x Ensemble Designs BEM-2-H BrightEye Mitto HD / SD Scan Converter with HDCP Support
