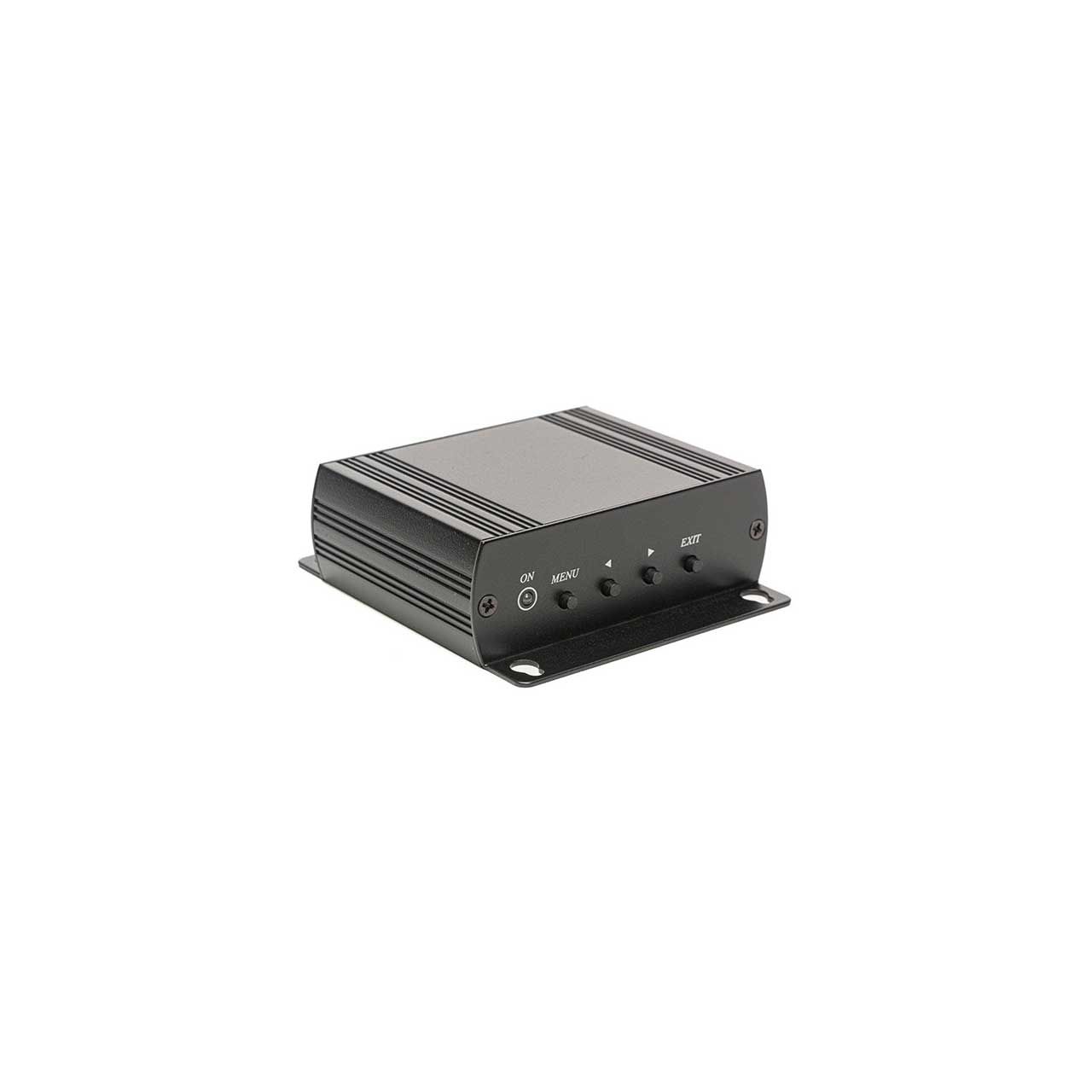

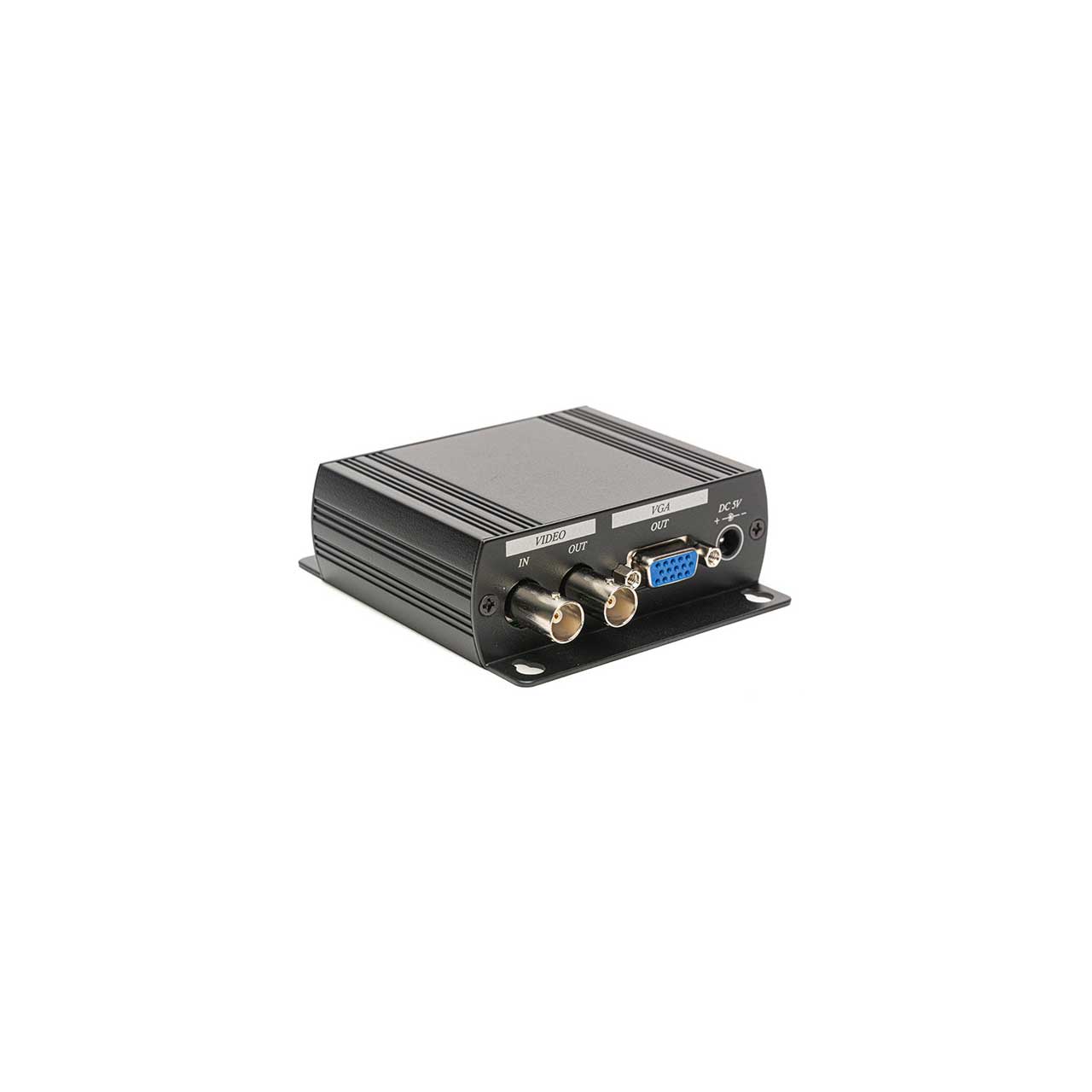

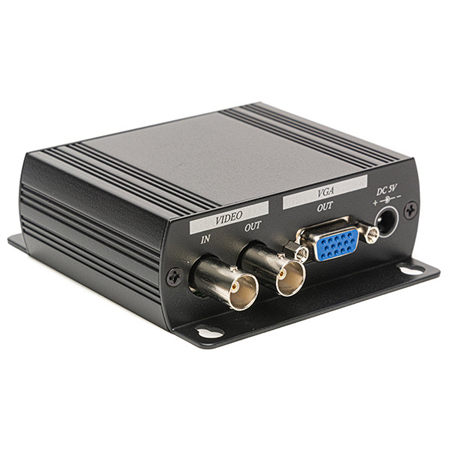

Calrad 40-889-A Composite Video to VGA Converter for CCTV

ITEM #: CLRD-40-889-A MFG #: 40-889-A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Calrad Electronics
Free Shipping with $49 Minimum Order

List Price:

$189.00

Our Price:

$150.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

40-889-A - Overview

Composite Video to VGA Converter (640 X 480, 800 x 600, 1024 x 768, up to 1280 x 1024@60Hz)

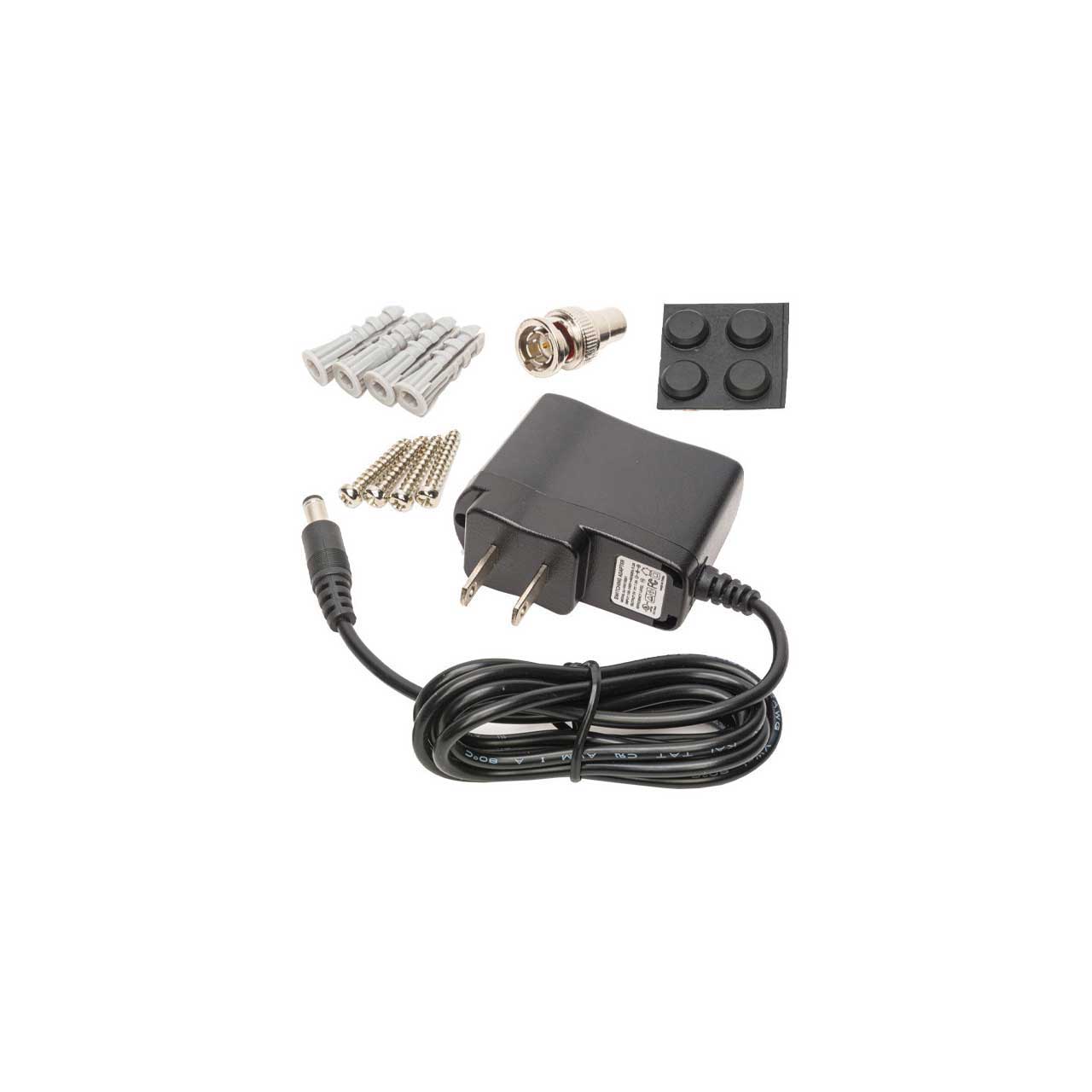

Calrad 40-889 composite to VGA, (RGB+HV) conversion using 1:1 computer based displays for CCTV applications. Compact size, plug and play installation. OSD Video adjustment for Brightness, Contrast, Color, Tint. Note! Your VGA display must be able to render 640 x 480 resolutions in order for this converter to work. Includes 5Vdc, 500ma power supply.

  • Specifications:

    • Video Formats: NTSC & PAL, 1Vpp, 75 ohms, BNC Female Jack
    • VGA Output: 0.7 Volts pp RGB+HV (640 x 480) resolution, 15 Pin D Female Jack
    • DC Power: 5Vdc
    • Current Draw: 200 ma
    • Size: Length: 5.68" (145mm), Width:2.6" (67mm)
    • Height: 1.1", (27mm)
    • Weight: 0.48lb


  • Item Includes:

    • 1x Calrad 40-889-A Composite Video to VGA Converter


  • GTIN:

    0601520408897
