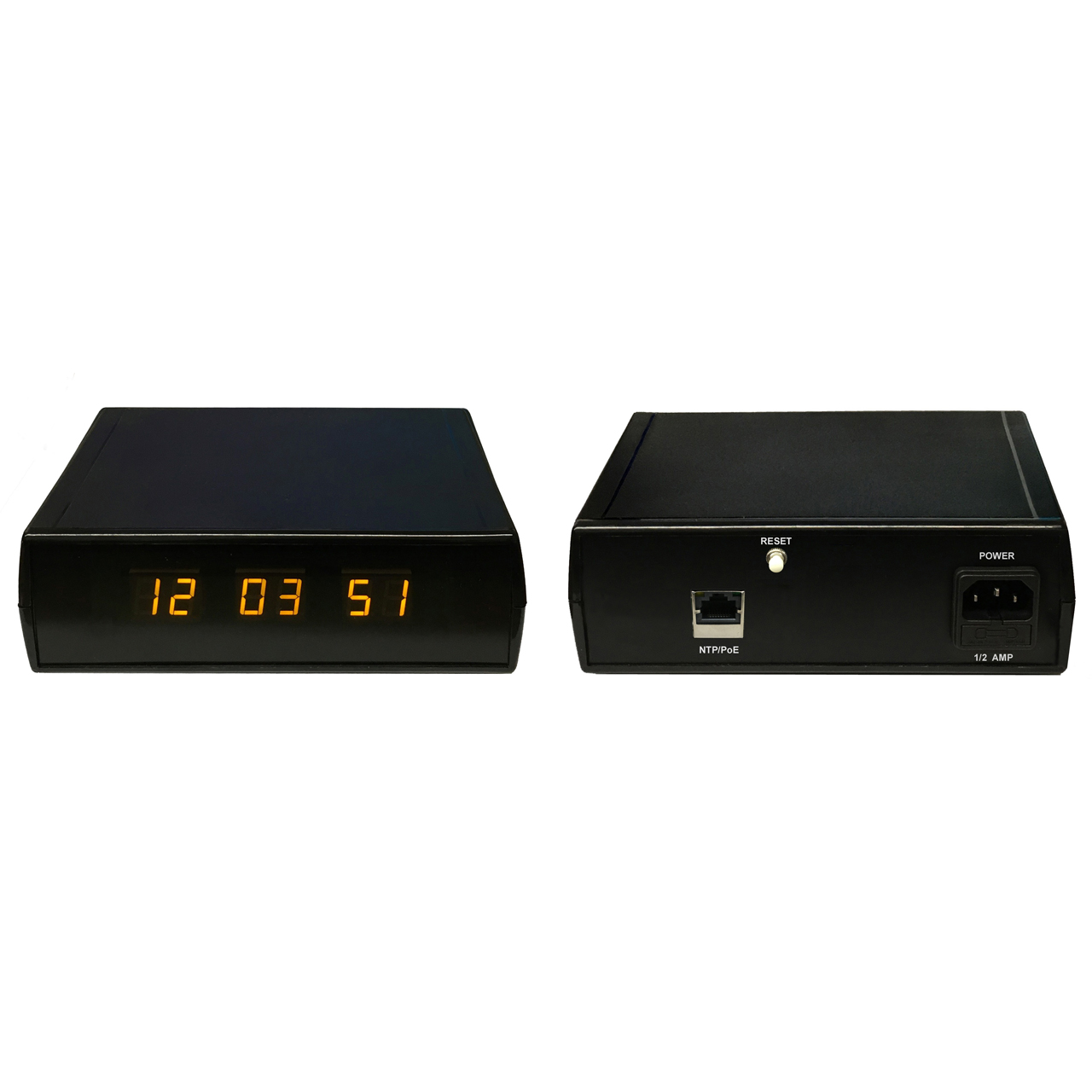

The ES-161UE/NTP-C/UL is an NTP Time Display featuring .56" high Yellow LED displays. The unit accepts an Ethernet connection via the rear-mounted RJ-45 connector and is set to synchronize with an NTP server. All setup features (IP address, time zone offset, etc.) are configured through a Web Page Control Panel interface. With additional options, the ES-161UE/NTP-C can function as a Time Code Converter. If Option RS is ordered, an RS-232C or RS-422A/RS-485 ASCII output is provided. The unit will output the received time in either ESE Format "A" (for time-of-day applications) or Format "B" (for elapsed timer applications). The output format is user selectable. A rear-mounted DB-9 connector is provided, and software is supplied to enable a computer to read the ASCII output and set the computer's clock. If Option ESE is ordered, an ESE Time Code Output is avaliable on a rear-mounted BNC connector. This output is capable of driving up to 100 other ESE Time Code Readers at a distance of up to 4000'. The unit is supplied with a UL/CSA approved wall mount power supply.
