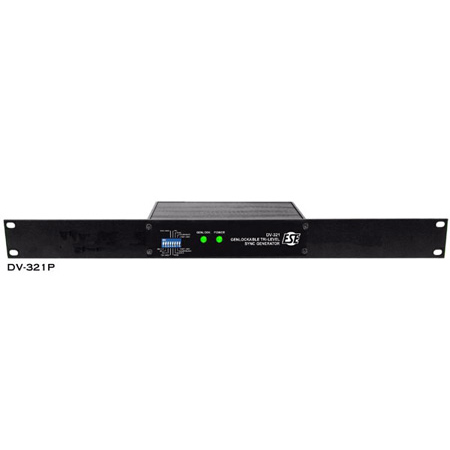

ESE DV-321P Genlockable HD/SD Sync Generator with 19 Inch Rack Mount
The DV-321 is an HD/SD Sync Generator with a genlock input. The genlock input accepts tri-level or bi-level signals. The DV-321 provides four HD sync outputs. These outputs produce an HD tri-level sync output. Eighteen HD output formats are suported on the DV-321. Also provided are two SD sync outputs that can be switched between color black or color bar outputs. An AES11 output and a Wordclock output are also standard features of the DV-321. The AES11 output may be switched between silent and tone modes. All outputs are provided on rear panel BNC connectors. Front panel dip switches allow the user to configure the various outputs.
-
- SD/HD Genlock Input
- 4 HD Sync Outputs (BNC)
- 2 SD Color Black/Color Bar outputs
- AES11 Output - Tone or Silent
- Wordclock Output (48 KHz)
- 18 HD Formats
-
- POWER: 110 - 120 VAC, 50 - 60 Hz, 5 Watts maximum
- MECHANICAL: Desktop Enclosure 1.6" H x 7" W x 5" D
- SD SYNC OUTPUTS: Color black or color bars; 2 BNCs
- HD SYNC OUTPUTS: Tri-level; 4 BNCs
- AES11 OUTPUT: Silence or tone (1kHz)
- Impedance: 75O
- Single ended, 1 Vpp into 75O, 1 BNC
- WORD CLOCK OUTPUT: 48 kHz, 0 - 5 V, 1 BNC
- DV-321 GENLOCK INPUT: Autodetects 15 different reference input signals, see Formats, 1 BNC
- DV-321 FORMATS: 525i60, 625i50, 720p23.98*, 720p24*, 720p25*, 720p29.97*,
- 720p30*, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94,
- 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
- 1080psf23.98, 1080psf24
- * indicates unsupported input genlock reference format
- OPTIONS: DC, J, P, P2, UL, XLR.
-
- DC: DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
- J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
- P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" clear or black anodized Aluminum and chassis is 5" - 10" deep.
- P2: Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
- UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
- XLR: XLR Connector: The AES audio BNC connector is replaced with an XLR connector.
