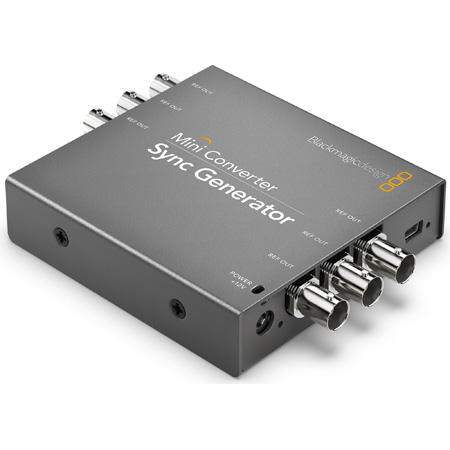

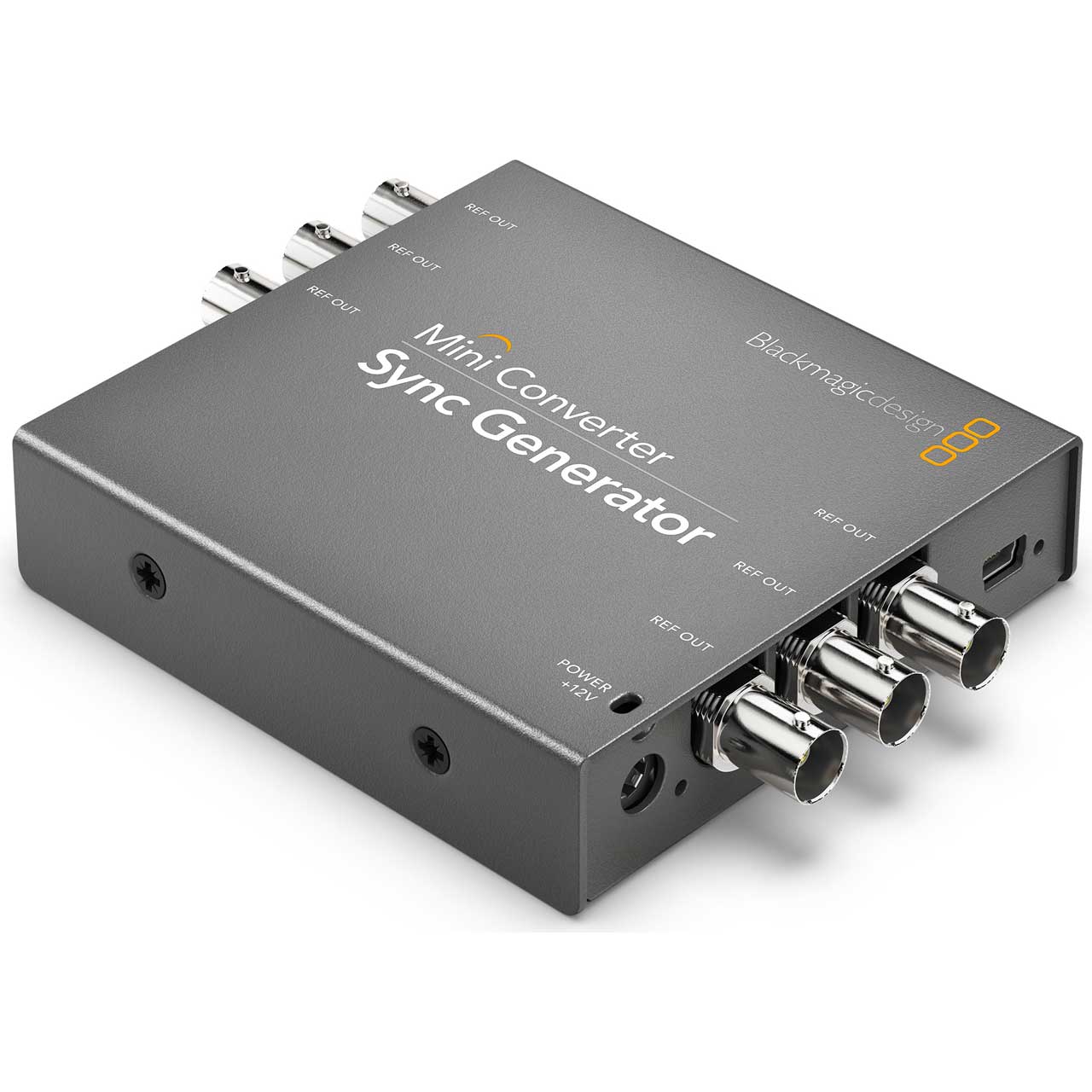

Blackmagic Design CONVMSYNC Sync Generator Mini Converter

ITEM #: BMD-CONVMSYNC MFG #: CONVMSYNC

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$215.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVMSYNC - Overview

The Blackmagic Design CONVMSYNC sync generator. The generator includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition,Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!

Space Saving:
Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.

Security:
This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.

Formats:
Analog Format Support: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60

HD or SD:
Tri-level high definition or standard definition black burst can be selected for the matching video format needed

  • Features:

    • Mini Converter Series
    • Six Output
    • Tri-Sync or Black Burst


  • Specifications:

    • Analog Format Support: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
    • Software: Software Control Mac™ and Windows™ software upgrade via USB.
    • Internal Software Upgrade: Via included updater application.
    • Operating Systems MAC 10.14 Mojave, MAC 10.15 Catalina or later, Windows 8.1 and 10,

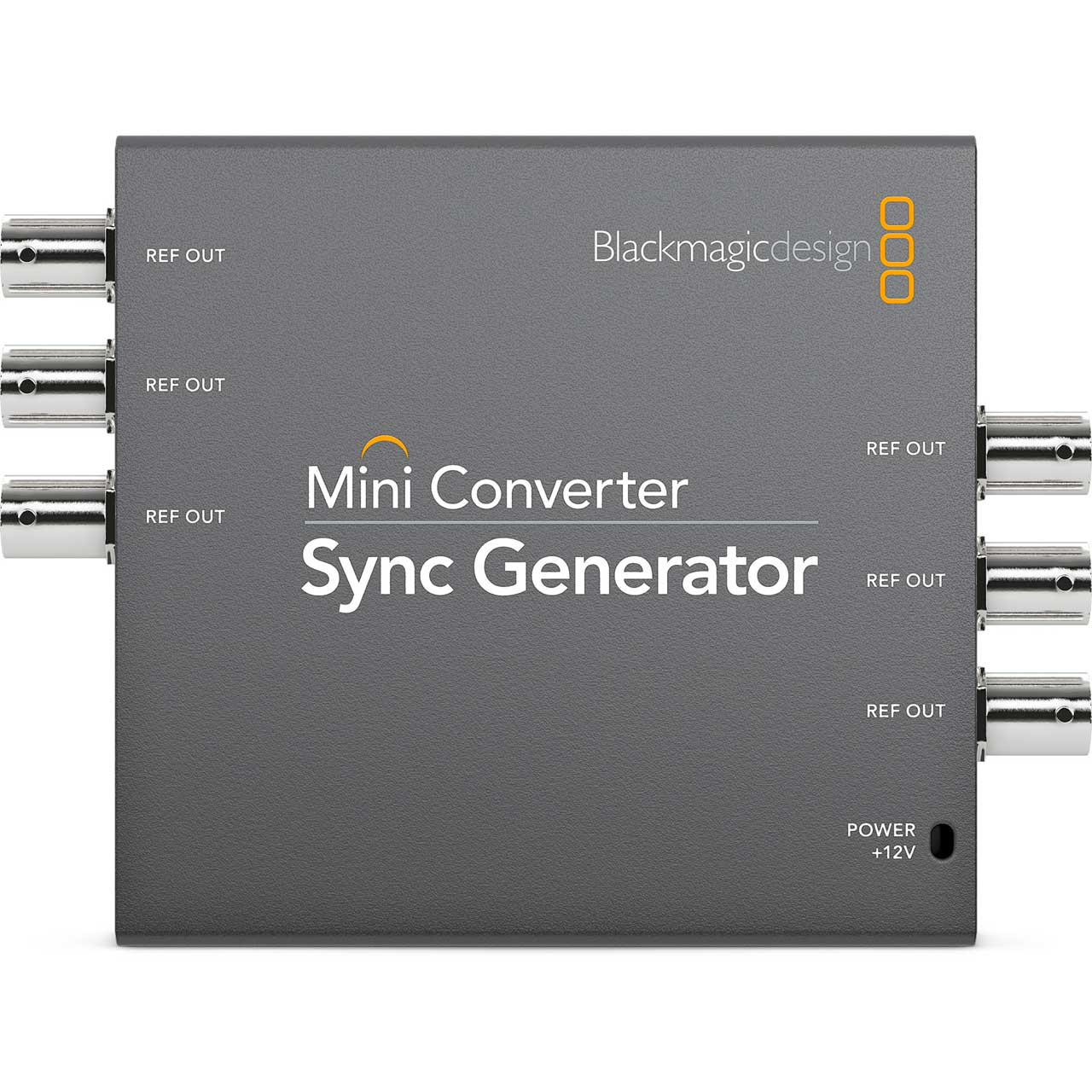

    • Output:Reference Output x6, Analog Black Burst or Tri-Level Sync, on BNC connectors.
    • Input:None.
    • Television System: 6

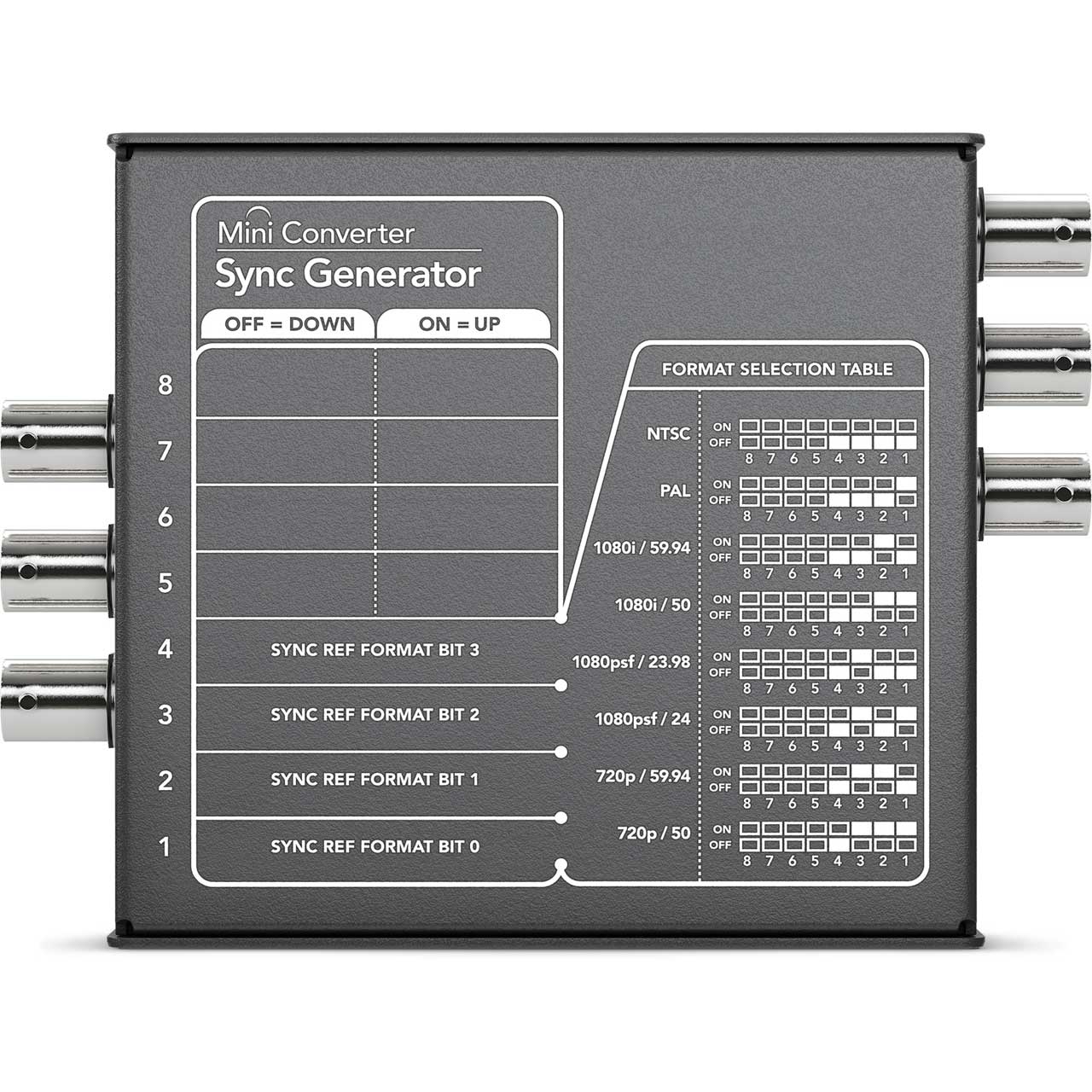

    • Control:Dip Switch Format Selection.
    • Power Source:12VDC on an AC Power Adapter.
    • Power Supply +12V universal power supply included with international socket adapters for all countries.
    • Power Consumption: 3.00 Watts
    • Operational Voltage Range: 12V DC
    • Environmental Specifications:
    • Operating temperature: 0° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing


  • Item Includes:

    • Blackmagic Design Sync Generator
    • Universal Power Supply
    • 1 Year Warranty


  • Warranty:

    • 3 Year Limited Manufacturer's Warranty.


  • GTIN:

    9338716000443
