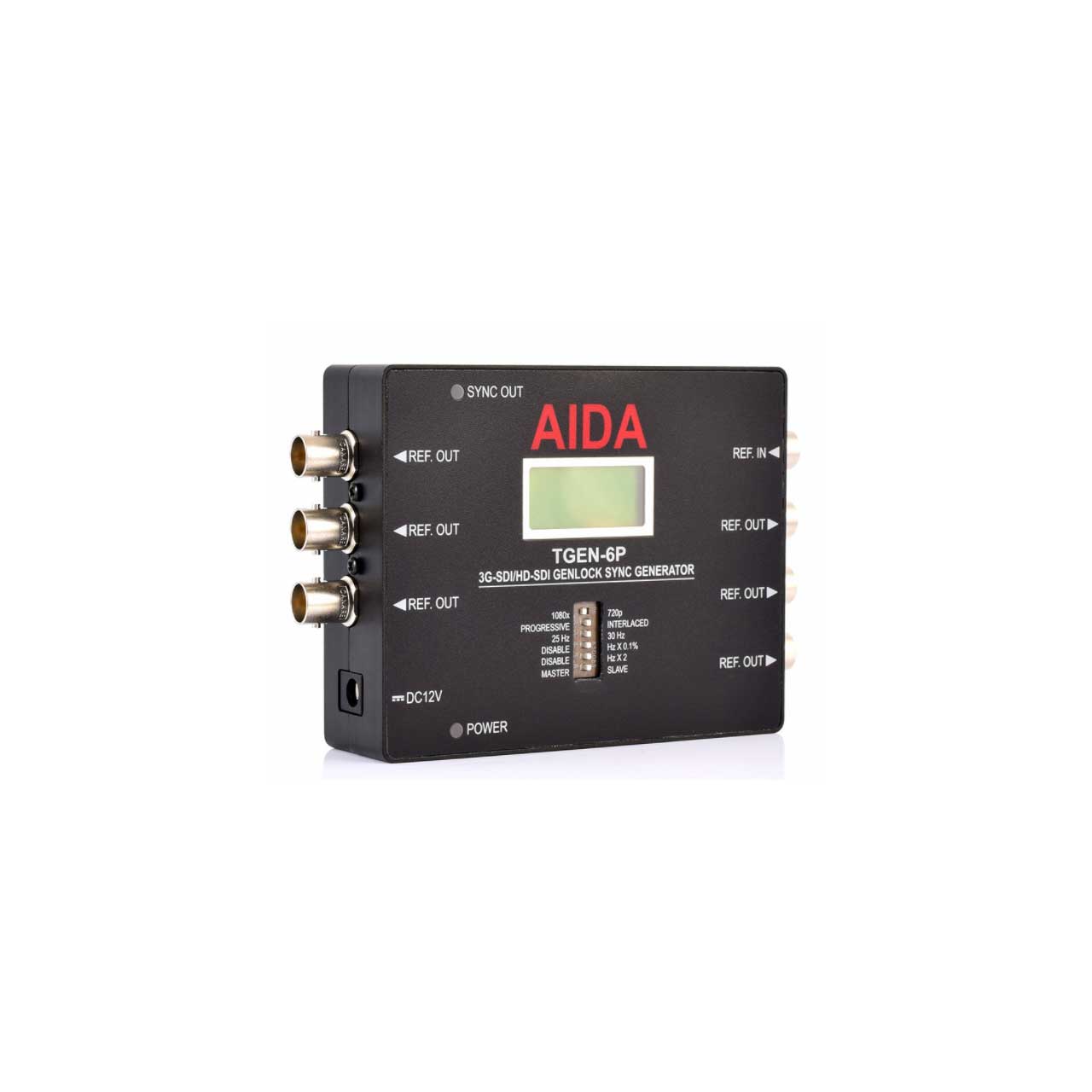

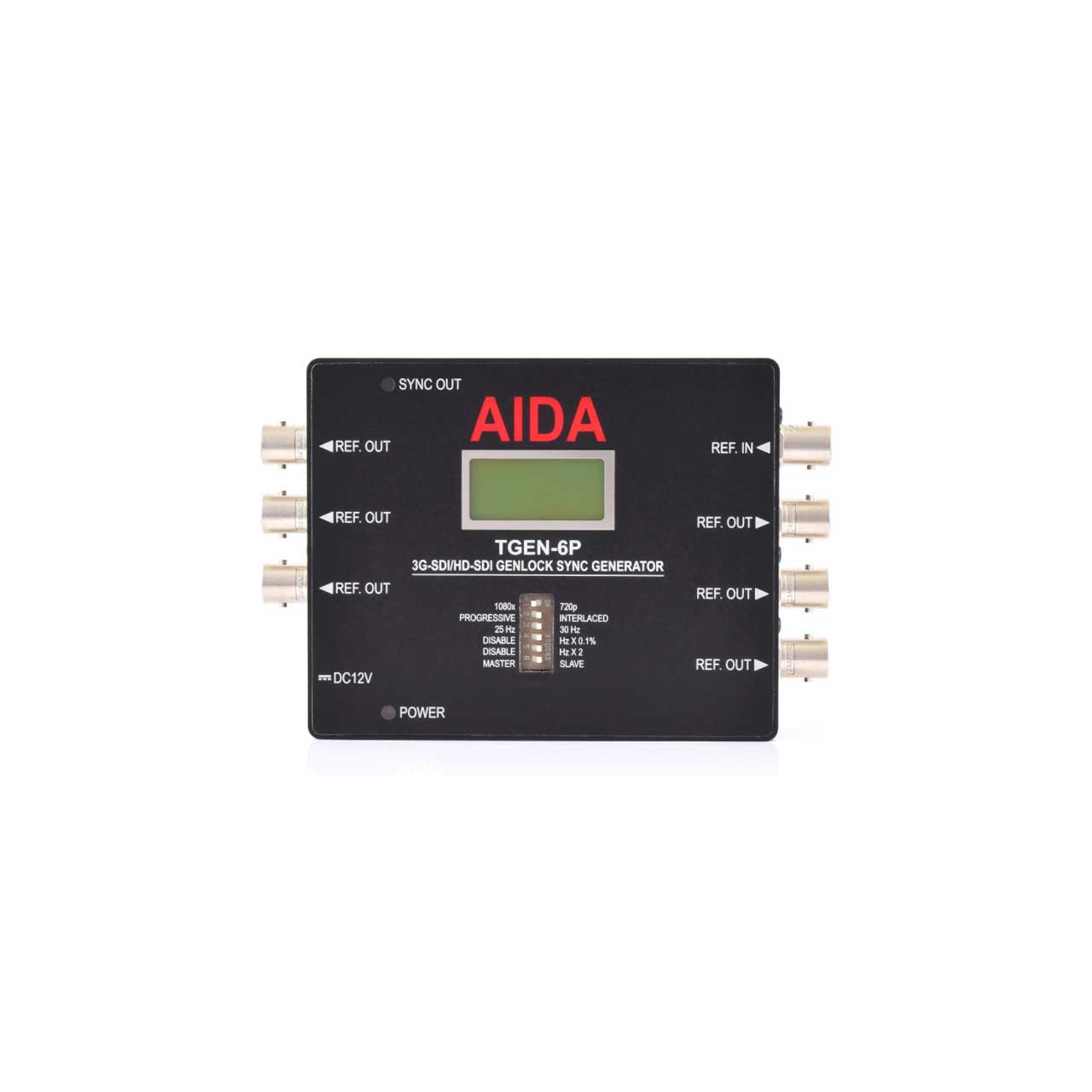

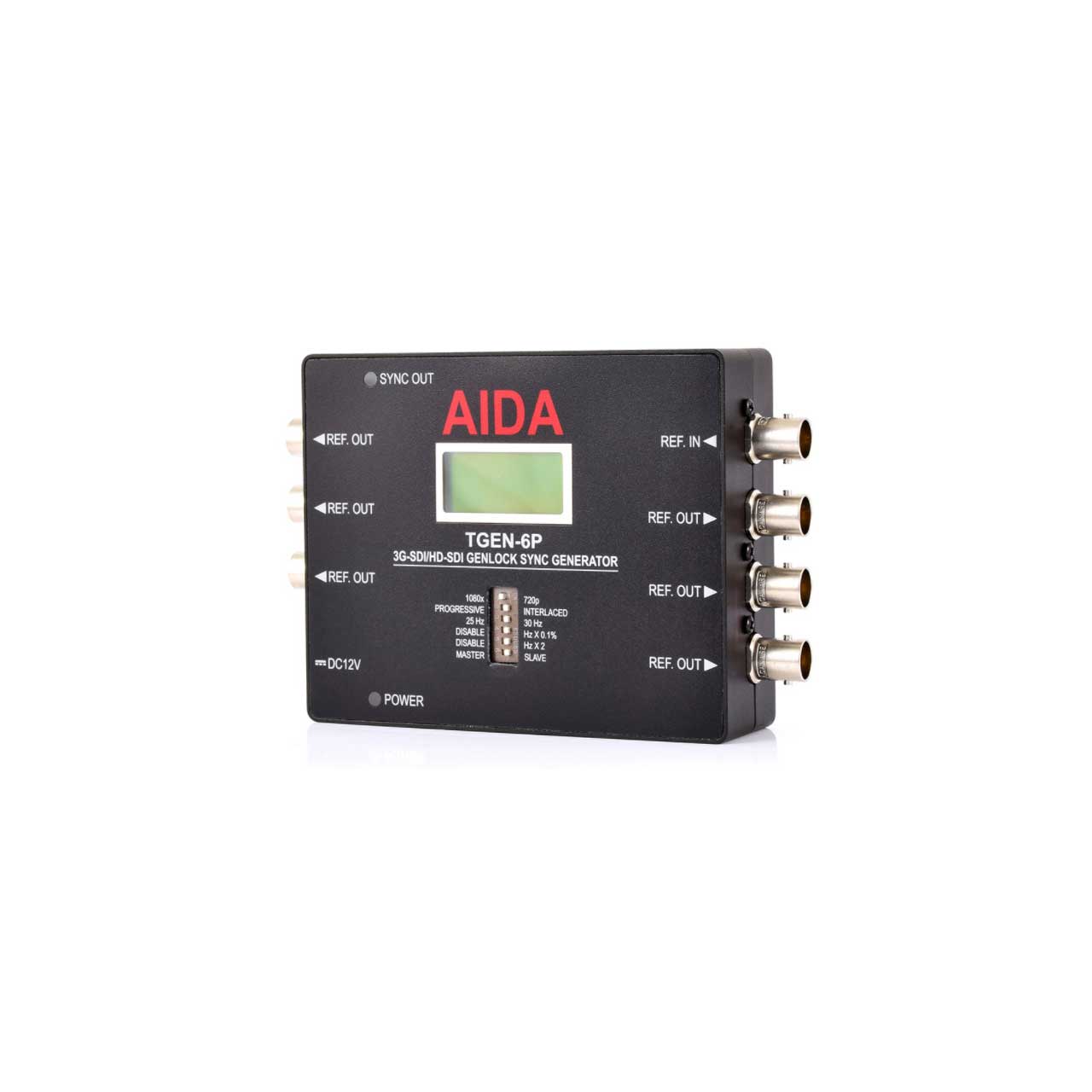

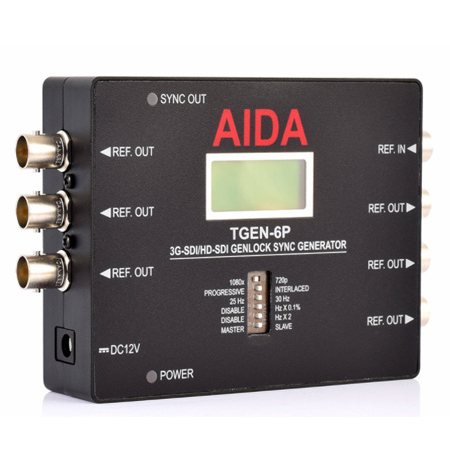

AIDA Imaging TGEN-6P 3G-SDI/HD-SDI Tri-Level Genlock Reference SYNC Generator

Name: AIDA Imaging TGEN-6P 3G-SDI/HD-SDI Tri-Level Genlock Reference SYNC Generator
Brand: Aida Imaging
SKU: AIDA-TGEN-6P
Price: 975.00 USD
Availability: PreSale

ITEM #: AIDA-TGEN-6P MFG #: TGEN-6P

Aida Imaging

Our Price:

$975.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TGEN-6P - Overview

Professional 3G-SDI Genlock Generator

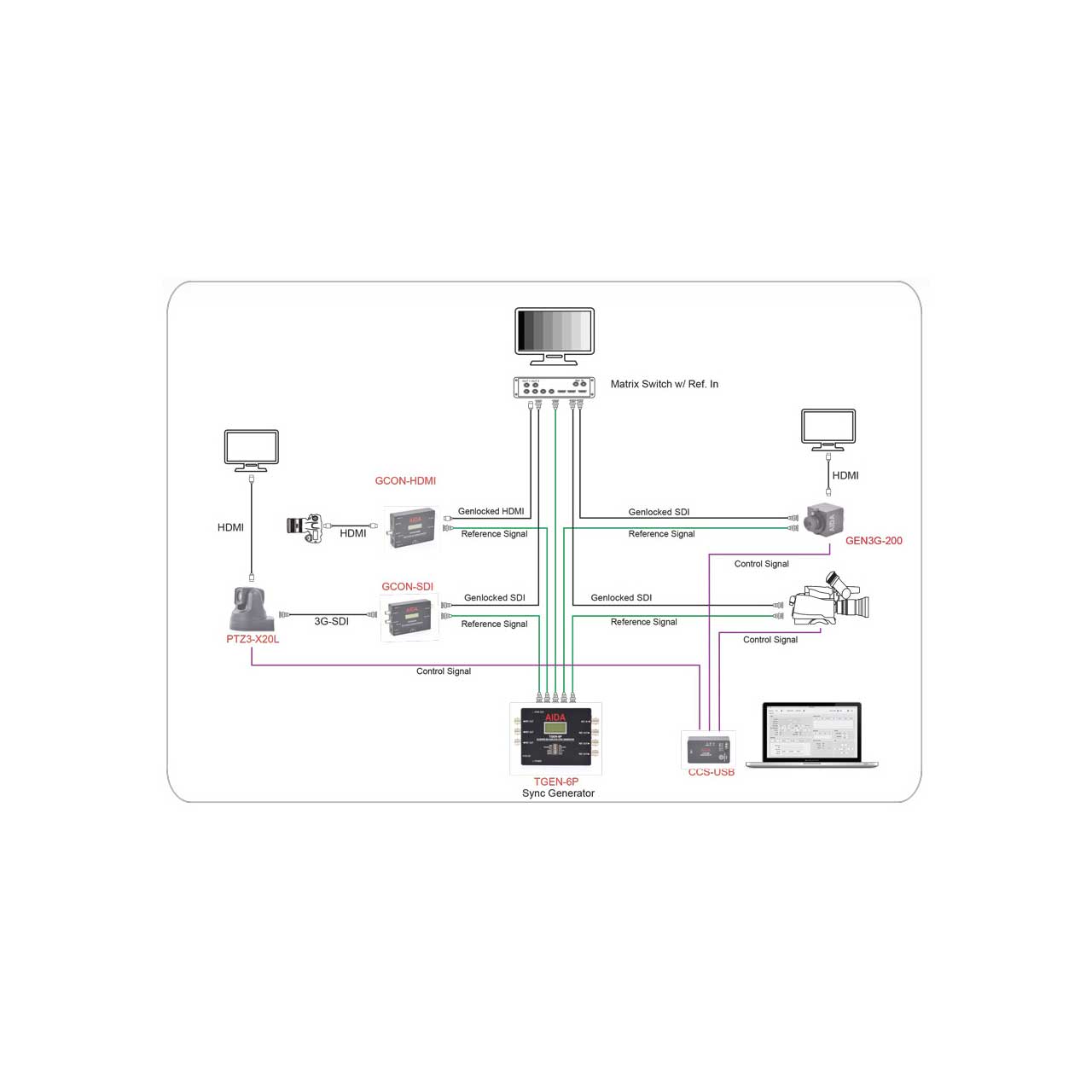

Synchronize all your video sources to one master sync signal. The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference, it supports 15 different formats from 720p 25Hz up to 1080p 59.94/60Hz. The TGEN-6P can be operated as Slave mode and distribute external reference Sync signal. TGEN-6P has built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users operate and maintain easily. This unit includes a DC12V Power supply.

Features:
- Multi format HD Tri Level Sync up to 1080p60
- Both V Sync and H Sync generation for more accurate timing
- Up to 6 synchronized reference output per device
- Slave mode for cascading

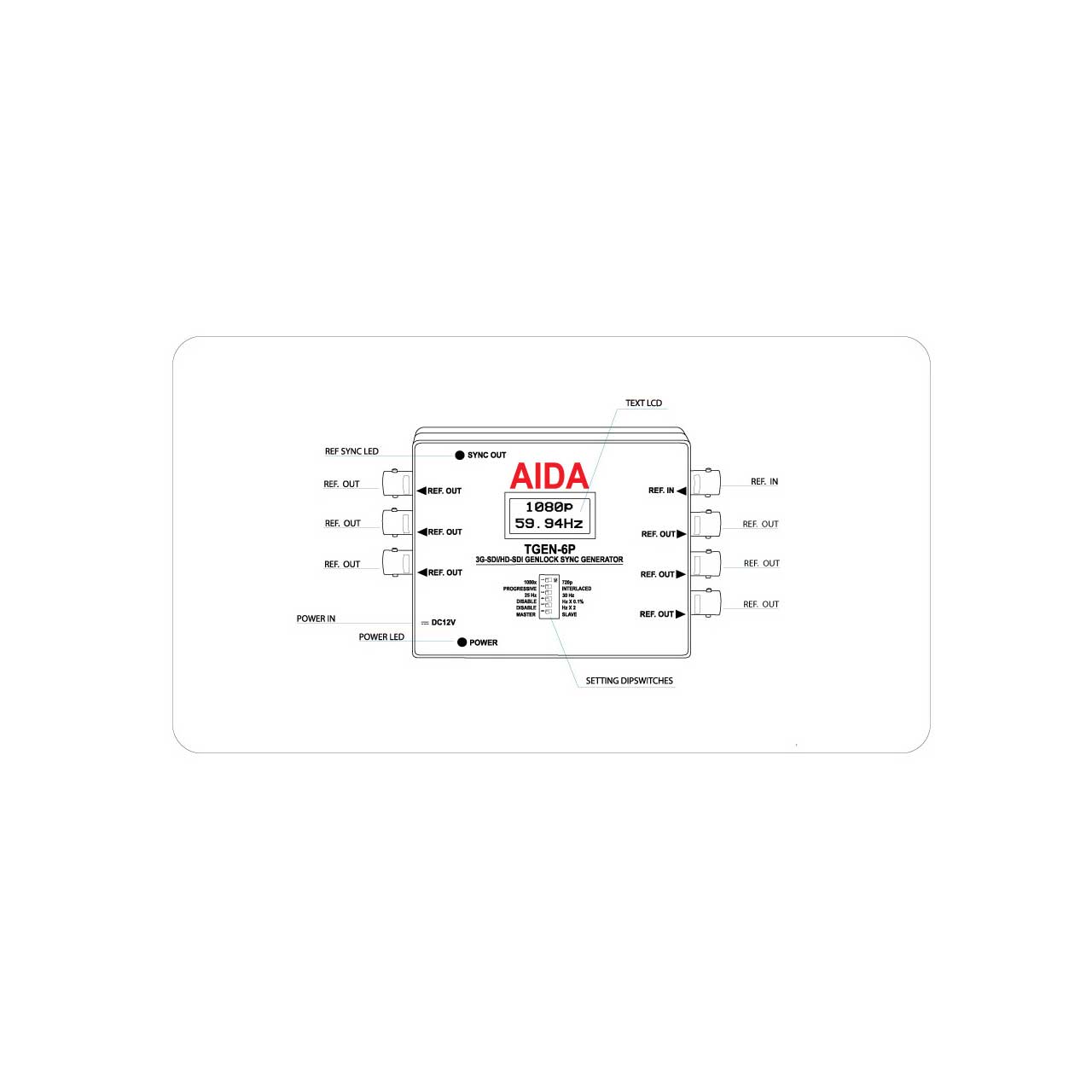

- Built in LCD screen
- Built in setting dipswitches
- Versatile, compact, and rugged design.
- DC12V Power Supply is included
Specifications:
- Synchronization
- Reference Out: Tri-Level HD
- Format: 1080p 60/59.94/50/30/29.97/25Hz; 1080i 60/59.94/50Hz; 720p 60/59.94/50/30/25Hz
- Accuracy: 2ppm
- Reference In: Tri-Level HD & Bi-Level SD
  Standard
- SMPTE: SMPTE 274M, SMPTE 296M
  Physical
- Control: Dipswitches & Text LCD
- Operation Temp: 32°F - 104°F
- Dimension: 129mm x 86m x 29mm / 5.07" x 3.38" x 1.10"
- Weight: 278g / 0.61Lbs
- Power: 12VDC (+9 - +15VDC)
Item Includes:
- DC12V Power Supply
GTIN:
0710928970551
