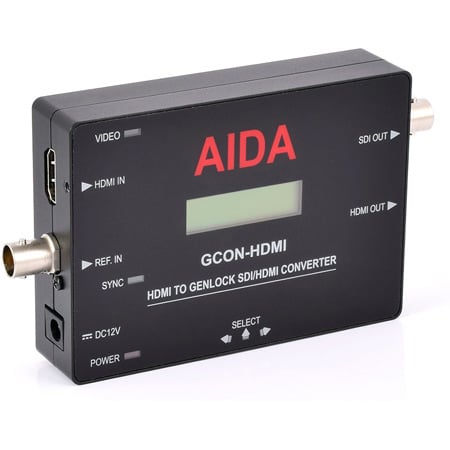

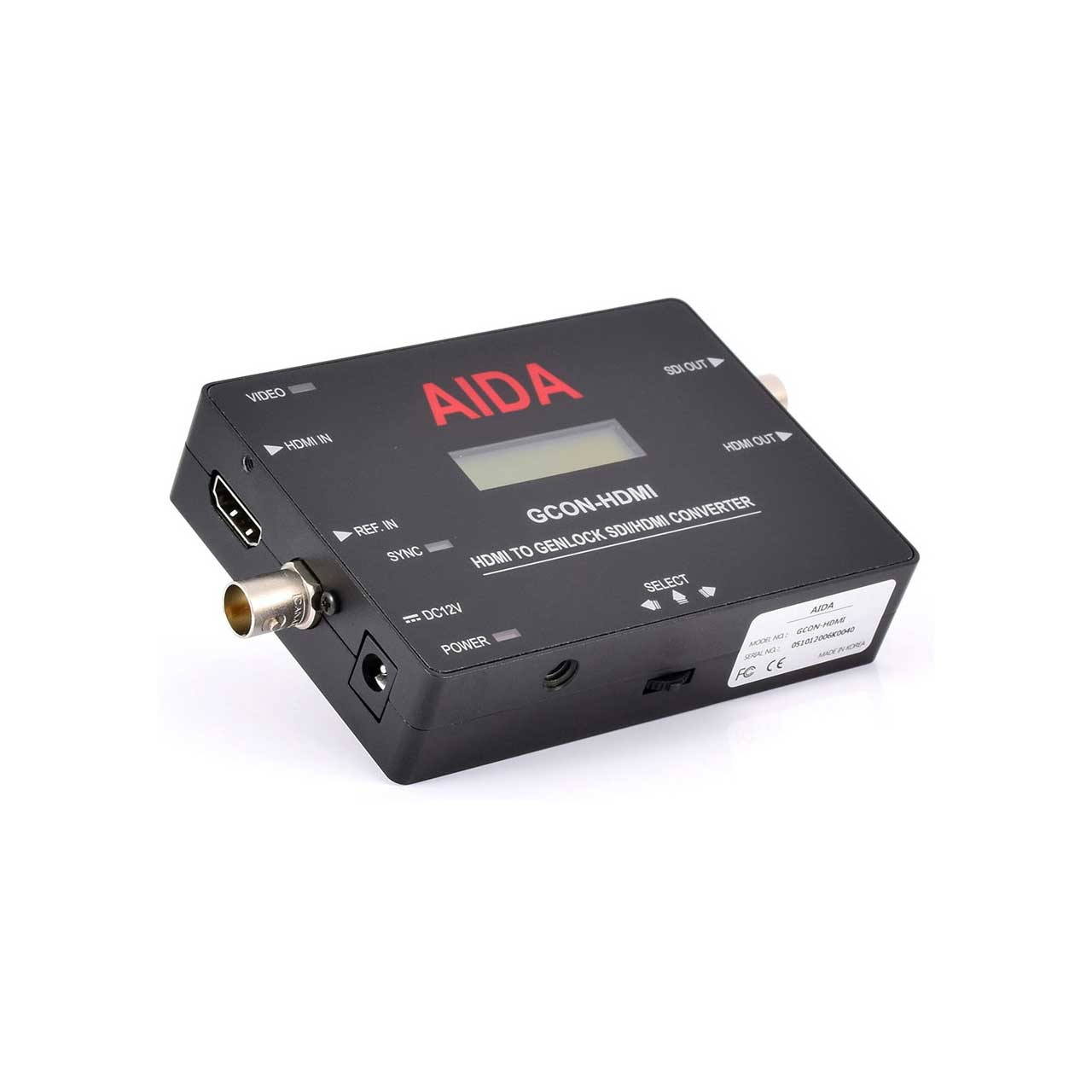

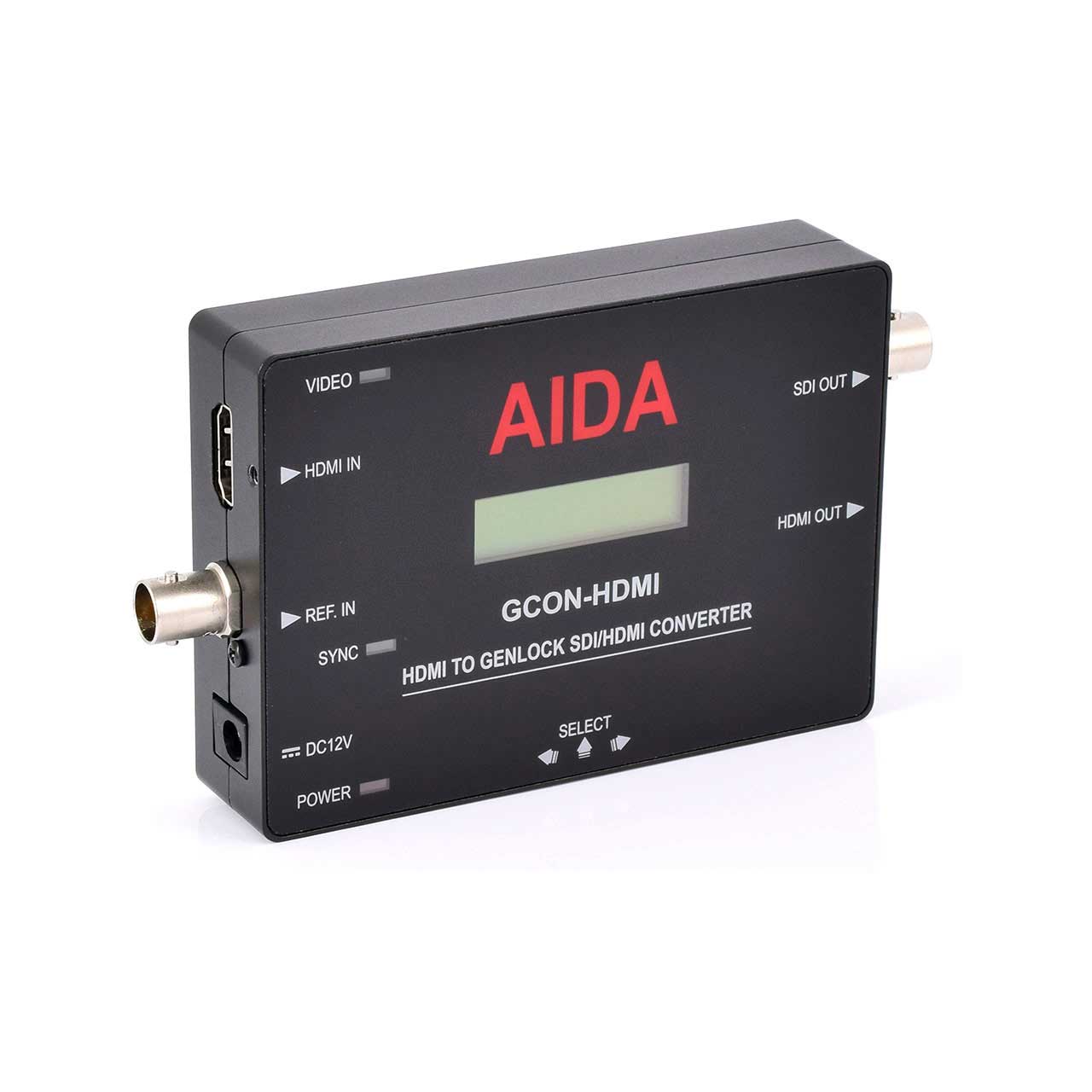

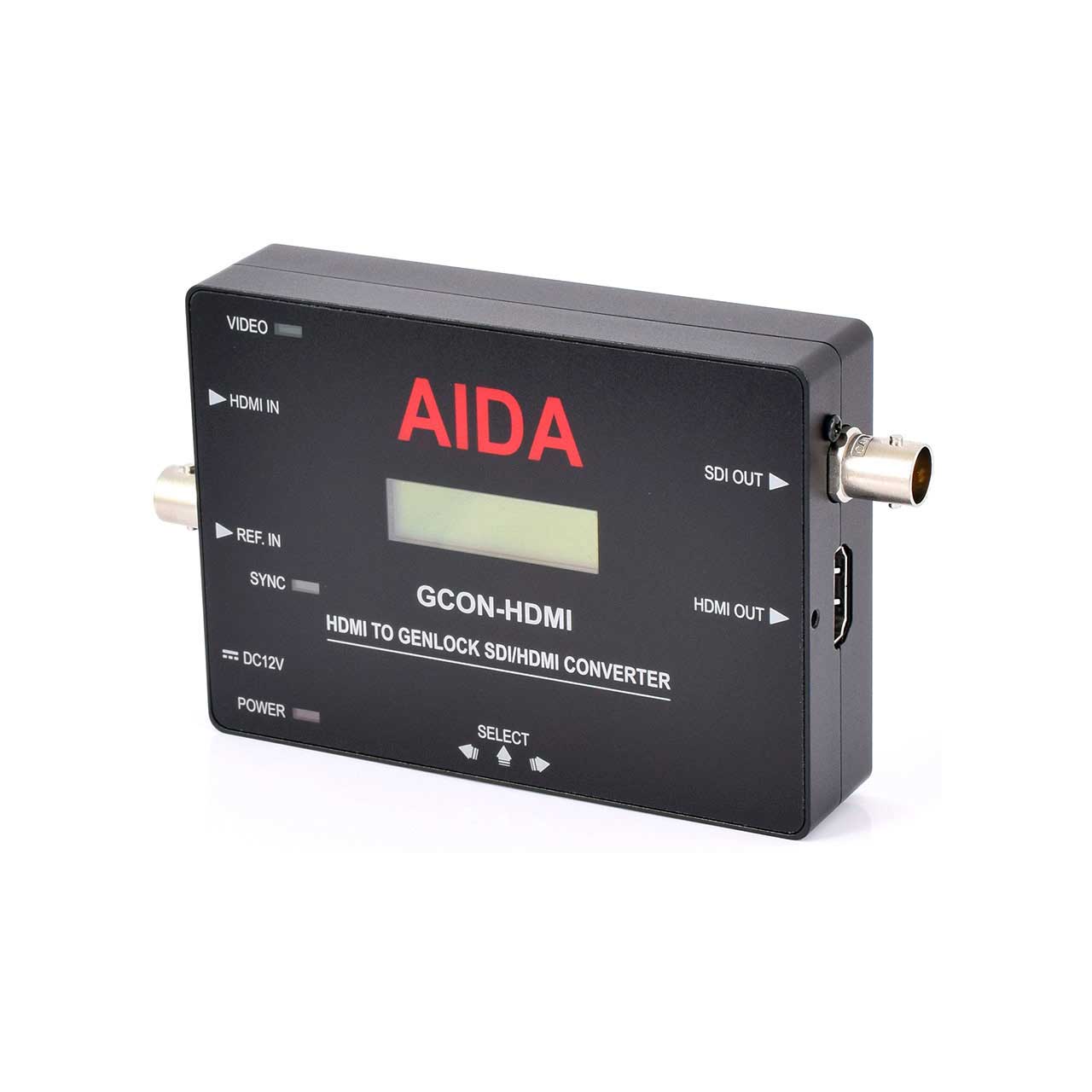

AIDA Imaging GCON-HDMI HDMI to Genlock SDI/HDMI Converter

ITEM #: AIDA-GCON-HDMI MFG #: GCON-HDMI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Aida Imaging
Free Shipping with $49 Minimum Order

Our Price:

$495.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

GCON-HDMI - Overview

The Perfect Camera Sidekick - Professional HDMI Genlock Converter

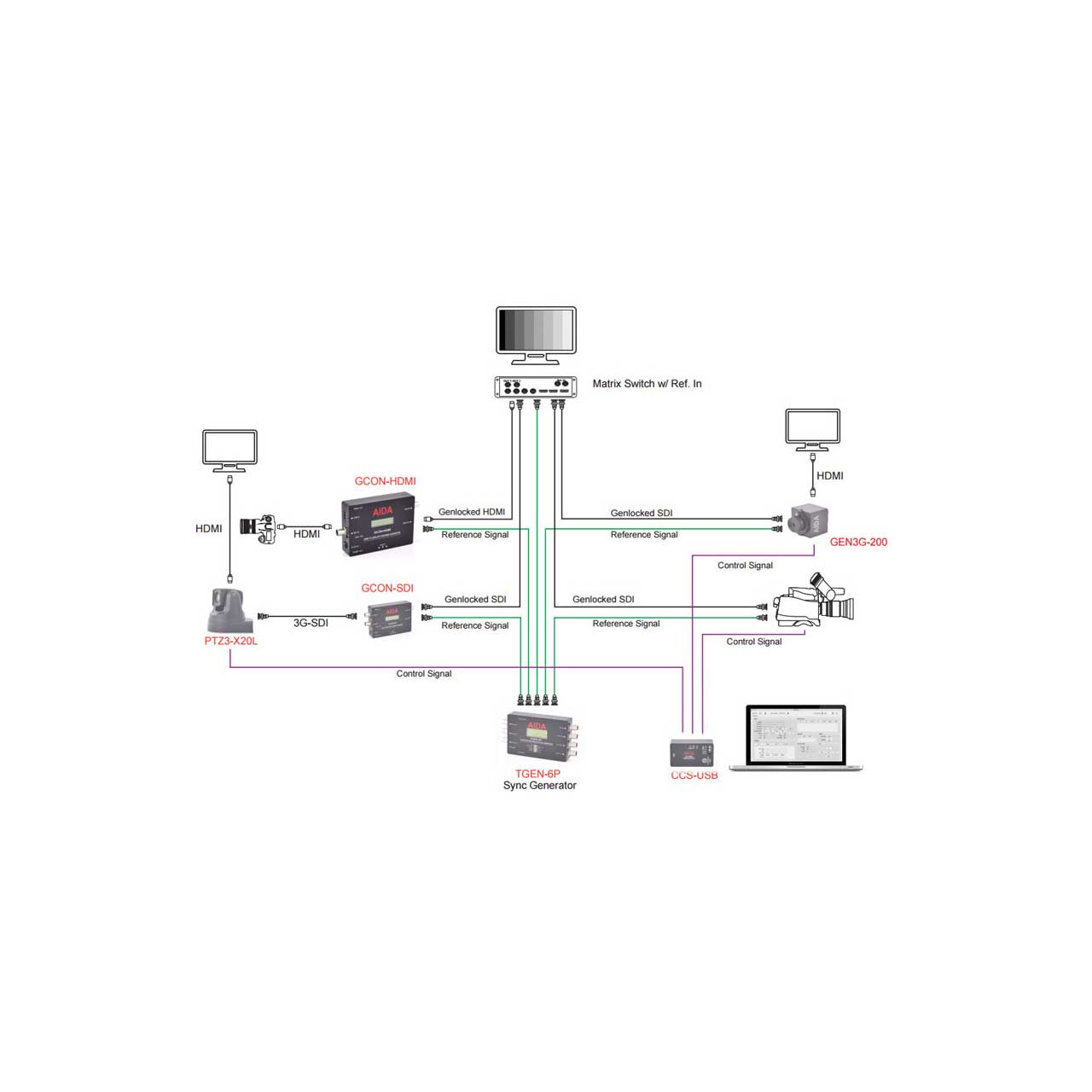

Aida's GCON-HDMI converts HDMI sources to Genlock SDI/3G-SDI and HDMI with zero latency, keeping the integrity of the original source feed intact. GCON-HDMI supports 1080p resolutions up to 60 fps. The Tri-Level Sync Genlock featured in the GCON-HDMI syncs with other system components for seamless vertical interval switching between sources. GCON-HDMI supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-HDMI a perfect camera sidekick to where it's needed most.

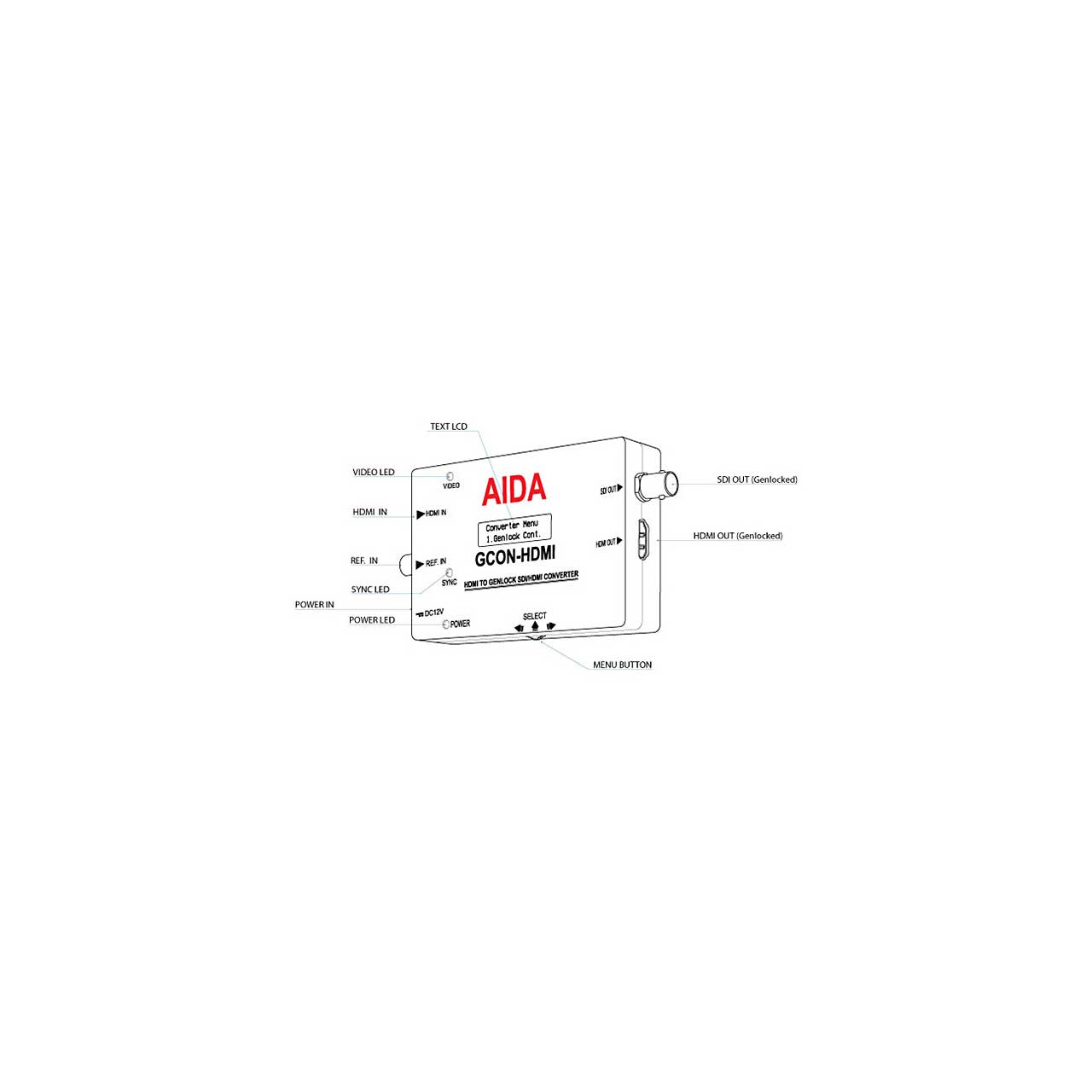

  • Features:

    • HDMI up to 1080p60 full HD Resolution Input
    • Simultaneous SDI and HDMI Loop Output
    • Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
    • SMPTE 352M Ancillary Data supported
    • Embedded audio pass through via SDI & HDMI
    • Adjustable V-sync & H-sync phases
    • Divisional picture comparison
    • Built in Pattern Generator
    • Built in LCD menu screen
    • Built in menu control button
    • Versatile, compact, and rugged design


  • Specifications:

    • Video Input: HDMI 1.3
    • Resolution/Rate: 1080 60p/59.94p/50p/30p/29.97p/ 25p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p/30p/25p
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Video Output: Genlocked HD-SDI/3G-SDI; Genlocked HDMI 1.3a
    • Genlock Control: ON/OFF H Sync & V Sync Adjustment
    • Audio Control: Audio Bits (16, 20, 24 Bits)
    • Payload ID: ON/OFF
    • Pattern Generate: Thirteen Patterns
    • Audio Input: 8 Channels Embedded HDMI Audio
    • SMPTE: SMPTE 292M, SMPTE 424M
    • Genlock: External Tri-Level Input
    • Control: OSD Button & Text LCD
    • Operation Temp: 32° F - 104° F
    • Dimension: 5.11 in x 2.95 in x 0.94 in(130mm x 75m x 24mm)
    • Weight: 0.38 lbs (173 g) (With default 3.6mm Lens)
    • Power: 6W at 12VDC (+9 - +15VDC)


  • GTIN:

    0697691536385
