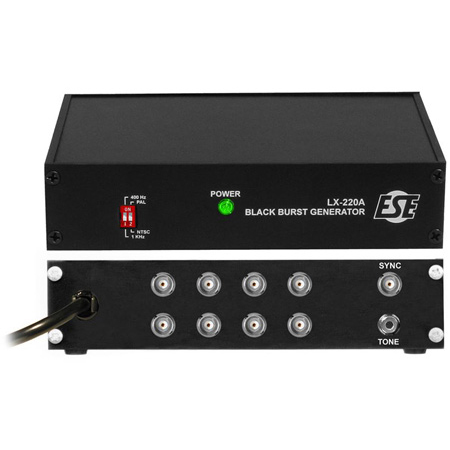

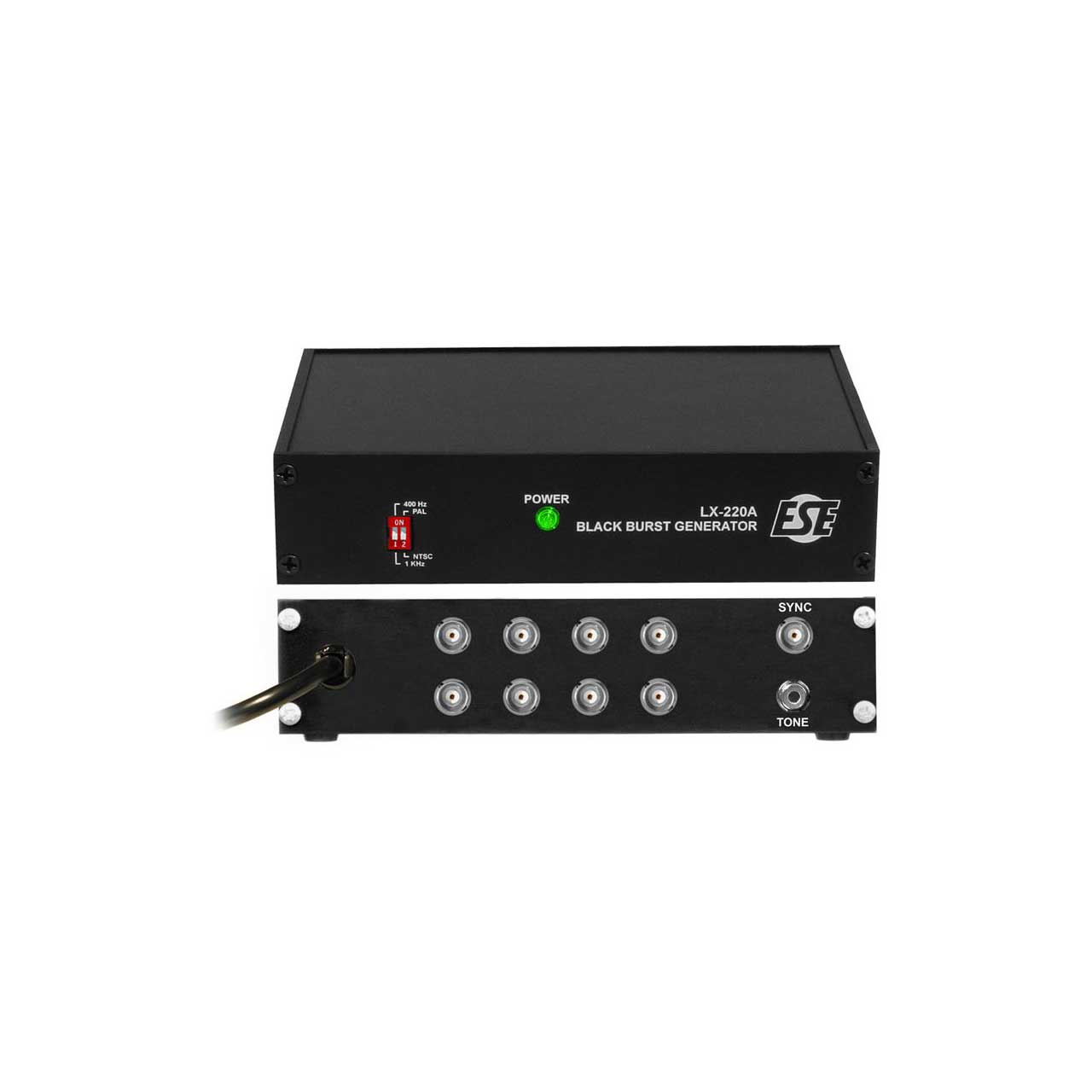

ESE LX 220A-P NTSC Black-Burst / Sync Generators with 19 Inch Rack Mount Option

ITEM #: LX-220A-P MFG #: LX 220A-P

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$550.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


LX 220A-P - Overview

The LX-220A provides a convenient source of composite black-burst for preblacking tapes or for synchronization purposes. Eight isolated outputs are provided on rear mounted BNC connectors. The output signal consists of sync, blanking, reference black setup level and color burst which is SCH phased. The LX-220A employs a temperature-compensated crystal oscillator for high stability. A sinewave tone, at 0 dbm (2.2 vpp), is accessible on the rear-mounted RCA connector. The frequency of the tone is selectable (400 Hz or 1 KHz) with a front panel DIP switch. The other front panel DIP switch allows the unit to be switched between NTSC (RS-170A) and PAL composite video.

The P option is a 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.

  • Features:

    • Enhanced Quality Black-Burst / Sync Generator
    • 8 Isolated Black-Burst outputs (BNC connectors)
    • Audio Reference Tone (1 KHz & 400 Hz @ 0dbv, RCA connector)
    • Optional Sync output
    • Optional Single or Dual (side by side) Rackmount
    • 220V & UL options available
    • NTSC (RS-170A) or PAL

  • Specifications:

    • Outputs: 8 Composite, BNC, 75Ω, RS-170A or PAL Sync and burst 40 IRE, Setup 7.5 IRE 1-Tone (400Hz or 1 KHz ), RCA
    • Video Level: 75% amplitude, 75% saturation (NTSC); 75% amplitude, 100% saturation (PAL)
    • Output Impedance: 75Ω
    • Differential Gain: 0.8%
    • Differential Phase: 0.8°
    • Hue Accuracy: 1.0°
    • Saturation Accuracy: 1.0%
    • Enclosure: Desk-Top, Black Anodized Aluminum
    • Dimensions (H x W x D): 1.6" x 7" x 5"
    • Tone: 400 Hz or 1 KHz Sine Wave (selectable), 0 dbm, RCA
    • Electrical: 117 VAC, 50/60 Hz
    • Power: 5W maximum
    • Options: J, P, P2, Sync, UL
