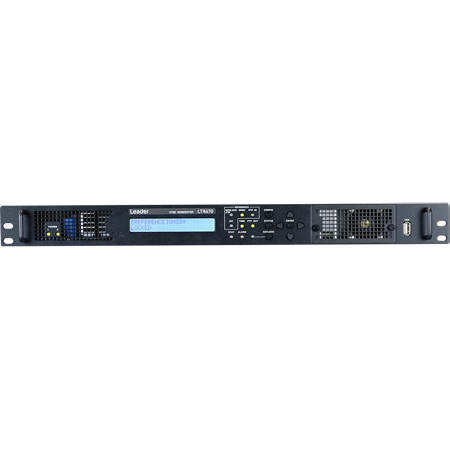

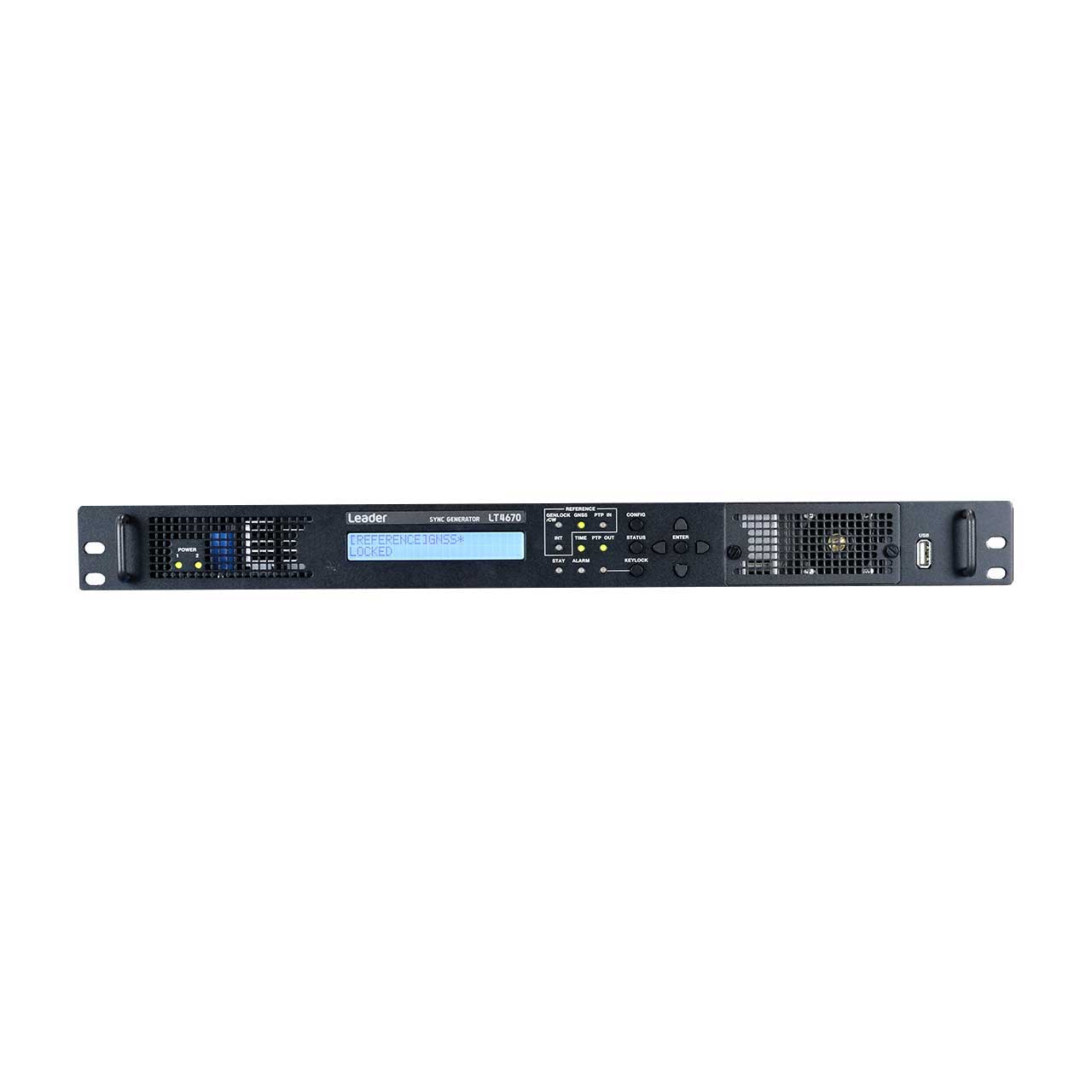

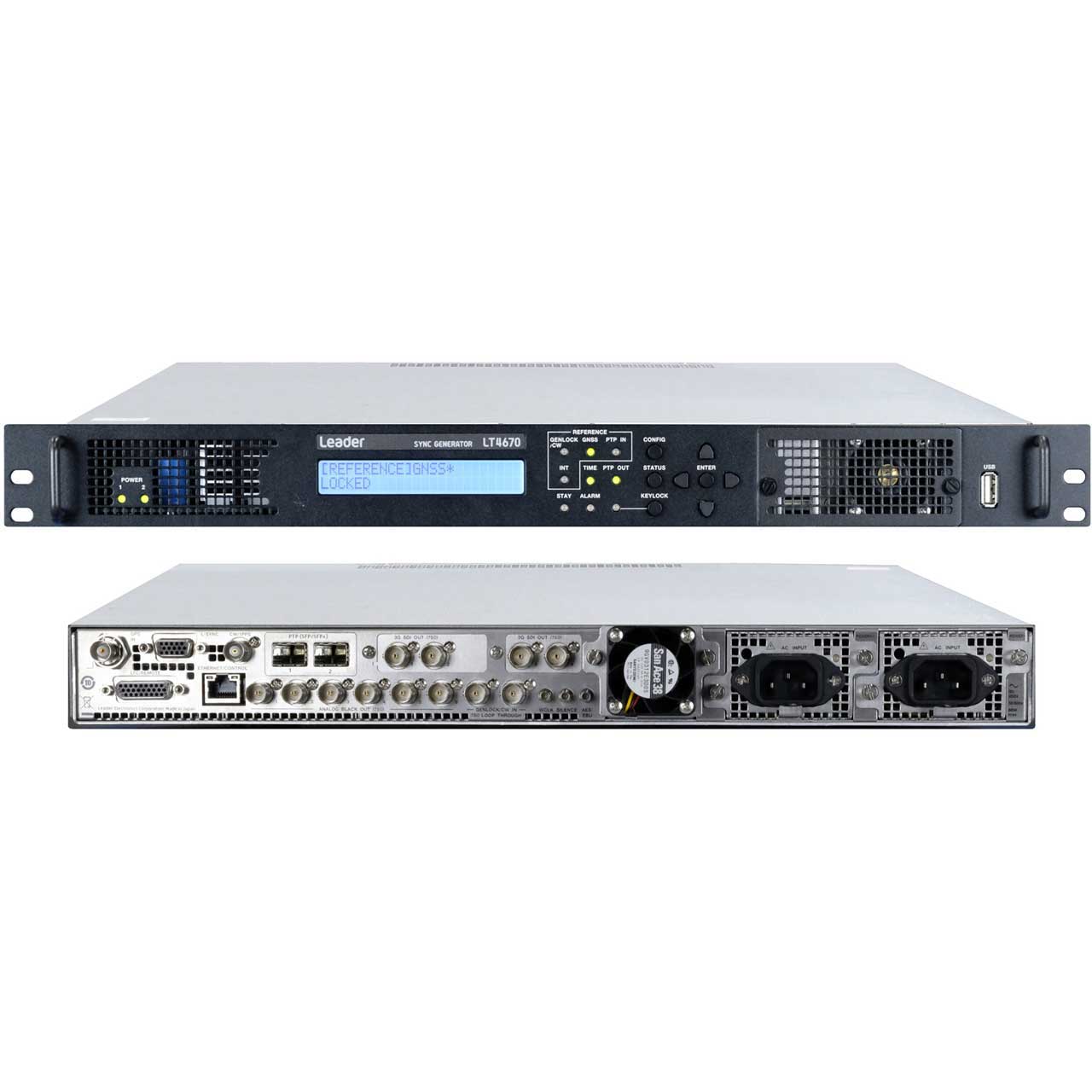

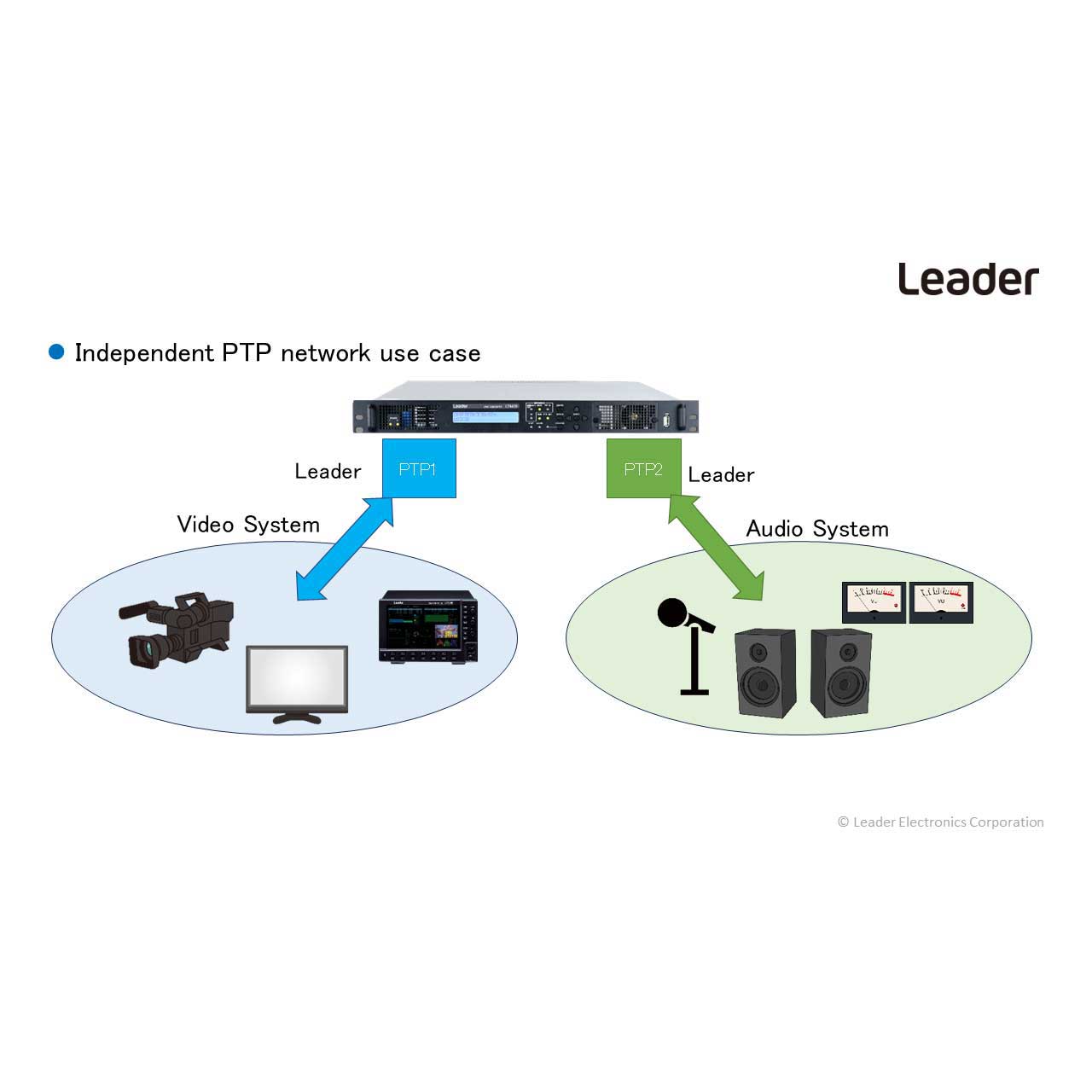

Leader LT4670 1RU 3G/HD/SD/4K/SDI Sync Generator with Genlock Function and Word Clock Output

LT4670 - Overview

• Features:

  • Genlock Function
  • Stay-in-sync and slow lock functions
  • Six independent analog video sync signal outputs
  • Word Clock Signal Output
  • AES/EBU signal output
  • CW or 1PPS output
  • Time code output
  • GPIO pin
  • Synchronous control between devices (L-SYNC)
  • Ethernet
  • Preset and Memory Functions
  • Redundant power supply and non-stop power supply and fan replacement


• Specifications:

  • Power Supply Unit
  • Number of Units in Main Unit
    - Standard: 1
    - Maximum: 2 (When LT4670-SER11 is installed)
  • Power Supply Redundancy: When LT4670-SER11 is installed
  • Replacement Method: The installed LT4670-SER11 can be replaced without turning off the power of the main unit.
  • Alarm: A power supply alarm is indicated on the LED and LCD and notified by an SNMP trap.

    Fan Unit
  • Number of Fans: 2 (one on front, one on rear)
  • Replacement Method: The fan can be stopped using the panel and replaced without turning off the power of the main unit.
  • Alarm: A fan alarm is indicated on the LED and LCD and notified by an SNMP trap.

    Corresponding Standard
  • Analog Video Sync Signal
    - NTSC Black Burst Signal: SMPTE ST 170, SMPTE ST 318, SMPTE RP 154
    - PAL Black Burst Signal: ITU-R BT 1700, EBU N14
    - HD Tri-level Sync Signal: SMPTE ST 240, SMPTE ST 274, SMPTE ST 296
  • AES/EBU Signal: ANSI S4.40, AES3-2009, AES11-2009, SMPTE ST 276
  • LTC Signal: SMPTE 12M-1
  • Phase Management: SMPTE ST 2059-1

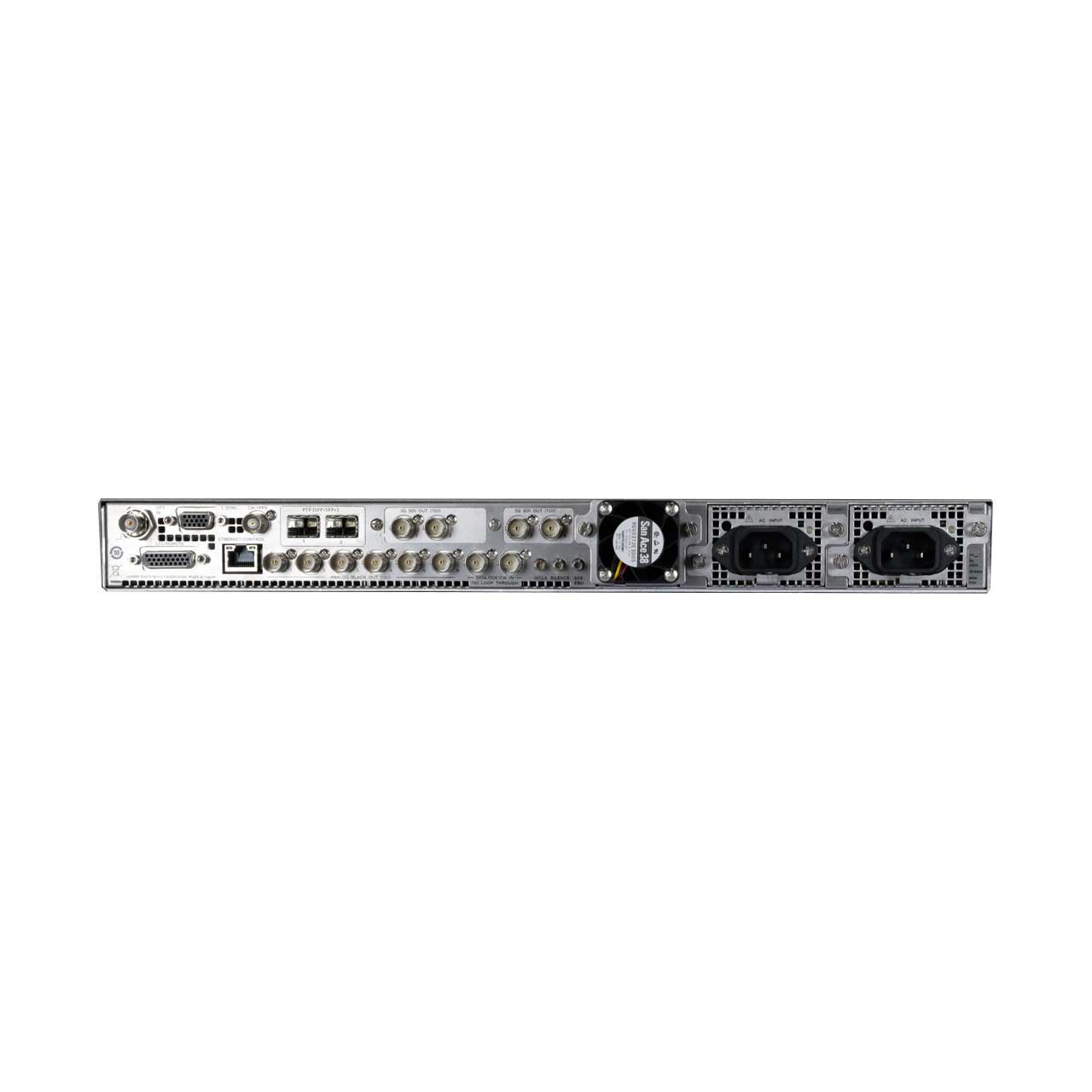

    I/O Connectors
  • Genlock Input Connector
    - Connector: 2 BNC connectors
    - Input Signal: Analog composite sync signal
    - HD Tri-level Sync Signal: Analog composite sync signal
    - Format: Loop-through
    - Input Impedance: 47 kω
    - Maximum Input Voltage: ±5 V (DC + peak AC)
    - Operating Input Level Range: ±6 dB
    - External Lock Range: ±5 ppm
    - Jitter: 1 ns (when genlock is in use)
  • 10 MHz CW Input Connector
    - Connector: 1 BNC connector (used in combination with the genlock input connector)
    - Input Impedance: 47 kω (used with 50 ω terminated to the loop-through)
    - Input Signal Level: 0.5 - 1 Vrms (50 ω termination)
    - Input Signal Frequency: 10 MHz
    - Locking Frequency Range ±5 ppm
  • 10 MHz CW/1PPS Output Connectors
    - Connector: 1 BNC connector (used in combination with 10 MHz CW and 1PPS)
    - 10 MHz CW 2 Output Amplitude Signal Level: ± 20% (1 Vrms) for square waves; 50 ω termination
    - 1PPS Output Amplitude Signal Level: 4.8 ± 0.5 V (no termination, high level)/2.4 ± 0.25 V (50 ω termination, high level)
    - Output Impedance: 50 ω unbalanced
    - Output Signal Frequency: 10 MHz/1PPS

    LTC I/O Connector
  • Connector: D-sub 26-pin (female)
  • LTC
    - Number of Inputs: 1
    - Input Impedance: 1 kω (balanced)/ 500 ω (unbalanced)
    - Input Signal Level: 0.5 - 4 Vp-p
    - Number of Outputs: 3
    - Output Impedance: 24 ω balanced
    - Output Signal Level: 2 Vp-p ± 10%
  • Analog Video Sync Signal Output Connector
    - Connector: 6 BNC connectors, 6 outputs
    - Output Signal: NTSC black burst signal, PAL black burst signal, HD tri-level sync signal
    - Output Impedance: 75 ω
  • Sync Level
    - NTSC 40±1IRE
    - PAL -300±6mV
    - HD ±300±6mV
    - Blanking 0 ± 15 mV
  • AES/EBU Digital Audio Output Connector
    - Connector: 1 DIN 1.0/2.3 connector
    - Output Amplitude: 1 Vp-p ± 0.1 V
    - Output Impedance: 75 ω unbalanced
  • AES/EBU Silence Output Connector
    - Connector: 1 DIN 1.0/2.3 connector
    - Output Amplitude: 1 Vp-p ± 0.1 V
    - Output Impedance: 75 ω unbalanced
  • Word-Clock Output Connector
    - Connector: 1 DIN 1.0/2.3 connector
    - Output Frequency: 48 kHz
    - Output Amplitude: 4.8 V or more (no termination, high level)/ 2.4 V or more (75 ω termination, high level)


• Warranty:

  • 2 Year Warranty
