ESE DV-319 HD/SD Sync Generator

Name: ESE DV-319 HD/SD Sync Generator
Brand: ESE
SKU: ESE-DV319
Price: 375.49 USD
Availability: InStock

ITEM #: ESE-DV319 MFG #: DV-319

ESE

Versions:

Versions

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$395.00

Our Price:

$375.49

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DV-319 - Overview

HD/SD Sync Generator

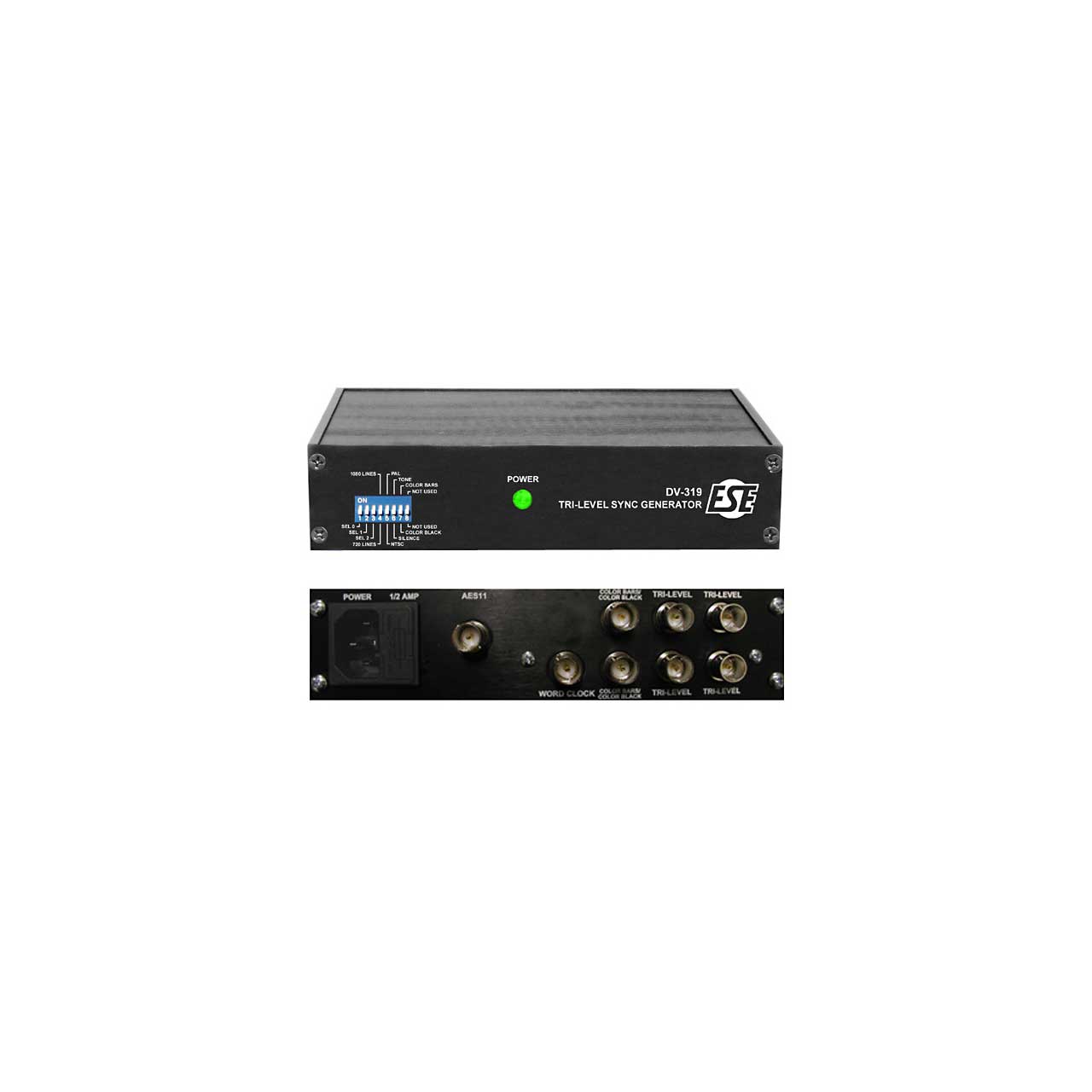

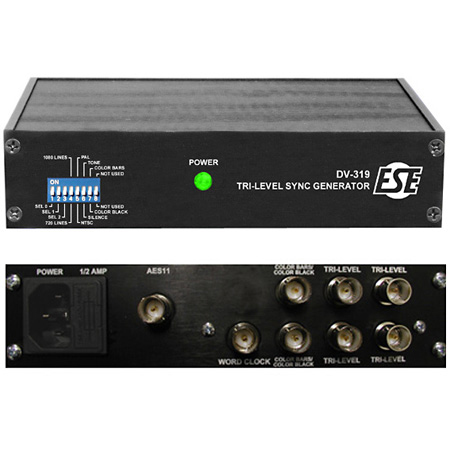

The DV-319 is an HD/SD Sync Generator. Features of the DV-319 include four HD sync outputs. These outputs produce an HD tri-level sync output. Eighteen HD output formats are supported on the DV-319. Also supplied are two SD sync outputs that can be switched between color black or color bar outputs. An AES11 output and a Wordclock output are also standard features on the DV-319. The AES11 output may be switched between silent and tone modes. All outputs are provided on rear panel BNC connectors. Front panel dip switches allow the user to configure the various outputs.

Features:
- 4 HD Sync Outputs (BNC)
- 2 SD Color Black/Color Bar outputs
- AES11 Output - Tone or Silent
- Wordclock Output (48 KHz)
- 18 HD Formats
  DV-319 Options
- DC: DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
- J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
- P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" clear or black anodized Aluminum and chassis is 5" - 10" deep.
- P2: Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
- UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
- XLR: XLR Connector: The AES audio BNC connector is replaced with an XLR connector.
  *Note: If you'd like to add a genlock input that accepts tri-level or bi-level signals take a look at the ESE DV-321 (Our Part # ESE-DV321) Genlockable HD/SD Sync Generator.
Specifications:
- POWER: 110 - 120 VAC, 50 - 60 Hz, 5 Watts maximum
- MECHANICAL: Desktop Enclosure 1.6" H x 7" W x 5" D
- SD SYNC OUTPUTS: Color black or color bars; 2 BNCs
- HD SYNC OUTPUTS: Tri-level; 4 BNCs
- AES11 OUTPUT: Silence or tone (1kHz)
- Impedance: 75O
- Single ended, 1 Vpp into 75O, 1 BNC
- WORD CLOCK OUTPUT: 48 kHz, 0 - 5 V, 1 BNC
- DV-319 FORMATS: 525i60, 625i50, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50,
- 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98,
- 1080p24, 1080p25, 1080p29.97, 1080p30, 1080psf23.98, 1080psf24
