Burst SG-2 NTSC Composite Black Burst Generator

ITEM #: SG-2B/N MFG #: SG-2B/N

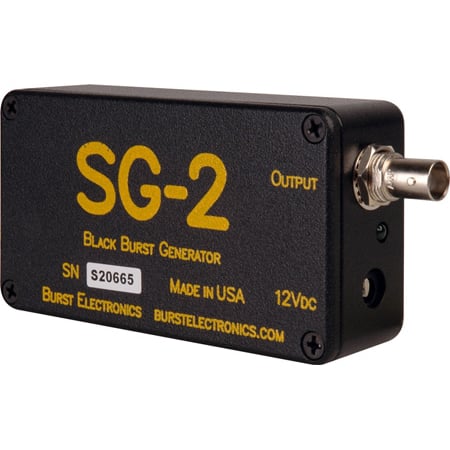

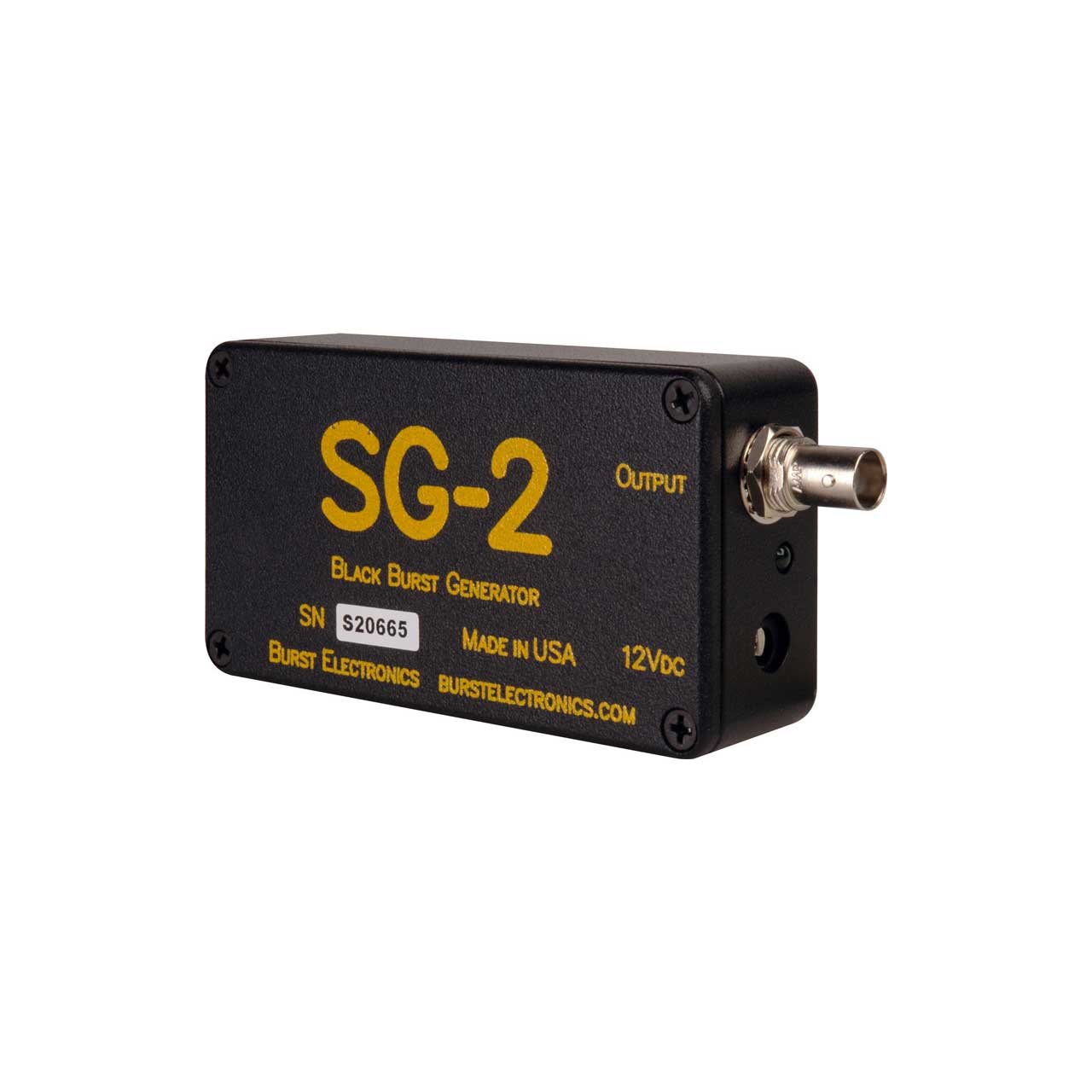

Primary Image
Burst Electronics
Free Shipping with $49 Minimum Order

List Price:

$371.25

Our Price:

$315.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SG-2B/N - Overview

The SG-2 Black Burst Generator is a single output unit. The output, which contains composite sync, color burst and 7.5 IRE setup (0 IRE in PAL) is a standard 1 Volt Video signal. The SG-2 is used to drive Genlock inputs, laydown "black" on tape, or feed a DA to distribute house black.

Second Generation: A redesign of one of our best sellers. Now the waveform is digitally generated under microprocessor control, providing precise purity.

  • Specifications:

    • Output: 1 volt standard video NTSC (PAL)
    • Output Impedance: 75 Ohms 1%
    • Sync Tip: -40 IRE
    • Burst: +/-20 IRE, 3.579545 MHz (PAL: 4.433619 MHz)
    • Setup: 7.5 IRE NTSC (0 IRE PAL)
    • Video Output Connector: BNC (Y/C: 4 pin MiniDIN)
    • Output Protection: Open or Short, infinite duration
    • Dimensions: 4.4W x 2.4H x 1.3D (inches)
    • Wall module (included): 120 Vac 60 Hz, 12 Vdc 500 mA, UL listed
    • DC Powered: 11-18 Vdc
    • Warranty: Two Years Parts and Labor
