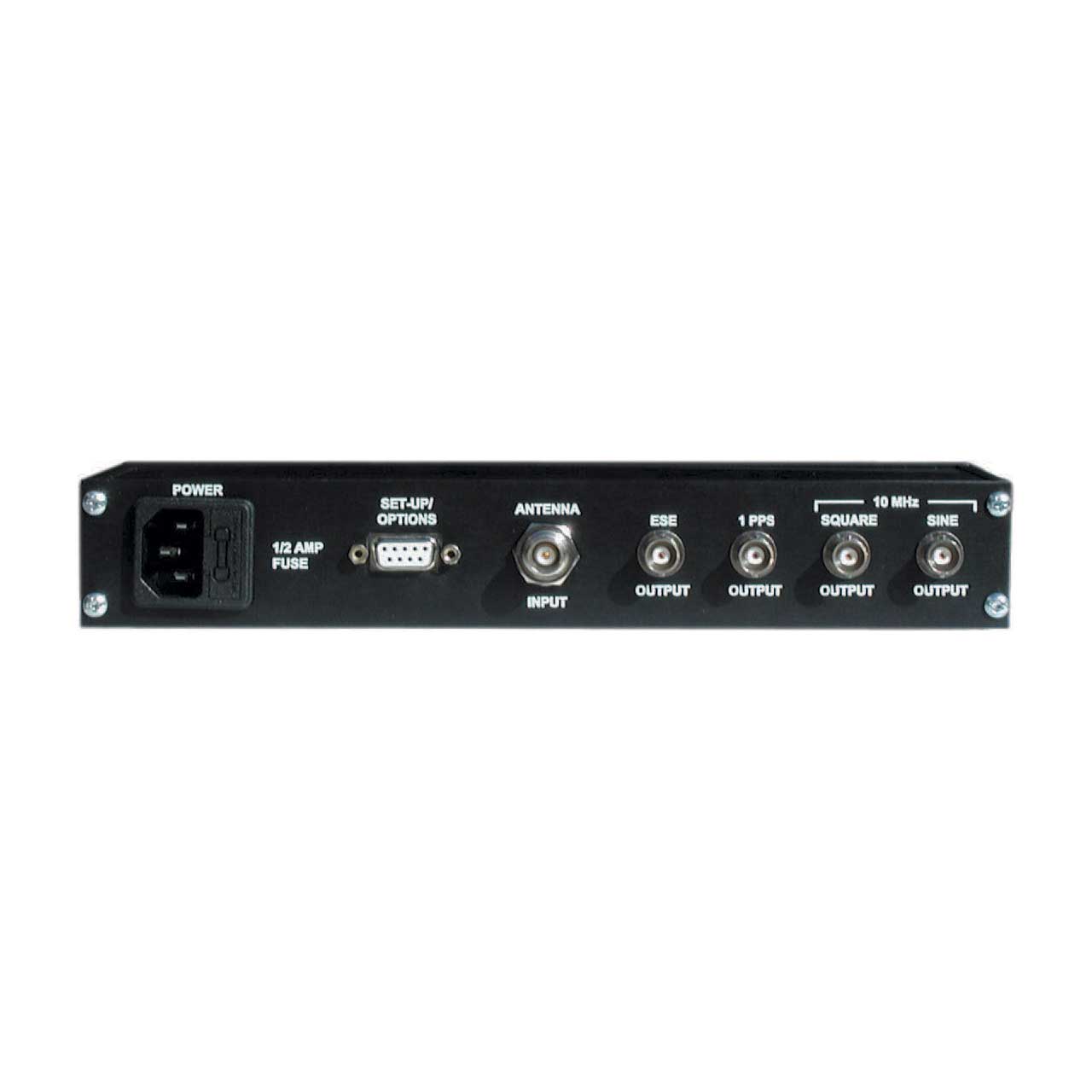

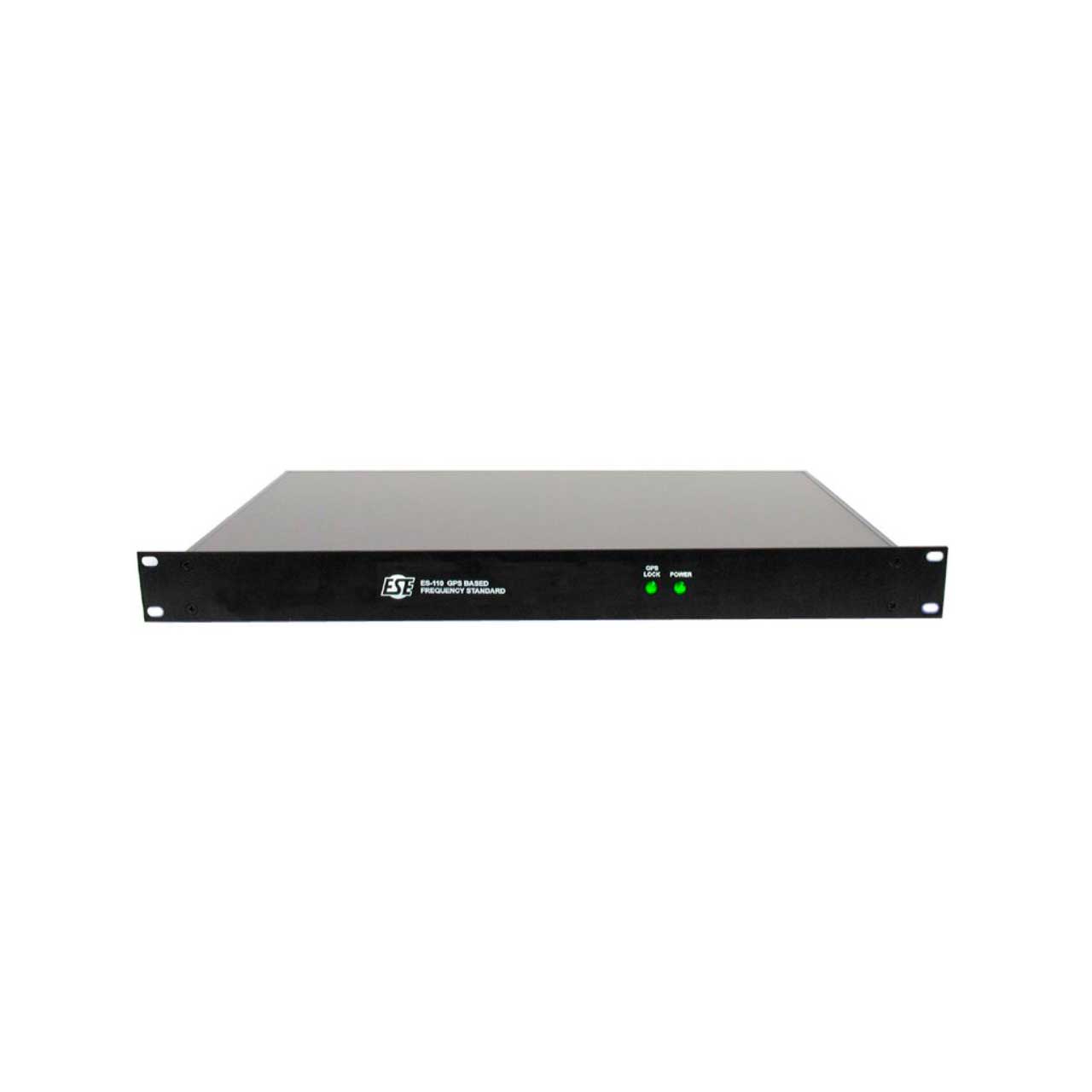

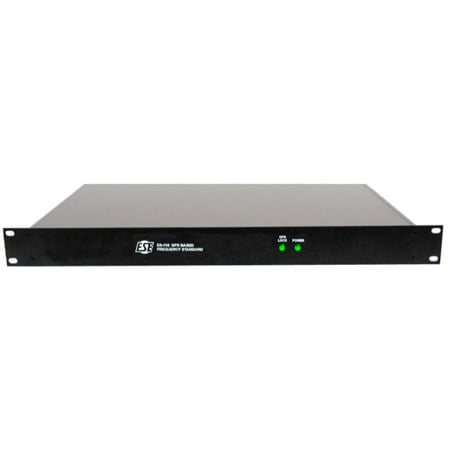

The ES-110 generates a stable source of 10 MHz and 1 PPS using GPS (Global Positioning System) satellites as a reference. The unit provides 10 MHz in both Sine Wave and Square Wave (5 volt logic) form. The 1 PPS output is a 50% duty, 5 volt logic signal, positive-edge coinciding with the UTC seconds change. An ESE TC90T Time Code output is also provided for driving remote time displays. Internal DIP switches allow configuration of the Time Code, Time Zone, antenna cable length compensation, and the satellite tracking mode.
If frequency distribution is needed, we offer the ES-210, a Quad 1x6 1/5/10 MHz Distribution Amplifier. The ES-210 provides four independent 1x6 Frequency DAs in a single rack-mount enclosure.
