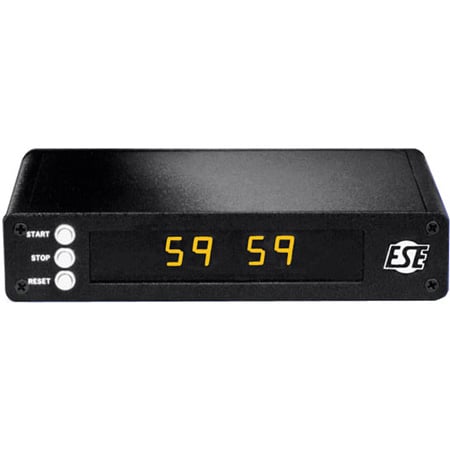

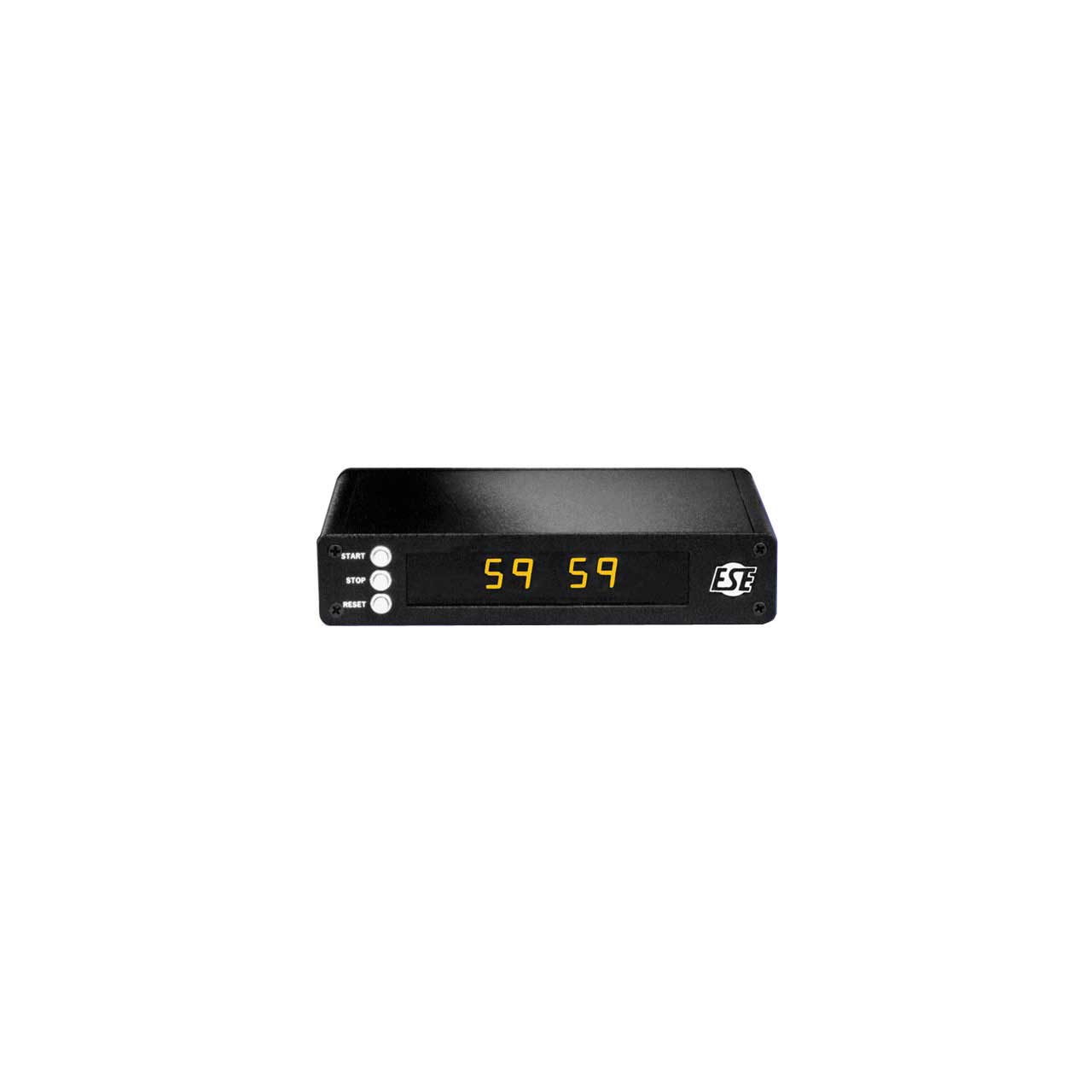

ESE ES-520UT 60 Minute Master Timer with Tenth of a Second Option

ITEM #: ESE-ES-520UT MFG #: ES-520UT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$235.00

Our Price:

$223.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES-520UT - Overview

The ESE ES-520UT is a 60 Minute Up Timer. Start, Stop and Reset controls are provided on the front of the case. A remote control input is accessible on the rear-mounted DB-9 connector, which also supplies ESE Timer Code for driving up to 100 remote slave displays.

  • Features:

    • .56" Yellow LED Display
    • 60 Minute Up count range (00:00 - 59:59)
    • Start, Stop, Reset functions
    • Remote control input
    • 4 Isolated Trigger Reset inputs
    • Optional Tenths of Seconds display
    • ESE Timer Code™ output
    • Optional 1.75" Rackmount enclosure (option "P")
    • 220-240 VAC (110-120 VAC is standard) & UL options available

  • Specifications:

    • Power: 5 Watts
    • Electrical: 117VAC, 50/60Hz
    • Enclosure: "LX" Style Desk Top
    • Mechanical(H x W x D): 1.7 inch x 8 inch x 6 inch
    • Connector: DB-9 & BNC (Serial)
    • Controls: Push-buttons/Remote
    • # of digits: Four (Min-Sec)
    • Display height: .56" Yellow
    • Viewing distance: 20 feet
