ETS PA205F InstaSnake 3-Channel XLR Female CAT5 Audio Balun

ITEM #: ETS-PA205F MFG #: ETS PA205F

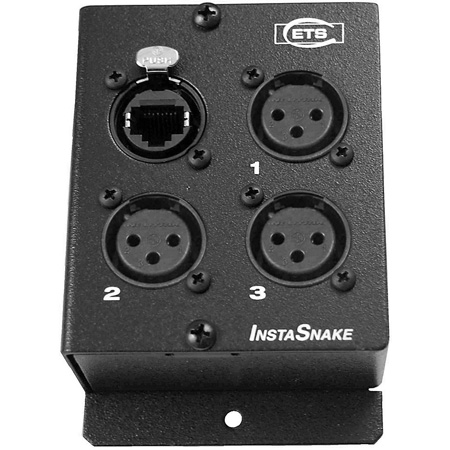

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ETS-PA205F

ETS PA205F - Overview

The ETS InstaSnake PA200 Series is configured for 3 sends and 1 return. Each passive send unit (PA205F) features 3 Female XLR and 1 Male XLR to RJ45 jack, all pins. Each passive receive unit (PA205M) features 3 Male XLR and 1 Female XLR to RJ45 jack, all pins. The PA205 will send phantom power over standard Cat5 or 6 cables. Phantom power has been tested to 850 feet over shielded cable.

The basic units are a pair of passive units with bi-directional capability which can be input directly into analog or digital consoles. Designed to the highest professional standards the InstaSnake has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones.

  • Features:

    • Very easy transport
    • Low cost
    • No ground loops
    • Add second unit to increase the number of channels
    • May be used for analog or digital audio
    • Supports 48V phantom power
    • Rugged, `road-ready' construction
    • RoHS compliant
    • USA Made
    • 100% tested


  • Specifications:

    • Crosstalk -109 dB between Ch1 and Ch2
    • @ 20KHz -106 dB between Ch1 and Ch4, -106 dB between Ch2 and Ch3, -106 dB between Ch2 and Ch4, -109 dB between Ch3 and Ch4, -109 dB between Ch3 and Ch4
    • Distance: UTP – 1900 ft. STP 850 ft – phantom power only Up to 1105 ft (44.1 KHz.48 KHz sampling rate) Up to 877 ft (96 KHz sampling rate)
    • Connectors: Female or Male XLR to Ethercon RJ45 jack or 110 punchdown (wall plate)
    • Dimensions L x W x H: 107mm x 70mm x 45mm


  • Note

    :

    • You can mix and match Mic/Line, Line or AES/EBU configurations making the InstaSnake a versatile high quality solution at very affordable prices.
