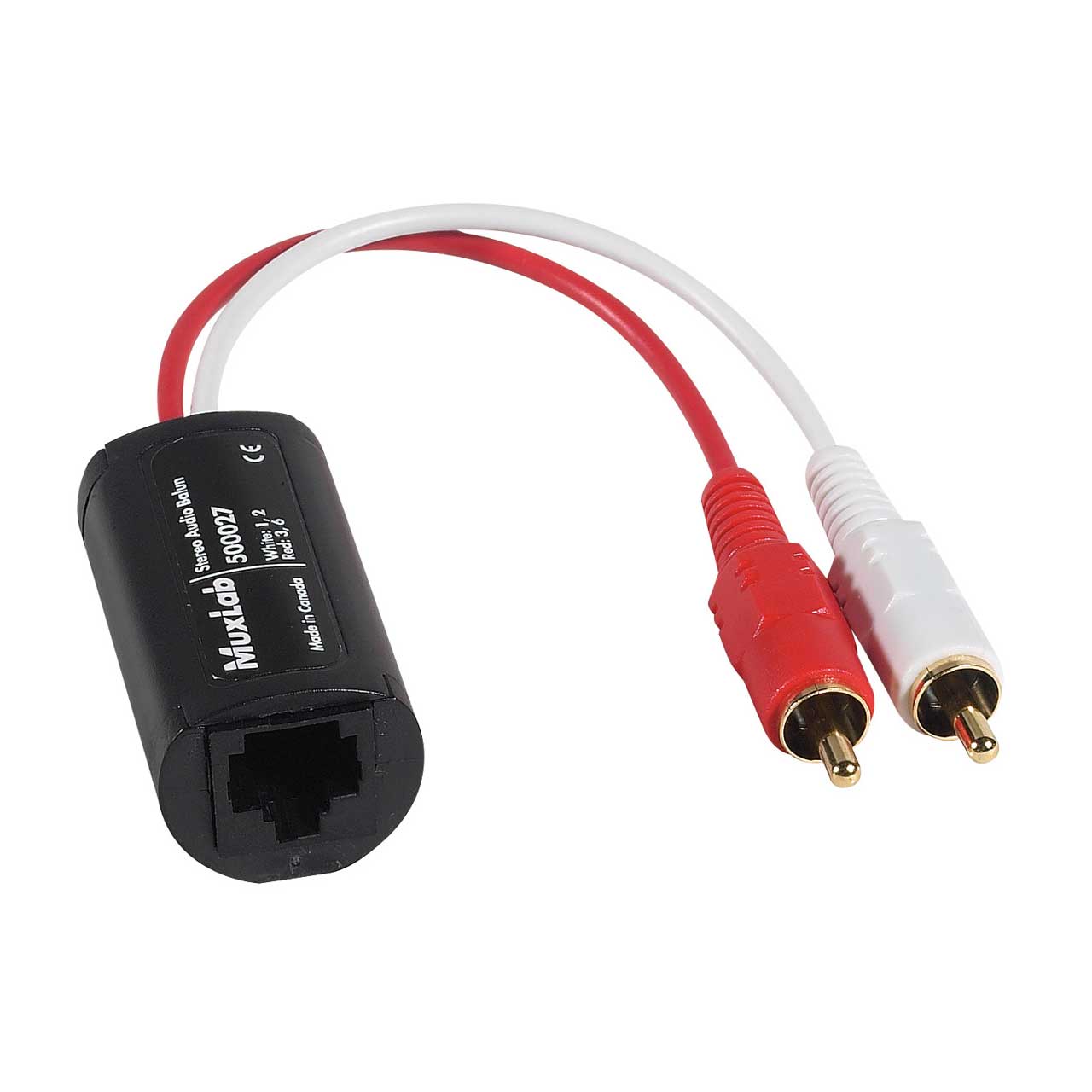

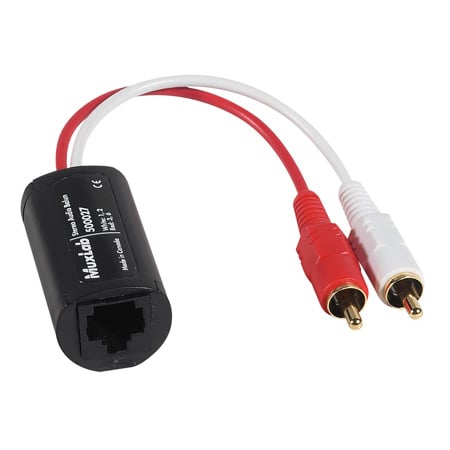

MuxLab 500027 Stereo Audio Balun

500027 - Overview

• Features:

  • Cost-efficient cabling
  • Up to 5,000 ft (1.5km) via Cat 5 UTP
  • Color-coded RCA cable leads
  • Quicker moves, adds and changes
  • Compact design
  • Sold Each


• Specifications:

  • Environment: Line level unbalanced analogue audio
  • Transmission: Transparent to the user
  • Bandwidth (3dB roll-off point) (400 Ω source & 50 kΩ receiver):
    - Up to 1,000 ft (305m): 60Hz - 20 kHz
    - 1,000 ft (305m) to 5,000 ft (1.5 km): 100Hz - 20 kHz
  • Maximum Input Level: 1.1Vp-p
  • Insertion Loss per Balun Pair: Less than 1 dB per pair over the frequency range
  • Common Mode Rejection (CMMR): Greater than 60 dB @ 1 kHz
  • Audio Source Impedance: Less than 600 ohms
  • Audio Receiver Impedance: 10 k ohms or greater
  • Impedance Transformation Ratio:
    - Single Unit: 4:1 (source: line)
  • Cable - UTP:
    - 24 gauge or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1MHz
    - Maximum capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Max. Distance - Cat 5e/6 UTP: 5,000 ft (1,525m)
  • Connectors:
    - 2x RCA-M 6" cable leads
    - 1x RJ45
  • Pin Configuration (RJ45), EIA 568 A or B:
    - Audio 1 (White): pins 1[R] & 2 [T]
    - Audio 2 (Red): pins 3 [R] & 6 [T]
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS. Fire retardant plastic
  • Dimensions: 1.875" x 1.0" diameter plus 6" audio lead
  • Weight: 1.0 oz (28 g)


• Warranty:

  • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products


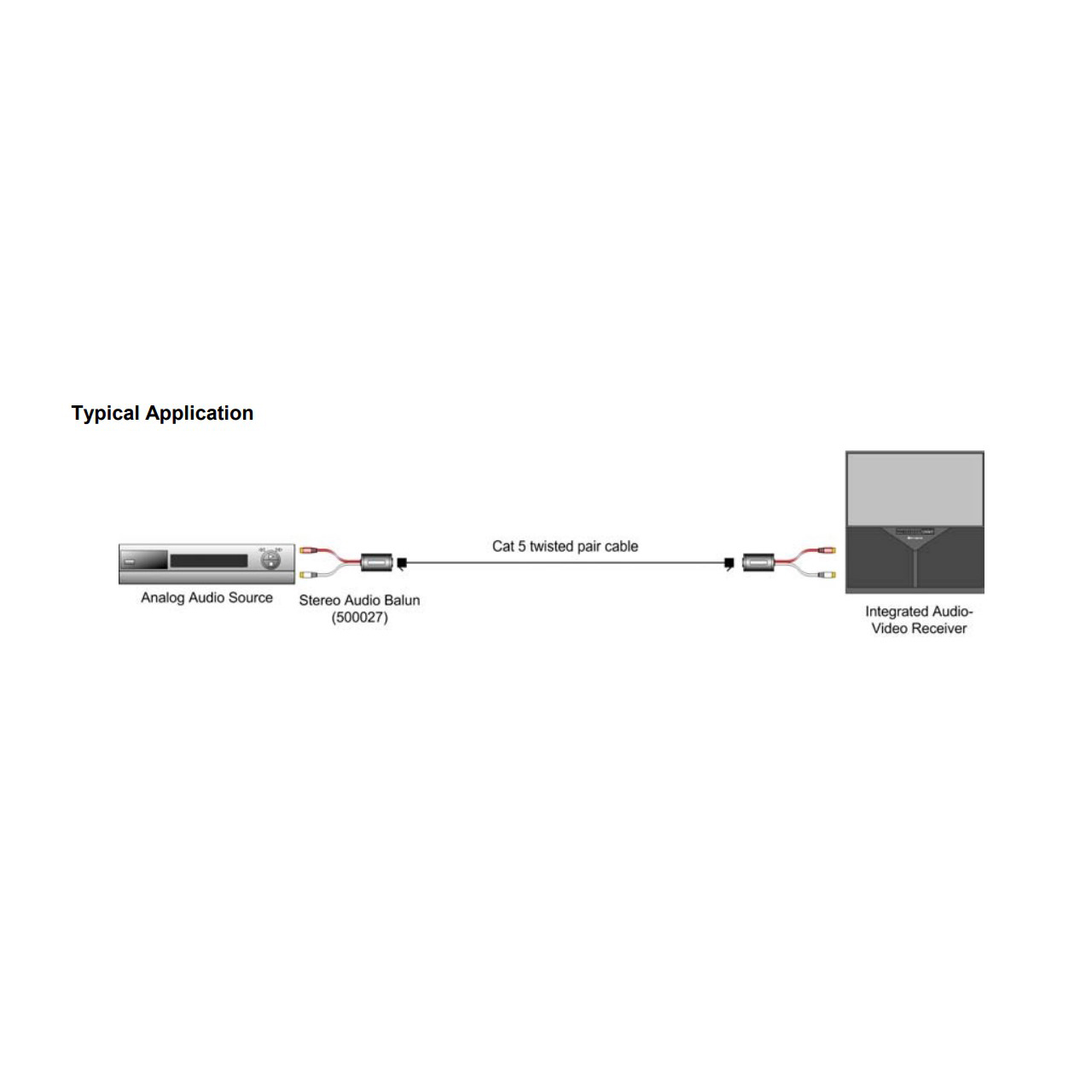

• Applications:

  • Boardroom systems, classroom training,auditoriums, custom home installations andintercom systems.


• GTIN:

  0627699000274
