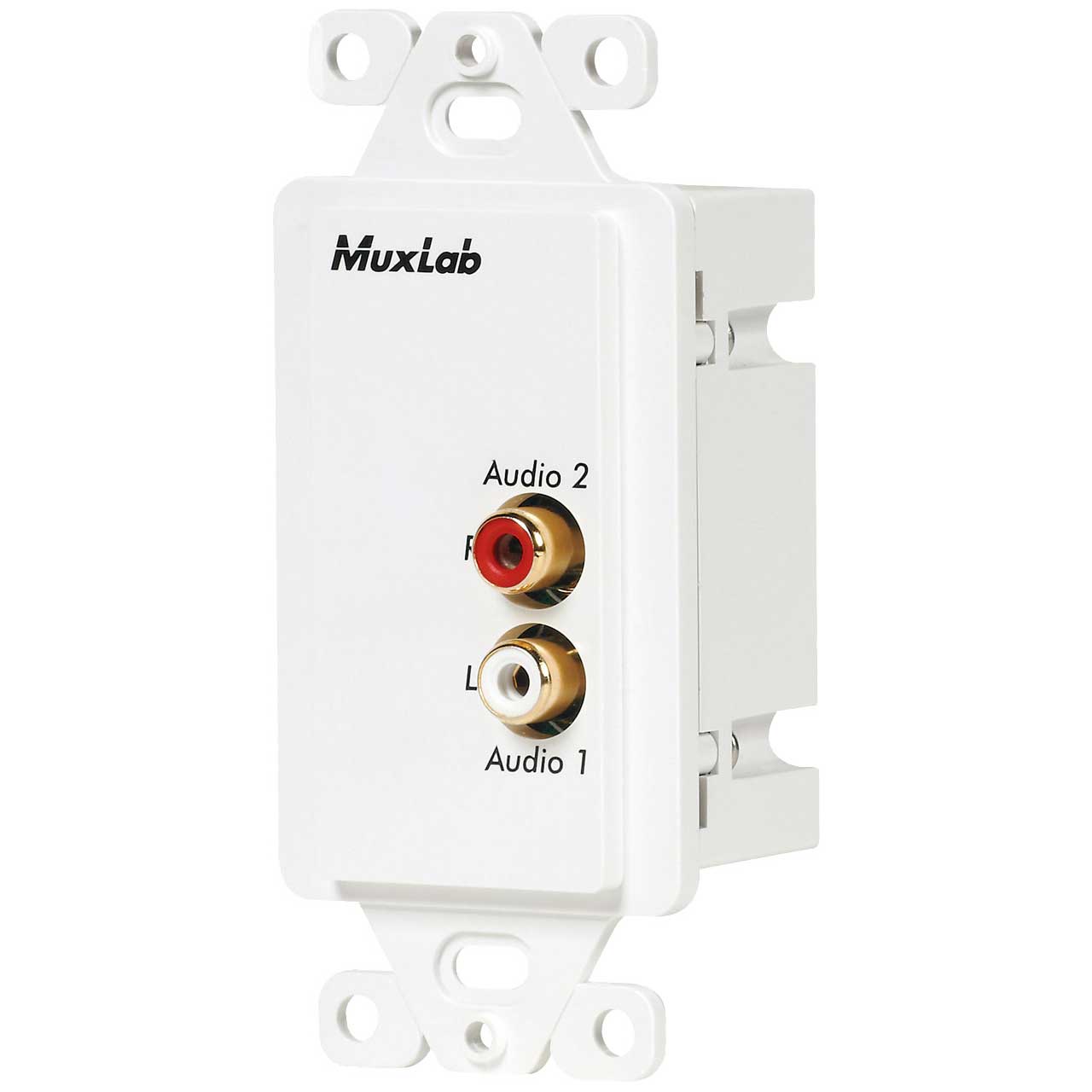

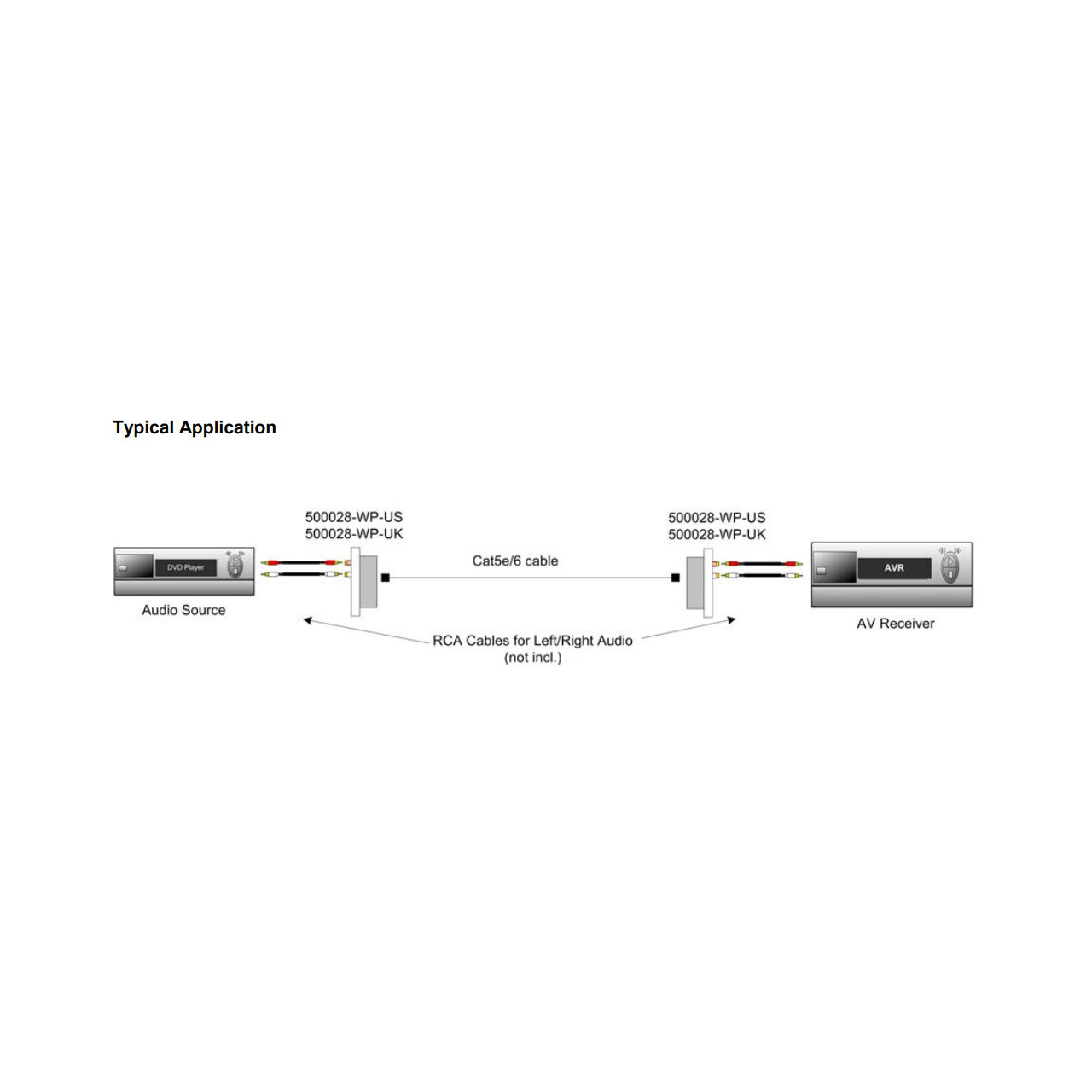

MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun

500028-WP-US - Overview

• Features:

  • 20 Hz to 20 KHz bandwidth
  • Cost-efficient cabling
  • Up to 3,250 ft (1km) via Cat5e/6 UTP
  • Quicker moves, adds and changes
  • Compatible with Decora face plates


• Specifications:

  • Environment: Line level unbalanced analogue audio
  • Transmission: Transparent to the user
  • 3dB Bandwidth: 20 Hz to 20 KHz over the distance range
  • Maximum Input: 1.1Vp-p (unbalanced)
  • Insertion Loss per Balun Pair: Less than 2 dB over the frequency range
  • Common Mode Rejection:
    - Greater than 60 dB @ 1 KHz
    - Greater than 40 dB over the frequency and distance range
  • THD: Maximum 0.007% @ 1 KHz over distance range.
  • Audio Source Impedance: 100 ohms maximum
  • Audio Receiver Impedance: 10 k ohms minimum
  • Max. Distance - Cat5e/6 UTP: 3,250 ft (1km)
  • Pin Configuration (RJ45), EIA 568 A or B:
    - Audio 1 (White): pins 1[R] & 2 [T]
    - Audio 2 (Red): pins 3 [R] & 6 [T]
  • Cable - UTP:
    - 24AWG or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1 MHz
    - Maximum capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable - Coax: Shielded audio cable
  • Connectors:
    - 2x RCA-F
    - 1x RJ45
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS. Fire retardant plastic
  • Dimensions: 4.1" (104 mm) x 1.8" (45.7 mm) x 1.44" (36.6 mm). Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection.
  • Weight: 4.1 oz (115 g)


• Warranty:

  • Lifetime Warranty


• GTIN:

  0627699920336
