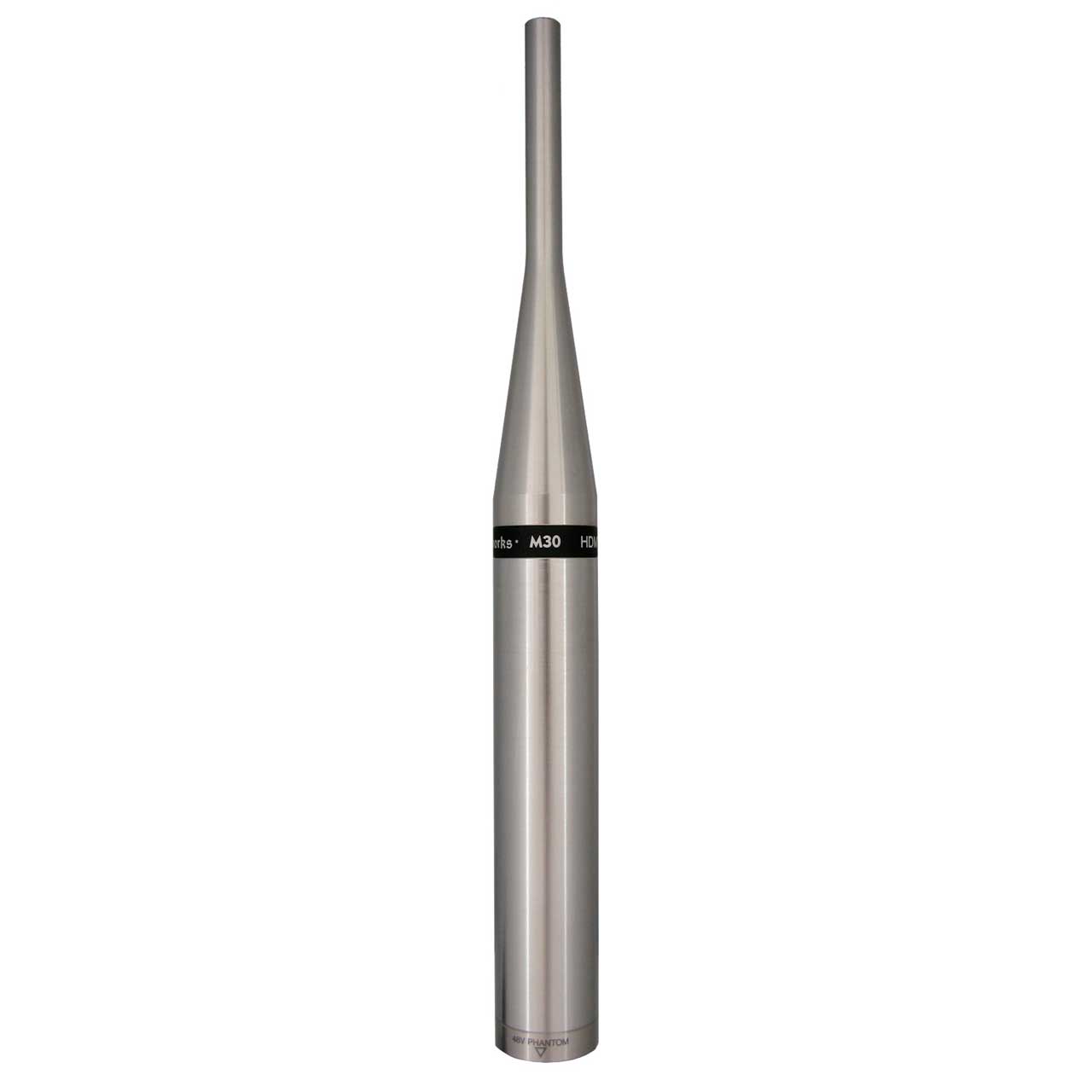

Earthworks M30 Omni Measurement Microphone - 5Hz to 30kHz

M30 - Overview

• Features:

  • 30kHz flat frequency response
  • Cost effective measurement microphone
  • Improved version of the SMAARTMIC previously offered by EAW
  • Ideally suited for acoustical measurements sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required
  • Omnidirectional polar pattern
  • Flat frequency response, fast impulse response and exceptional polar characteristics
  • Used by SMAART, MLSSA, Spectrafoo, TEF and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX and others
  • Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
  • Requires 48V Phantom Power
  • Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve
  • Electronic Calibration File available


• Specifications:

  • Frequency Response: 5Hz to 30kHz Ý1/-3dB
  • Polar Pattern: Omnidirectional
  • Sensitivity: 30mV/Pa (-30.5dBV/Pa)
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 142dB SPL
  • Output: XLR (pin 2+)
  • Output Impedance: 100?, balanced (50? ea. pin 2 & 3)
  • Min Output Load: 600? between pins 2 & 3
  • Noise: 22dB SPL equivalent (A weighted)
  • Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)
  • Weight: .35 lb. (160g)


• Item Includes:

  • ADP1 - 1/2" calibrator adapter for all M Series measurement mics


  • MC1 - Microphone Clip for QTC, TC, SR, P, DP & M Series mics (specify black or white)
  • MC2 - Shock mount Microphone Clip for QTC, TC, SR, P, DP & M Series mics


  • OMW1 - Foam Teardrop Windscreen for QTC, TC & M Series Mics


  • OMW2 - 100 mile-per-hour Windscreen for QTC, TC & M Series Mics


  • OMW3 - Standard Foam Windscreen for QTC, TC & M Series Mics


• Warranty:

  • 15 Years


• GTIN:

  0827517130002
