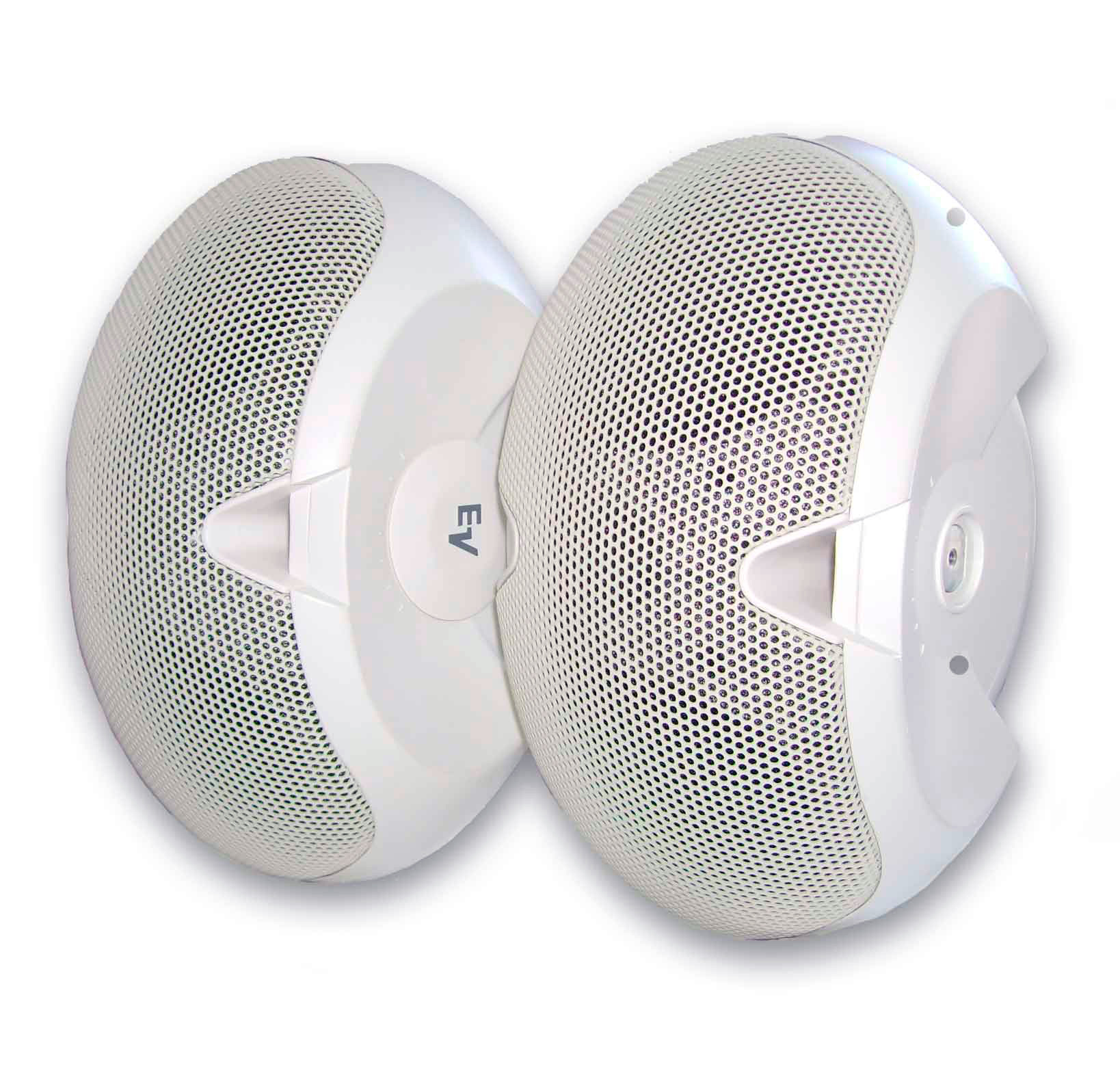

The EVID 3.2 is a very compact full-range loudspeaker ideal
for indoor and outdoor applications requiring high-quality
sound. Its shape and size make it nearly invisible for use in
background/foreground music systems for restaurants, bars,
patios, retail, and other applications

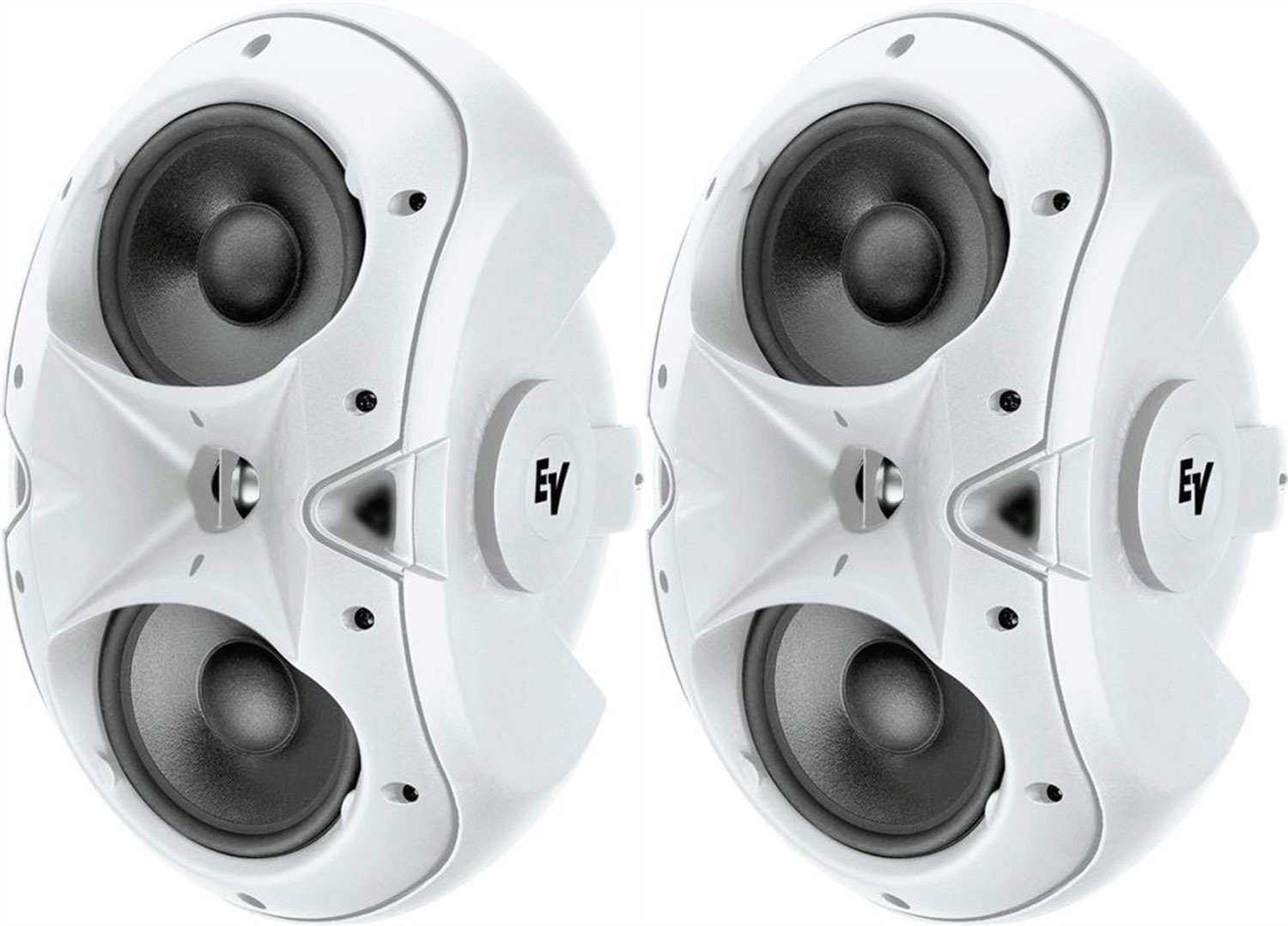

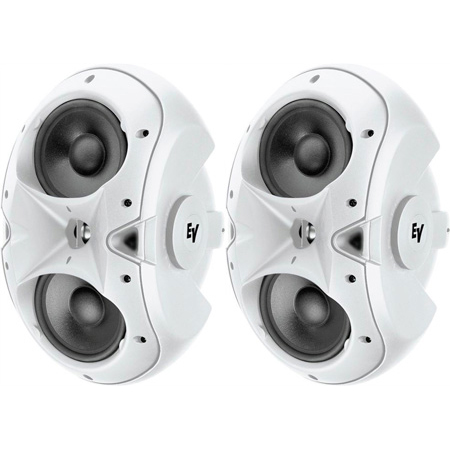

The 3.2's three-dimensional elliptic baffle symmetrically
locates the .75" Ti direct radiator high-frequency element in
front of and between the 3.5" low-frequency drivers. The
careful shaping, location, and 10° splaying of the LF units
provide coverage control by the resulting line array. Lobing is
controlled by physically "shadowing" the LF transducers from
each other over the bandwidth where they would normally
exhibit interference. EVID's mounting system provides greater
range of aiming angles in both horizontal and vertical planes
than other types. The curved grille features designed-in
weather resistance and a hidden leash for safety.
All models are available in black or white, and can easily be
painted to match the d‚cor. Transformer versions are also
available for constant voltage systems.
Dual Woofers for extended bass, greater power handling and ouput
Coherent Coverage Waveguide Horn design on models 4.2 and 6.2
Dual Low Frequency Ports provide entended bass output
Treated Woofer Cones Durable Zinc-Plated Steel Grille
Cast Aluminum Strong-Arm Mount (SAM) system provides excellent strength and reliability
Over 100-degrees of swing and 45-degrees of rotation for incredible installation flexibility
Simple Keyed Hex Head Adjustments make installations quick and easy
Titanium Dome Tweeters with Neodymium Magnet structures provide clean highs and added weather resistance
One-Piece ABS Cabinet provides outstanding strength and acoustic rigidity
Smooth Lines and Innovative Cosmetic Design complement any decor or environment
(1, 9) Magnetically Shielded Transducers allow placement close to sensitive equipment
