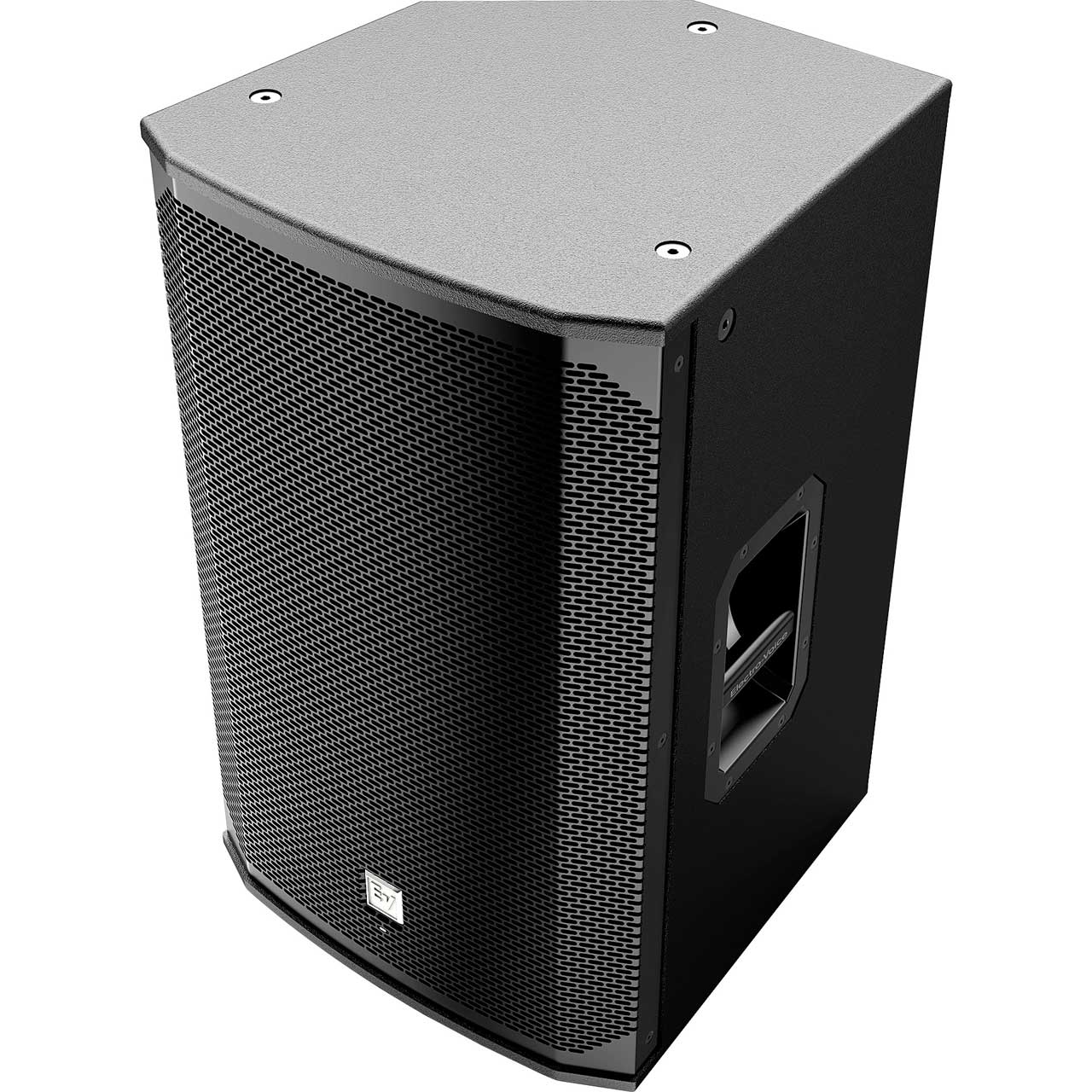

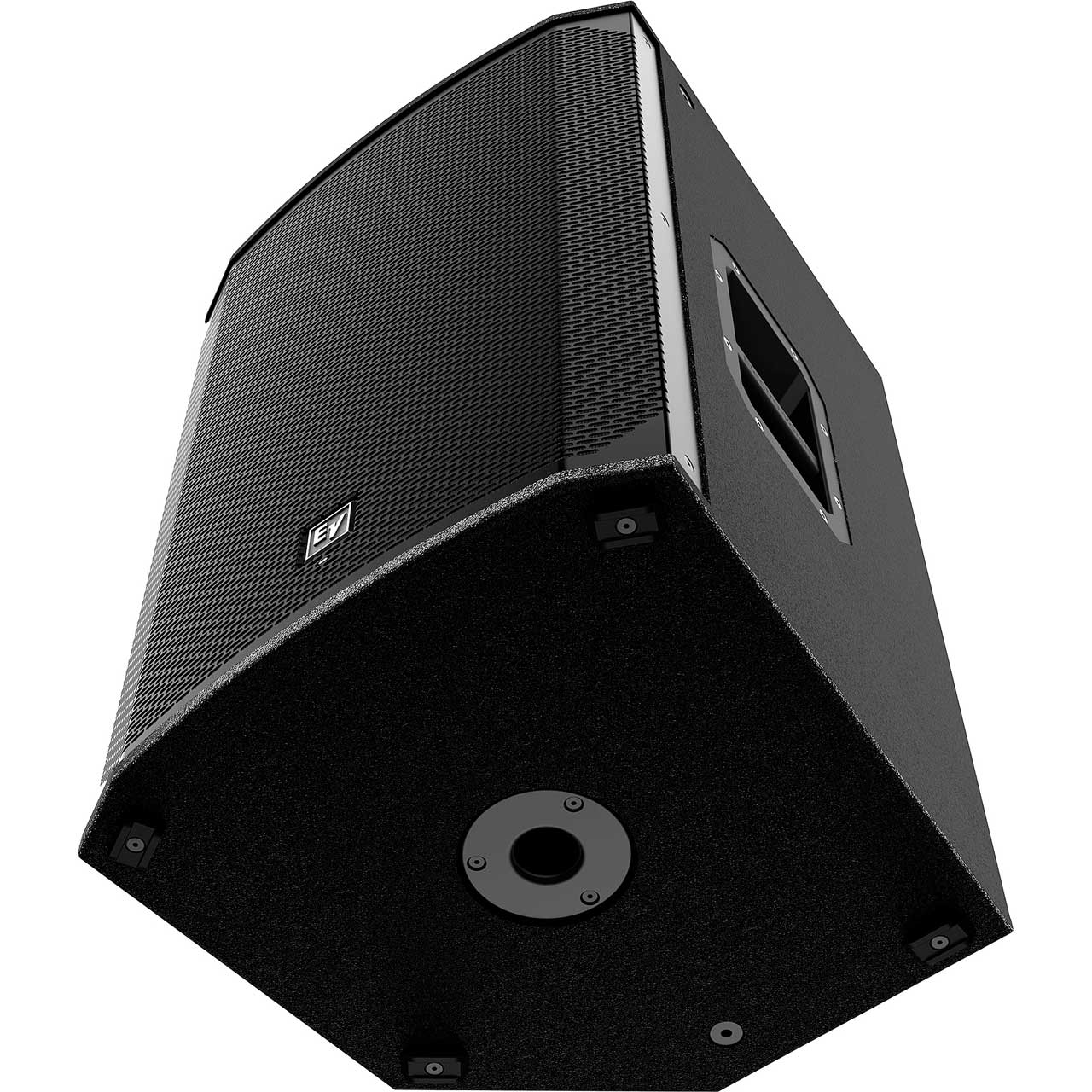

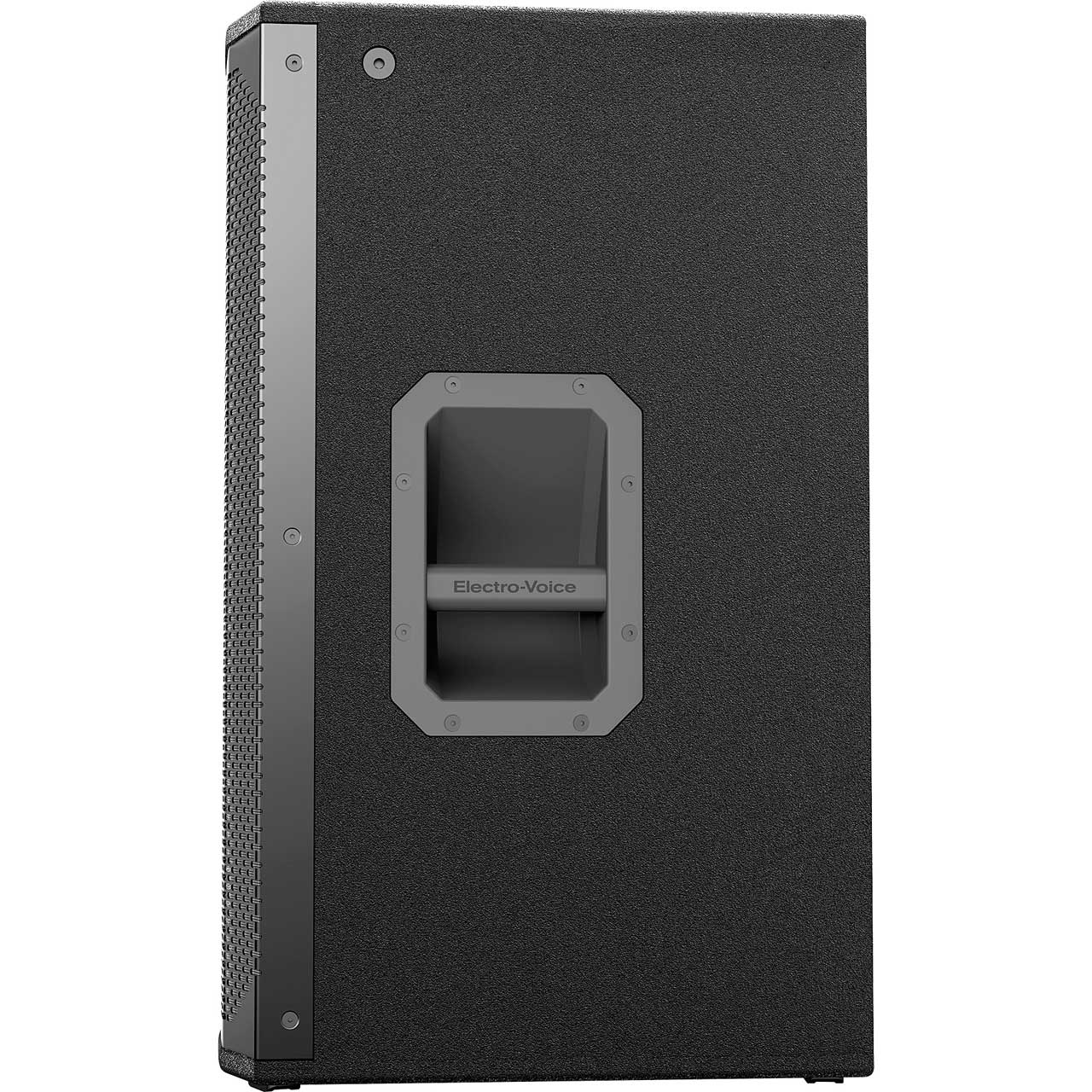

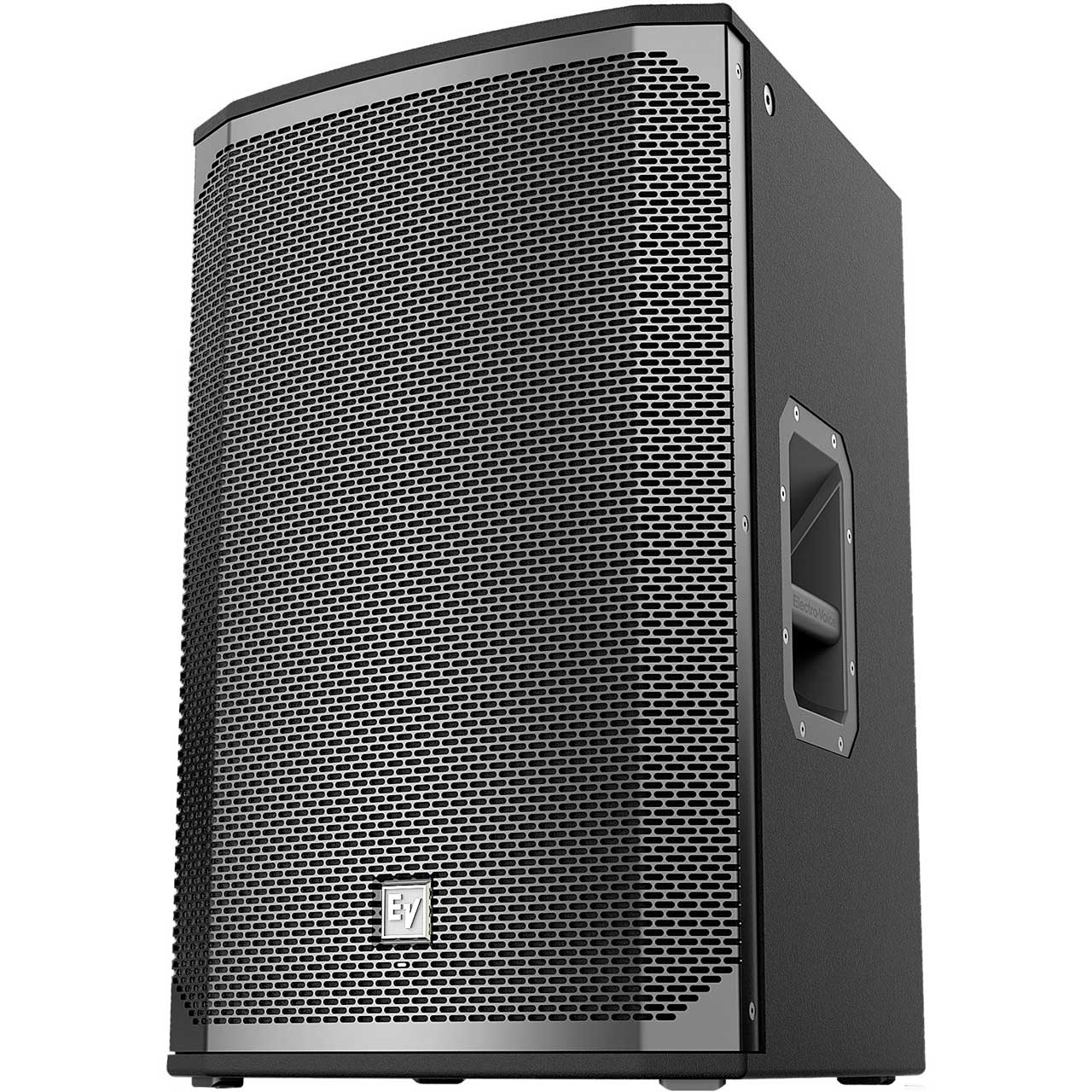

Electro-Voice EKX-15 15 Inch Two-Way Passive Loudspeaker

ITEM #: EV-EKX-15 MFG #: EKX-15

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,433.00

Our Price:

$799.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EKX-15 - Overview

EV engineering and innovation working together for maximum sonic impact
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Ideal for portable and installed applications
Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminum pole-mounts, and all-metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.

  • Features:

    • EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
    • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
    • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
    • 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet.

  • Specifications:

    • Axial Sensitivity: (SPL, 1 W @ 1 m) 96 dB Full Space Measurement
    • Connector Type: Dual NL4
    • Coverage: (Nominal -6 dB) H 90 Deg.
    • Coverage: (Nominal -6 dB) V 60 Deg.
    • Crossover Frequency: 1.6 k Hz
    • Enclosure Material: 15 mm, plywood with EVCoat
    • Frequency Response: (-10 dB) 50 Hz - 20 k Hz Full Space Measurement
    • Frequency Response: (-3 dB) 75 Hz - 18 k Hz Full Space Measurement
    • Grill: 18 AWG steel with powdercoat
    • HF Transducer: DH-1M 1-inch titanium compression driver
    • LF Transducer: EVS-15M 381 mm (15 in)
    • Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
    • Minimum Impedance: 7.2 Ohm
    • Nominal Impedance: 8 Ohm
    • Power Handling (Continuous / Peak): 400 W/1600 W
    • Recommended High-Pass Frequency: 50 Hz
    • Shipping Weight: 28.2 kg (62.17 lbs)
    • Suspension: (8) M10 threaded mounting points
    • Height: 16RU 685 mm (26.97")
    • Width: 432 mm (17.01")
    • Depth: 429 mm (16.89")
    • Weight Net: 23.2 kg (51.15 lbs)

  • GTIN:

    0800549772136


EKX-15 - Required Accessories
