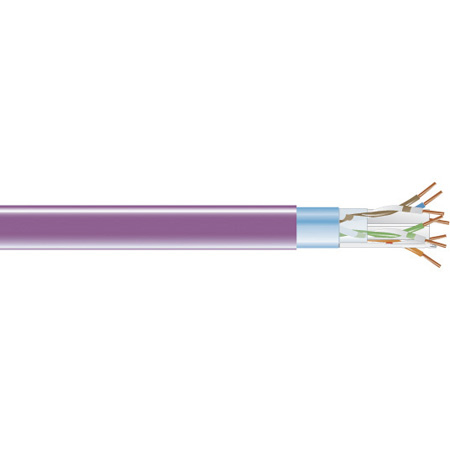

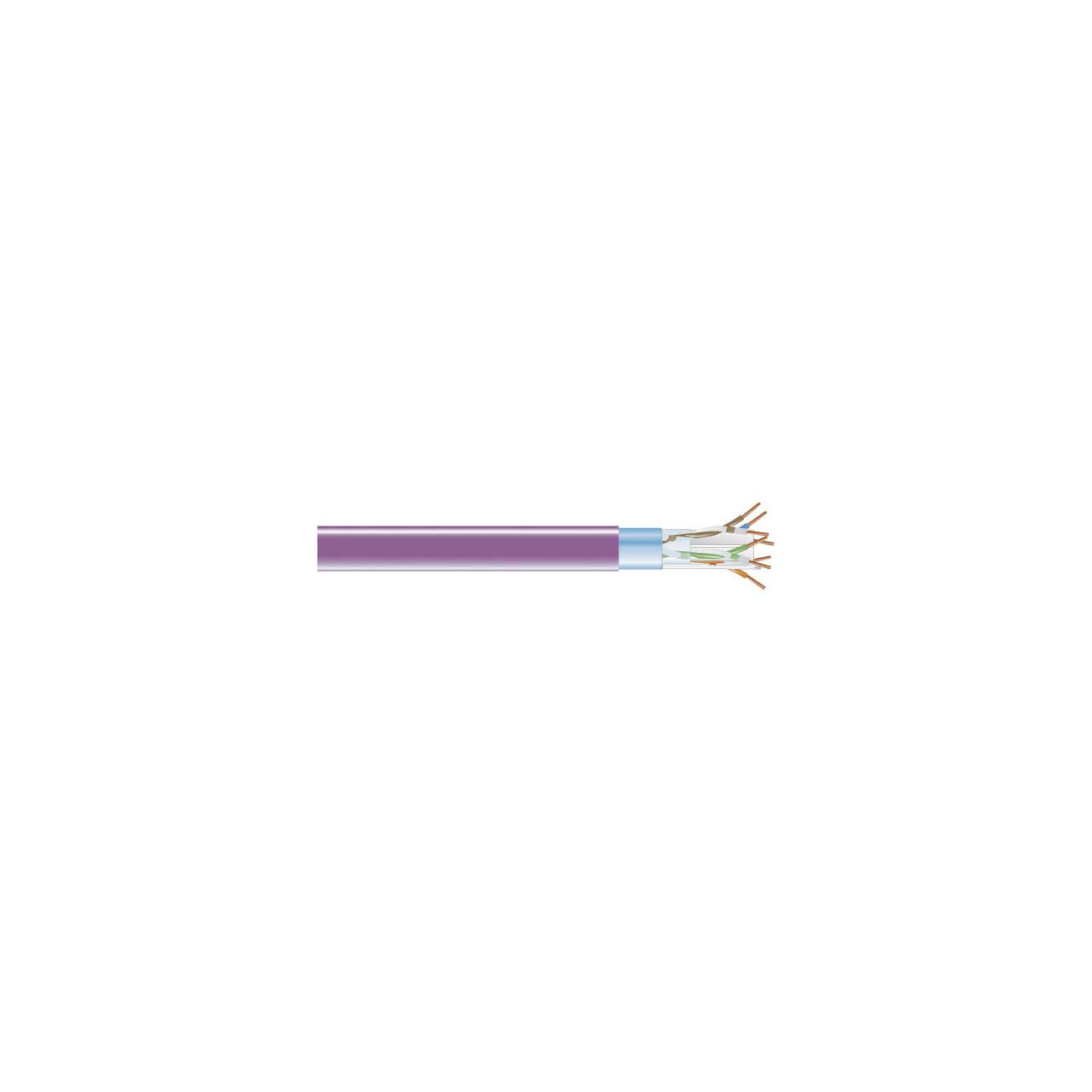

Black Box EVNSL0619A-1000 CAT6 400-MHz Solid Bulk Cable - Shielded / Plenum - Violet - 1000 Foot Spool

EVNSL0619A-1000 - Overview

• Features:

  • Ideal for carrying data, audio, and video, and for use in 10-/100-/1000-Mbps networks.
  • Features aluminum Mylar; tape. Foil shield protects against noise and EMI/RFI interference.
  • Meets TIA/EIA-568-C.2 Category 6, ISO/IEC 11801, UL 444, RoHS 2002/95/EC.
  • 24 AWG.
  • Guaranteed for life!


• Specifications:

  • ACR (100 m/dB Min.): 100 MHz: 24.5; 250 MHz: 5.5
  • Attenuation (100 m/dB Min.): 100 MHz: 19.8; 250 MHz: 32.8; 300 MHz: 36.4; 400 MHz: 43.0
  • Characteristic Impedance: 1-250 MHz: 100 ±15 ohms
  • Conductors: Bare solid copper
  • Construction: FR PVC jacket, HDPE insulation
  • Delay Skew: 1-400 MHz, 536 ns/100 m maximum
  • Dimensions: Outer diameter: 7.0 ±0.2 mm
  • ELFEXT (dB Min.): 100 MHz: 27.8; 250 MHz: 19.8; 300 MHz: 18.2; 400 MHz: 15.7
  • Gauge: 24 AWG
  • NEXT (dB Min.): 100 MHz: 44.3; 250 MHz: 38.3; 300 MHz: 37.2; 400 MHz: 35.3
  • Return Loss: 400 MHz
  • Shield: Aluminum/Mylar® tape with drain wire
  • Weight: 36 lbs. (16.3 kg)
  • Mutual Capacitance: 56 pF/m maximum
  • PS-ACR (100 m/dB Min.): 100 MHz: 22.5; 250 MHz: 3.5
  • PS-ELFEXT (dB Min.): 100 MHz: 24.8; 250 MHz: 16.8; 300 MHz: 15.2; 400 MHz: 12.7
  • PS-NEXT (dB Min.): 100 MHz: 42.3; 250 MHz: 36.3; 300 MHz: 35.2; 400 MHz: 33.3


• GTIN:

  0822088027614
