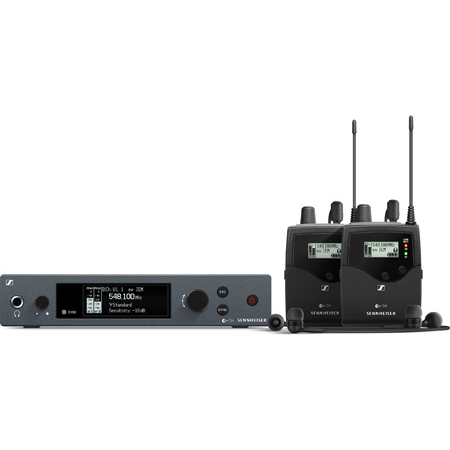

Sennheiser EW IEM G4-TWIN-G Wireless Stereo Monitoring Set w/ SR IEM G4 Transmitter & (2) EK IEM G4 Receivers (566-608)

ITEM #: EW-IEM-G4-TWIN-G MFG #: EW IEM G4-TWIN-G

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,749.00

Our Price:

$1,499.00

Availability: In Stock
iAvailability Description Popup


EW IEM G4-TWIN-G - Overview

The Evolution Wireless G4 retains all of G3's best features while simultaneously providing many system improvements. The Evolution Wireless G4 features more power than its predecessor. The 300, 500 and IEM series offer increased RF power, up to 50 mW, for greater transmission range. The portable Broadcast & Film sets benefit from 8 hours of battery power.

The G4 exceeds expectations with increased switching bandwidth of up to 88 MHz in the 300 and 500 series. G4 offers full flexibility for a wide range of possible applications: live sound, in-ear monitoring, portable solutions for ENG and professional film productions. It is mobile, always on air, and evolves with users and their demands.

G4's 100 series systems can be daisy chained for fast, coordinated setup via a new linking function. G4's intuitive LCD and OLED displays make the lives of engineers easier in any environment. The G4 keeps you connected. For mobile PA applications, the receivers slot directly into the LSP 500 wireless loudspeaker. Integrators adore G4's versatility when it comes to workflows and control software such as the WSM (Wireless Systems Manager) and the Sennheiser Control Cockpit.

When it comes to applications in hospitality, education and events, G4 is your mobile solution that fits into any room and perfectly integrates into existing workflows. Documentary filmmakers and video journalists know that G4 fits into any bag and provides powerful speech intelligibility for their interviews or reports. For years, evolution wireless G3 has been one of the best-selling wireless systems in the market. evolution wireless G4 takes this legacy one step further with more power, features and flexibility.

  • Features:

    • Fully compatible with all previous series
    • More Power - Higher RF output power of up to 50mW
    • More Protection - Bodypacks with increased protection from humidity and water splashes
    • Improved User Interface - Convenient jog wheel, OLED display, white text on black background, automatic dimming, blue sync LED, red warning LED, dedicated Escape button

  • Specifications:

    • SR IEM G4
    • Frequency range: G: 566 - 608 MHz
    • Dimensions: Approx. 202 x 212 x 43 mm
    • Compander: Sennheiser HDX
    • THD, total harmonic distortion: <0.9 %
    • Weight: Approx. 980 g
    • Audio input: 2x XLR-3/1/4" (6.3 mm) jack combo socket, electronically balanced
    • Audio output: 1/4" (6.3 mm) stereo jack socket, balanced
    • Signal-to-noise ratio: >90 dB
    • RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    • Switching bandwidth: up to 42 MHz
    • Peak deviation: ±48 kHz
    • Nominal deviation: ±24 kHz
    • Modulation: Wideband FM stereo (MPX pilot tone)
    • Power supply: 12 V DC
    • Current consumption: max. 350 mA
    • Max. Input voltage: +22 dBu
    • Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
    • AF frequency response: 25 Hz to 15 kHz
    • Temperature Range: -10 °C to +55 °C
    • Frequency stability: ±10 ppm
    • Antenna Output: BNC socket, 50O

      EK IEM G4
    • Dimensions: Approx. 82 x 64 x 24 mm
    • Compander: Sennheiser HDX
    • THD, total harmonic distortion: ≤ 0.9 %
    • Weight: (incl. batteries) approx. 125 g
    • Signal-to-noise ratio: approx. 90 dBA
    • Switching bandwidth: up to 42 MHz
    • Peak deviation: ±48 kHz
    • Nominal deviation: ±24 kHz
    • Operating time: approx. 4 to 6 hours (depending on volume level)
    • Modulation: Wideband FM
    • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack. Current consumption at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA.
    • Adjacent channel rejection: Typically ≥ 65 dB
    • Audio-Output-Power: 2 x 100 mW at 32 Ω
    • Intermodulation attenuation: Typically ≥ 70 dB
    • Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
    • Powering: 3 V battery / 2.4 V rechargeable battery
    • Receiving frequency: Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
    • RF sensitivity: < 4 µV, typ. 1.6 µV for 52 dBA rms S/N
    • Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
    • Bass Boost: +8 dB at 8 kHz
    • Temperature Range: -10 °C to +55 °C
    • Receiver Principle: Adaptive diversity
    • Blocking: ≥ 80 dB

  • Item Includes:

    • 1x SR IEM G4 stereo transmitter
    • 2x EK IEM G4 stereo receiver
    • 2x IE 4 earphones
    • 4x AA batteries
    • 1x Rod antenna
    • 1x GA 3 rackmount set
    • 1x Quick guide
    • 1x Safety guide
    • 1x Manufacturer declaration sheet
    • 1x Power supply

  • GTIN:

    0615104311633
