Shure QLXD124/85-G50 WL185m Combo Lav & SM58 Digital Wireless Mic System 470-534MHz

ITEM #: SH-QLXD124-85-G MFG #: QLXD124/85-G50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,897.00

Our Price:

$1,479.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


QLXD124/85-G50 - Overview

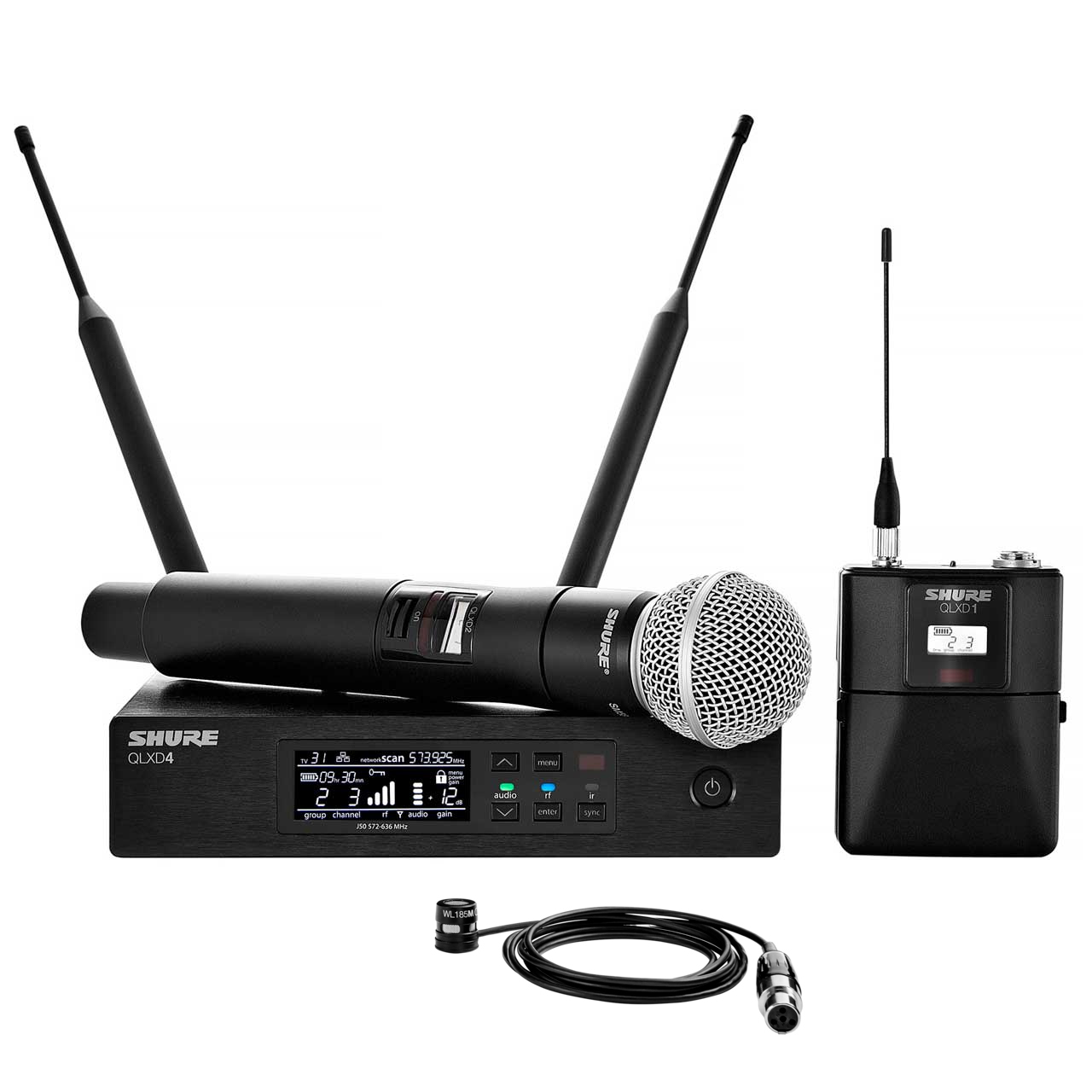

Featuring an SM58 handheld wireless microphone transmitter and WL185m lavalier microphone, QLXD124/85 combines professional features with simplified setup and operation. Includes QLXD2/SM58, WL185m, QLXD1, QLXD4, microphone clip, 2 zipper bags, 4 AA batteries, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead adapters, rackmount kit, and user guide. The QLXD offers networked control, AES-256 encryption, and simplified setup and operation, QLX-D delivers outstanding digital wireless sound for mid-size events and installations.

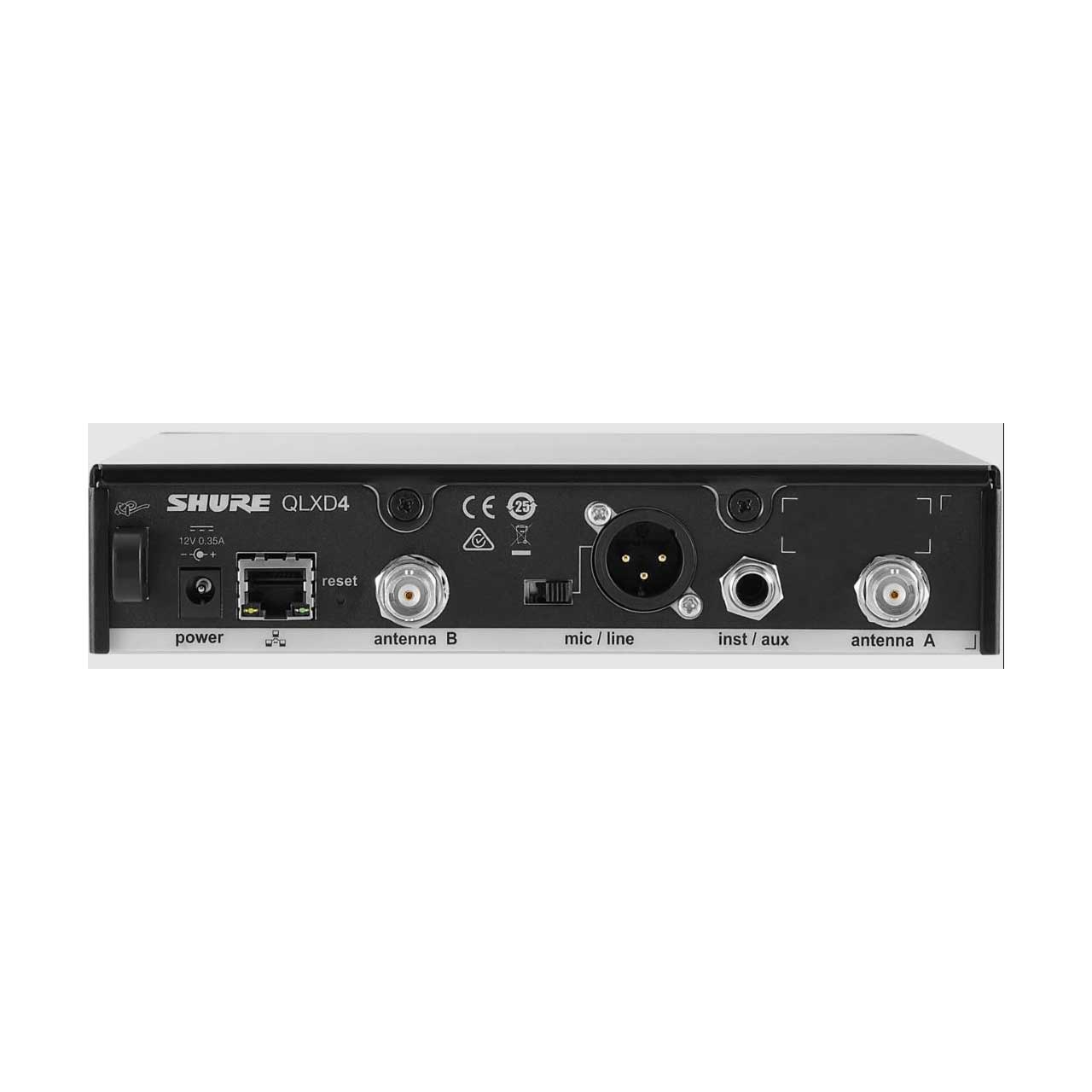

QLXD4 Digital Wireless Receiver
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. Works with QLX-DT Digital Wireless Systems and features Ethernet networking and mobile monitoring and control capabilities. Includes QLXD4, hardware for rack-mounting, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead Adapters, and user guide

QLXD1 Bodypack Transmitter
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship. Works with QLX-D Digital Wireless Systems and offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries. Includes QLXD1, 2 AA batteries, black zippered pouch, and user guide.

QLXD2/SM58 Handheld Mic/Transmitter
With an interchangeable SM58 microphone cartridge, the QLXD2/SM58 Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Works with QLX-D Digital Wireless Systems and offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries. Includes QLXD2/SM58, 2 AA batteries, battery contact cover, microphone clip, and user guide.

  • Features:

    • Transmitter form factors include handheld, bodypack, headworn, lavalier, instrument clip-on, and combo
    • Power options include Shure SB900 Lithium-Ion Rechargeable Battery and AA batteries
    • 64 MHz tuning bandwidth
    • 17 Compatible systems per 6 MHz TV channel and 22 systems per 8 MHz channel

    • QLXD4 Digital Wireless Receiver
    • 64 MHz tuning bandwidth (region dependent)
    • More than 60 preset compatible channels per frequency band (region dependent)
    • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
    • Digital predictive switching diversity ensures solid RF connection
    • AES 256-bit encryption for secure wireless transmission
    • Up to 60 dB of adjustable audio gain
    • High-contrast LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • Detachable ½ wave antennas
    • Mic / line switchable XLR output
    • 1/4" Instrument output
    • Durable aluminum construction with brushed finish

      QLXD1 Transmitter
    • Over 120 dB of dynamic range: no transmitter gain adjustments needed
    • AES 256-bit encryption for secure transmission
    • Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
    • External charging contacts for docked charging
    • Backlit LCD with easy to navigate menu and controls
    • Selectable display mode showing group/channel, frequency, or battery runtime
    • 4-Pin male mini connector (TA4M)
    • Rugged metal construction
    • Detachable 1/4 wave antenna
    • Frequency and power lockout

    • QLXD2/SM58 Handheld Wireless Microphone Transmitter
    • 24-Bit digital audio quality
    • Incredibly efficient RF spectrum usage
    • Quick syncing with a wireless receiver over IR at the push of a button
    • Clear, uninterrupted signal over the entire operating range
    • AES 256-bit encryption for secure transmission
    • Over 120 dB of dynamic range: no transmitter gain adjustment needed
    • 1, 10 mW selectable RF output power
    • Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
    • External charging contacts for docked charging
    • Backlit LCD with easy to navigate menu and controls
    • Selectable display mode showing group/channel, frequency, or battery runtime
    • Rugged metal construction
    • Frequency and power lockout

  • Specifications:

    • RF Carrier Range: 470-534MHz, varies by region
    • Working Range: 328ft (100m)
    • RF Tuning Step Size: 25kHz, varies by region
    • Image Rejection: >70dB, typical
    • RF Sensitivity: -97dBm @ 10-5 BER
    • RF Spurious Rejection: >80dB, typical
    • RF Connector Type: BNC
    • Impedance: 50O
    • Latency: <2.9ms
    • Gain Adjustment Range: -18 - 42dB in 1dB steps
    • Mic/Line Switch: 30dB pad
    • Audio Frequency Response: 20Hz - 20kHz (±1dB)
    • Audio Dynamic Range System Gain @ +10: >120dB, A-weighted, typical
    • Total Harmonic Distortion: -12dBFS input, System Gain @ +10: <0.1%
    • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
    • Network Interface: Single Port Ethernet 10/100Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328ft (100m)
    • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
    • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
    • Dimensions (HxWxD): 1.63" x 7.75" x 5.94" (41mm x 197mm x 151mm)
    • Weight: 1.71lbs (777g), without antennas

  • Item Includes:

    • 1x WL185m Cardioid Lavalier Condenser Microphone
    • 1x QLXD4 Digital Wireless Receiver
    • 1x QLXD1 Wireless Bodypack Transmitter
    • 1x QLXD2/SM58 Handheld Wireless Microphone Transmitter
    • 1x PS23 Power Supply
    • 2x 1/2 Wave Antennas

  • GTIN:

    0042406350846
