Gefen EXT-DVI-2-VGAN DVI to VGA Converter

ITEM #: EXT-DVI-2-VGAN MFG #: EXT-DVI-2-VGAN

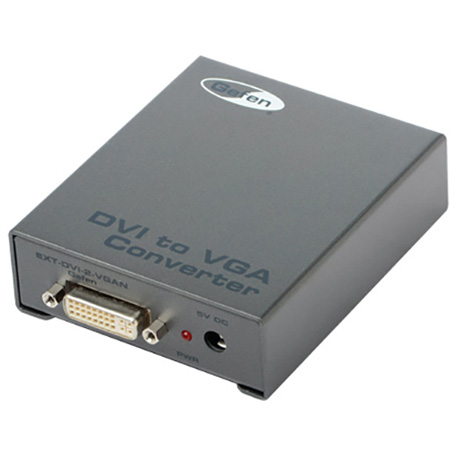

Primary Image

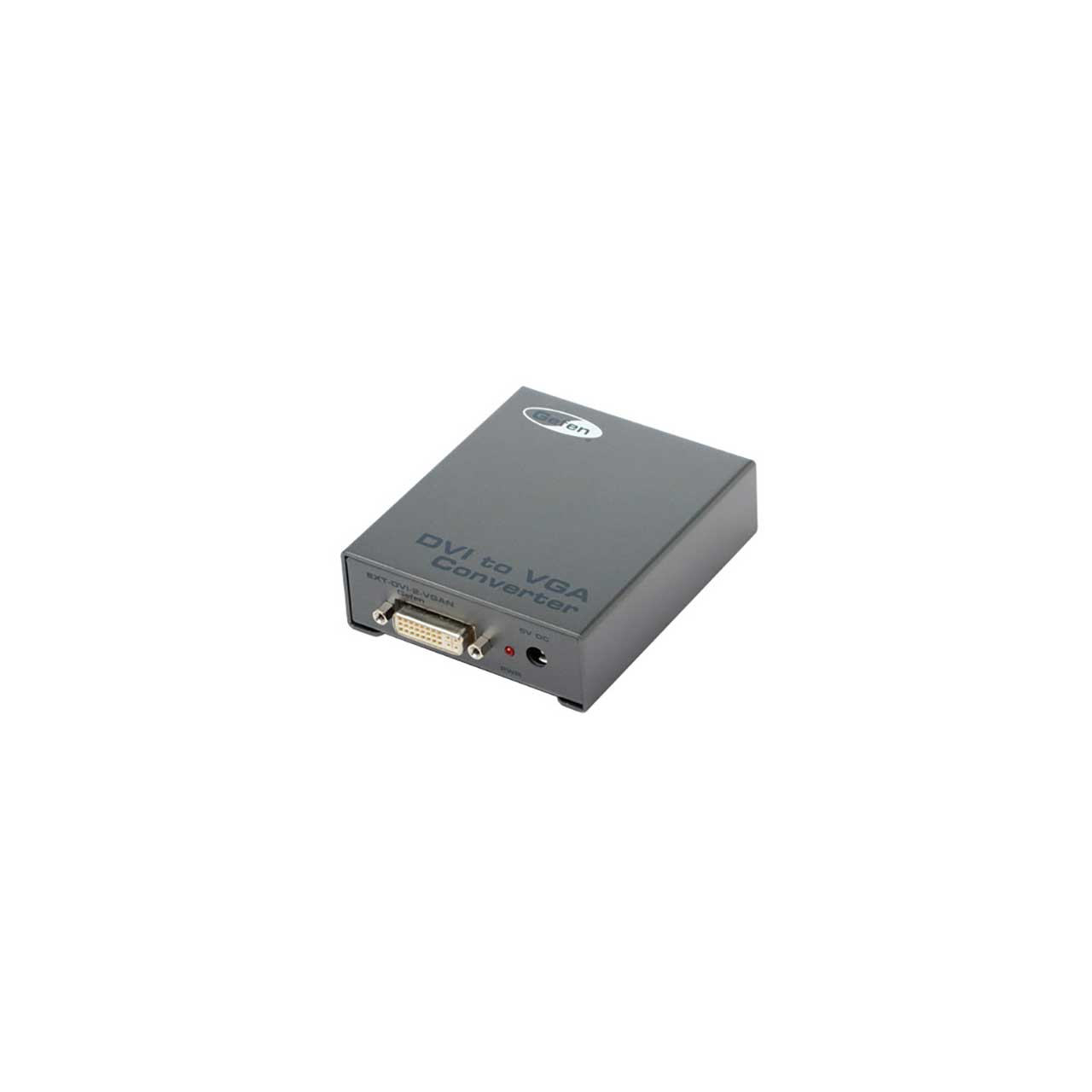

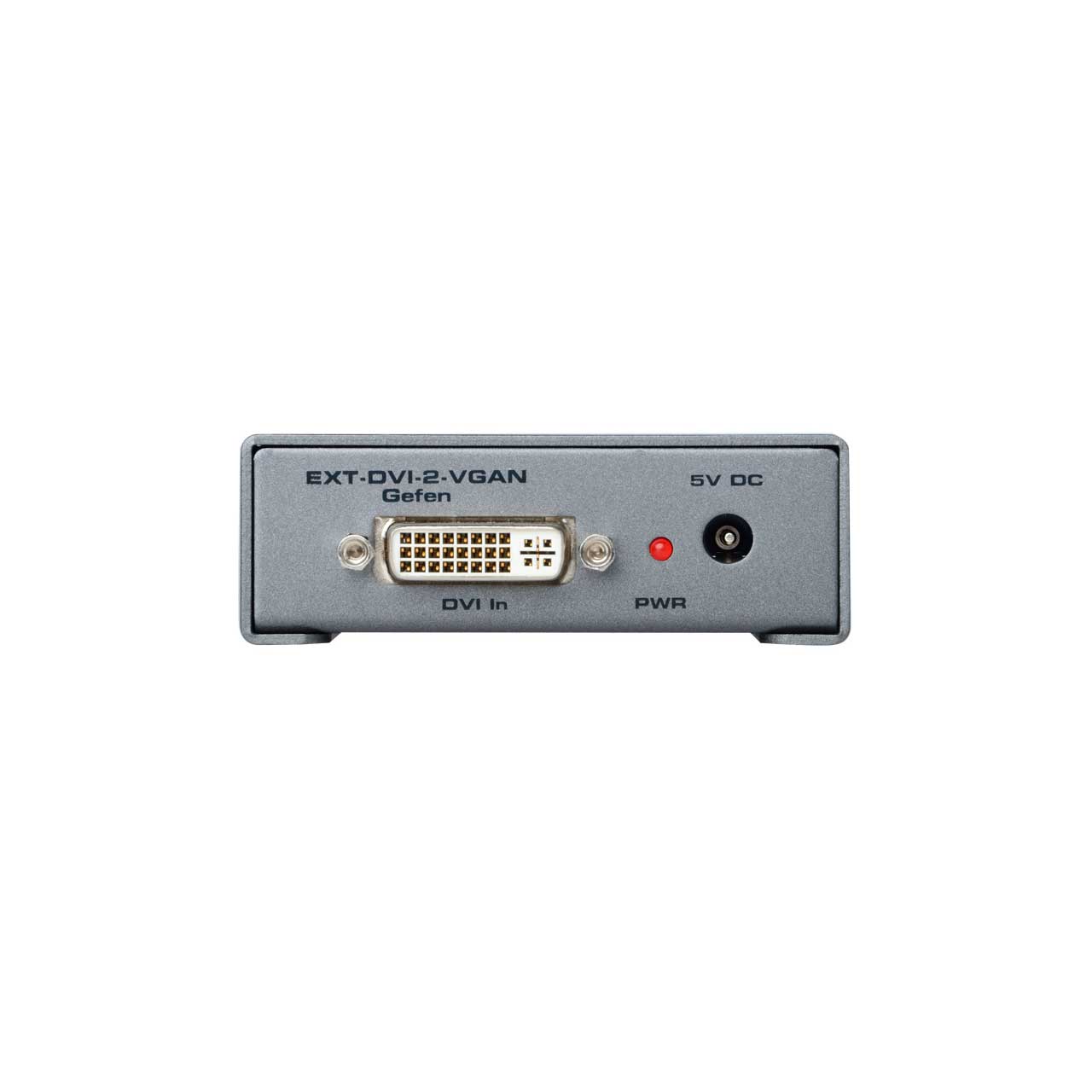

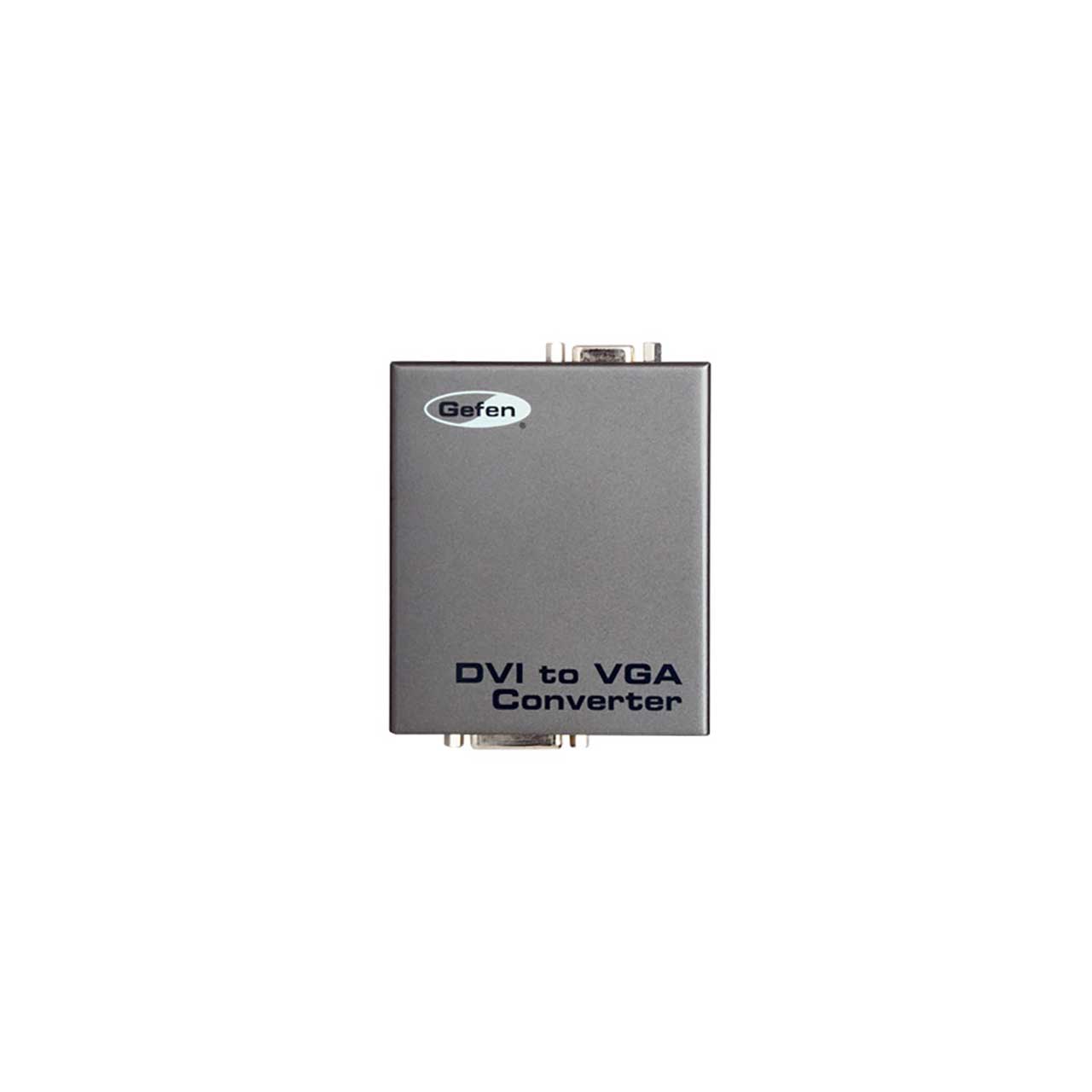

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Gefen Inc
Free Shipping with $49 Minimum Order

List Price:

$561.75

Our Price:

$385.95

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EXT-DVI-2-VGAN - Overview

The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any monitor, projector or TV using VGA. Output resolutions up to 1920x1200 are supported. The Gefen DVI to VGA Converter features EDID management that allows rapid integration of the source and monitor.

  • Features:

    • Enables DVI source to be displayed on VGA monitor or projector.
    • Supports resolutions up to 1920 x 1200.
    • EDID Management for rapid integration of source and display.
    • Built-in EDID switch allows choice between local EDID and external EDID.


  • Specifications:

    • Maximum Pixel Clock: 165MHz (DVI)
    • Analog Video Bandwidth: 350MHz (VGA)
    • Input Video Signal: 1.2V p-p
    • Input DDC Signal: 5V p-p (TTL)
    • Video Input Connector: (1) DVI-I 29-pin, female digital only
    • Video Output Connector: (1) VGA HD-15, female
    • Power Supply: 5V DC
    • Power Consumption: 5W (max.)
    • Dimensions: 3" W x 3.8" D x 1" H
    • Shipping Weight: 2 lbs.


  • Item Includes:

    • Gefen EXT-DVI-2-HDSDIPRO DVI to HD-SDI Converter Scaler
    • Power Supply
    • 2 x 6 ft DVI Cables
    • 6 ft DB-9 Cable
    • RMT-8HDS-IR Remote Control
    • User's Manual
    • One-Year Warranty Against Defects in Material & Workmanship


  • GTIN:

    0845344042268
