SWIT S-4611 Mini 3GSDI to DVI Converter

ITEM #: SWIT-S-4611 MFG #: S-4611

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
SWIT Electronics
Free Shipping with $49 Minimum Order

List Price:

$249.00

Our Price:

$225.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

S-4611 - Overview

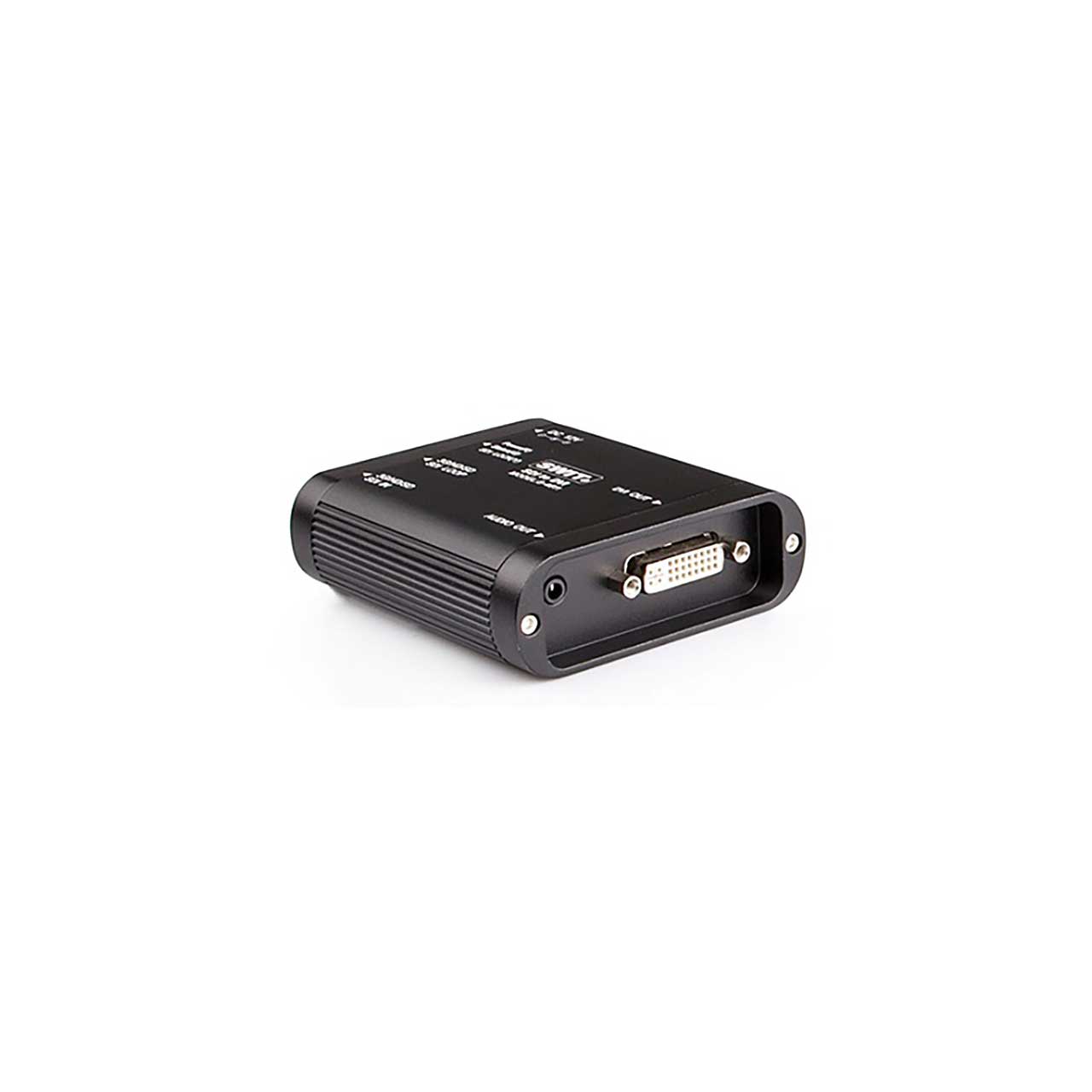

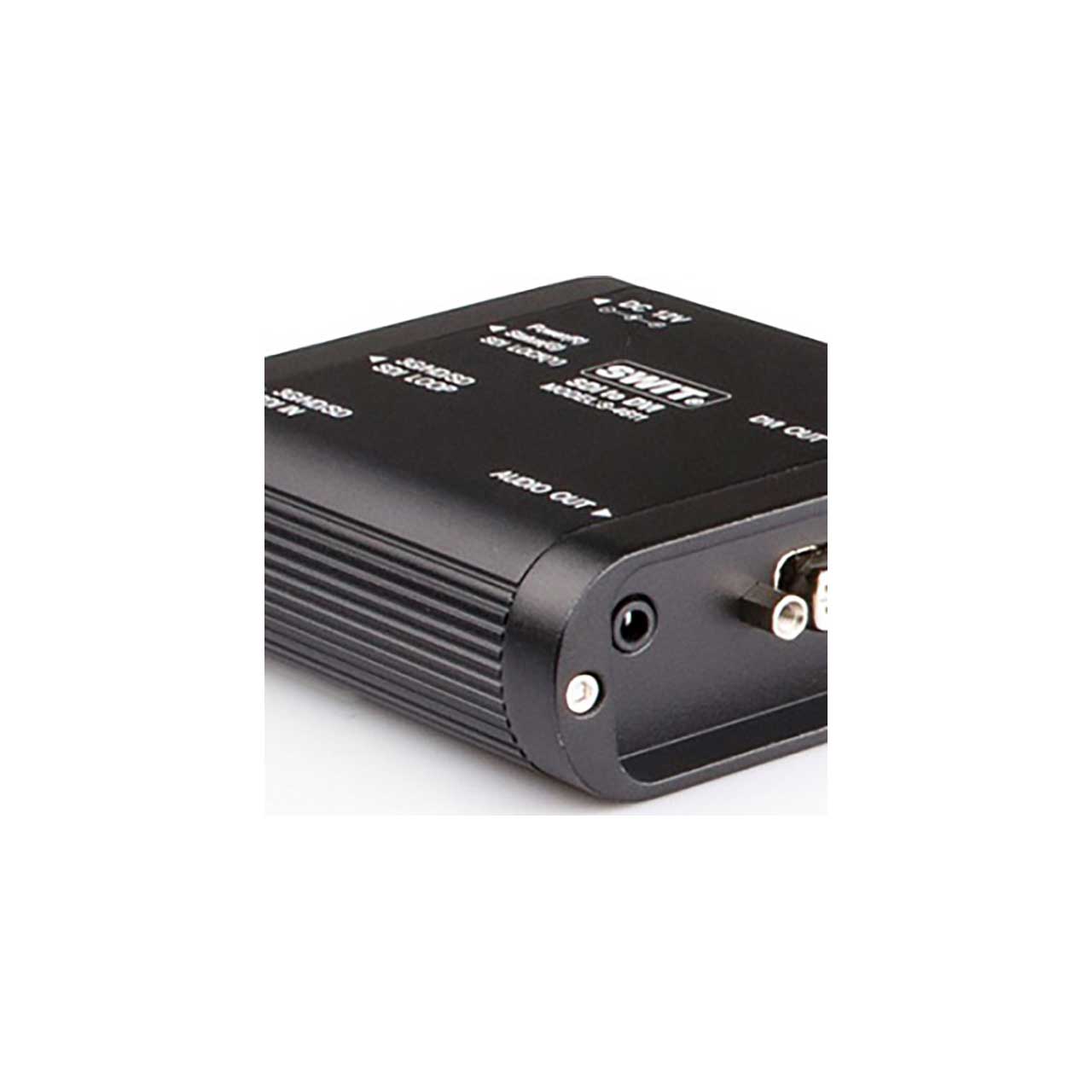

SWIT S-4611 is a mini converter for SDI to DVI conversion, (DVI-I, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors. And the SDI embedded audio (ch-1 & ch-2) can be converted to analog audio and output via 3.5mm headphone socket, supports 48kHz sample rate.

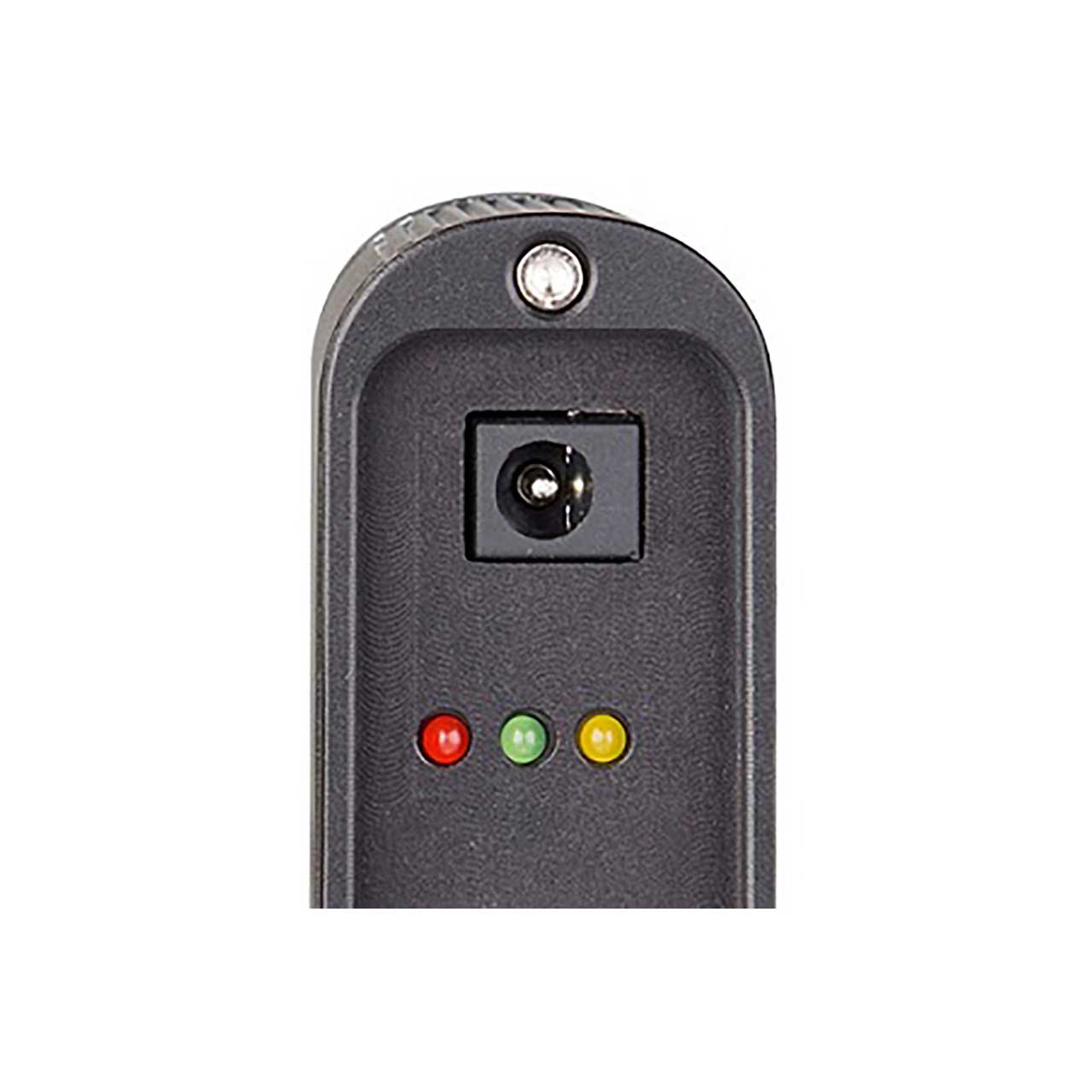

S-4611 has 3 LED indictors for checking status of the power connection, input/output signal connections. Also, S-4611 built with 1/4-inch screw threads and an installing plate A-IP00 for conveniently mounting converters.

S-4611 offers:

  • 1x 3G/HD/SD-SDI input
  • 1x 3G/HD/SD-SDI loop output (Reclocked)
  • 1x DVI-I output
  • 1x 3.5mm audio output (The SDI to DVI supports the same format conversion only.)

    • Features:

      • Portable 3G/HD/SD-SDI to DVI Converter
      • 1x SDI input, 1x DVI output, and 1x SDI loop
      • SDI audio output via 3.5mm socket
      • Power and input/output status indicator
      • Pole-tap 6-18V DC power input
      • Heavy duty aluminium housing
      • Bottom screw threads for installing


    • Specifications:

      • Power Consumption: ≤4W
      • Working Voltage: DC 6.5 - 17V
      • Working Environment: Temperature: 32°F - 158°F (0°C - 70°C), Humidity:10% - 90%
      • Dimensions: 3.9" x 3.3" x 1.1" (98mm x 84mm x 29mm)
      • Net Weight: 0.46lbs (209g)

        Video Format:
      • SDI: SMPTE-425M: 1080p (60/59.94/50)
      • SMPTE-274M: 1080i (60/59.94/50)
      • 1080p (30/29.97/25/24/23.98)
      • SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
      • SMPTE-296M: 720p (60/59.94/50)
      • SMPTE-125M: 480i (59.94)
      • ITU-R BT.656: 576i (50)
      • DVI:
        1080p (60/59.94/50/30/29.97/25/24/23.98)
        1080i (60/59.94/50)
        720p (60/59.94/50)
        480i/576i
      • Audio Format: 48KHz Sync
      • Input: 1x 3G/HD/SD-SDI
      • Output: 1x DVI, 1x 3G/HD/SD-SDI loop output (Reclocked) and 1x audio via 3.5mm earphone socket


    • Item Includes:

      • 1x S-4611
      • 1x A-IP00 (installing plate)
      • 1x AC-DC power adaptor


    • Warranty:

      • 2 years conditional


    • GTIN:

      6948193501789
