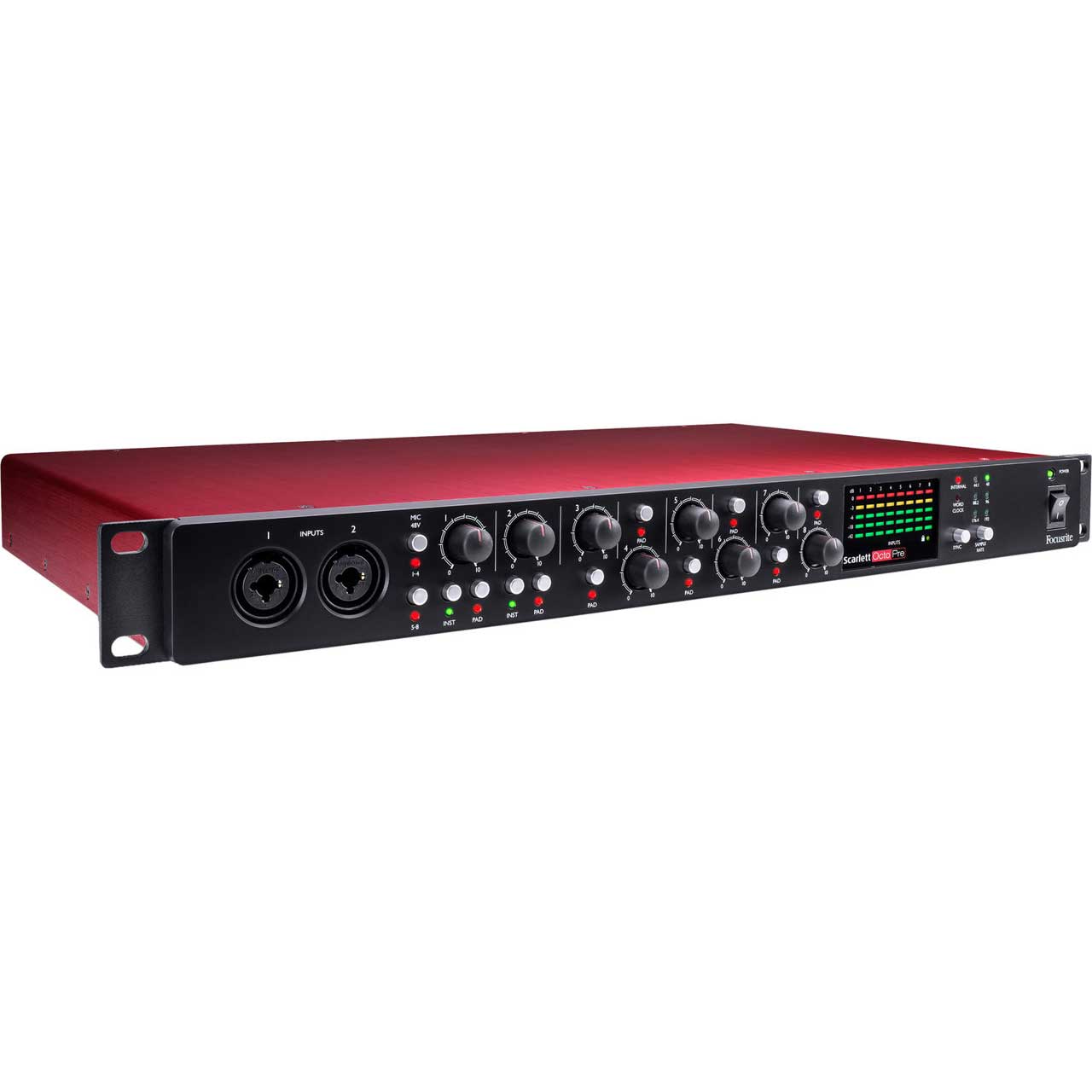

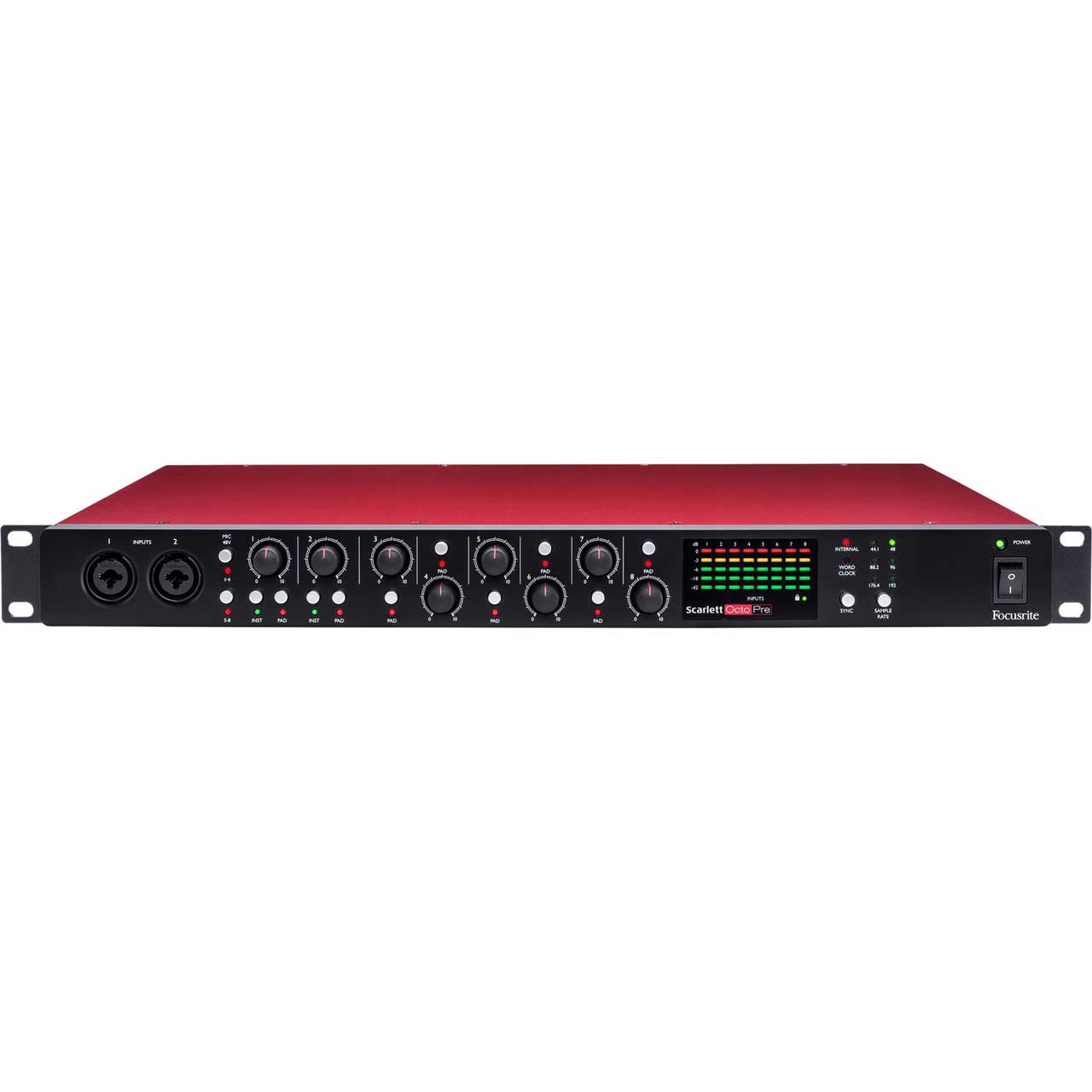

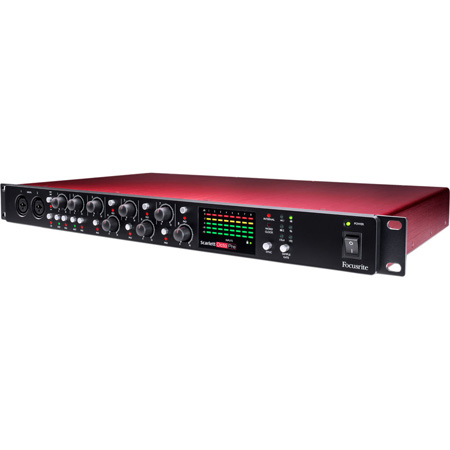

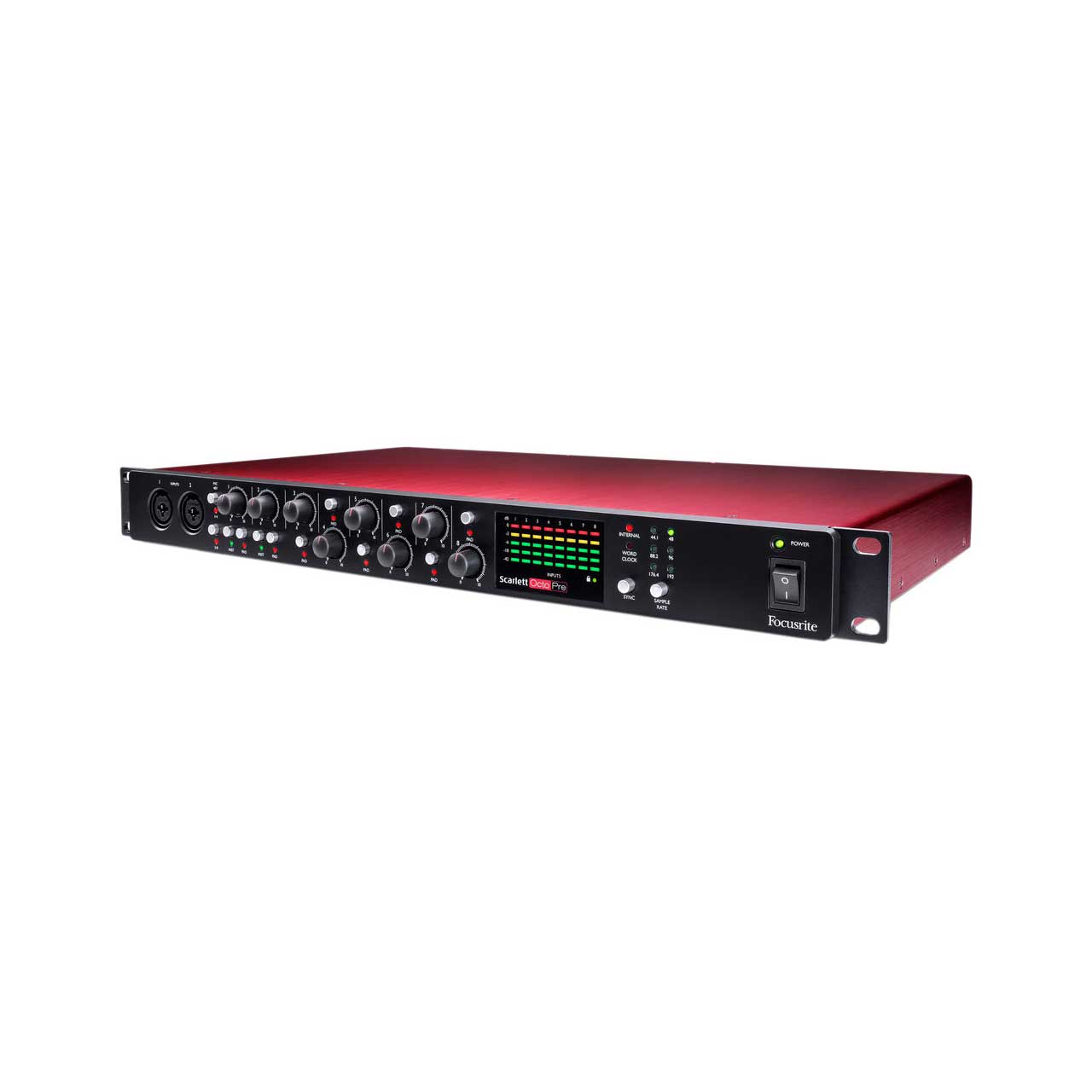

Focusrite AMS Scarlett OctoPre Eight-Channel Preamp with ADAT Outputs

ITEM #: FCSR-AMSSCAOCTPR MFG #: AMS-SCARLETT-OCTOPRE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$629.99

Our Price:

$499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AMS-SCARLETT-OCTOPRE - Overview

The Scarlett OctoPre is an eight-channel pre-amplifier for use with microphone, line and instrument input signals. It converts the inputs into multi-channel, 24-bit digital audio at sample rates up to 192 kHz. The digital outputs are in ADAT format on optical TOSLINK connectors, which can be easily routed to ADAT inputs on your studio recording system, or any other ADAT-equipped interface using optical cables. The Scarlett OctoPre can transmit eight channels of audio at sample rates of 44.1, 48, 88.2, or 96 kHz, or four channels at 176.4 or 192 kHz provided, of course, that the receiving interface is able to handle the same number of channels at the sample rate in use. The Scarlett OctoPre is an ideal "expansion" unit for adding up to eight more inputs to any audio interface with ADAT I/O. The Scarlett OctoPre can be easily synchronised with other digital audio equipment in your studio, either as a slave to an external word clock signal, or by acting as the master clock source itself.

The AMS-SCARLETT-OCTOPRE comes with a 2 year warranty.

  • Features:

    • Eight Scarlett 2nd Generation mic preamps
    • Dual front-panel instrument inputs
    • Plenty of headroom, Pads for the most extreme inputs
    • Outputs for live or stand-alone use

  • Specifications:

    • Supported Sample Rates
    • 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

      Microphone Inputs
    • Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
    • Dynamic Range: 109 dB (A-Weighted)
    • THD+N: <0.001%
    • Noise EIN: -127 dBu
    • Maximum input level (without pad): +8 dBu
    • Maximum input level (with pad): +16 dBu
    • Gain Range: 50 dB
    • Input Impedance: 3 kΩ

      Line Inputs
    • Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
    • Dynamic Range: 109 dB (A-Weighted)
    • THD+N: <0.002%
    • Maximum input level: +22 dBu
    • Gain Range: 50 dB
    • Input Impedance: 49 kΩ

      Instrument Inputs
    • Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
    • Dynamic Range: 108 dB (A-Weighted)
    • THD+N: <0.01%
    • Maximum input level: +13 dBu
    • Gain Range: 50 dB
    • Input Impedance: 1 MΩ

      Line Outputs
    • Maximum Output Level (0 dBFS): +16dBu at 0dBFS, or >21dBu where ADAT output is not used
    • THD+N: <0.001%
    • Ouput Impedance: 136 Ω (Balanced)

  • Warranty:

    • 2 Year
