FFC.00.250.CTAC27 - Overview

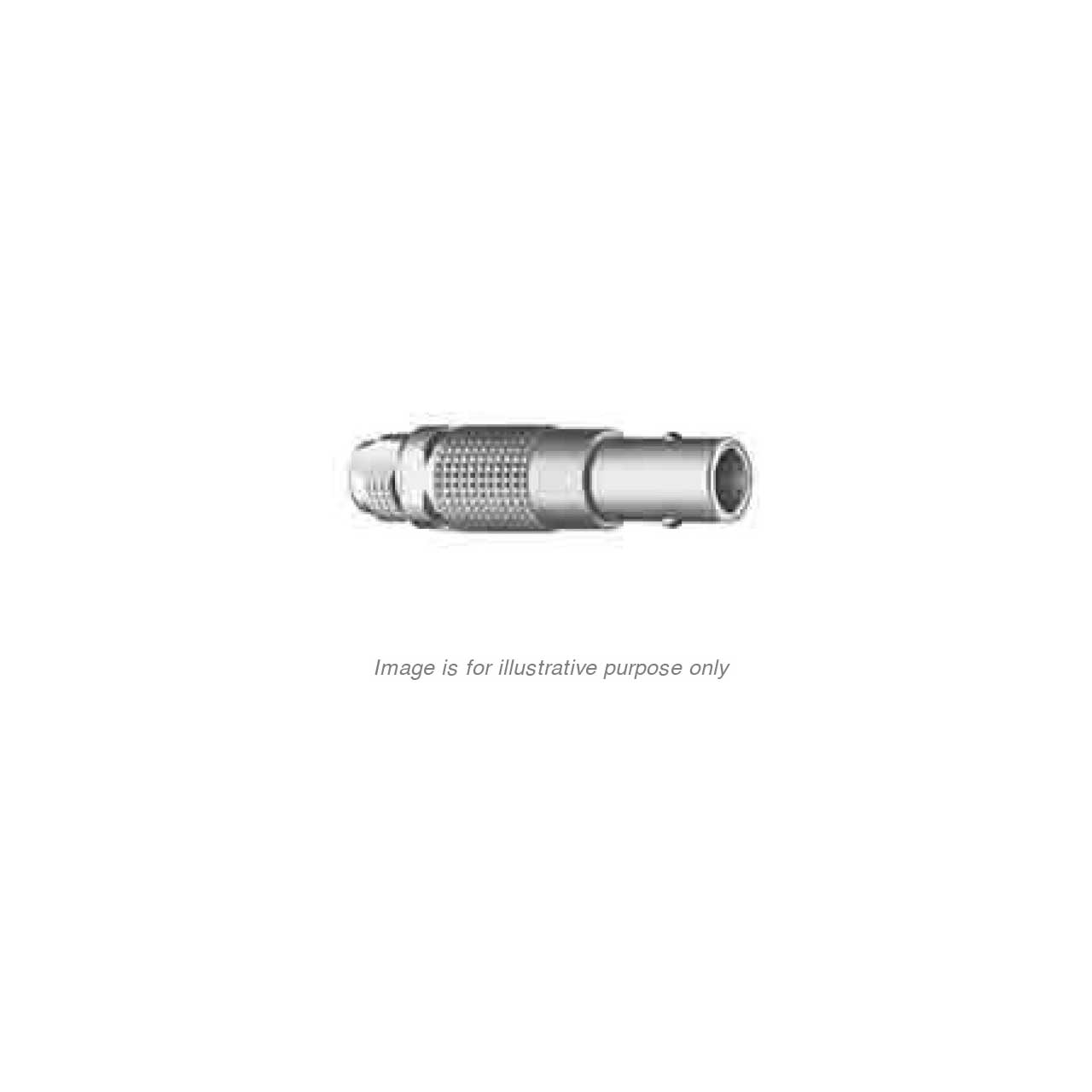

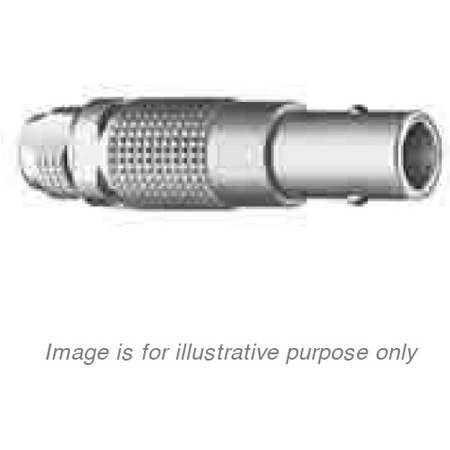

The Lemo FFC.00.250.CTAC27 is a Circular Push Pull Connector with a straight plug with flats on latch sleeve and cable collet.

  • Specifications:

    • Configuration: 00.250 : 1 Coax (50 Ohm)
    • Insulator: T: PTFE
    • Rated Current: 4 Amps
    • Contact Type: Coaxial 50 Ohm (Solder)
    • Contact Dia.: 0.7 mm (0.028in)
    • Bucket Dia.: 0.6 mm (0.024in)
    • Test voltage: 2.1 kV (rms)
    • R (max): 6.1 mOhm
    • Vtest: 2100 V (AC), 3000 V (DC)
    • Impedance: 50 Ohm
    • VSWR: 1.09 + 0.11 * f/GHz
    • Cable type: RG 316 /U
    • Endurance (Shell): 5000 mating cycles
    • F ret (min): 100 N
    • Salt Spray Corrosion: >1000 hr
    • Termination Type: Male Solder
    • IP Rating: 50
    • AWG Wire Size: 0.00 - 0.00
    • Cable: 2.30 - 2.70mm


  • Item Includes:

    • 1x FFC.00.250.CTAC27 Connector
