Lemo FGG.2B.306.CLAD82 Circular Push Pull Connector Straight Plug Male (CdG) 6CTS C-COLLET

ITEM #: FGG-2B306-CLAD82 MFG #: FGG.2B.306.CLAD82

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$79.12

Our Price:

$70.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FGG.2B.306.CLAD82 - Overview

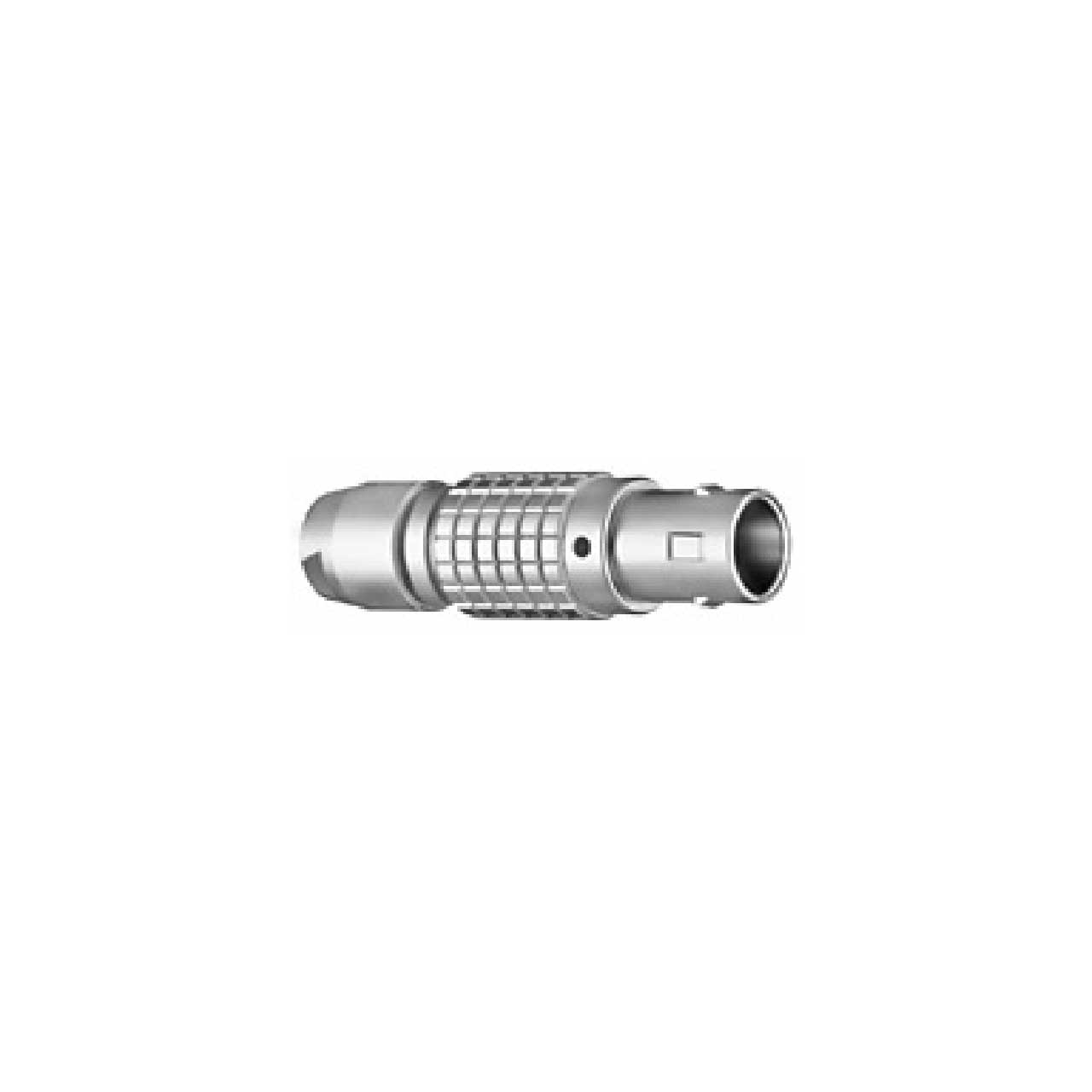

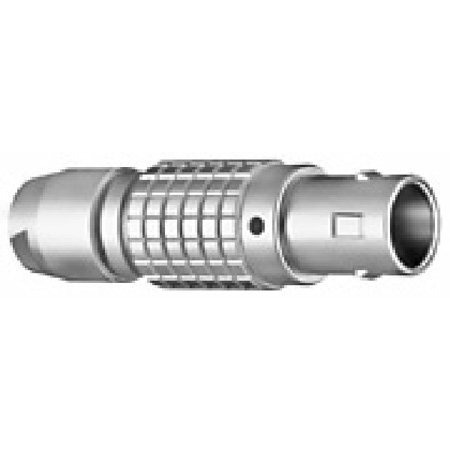

Lemo FGG-2B306-CLAD82 is a 6-way Circular Connector, 2B series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with six solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 2B series connector offers a solution for most applications.

  • Features:

    • 2A Current rating
    • PEEK insulator
    • G Key standard
    • IP50 Protection rating
    • 5000 Maximum matings
    • 3.6mR Maximum resistance
    • 1.3mm (0.051") Contact diameter
    • 360° Screening for full EMC shielding
    • 6 Low voltage insert configuration

  • Specifications:

    • Product Type: Circular Push Pull Connectors
    • Connector Type: Straight Plug
    • Contact Gender: Pin (Male)
    • Number of Contacts: 6 Contact
    • Mounting Style: Cable
    • Termination Style: Solder
    • IP Rating: IP50
    • Series: 2B
    • Wire size AWG: 20 - 20
    • Shell material: Brass


FGG.2B.306.CLAD82 - Required Accessories
