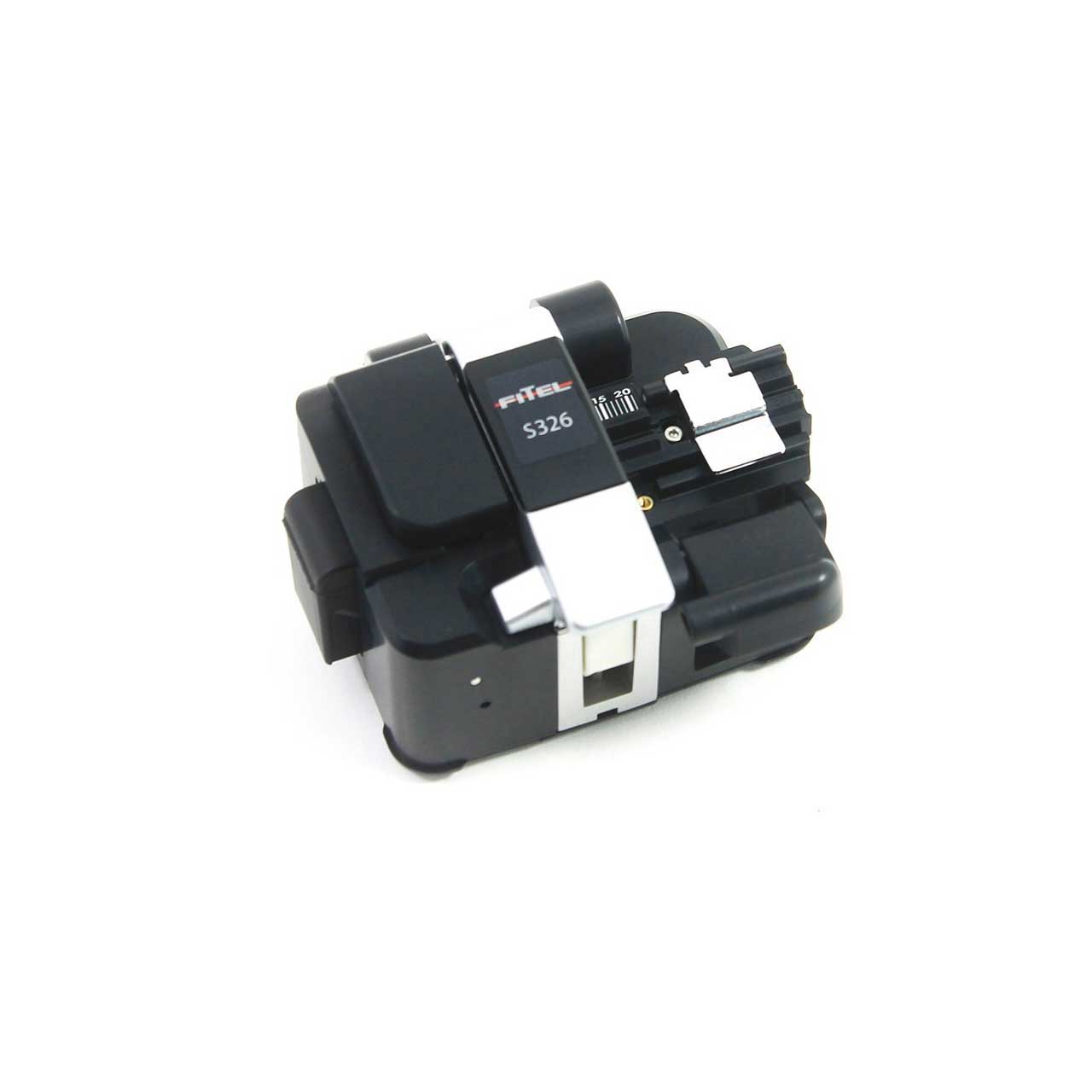

FIS F1CA3F Core Alignment Splicer Kit with Fitel Cleaver

ITEM #: FIS-F1CA3F MFG #: F1CA3F

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Fiber Instrument Sales, Inc.
Free Shipping with $49 Minimum Order

List Price:

$7,495.00

Our Price:

$7,159.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.
Report Lower PriceLarge Quantity Quote

F1CA3F - Overview

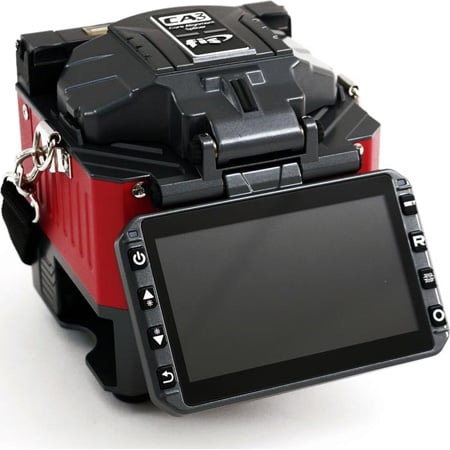

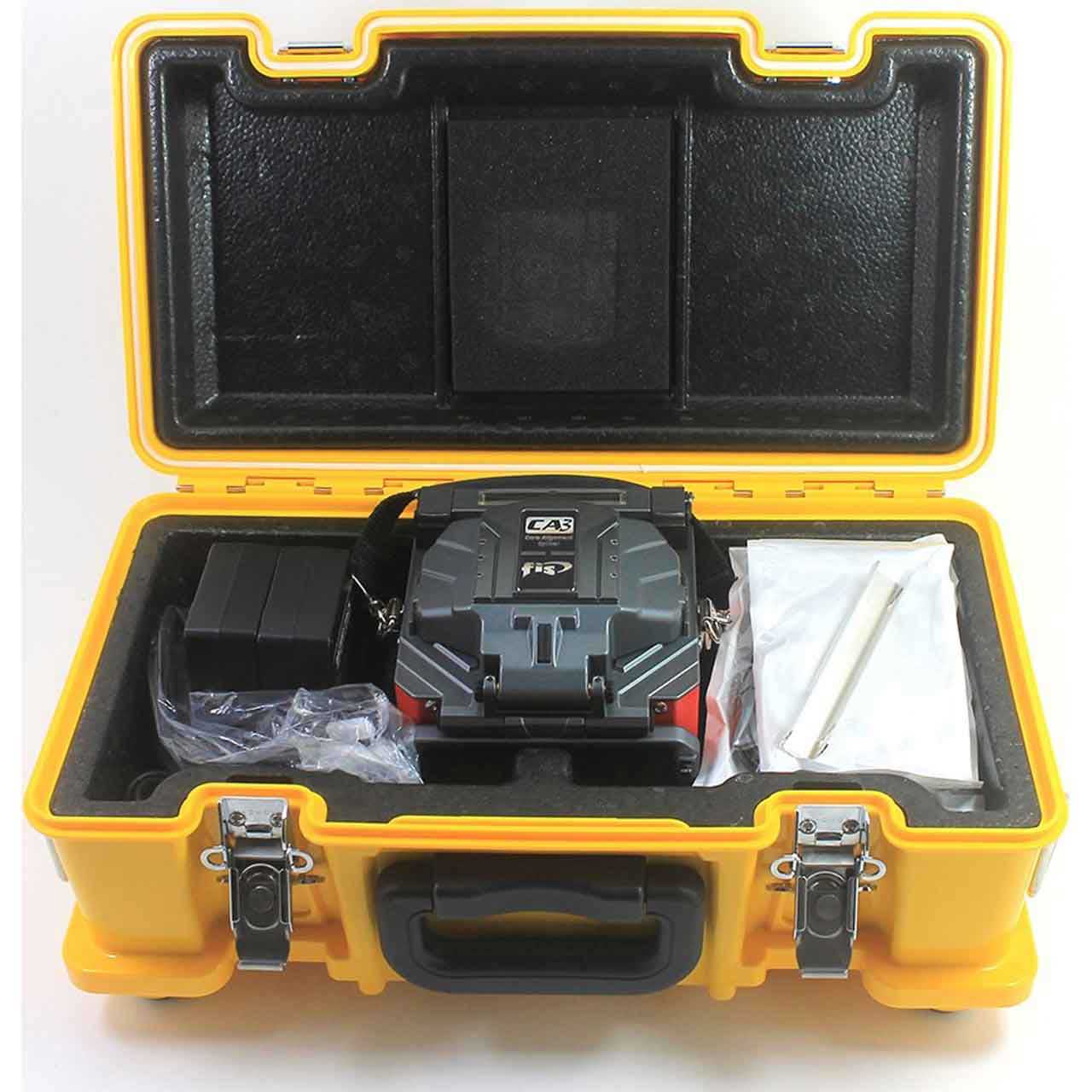

The FIS CA3 Core Alignment Fusion Splicer is designed with the splice technician in mind. The CA3 offers fast splice and heating times, excellent environmental performance, and a standard kit package with precision cleaver and two extended life batteries. Users have the option of operating the unit with integrated hard keys, or a new ultra-sensitive 4.3'' LCD (tempered glass) touch screen. Fast, low-loss splice performance and compatibility with FIS Cheetah Splice-On Connectors make this fusion splicer perfect for premise and long haul OSP applications.

  • Features:

    • Core Alignment
    • Fast Splice Time - SM 7s Quick Mode / 18s Heat Time
    • Rugged 4.3'' Tempered Glass LCD Touch Screen

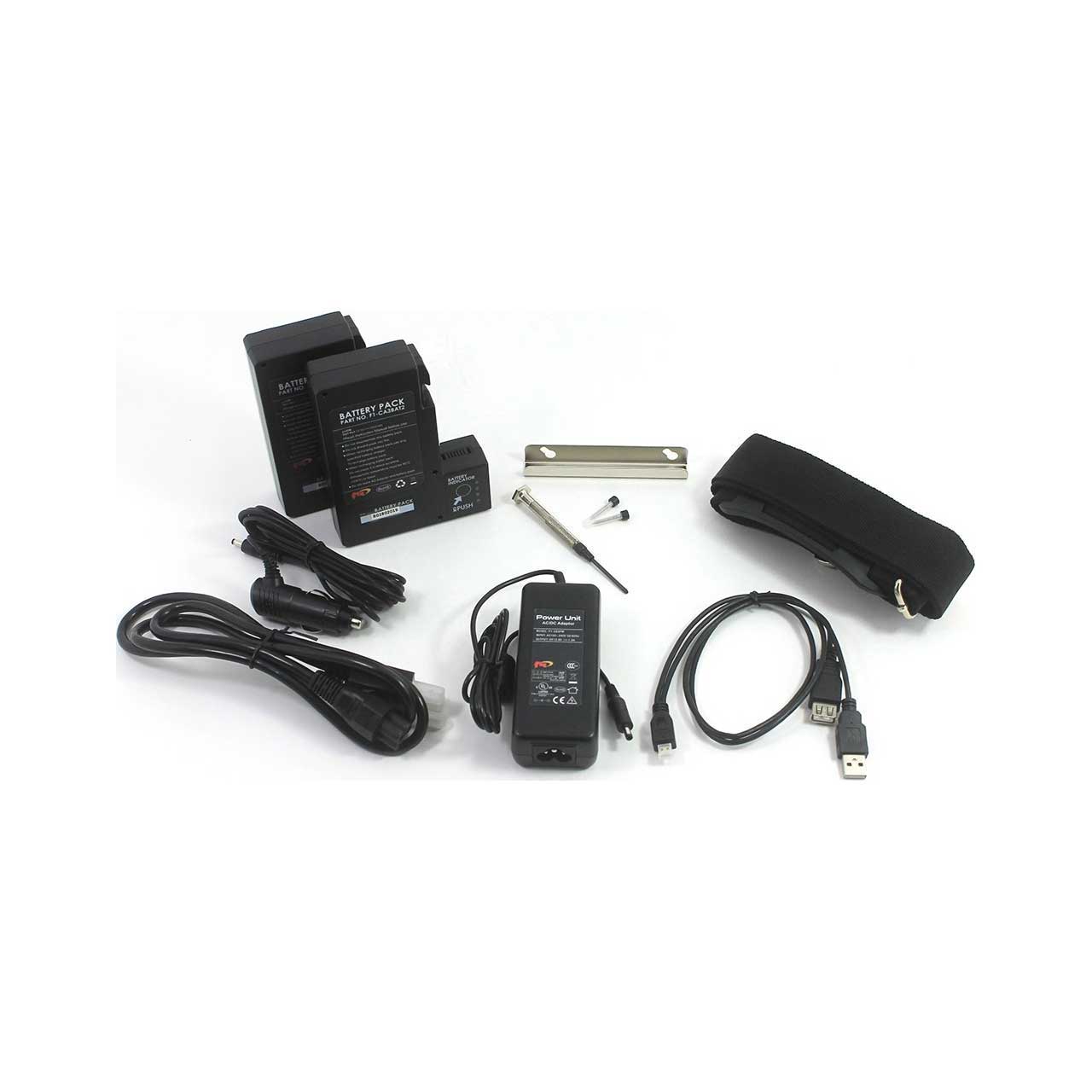

    • Typical 130 Cycles (Splice and Heat) / Single Battery (Two Batteries Standard with Kit)
    • Perfect for use with FIS Cheetah and Armordillo Splice-On
    • Connectors and Metal SOC Holders


  • Specifications:

    • Splicing Method: Core Alignment AOCAT (Automatic Optical Core Analysis Tracking System)
    • Average Loss: SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
    • Return Loss: >>60dB
    • Splice Time: 12s Average SM / 7s Quick Mode
    • Electrode Lifespan: >3,500 arcs
    • Applicable Fiber: SM(ITU-T G.652, MM(IUT-T G.651), DS(IUT-T G.653), NZDS (ITU-T G.655), IT-G.657A, IT-G.657B,
      0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
    • Cleaved Length: Coating Diameter <0.25mm = 8 - 16mm, Coating Diameter > 0.25mm = 16mm Minimum
    • Coating Diameter: 100 - 1,000æm
    • Cladding Diameter: 80 - 150æm
    • Heating Programs: Factory installed mode: 11, User installable mode: 23
    • Heating Time: Typical 18 seconds
    • Protection Sleeve: 40mm, 60mm, SOC Connector
    • Data Output: Micro HDMI-USB Master Device
    • Splice Programs: Factory installed mode: 33, User installable mode: 70+
    • Splice Memory: Up to 2,000 records and 2,000 splice images
    • Battery: Typical 200 Cycles (Splice & Heat) / Single Battery <2 Batteries Standard>
    • Power Supply: AC 100-240V input or DC 9-14V
    • Monitor: Color 4.3'' (109mm) LCD monitor, with Touch Screen (Tempered Glass)
    • Cameras: 2 CCD camera system
    • Magnification: XY style: 150 power, X/Y: 300 power
    • Fiber Display: X/Y or XY, single X,Y
    • Weight: 1.39Kg (3.75lbs) without battery
    • Size: 122 L x 124 W x 138 H (mm) / 5 L x5 W x 5.5 H (inches)
    • Wind Protection: Maximum wind velocity 15m/s (34mph)
    • Operating Environment: Elevation 0-5,000 meters, -15°- 60°C, 0-95% relative humidity
    • Storage Conditions: Temperature -40°- 80°C, 0-95% relative humidity, battery -20°- 30°C
    • Pull Test: 1.96 - 2.25N (standard)
    • Durability: Designed based on IP52, Equipped with anti-shock protection cover (optional)
