Fluke Networks FTK1475 FI-500 Micro/VisiFault VFL - Fiber Optic Inspector Test Kit

ITEM #: FLK-FTK1475 MFG #: FTK1475

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$9,180.99

Special Price:

$8,499.00

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FTK1475 - Overview

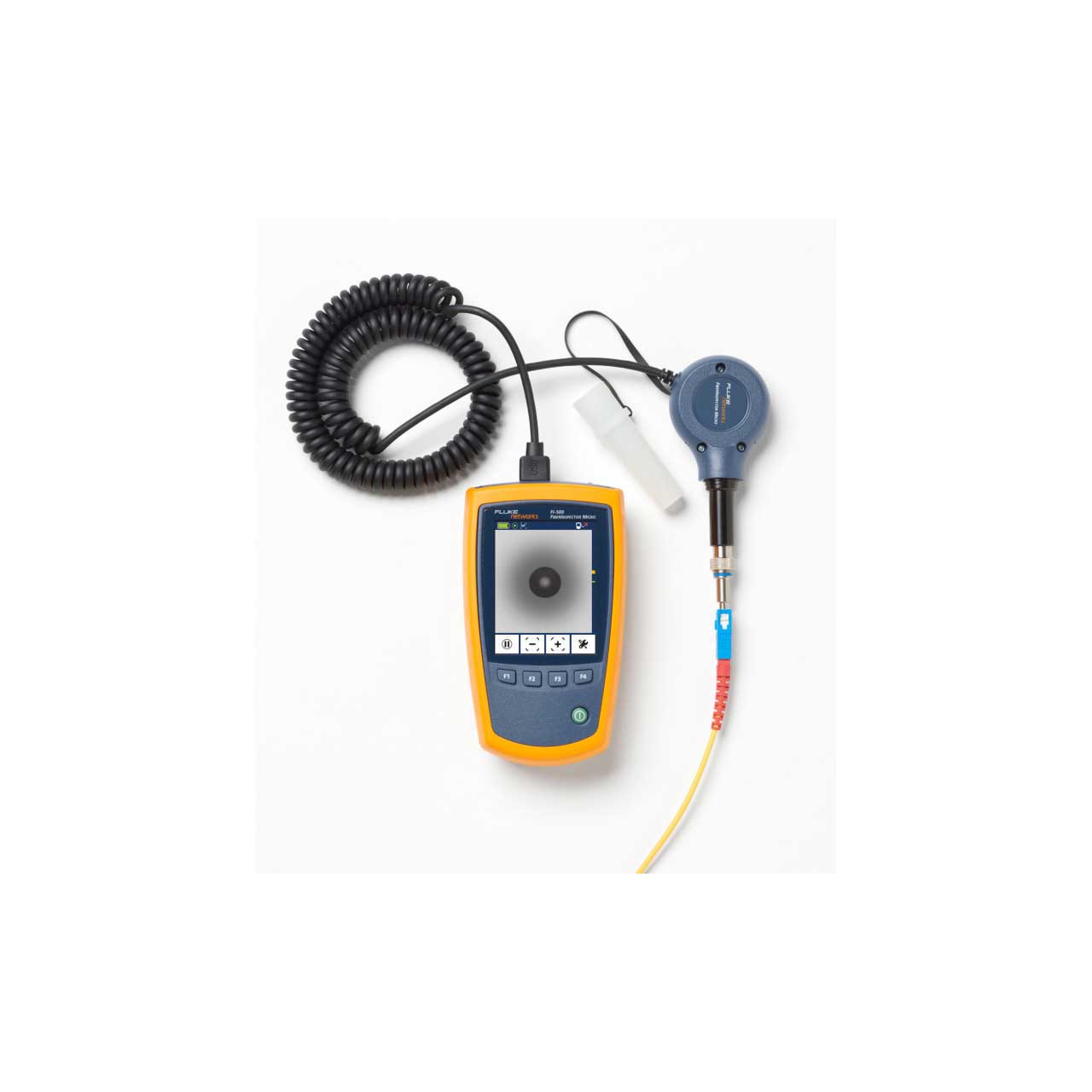

Dirty fiber optic endfaces are the major cause of problems in singlemode and multimode fiber optic systems. The Fluke Networks FTK1475 FI-500 FiberInspector Micro with SimpliFiber Pro Multimode & Singlemode PMLS, VisiFault, 2 FindFibers, Cleaning kit (NFC-KIT-BOX) and 1.25 mm swabs removes the hassle associated with inspecting fiber end faces, especially in low light and high cable density situations. It is very simple to use: Simply plug the cable into the FI-500 and touch the AF button. Within seconds, the fiber endface comes into sharp, clear view. And if you're working in a difficult to reach place or you can't get the image to stand still, just touch the pause button to freeze the image.

  • Features:

    • Fiber optic cable test kit with SimpliFiber Pro meter, single and multimode light sources, and other tools for verification and inspection of cabling in multimode and single mode fiber networks

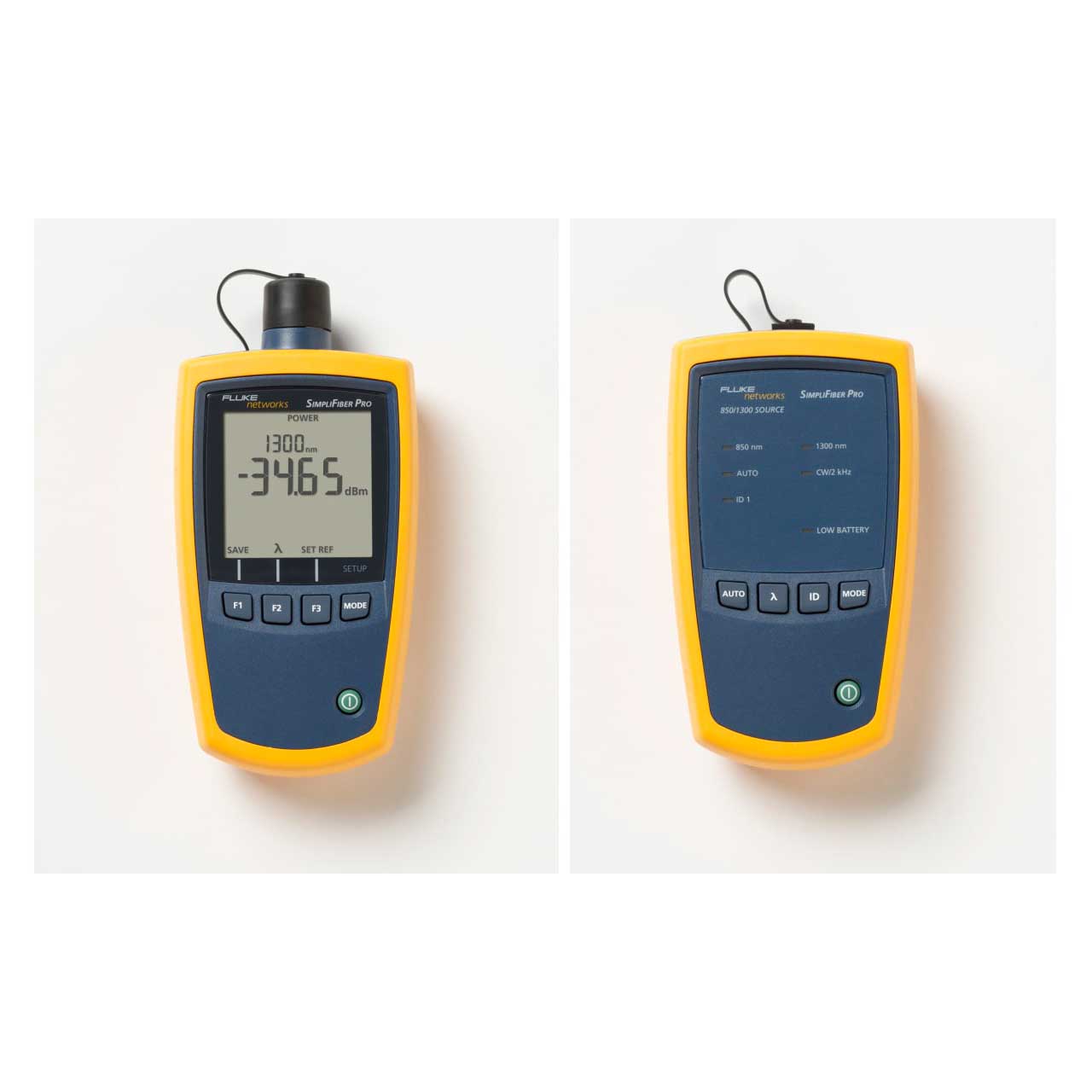

    • SimpliFiber Pro
    • Optical power meter with both multimode and singlemode light sources measures power and loss using dual-wavelength testing, which simultaneously transmits 850 nm and 1300 nm wavelengths for the multimode source and 1310 nm and 1550 nm for the singlemode source
    • Fiber Optic Inspection Scope
    • includes a handheld color display, auto-focus inspection scope and 4 tips for LC and SC style bulkhead and 1.25 and 2.50mm patch cords.
    • The patented scope includes PortBright to illuminate and easily connect in dark places
    • VisiFault VFL
    • Uses a bright red laser to trace fibers, checks continuity and polarity, and help find breaks in multimode and singlemode fiber

  • Specifications:

    • Resolution: 2M pixels
    • Light Source: Blue LED
    • Power Source: Versiv mainframe
    • Field of View (FOV): Horizontal: 425 æm, Vertical: 320 æm
    • Minimum Detectable Particle Size: 0.5 æm
    • Dimensions: Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip
    • Weight: 200 g
    • Temperature Range Operating: 32° F to 122° F Storage: -4° F to +158° F
    • Certifications: CE
    • Tester Off: Four hours to charge from 10% to 90% capacity
    • Tester On: Six hours to charge from 10% to 90% capacity with the tester on
    • Battery: Lithium ion battery pack, 7.2 volts
    • Battery Life: Eleven hour with Inspection probe attached
    • Integrated Wi-Fi: Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

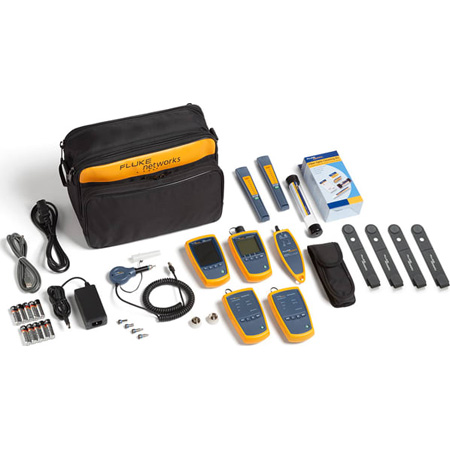

  • Item Includes:

    • 1x FI-500 FiberInspector
    • 1x SimpliFiber Pro Multimode & Singlemode PMLS
    • 1x VisiFault
    • 2x FindFibers
    • 1x Cleaning kit (NFC-KIT-BOX)
    • 1x 1.25 mm Swabs
    • 1x FindFiber remote ID
    • 3x Power meter adapters (SC, ST, and LC)
    • 1x USB interface cable
    • 1x Quick reference guide
    • 1x Carrying Case


FTK1475 - Required Accessories
