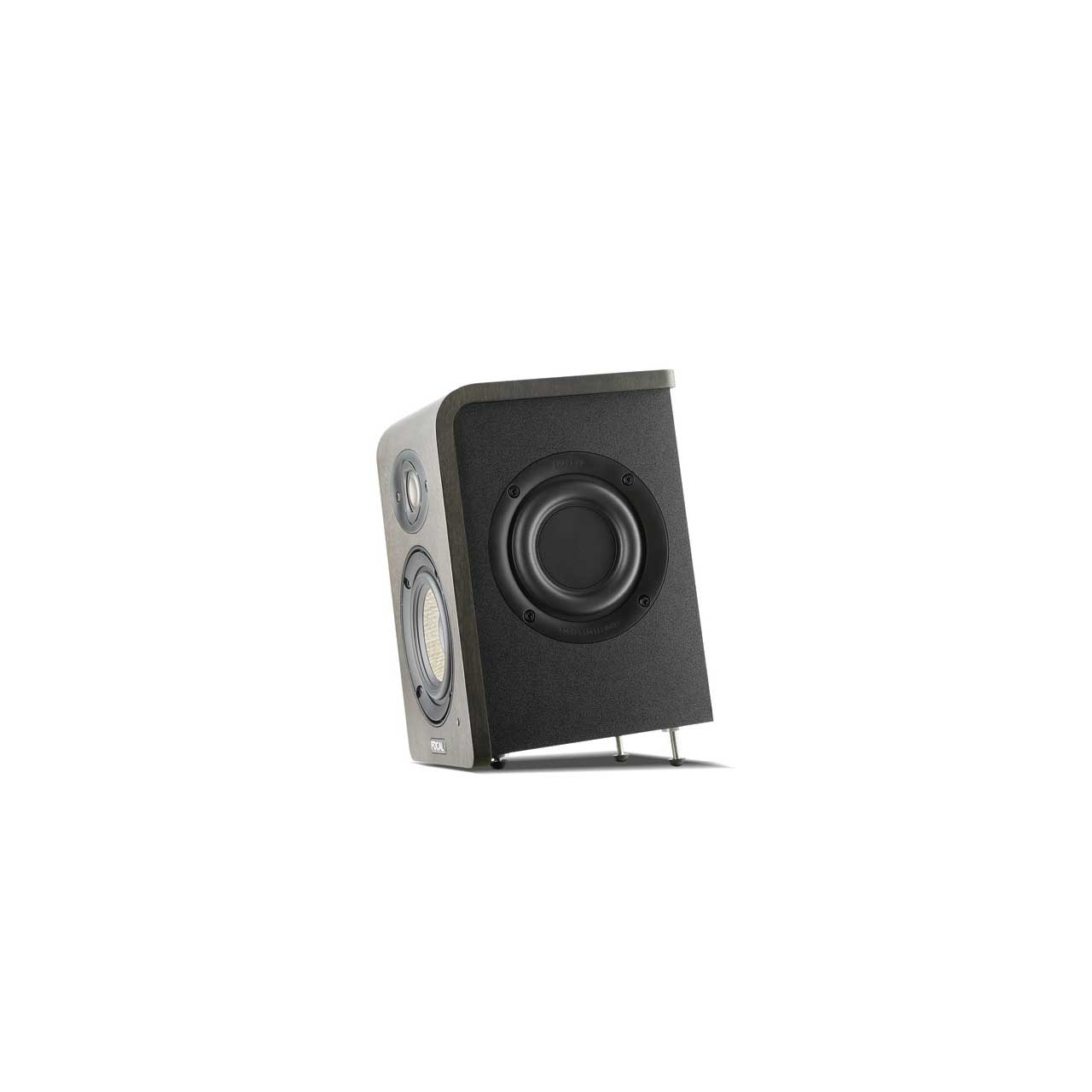

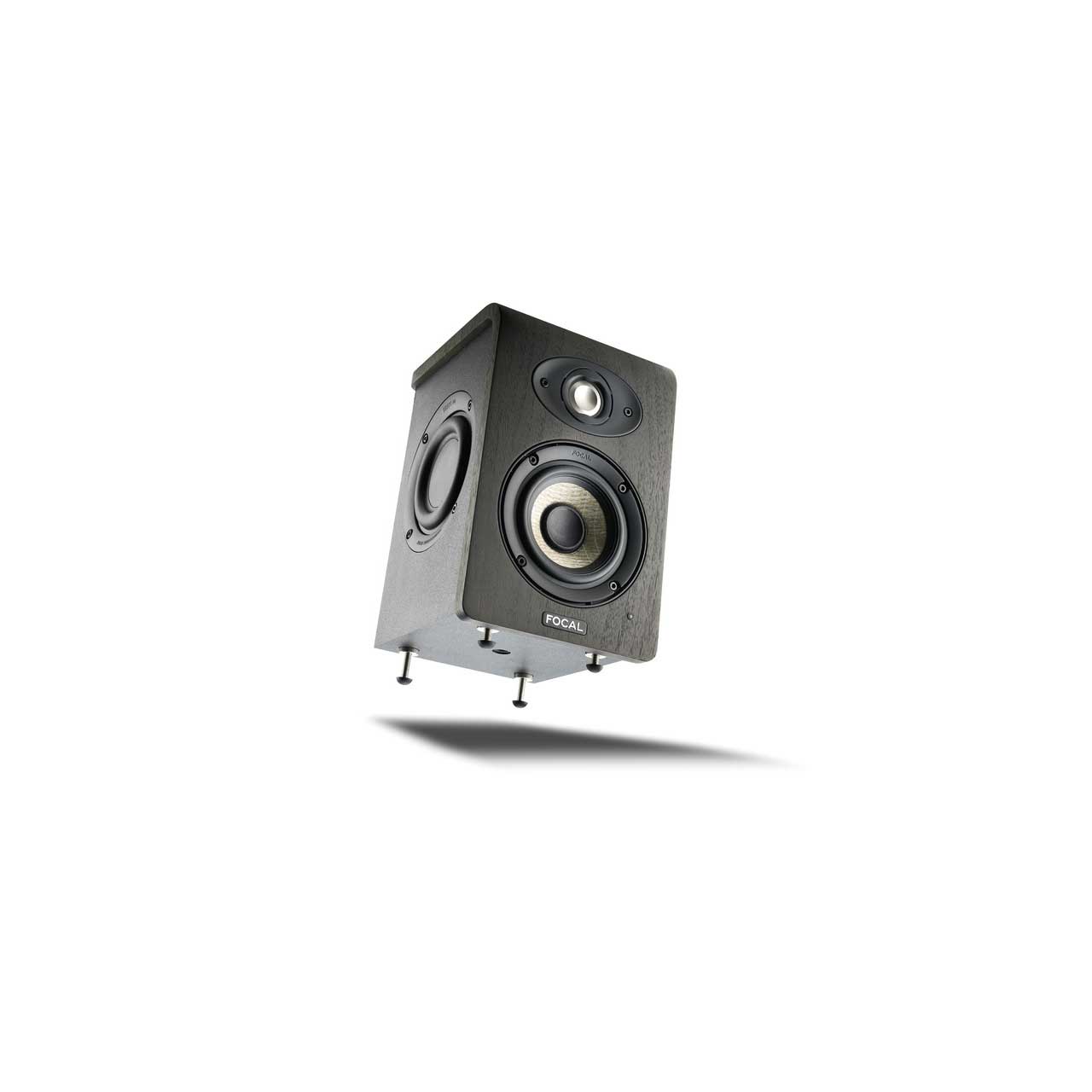

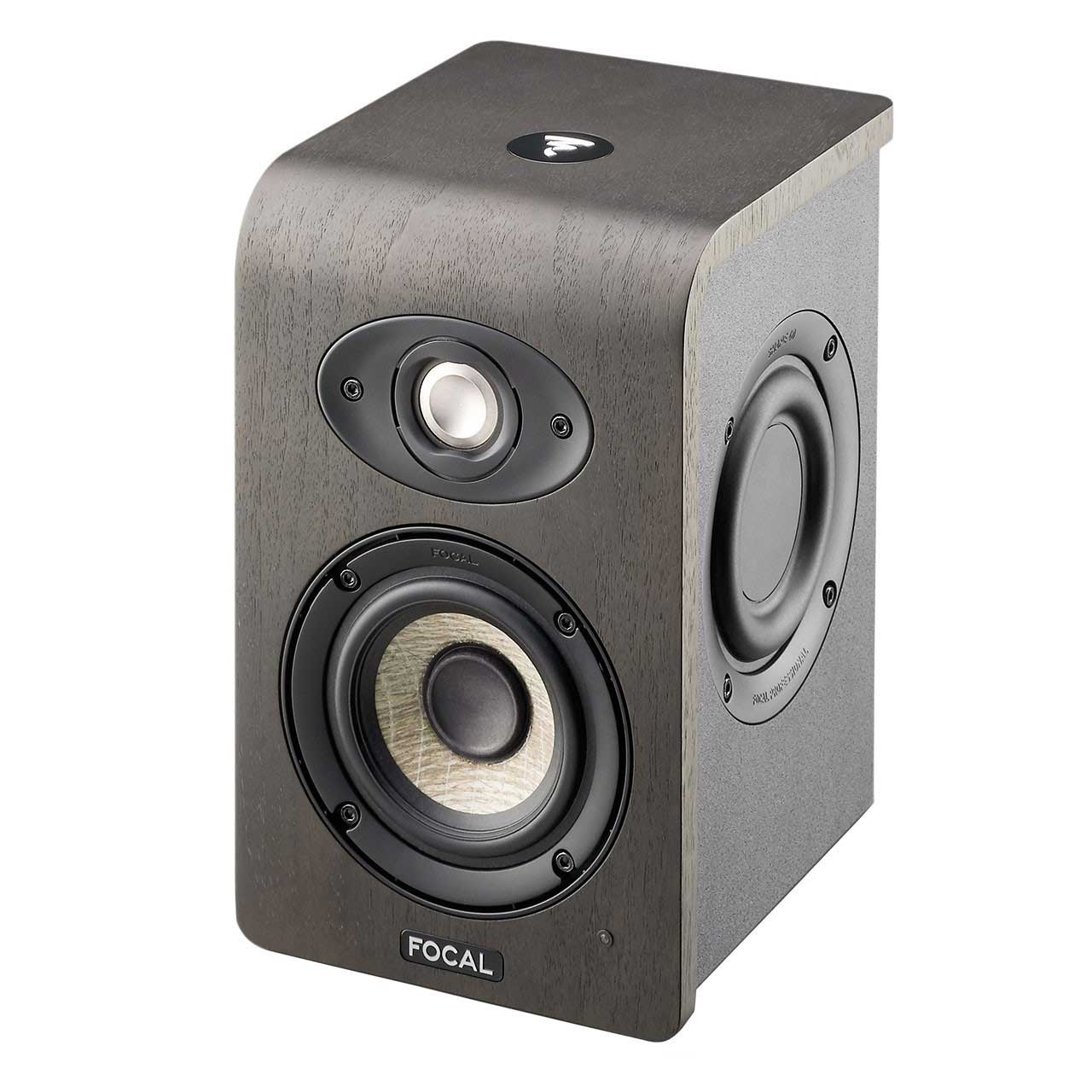

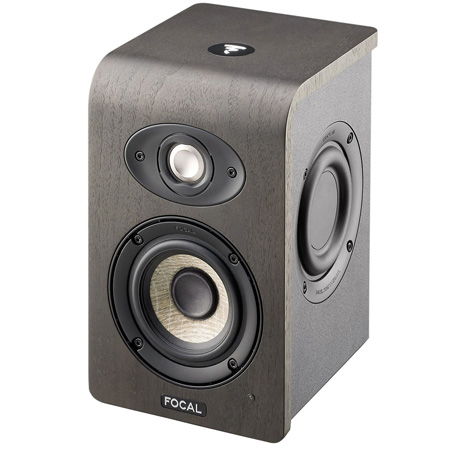

Focal SHAPE40 4.0 Inch Active 2-Way Studio Monitor (Single)

ITEM #: FOCAL-SHAPE40 MFG #: FOPRO-SHAPE40

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$549.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FOPRO-SHAPE40 - Overview

Focal Shape 40 (FOPRO-SHAPE40) is the most compact studio monitor in the Focal Professional line, and the perfect solution for nearfield monitoring. These monitors can be used from 23" away (60cm), and they have astonishingly extended low end frequency response. Whether you have a room of less than 107ft² (10m²), or an installation where compactness is paramount, Shape 40 is the perfect solution.

The monitor is made in France and integrate five innovations to maximise acoustic transparency. Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.

These innovations provide remarkable acoustic transparency. These new work tools distinguish themselves through the wide and extremely precise stereo image. The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalisation of these essential registers much easier. Finally, the new tweeter is what's at the source of the very high definition. It efficiently reveals any hissing, and it's also very precise in the very high end.

  • Features:

    • Low tweeter directivity for a flexible listening position
    • Designed without a port allowing it to be placed near a wall
    • Numerous settings for optimal integration
    • Accurate control, even in the very high end
    • Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers.
    • Threads for ceilling and wall mounts (fastening accessories not supplied)

  • Specifications:

    • System SHAPE 40
    • Frequency response: (±3dB) 60Hz - 35kHz
    • Maximum SPL (musical signal): 102dB SPL (peak @ 1m)

      Electronic section
    • Inputs/Impedance: Type: XLR balanced 10kOhms / Connectors: RCA unbalanced 10kOhms with sensitivity compensation
    • Midrange and Low Frequency Amplifier: 25W, class AB
    • High Frequency Amplifier: 25W, class AB
    • Automatic Standby: Standby on: After approximately 30 minutes with no signal / Standby off: Signal detection > 3 mV
    • Electrical Supply: Voltages: 220-240V (T500mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse) / Connection: IEC plug and detachable power cord

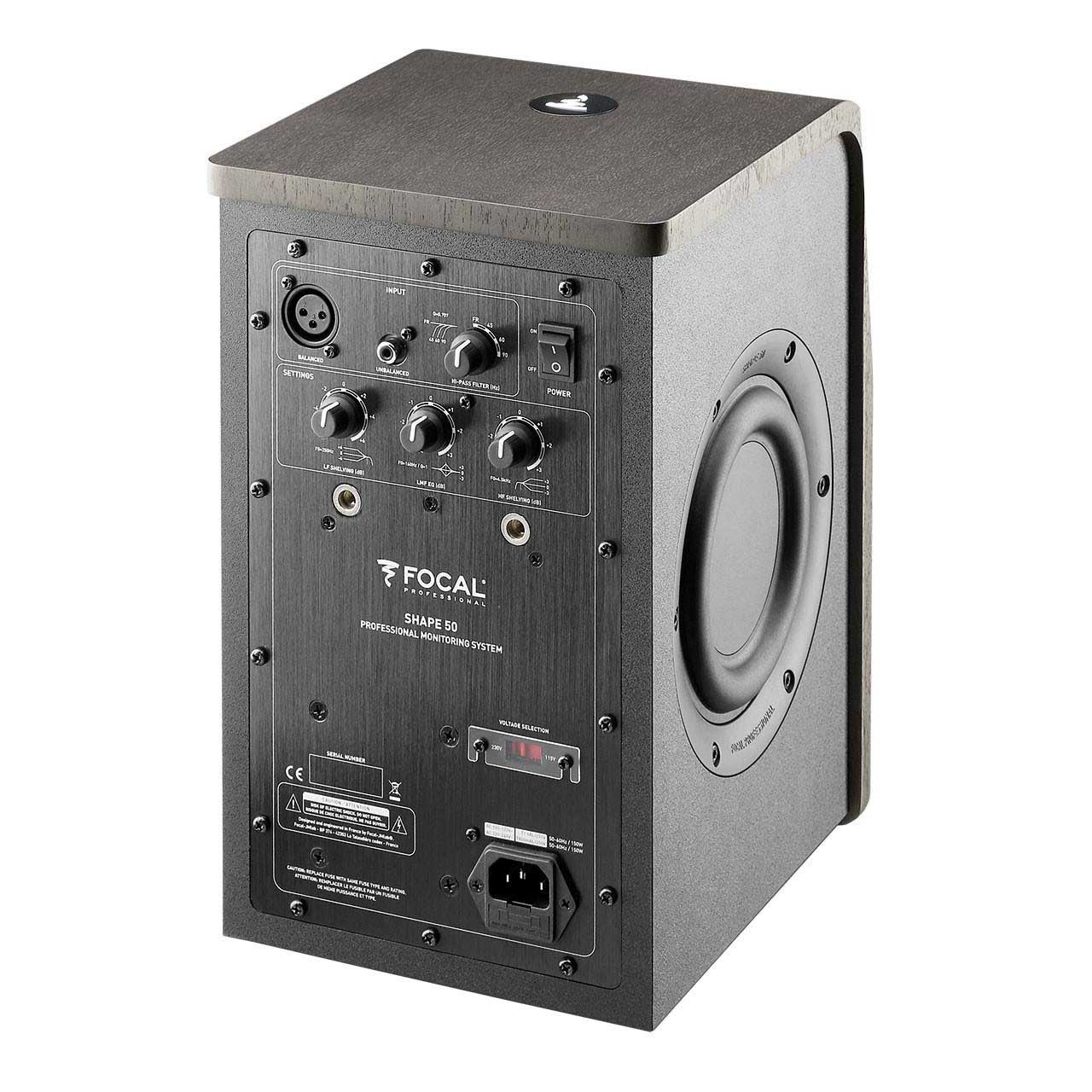

      Settings
    • High Pass Filter: Adjustable Full range / 80Hz
    • Bass (0 - 250Hz): Adjustable, ±6dB
    • Midrange/Bass (160Hz, Q=1): Adjustable, ±3dB
    • High (4.5 - 35kHz): Adjustable, ±3dB
    • Power On/Power Off: On/off switch on rear panel
    • Standby Consumption: < 0.5W
    • Displays and Controls: LED for power on/off and standby

      Transducers
    • Woofer: 4" (10cm) Flax Cone
    • Tweeter: 1" (25mm) 'M' profile Aluminum-Magnesium

      Cabinet
    • Construction: 0.5" (12mm) MDF
    • Finish: Vinyl, real walnut and black painting
    • Dimensions with Four Rubber Feet (HxWxD): 10.1 x 6.3 x 7.9"
    • Weight: 16.1lb

  • Item Includes:

    • 1x Power Supply Cord
    • 4x Adjustable Spikes
    • 1x Protective Grille for the Tweeter (Advised to be Removed for Listening as Soon as Possible)
    • 1x Protective Grille for the Woofer (Advised to be Removed for Listening as Soon as Possible)
    • 1x Guarantee Card

  • GTIN:

    3544055801528
