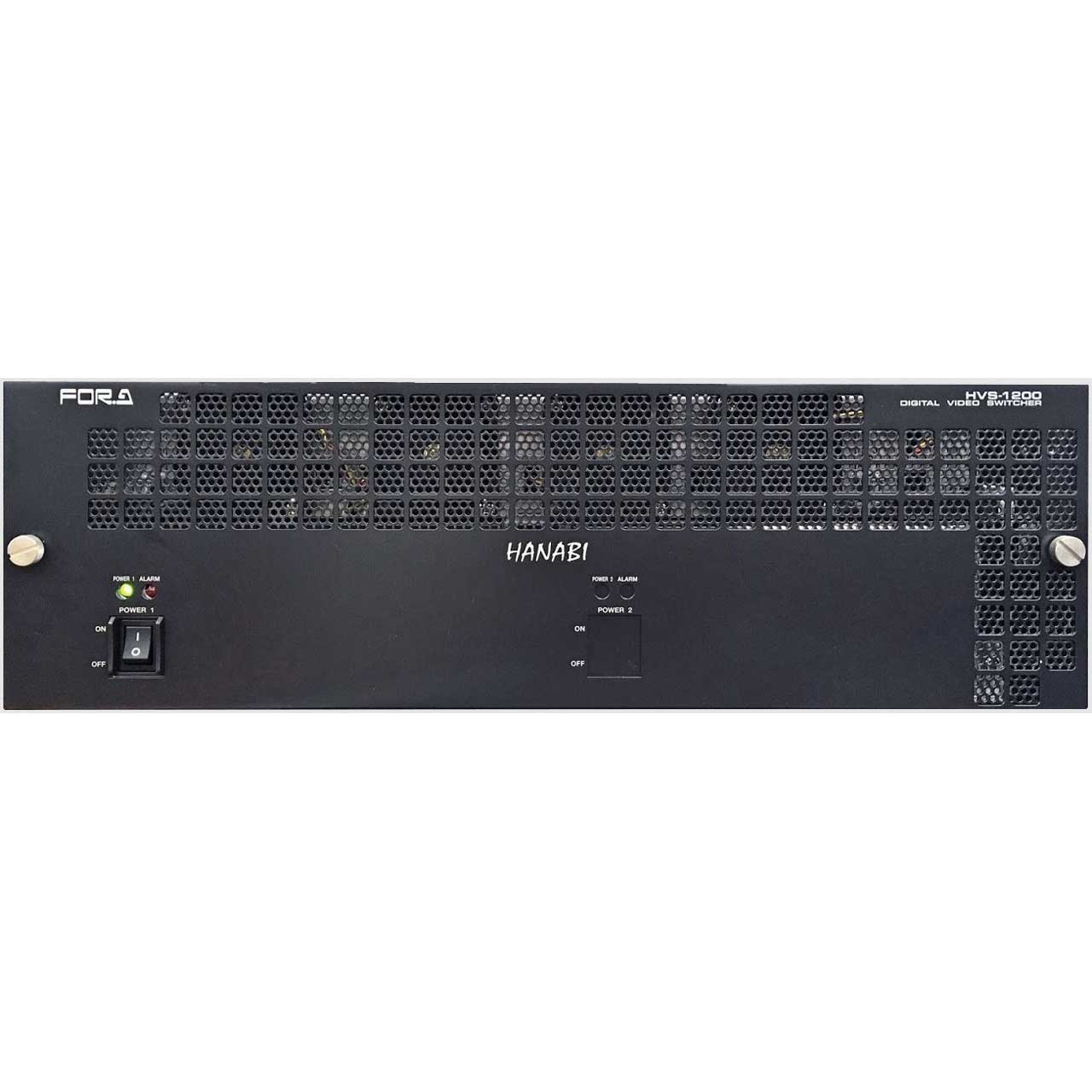

This FOR-A HVS-1200-TYPE-B switcher builds on the features of the HANABI HVS-100/110 and HVS-490 video switchers and adds 12G-SDI support as standard. One or two M/E switching (in 4K(UHD) and HD mode, respectively) is just the start. Enjoy two or six M/E performance in these modes thanks to FOR-A's MELiteT technology. The compact, 3U form factor is exceedingly portable, making the HVS-1200 the perfect choice for mobile production or events.
Standard 12G-SDI support
10 12G-SDI inputs come standard on this compact unit. Use as a switcher in HD mode with 40 inputs and 2M/Es. Can be used mainly for HD switching while switching to 4K(UHD) as needed. Enjoy convenient operation in HD mode and smoother migration to a 4K(UHD) environment.
Ten standard inputs in 4K(UHD) mode:

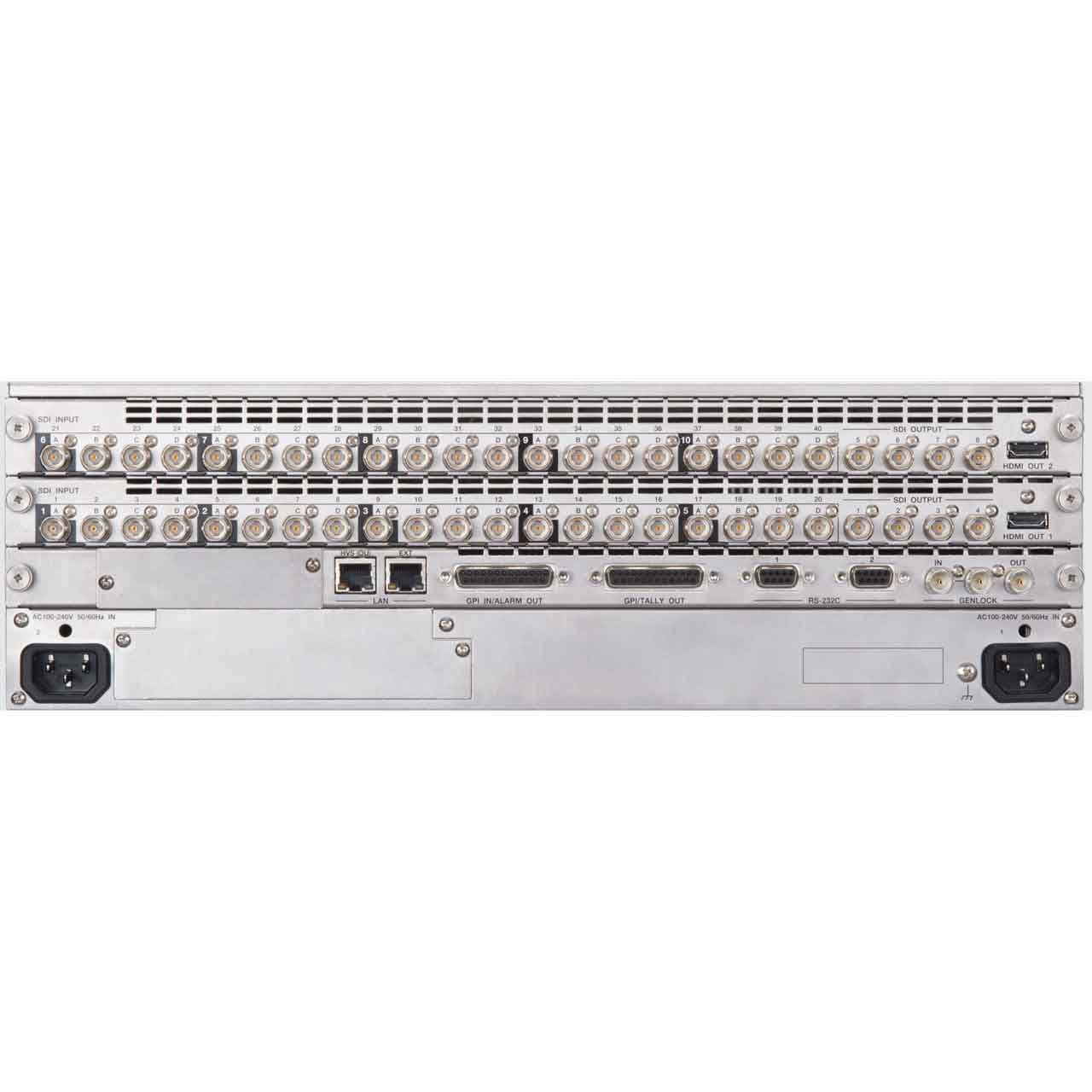

In 4K(UHD) mode, the switcher features 10 inputs and 10 outputs, including two outputs for HDMI 2.0 Level B. Mixed inputs of 12G-SDI and quad link 3G-SDI are supported. Two 3G-SDI I/Os for 29.97p/25p/24p/23.98p. In HD mode, 40 inputs and ten outputs are supported, including two outputs for HDMI 1.4.
MELite:
MELite is patented FOR-A technology that expands the capabilities of AUX transitions. With an AUX bus, users can preview transitions before executing them and enjoy the same control over AUX output as for PGM or PST. One MELite (in 4K-UHD mode) or four MELite (in HD mode) are provided. Assigning FLEXaKEY to an MELite expands the system, making 2 M/E performance (in 4K-UHD mode) and 6 M/E performance (in HD mode) possible with this 1 M/E switcher.
FLEXaKEY:
Special FLEXaKEY keyers are designed for flexible reassignment. The one FLEXaKEY (in 4K(UHD) mode) or four FLEXaKEYs (in HD mode) provided operate separately from standard keyers of the full M/E buses. Easy keying of four different FLEXaKEYs in any AUX bus enables performances beyond the reach of conventional switchers.
Transitions/DVEs
Choose from cut, mix, or wipe transitions. In addition to 100 wipe patterns, the switcher offers four (in 4K(UHD) mode)/16 (in HD mode) 2.5D DVE wipes, such as: rotate, perspective and reposition. Other rich effects include: mosaic, posterization, pseudo color and defocus.
Standard multi viewer output:
The HVS-1200 provides two displays of multi viewer output*, each supporting up to 16-split display. More than 39 screen layouts each are available. This provides an optimal monitoring environment for both the main operator and other users. Tallys, titles (up to 8 letters) and audio level meters can be displayed on each window.
* level meters can be displayed on each window.
* Supports HD resolution (1920 x 1080).

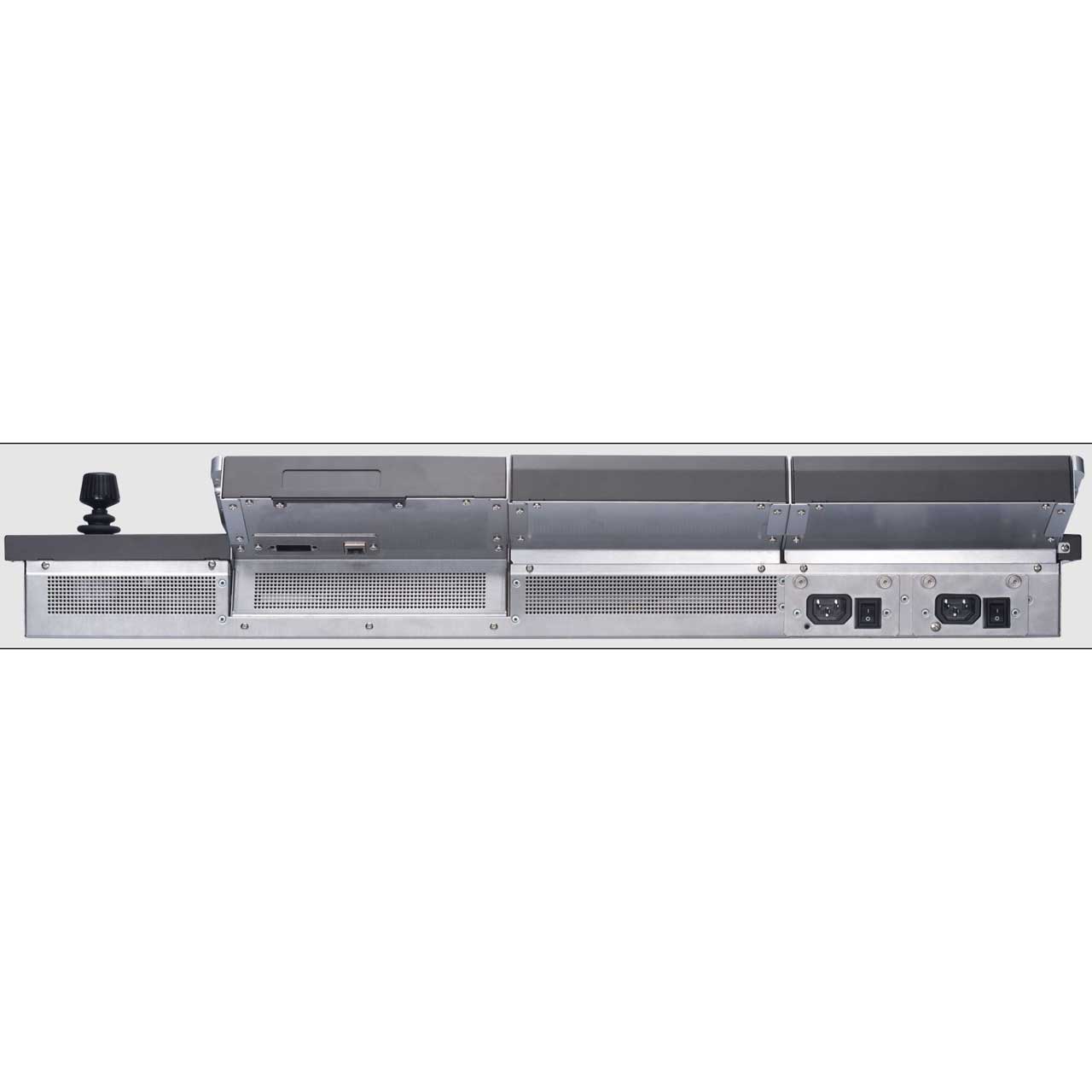

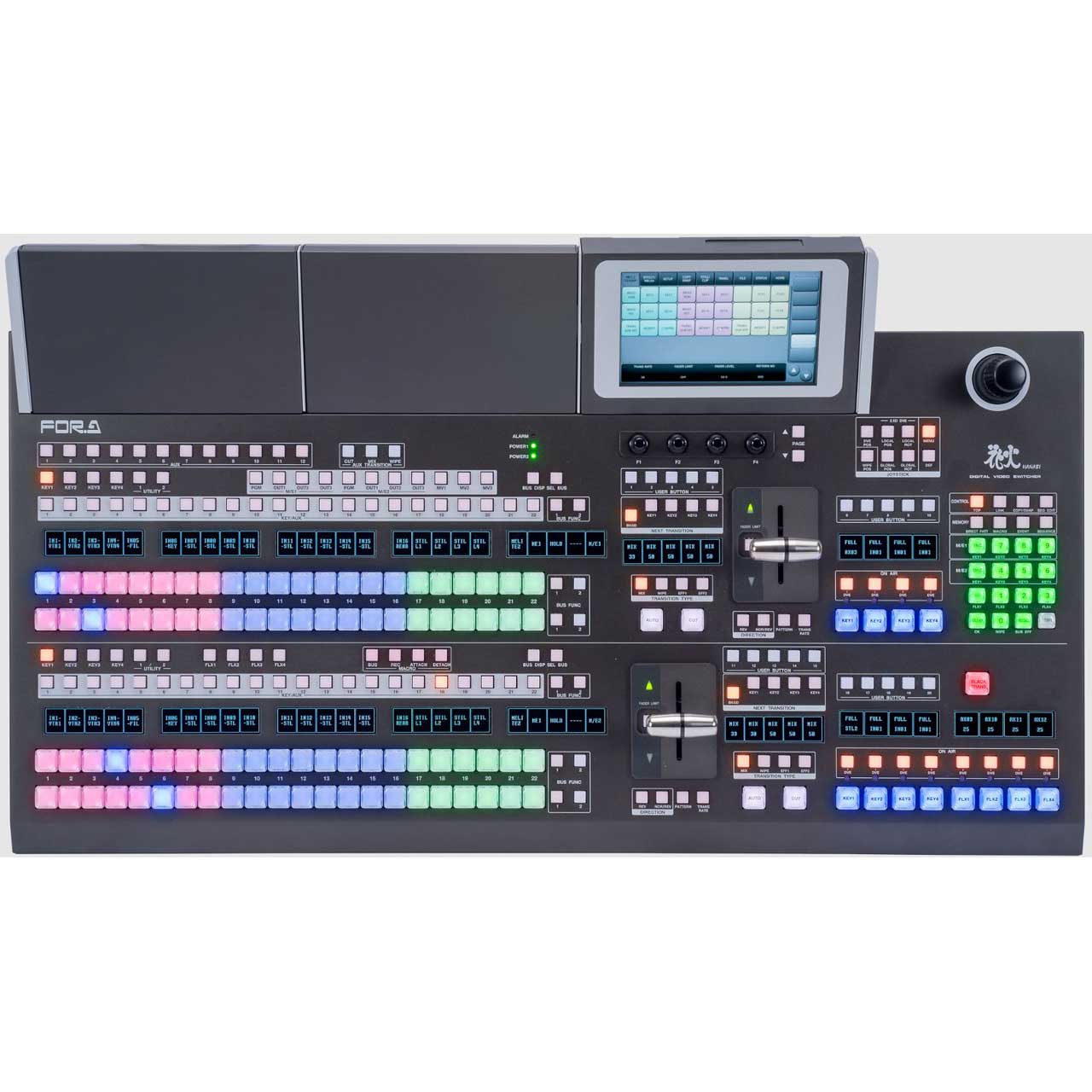

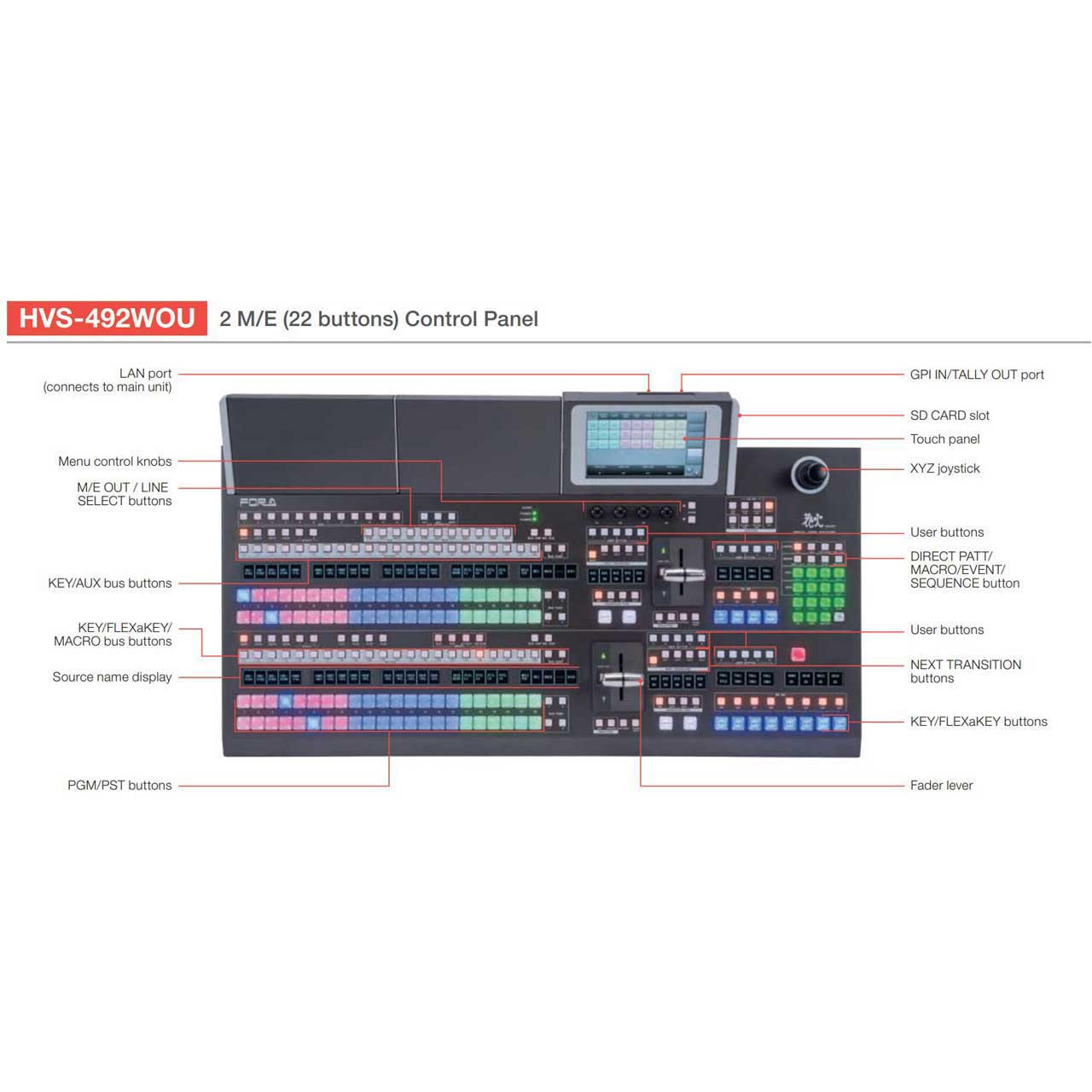

Please Note: This unit comes with an HVS-1200 main unit and a HVS-492WOU control panel. They interface via an RJ45 ethernet patch cable.
