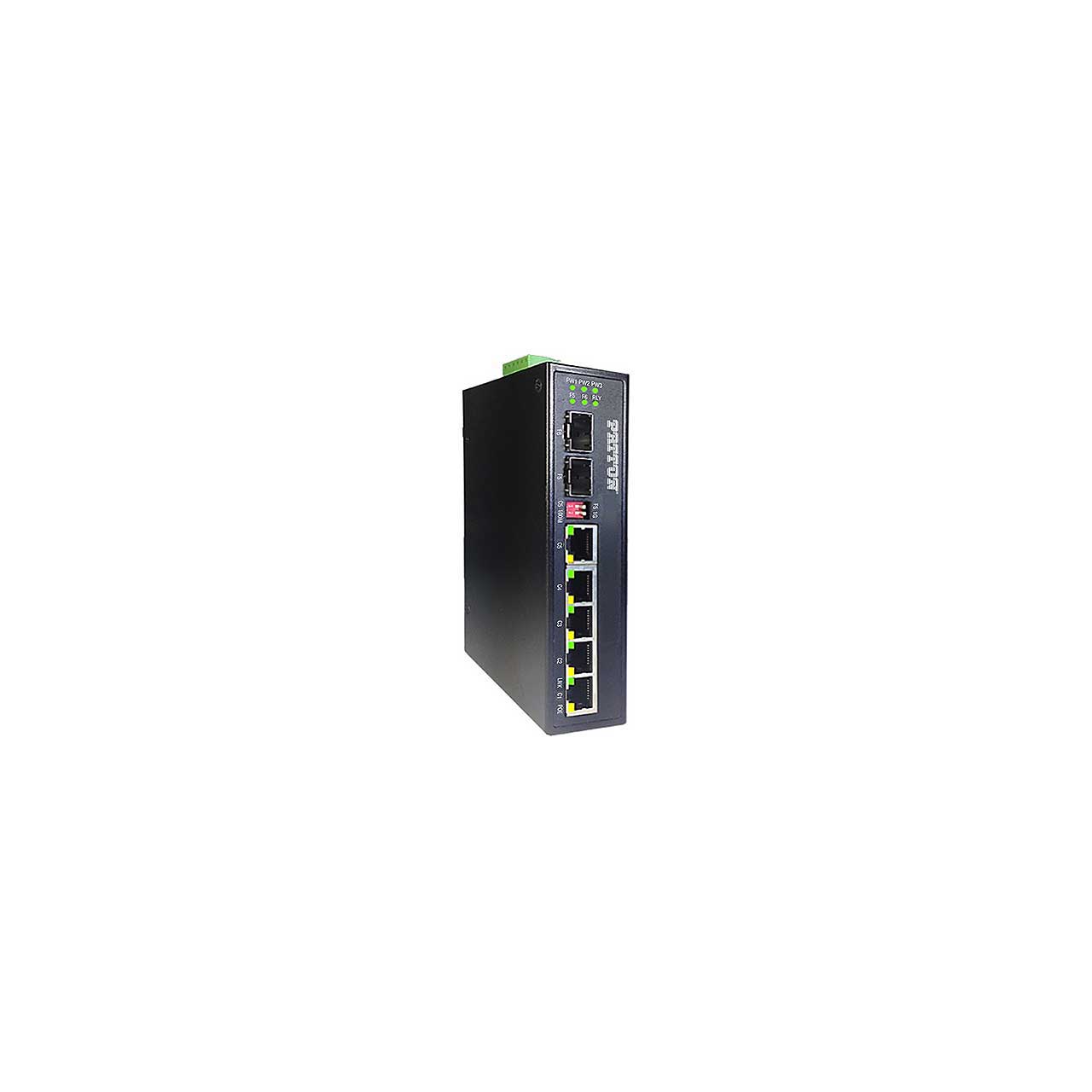

Patton Fiberplex FP1005E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch 4x 10/100/1000 RJ45 - 12-48VDC

Name: Patton Fiberplex FP1005E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch 4x 10/100/1000 RJ45 - 12-48VDC
Brand: Fiberplex
SKU: FP1005E-2SFP-DC
Price: 532.00 USD
Availability: PreSale

ITEM #: FP1005E-2SFP-DC MFG #: FP1005E/2SFP/DC

Fiberplex

Our Price:

$532.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FP1005E/2SFP/DC - Overview

Patton's FP1005E Unmanaged Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

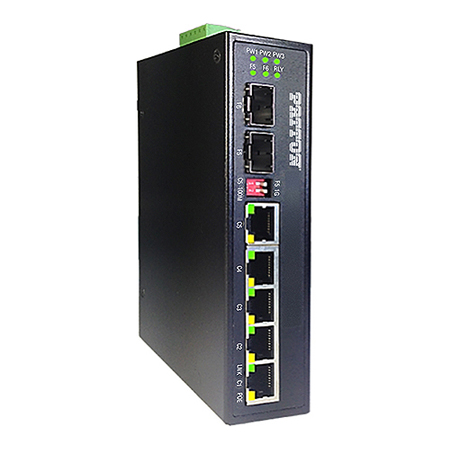

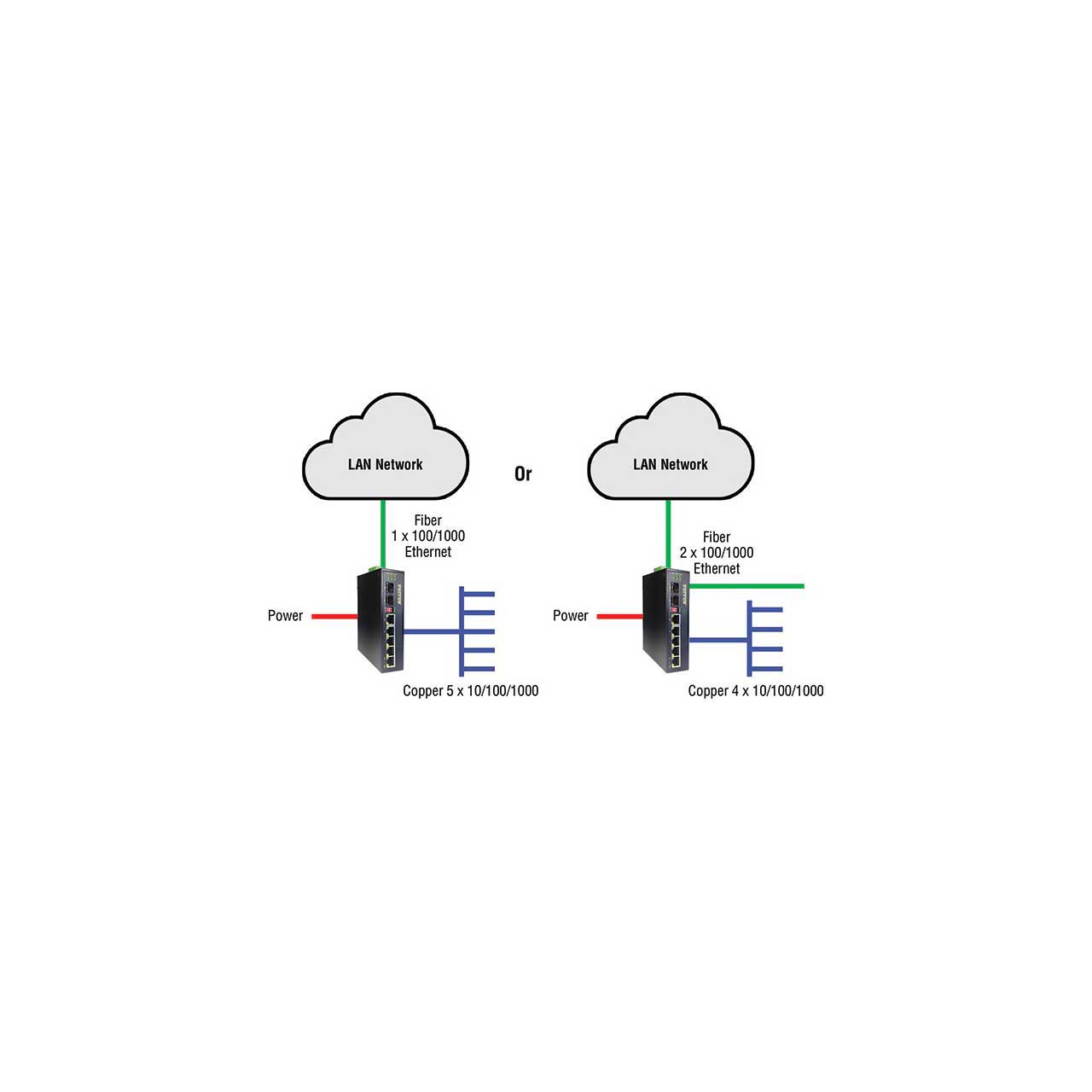

The FP1005E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options.The physical layer interfaces include 5 RJ45 10/100/1000 Ethernet ports, 1 100/1000 SFP slot and 1 SFP/TX combo slot that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP1005E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

Features:
- Store-and-forward switching architecture
- 12-Gbps backplane (switching fabric)
- 1K MAC address table
- 9K Jumbo frame supports
- 1M Packet buffer size
- ESD protection: 6,000 VDC support
- Redundant power input
- IP30 rugged metal case design
- Installation in pollution degree to environment
- DIN-rail and wall mount support
Specifications:
- Ethernet Port:5 RJ45 ports with 10/100/1000TX auto MDI/MDI-X connection
- Fiber Port: 1 100/1000 SFP cage and 1 SFP/TX combo cage
- Standards: IEEE 802.3x, 3u, 3ab, 3az
- Switching Architecture: Backplane (Switching Fabric): 12 Gbps
- Transfer Rate: Up to 1.0 Gbps for Gigabit Ethernet port
- Jumbo Frame: 9 Kbytes
- MAC Table Size: 1K
- Packet Buffer Size: 1M
- Protocol: CSMA/CD
- Free fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Overload Current Protection: Present
- Operating Temperature: -40 to 167°F (-40 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C )
- Operating Humidity: 5 to 95% (non-condensing)
- Input Voltage: 12-56 VDC, Redundant Input (with 1 removable 6-contact terminal block); 100-240 VAC adapter (optional)
- Power Consumption: 5.76 watts at 48 VDC full load
- Reverse Polarity Protection: Yes
- Housing: Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
- Dimensions: (WxHxD) 1.69 x 4.13 x 5.59". (43 x 105 x 142mm)
- Unit Weight: 2.5 lbs.
- Shipping Weight: 3.0 lb
- Certifications: FCC, CE, EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6KV; Air: 8K
- VIEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
- IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
Item Includes:
- 1x FP1005E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch; 4 x 10/100/1000 (RJ45); 1 x GigE SFP, 1 x SFP/TX Combo, -40 to 75°C; 12-48VDC redundant input
Warranty:
- 1 Year
