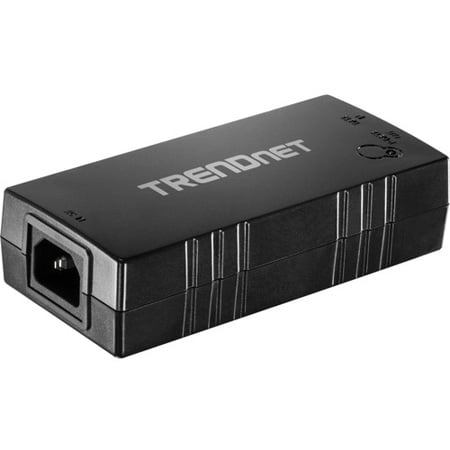

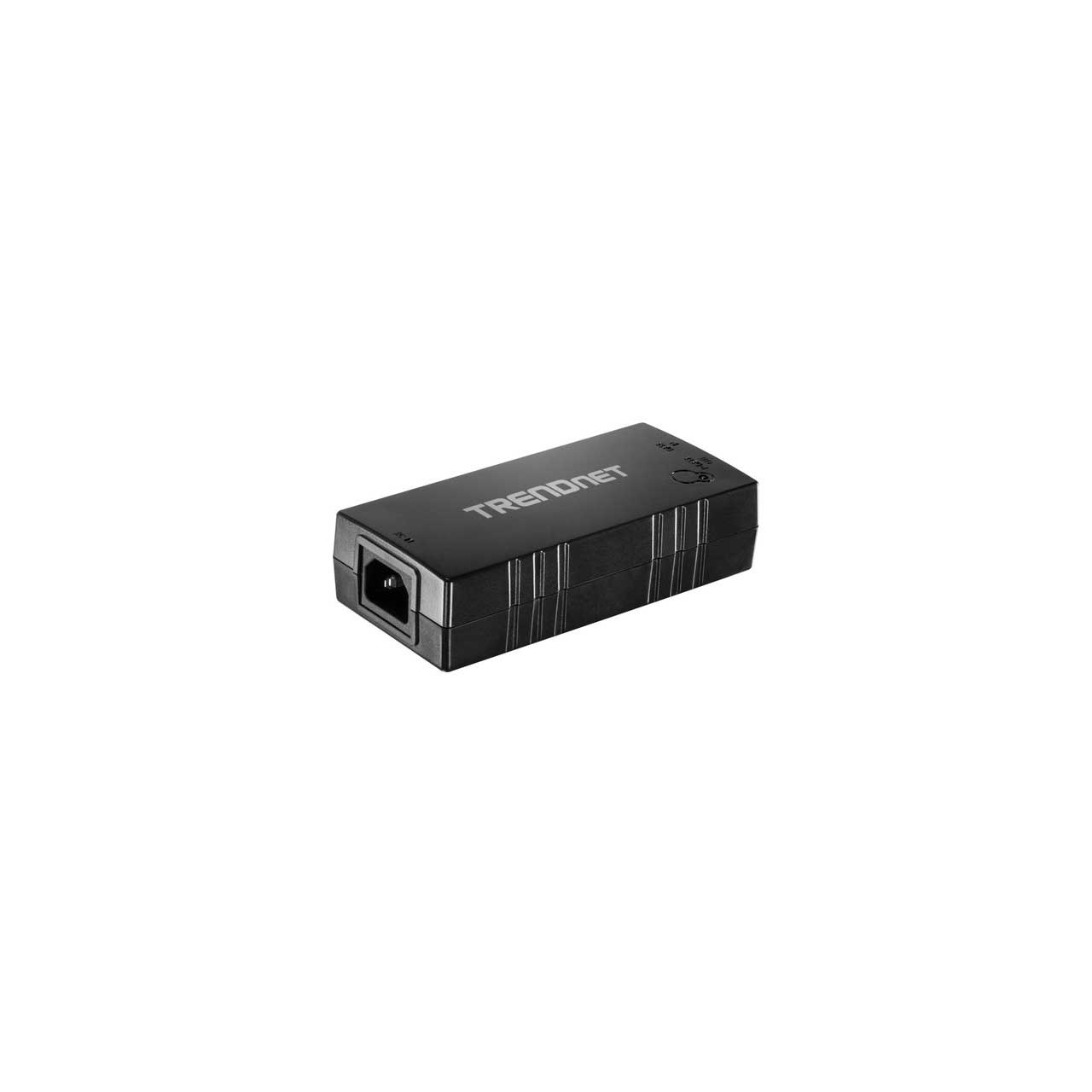

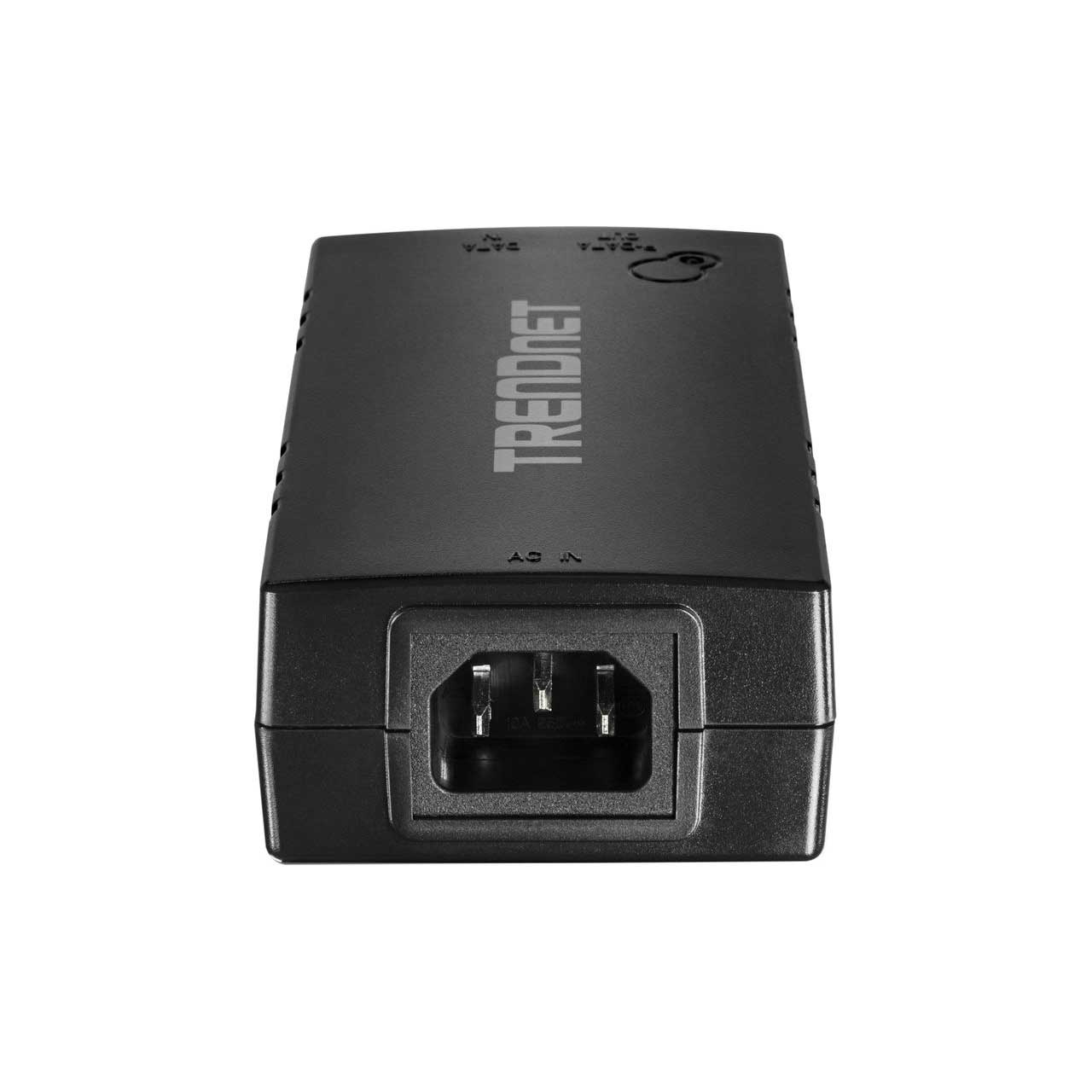

TRENDnet TPE-115GI TRENDnet Gigabit PoE+ Injector - 110 V AC 220 V AC Input - 30 W

TPE-115GI - Overview

• Features:

  • Full Duplex Gigabit speeds
  • Supplies PoE (15.4W) or PoE+ (30W) power
  • Integrated power supply
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Converts a non-PoE Gigabit port to a PoE+ Gigabit port
  • Save on installation and equipment costs
  • IEEE 802.3af and IEEE 802.3at compliant


• Specifications:

  • Standards:
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3ab
    IEEE 802.3af
    IEEE 802.3at

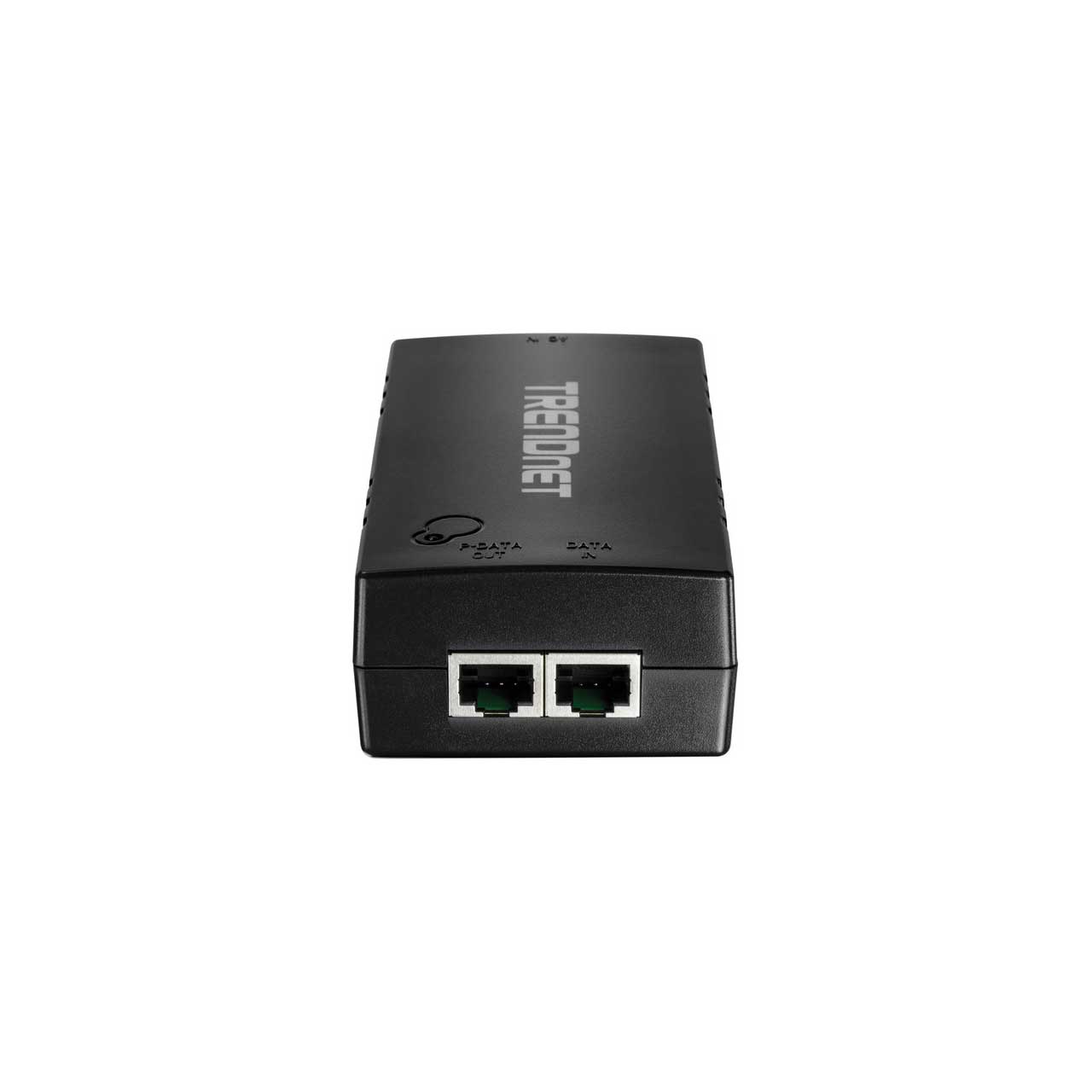

  • Device Interface: 1 x Gigabit Data in port, 1 x Gigabit Data & Power out port, LED
    indicators
  • Special Features: Wall-mountable
  • Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet:
    100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • PoE Delivery: Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
  • Power: Input: 100~240V AC, 50/60Hz, 0.6A max.
  • Power Consumption: Max 30W
  • Operating Temperature: 0 - 40 °C (32 - 104 °F)
  • Operating Humidity: Max. 90% non-condensing
  • Dimensions: 155 x 57 x 33mm (6.1 x 2.3 x 1.3 in.)
  • Weight: 188g (6.64 oz.)
  • Certifications: CE, FCC
  • Warranty: 3 year


• Item Includes:

  • 1x TPE-115GI
  • 1x Quick Installation Guide
  • 1x Power Cord


• Warranty:

  • 3 Year Warranty


• GTIN:

  0710931160024
