Freakshow HD FBRX-O SD to 12G-SDI Dual SDI to Fiber Reciever - Straight Pin Power

Name: Freakshow HD FBRX-O SD to 12G-SDI Dual SDI to Fiber Reciever - Straight Pin Power
Brand: Freakshow HD
SKU: FREAKS-FBRX-O
Price: 1050.00 USD
Availability: PreSale

ITEM #: FREAKS-FBRX-O MFG #: FBRX-O

Freakshow HD

Our Price:

$1,050.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FBRX-O - Overview

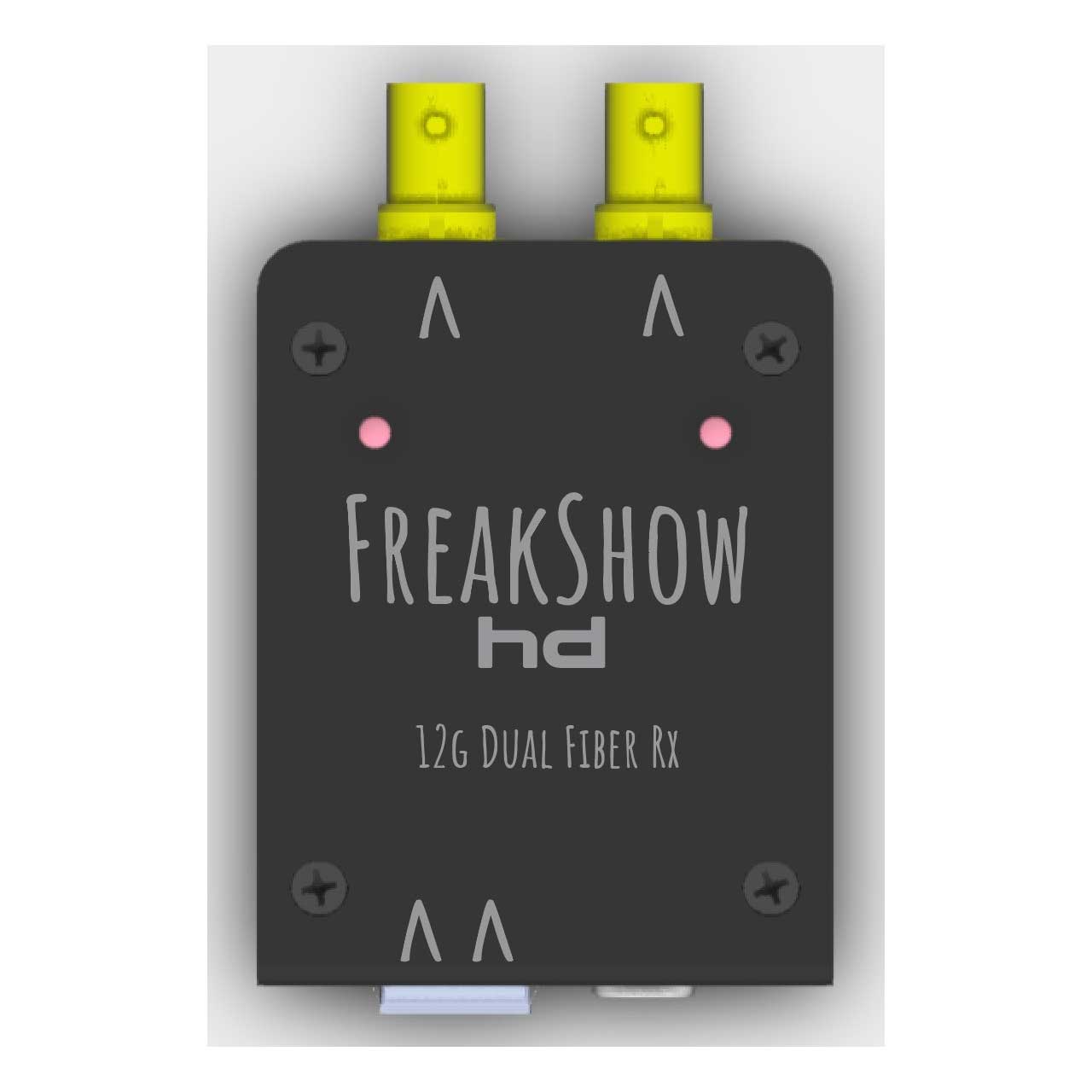

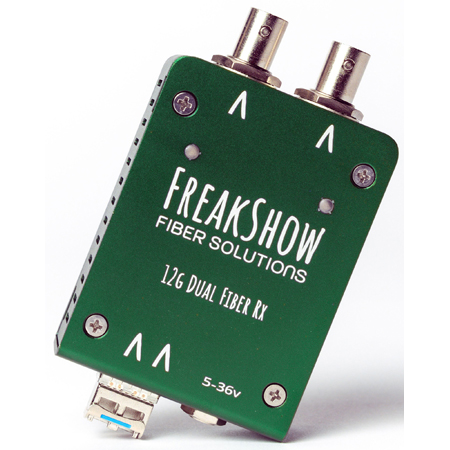

The perfect match to Freakshows FBRX transmitter, the FBRX-O Receiver delivers unparalleled performance in a rugged palm sized package, and can be powered with an ultra-wide range of 5-36VDC. The FBRX-O is an SD to 12G-SDI dual Fiber to SDI Receiver designed to receive two LC fiber signals up to 12Gbps over single mode fiber (SMF) on an LC connector as defined in ST297, ST2081, ST2082, ST424, ST292, ST259, DVB-ASI.

Features:
- Hot-pluggable
- Low Power Consumption
- Pb-free and RoHS compliant
Specifications:
- Optical Inputs

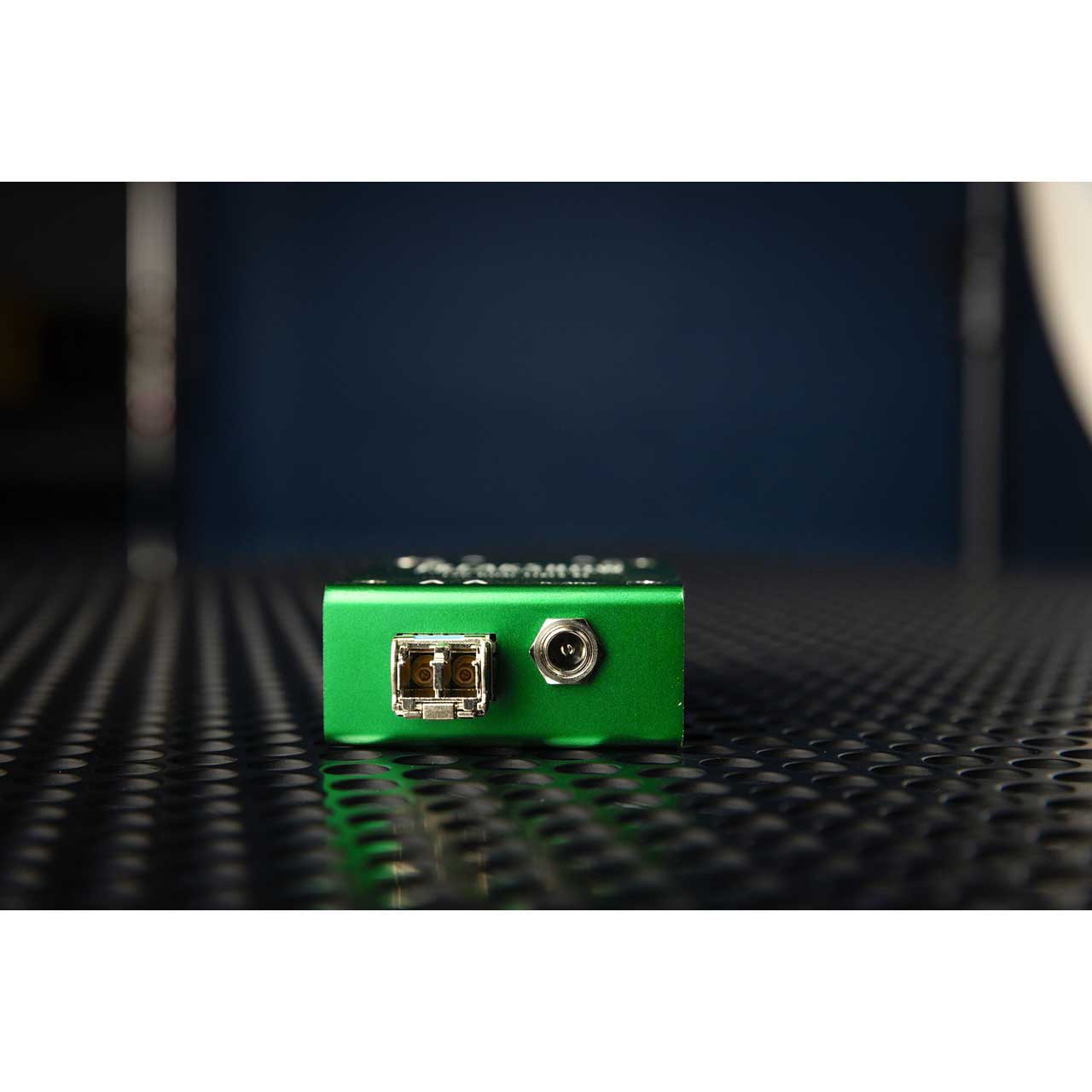

- 2x single mode fiber-optic outputs (one for each channel) using LC connections
- ST297, ST2081, ST2082, ST424, ST292, ST259, DVB- ASI compliant
- Supports video for SD-SDI, HD- SDI, 3G-SDI, 6G-SDI, and 12G SDI
- Wavelength: 1260-1650nm support (each channel)
- Optical power: -5.5dBm...0.5dBm (each channel)
- Max. distance: approx. 6.2 miles (10km) @ 12Gbit/s (Single-mode)

  SDI Outputs

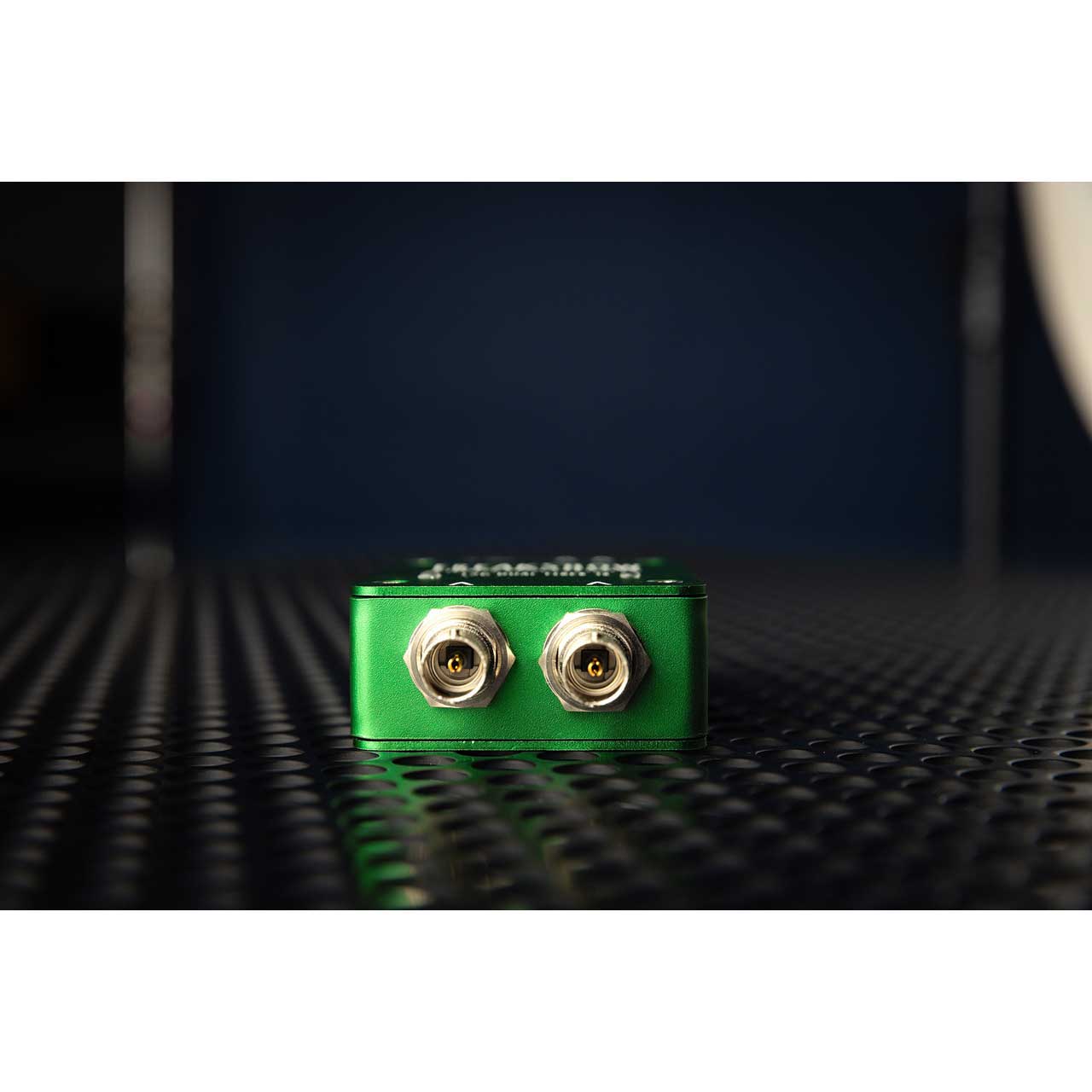

- 2x re-clocked SDI video on 75 Ohm BNC connector (two independent channels)
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
- Multi-rate re-clocking 12G/ 6G/ 3G/ 1.5G/ 270Mb auto-selectable
- Input Return Loss -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
- Automatic cable EQ 245m @ 1.5Gbit/s, 145m @ 3Gbit/s (Belden 1694A cable) 85m @ 12Gbit/s, 6Gbit/s (Belden 4794R cable)

  Power
- 5-36VDC input range
Item Includes:
- 1x Freakshow HD FBRX-O Reciever
- 1x AC Power Supply
