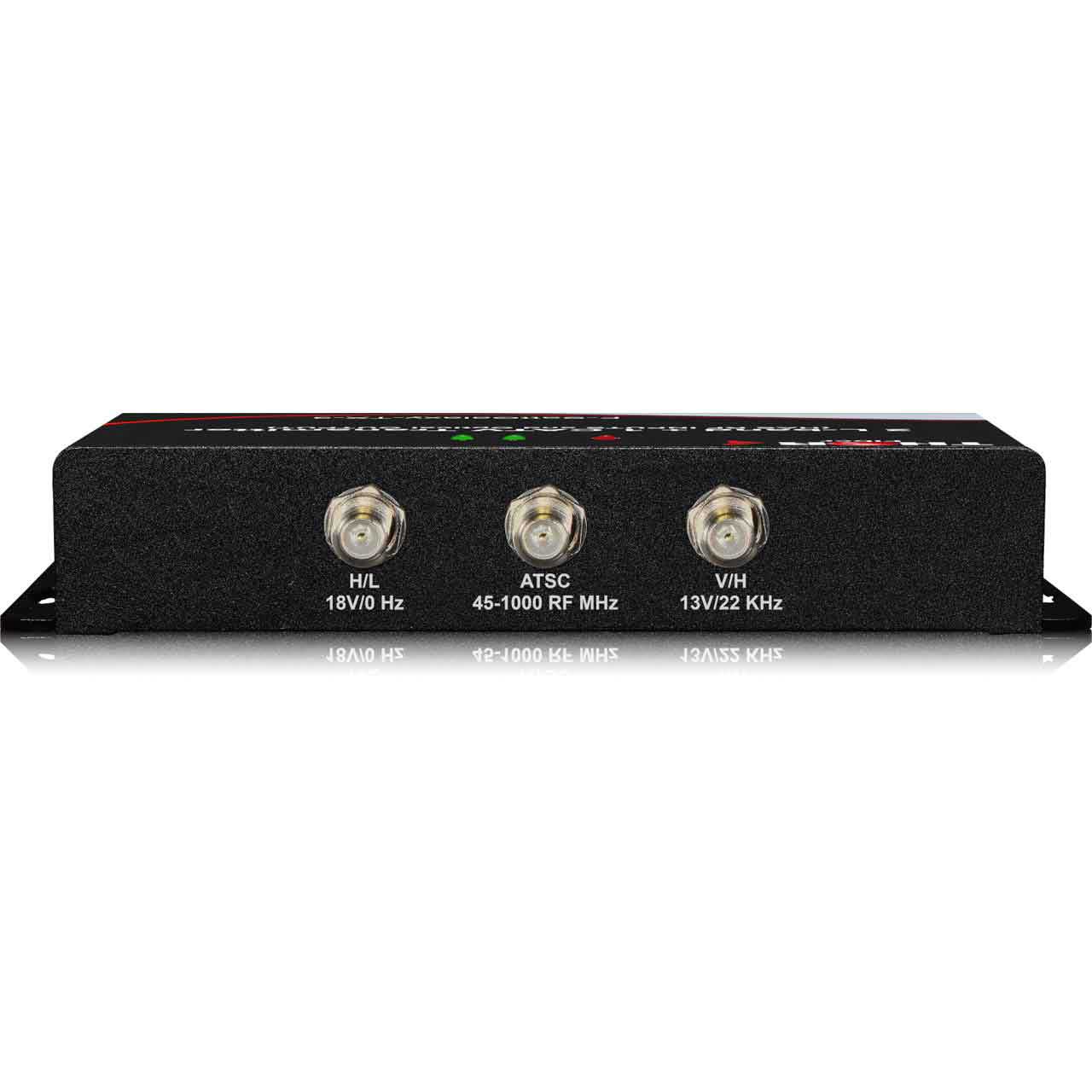

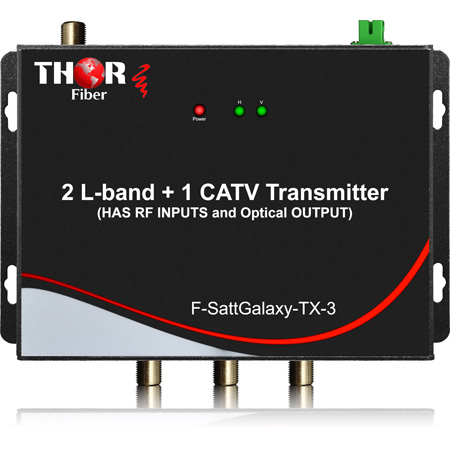

Thor Fiber MDU Satellite over Fiber - Optical Transmitter F-SattGalaxy-TX-3 has 3 independent RF inputs, converts each satellite signal from a quad or quatro LNB, and also terrestrial off-air TV signal via antenna array in a single unit to transmit over one singlemode fiber.

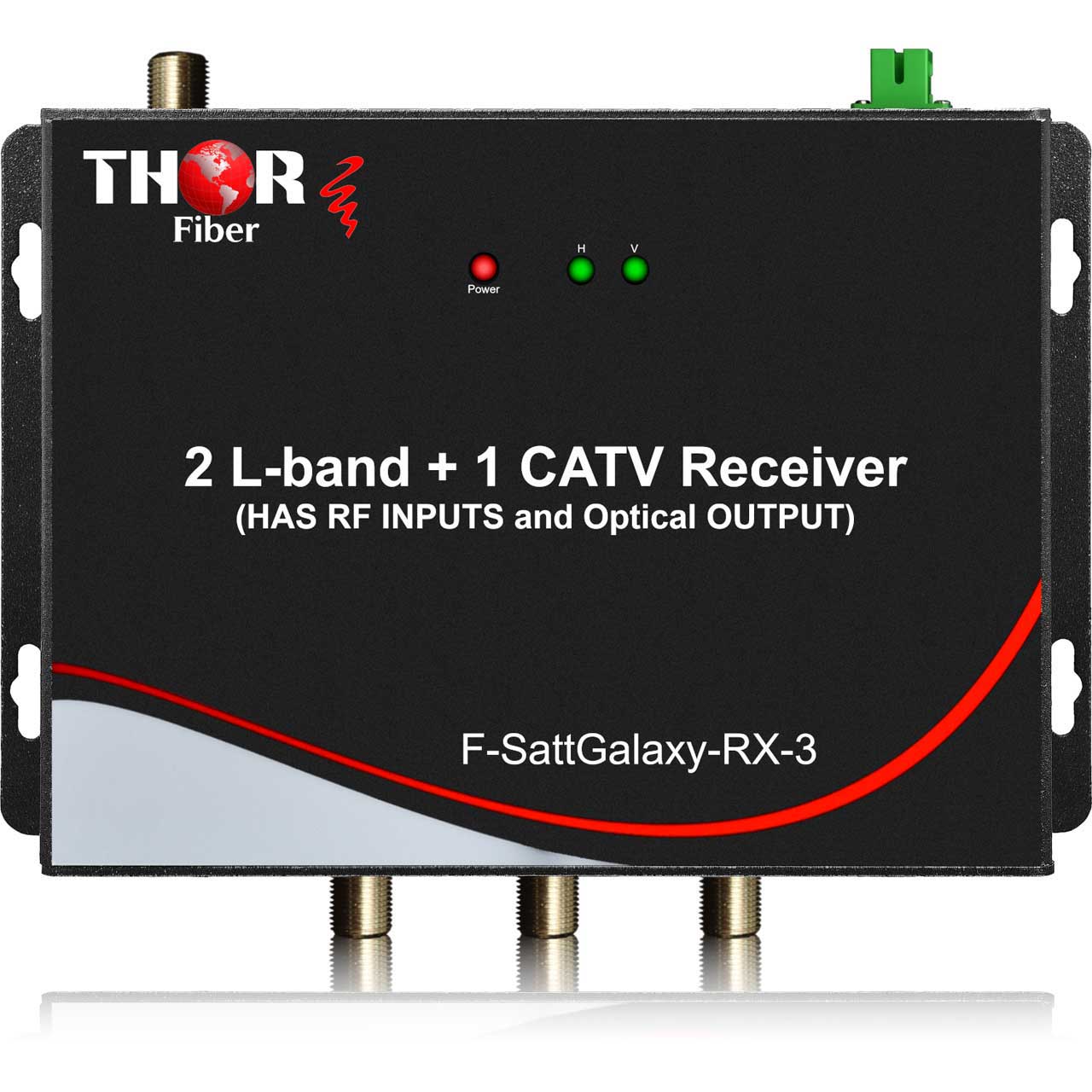

Thor Optical MDU Satellite Receiver F-SattGalaxy-RX converts the optical signal back to the original 2 satellite signals and the third terrestrial off-air TV signal injected on the TX.
Off Air TV / Radio signals like ATSC, Analog NTSC, DVB-T, or ISDB-T, DVB-C QAM annex A/B or RF FM Radio can be used in the 3rd RF port for transmission.
Transmitter and receiver are using a built-in optical Wavelength Division Multiplexing (CWDM) system that uses multiple lasers for carrying signals inside one optical fiber. The built-in CWDM multiplexer enables high-quality transmission using 5 wavelengths (VL: 1510nm, HL:1530nm, VH: 1550nm, HH: 157nm, Ter 1590nm).
The F-SattGalaxy transmitter provides high optical output power that allows for the distribution of the signals for up to 32 optical receivers located within a radius of 10 kilometers. The exact number of receiving points and the maximum transmission range can be calculated using optical power budget methods. These are model specific for output power and must be ordered as such.

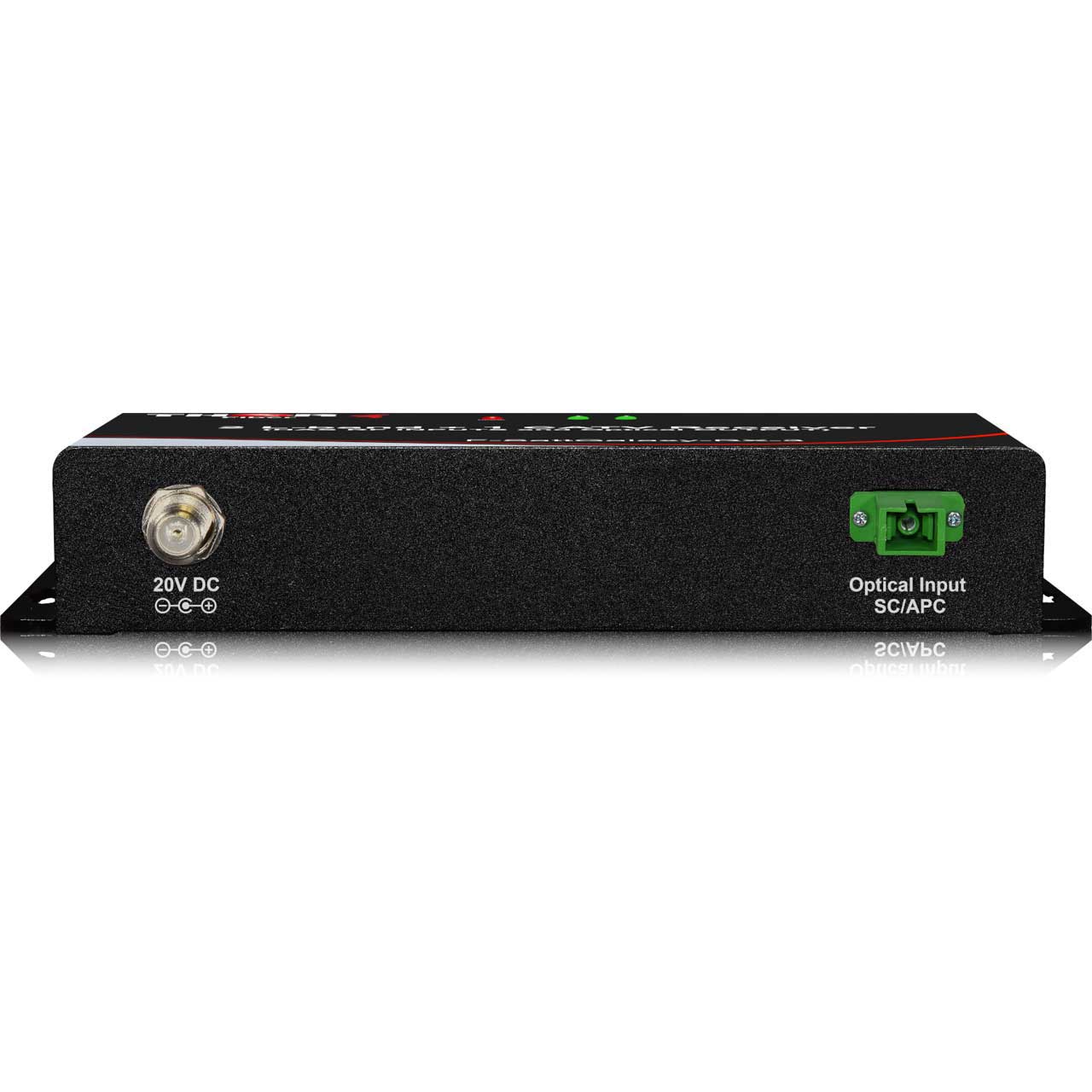

Both the transmitter and receiver use angle polish connector SC/APC to eliminate any reflections creating a cleaner signal connection.
Point to Point or Point to Multipoint 1x4, 1x8, 1x16, and 1x32 systems are available, it sends the RF from multiple antennas or LNB's to the SWiM switch, eliminating the need for long coax runs, and it is especially beneficial in locations where the Dish and SWiM Switch are far from each other.
