The FSR FL-200-4 pour-in-place floor box series is designed to provide a smaller box option for those installations that do not require the additional internal space available in the larger FL-500P and FL-600P boxes.
The FL-200 Series consists of 2 box designs. The 3" back box has 2 single gang compartments of different volumes and is a perfect 2 trade box. The compartments are independent of one another so that the smaller compartment can be used for high voltage while the larger one is used for low voltage connections.

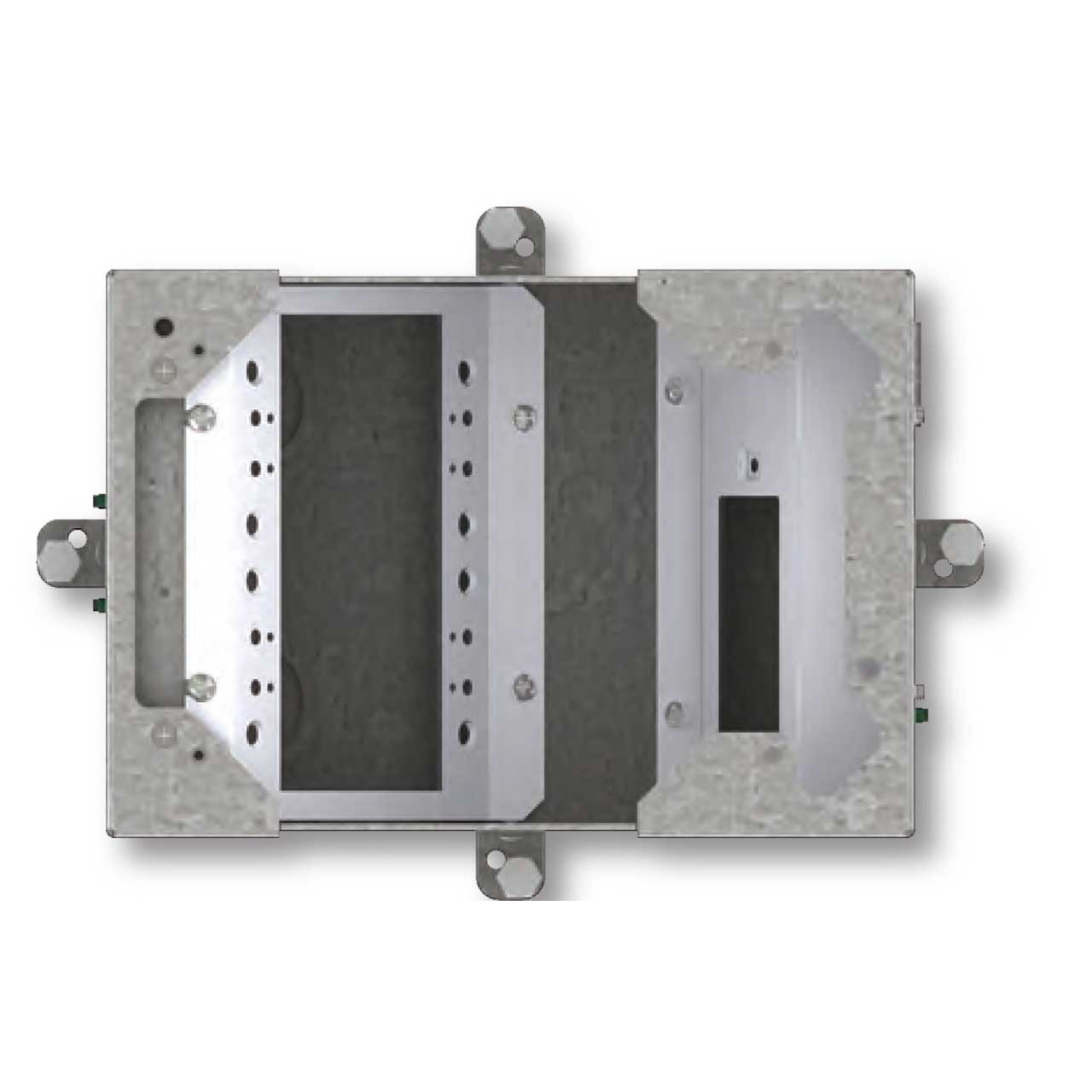

The 4" back box has a single Decora opening for data or power connections on one side and on the other side there are two different internal brackets available. It ships with a bracket that mounts standard size electrical plates that accommodate a 2-gang plate or can be split into 2 single gang openings with isolation.
The second bracket, the MMS-FL200-4, ordered separately, has a 2-gang opening for mounting modified digital media devices (Crestron/AMX) that require more room behind the plate.
The FL-200 Series covers are designed to match those on the FL-500P and FL-600P Series floor boxes. This provides visual continuity in installations where FL-200’s are installed along with FL-500P’s and FL-600P’s. The covers* meet UL scrub water requirements for tile and carpet installations and feature easy tool free access as well as a fold down cable exit door which allows the cover to be closed with cables exiting the box, *excluding the FL-200-PTBLK, FL-200-PTSLV and the FL-200-PTBRS.
