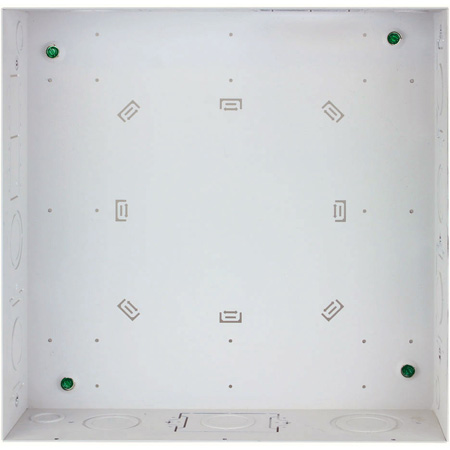

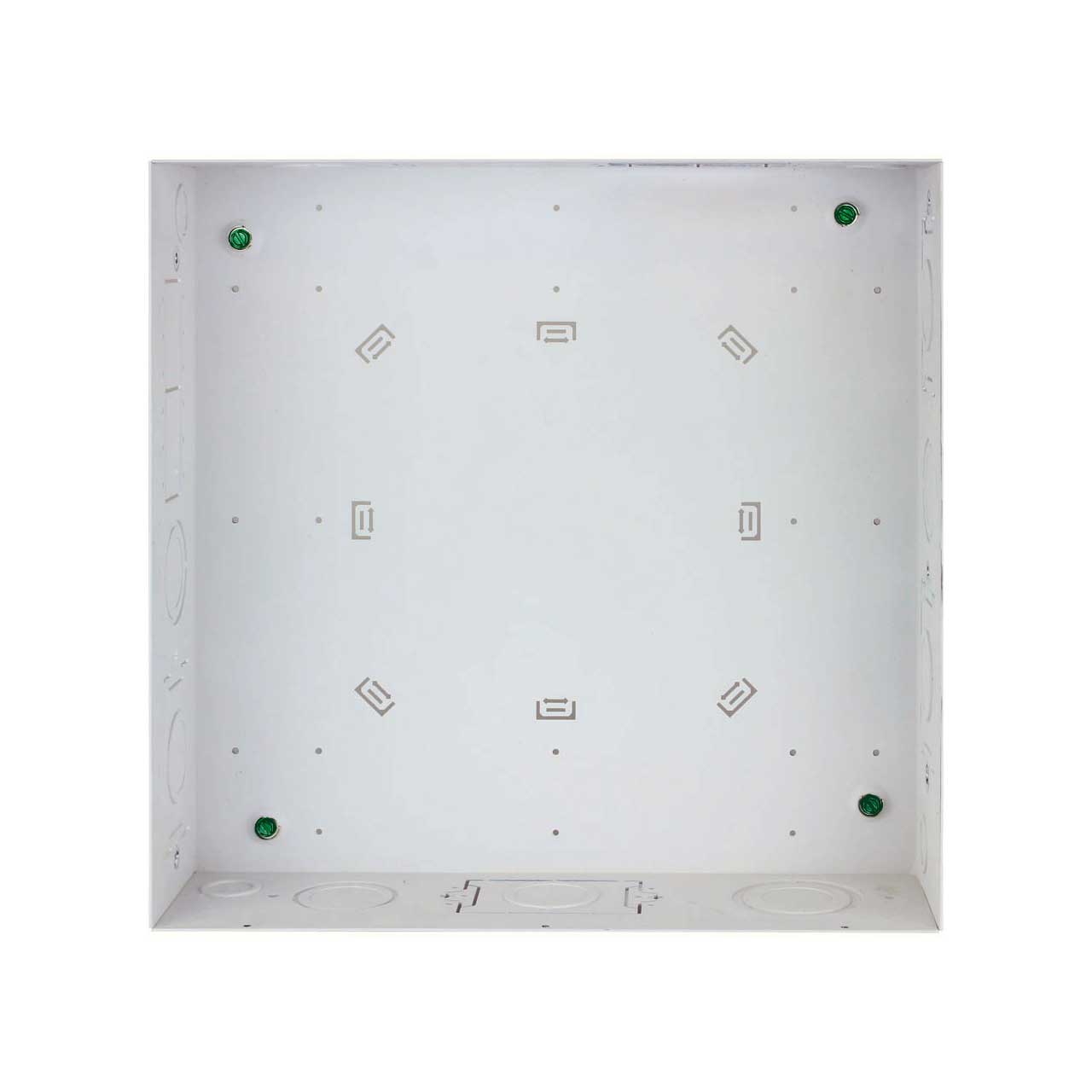

FSR PWB-320-BX Project Wall Box with Mounting Hardware

ITEM #: FSR-PWB-320-BX MFG #: 18004

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$88.00

Our Price:

$85.83

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


18004 - Overview

FSR's highly successful Project Wall Box family is being expanded with two new models priced specifically to ease the installer's bottom line. These economical large open wall boxes designed to fit 16" on center stud bays simplify audiovisual and IT installations by providing space for routing cables, AC connections, and digital media product mounting in 4" and 3" thick walls. The PWB-320 has KO's up to 2 inches, flush cable-tie mounts, triple play mounting openings for AC/AV/IT applications, IPS mounting, and two optional adjustable locking shelves for mounting equipment. There are also 2 optional internal AC brackets available with 2 or 3 Decora openings that ship with SpikeShield™ 15-amp receptacles included. The infrastructure solutions are available in sizes to fit typical wall designs and can be used with or without the decorative trim ring and cover options. They are also available in 3" deep versions for shallow wall applications.

  • Features:

    • Mounts to wood or steel studs, 16" centers
    • No extra parts needed for New or Old work installations
    • Can be ordered individually or in 3 different kits and in 2 depths
    • Optional painted cover with cable exits and tool-less fasteners
    • Up to 2" KO on PWB-320
    • Up to 1-1/4"KO on PWB-323
    • Six IPS mounting openings
    • Eight Flush cable-tie mounts
    • Six Triple Play Mounting Solution openings per box
    • Optional Cover and Trim Ring available separately
    • Optional (2) adjustable component shelves with position lock
    • Optional AC power brackets with 15-amp surge protected receptacles
