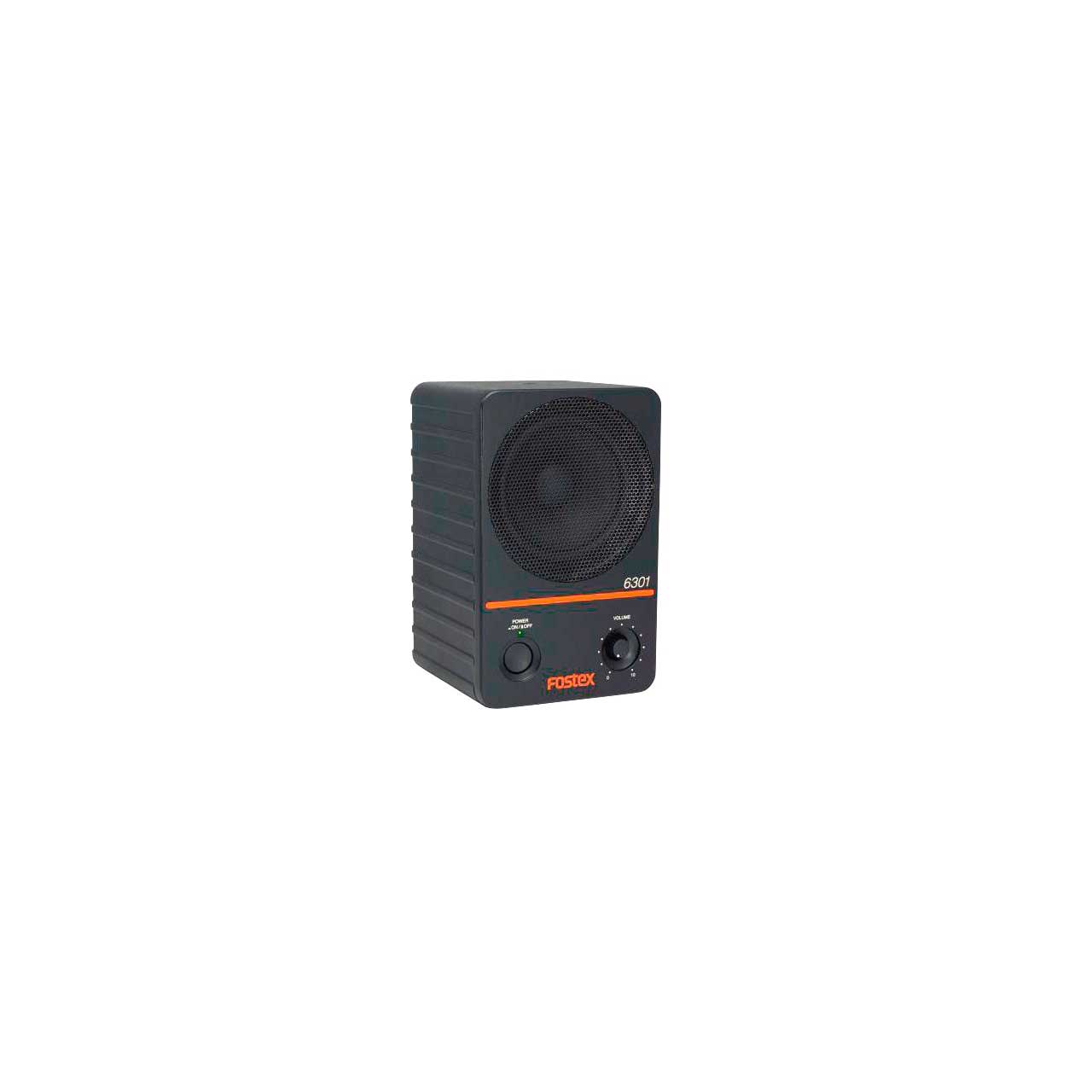

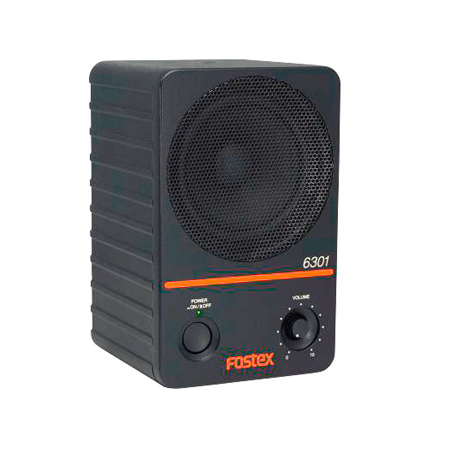

Fostex 6301NE 4 Inch Active Monitor Speaker 20W D-Class (Single) - Electronically Balanced

6301NE - Overview

• Features:

  • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
  • Dedicated 4-inch full range driver for clear audio reproduction
  • Flat panel design to avoid inadvertent power-off or level change
  • Auto Stand-by mode (compliant to ErP directive) for energy saving
  • Detachable IEC type power inlet with multi-voltage power handling

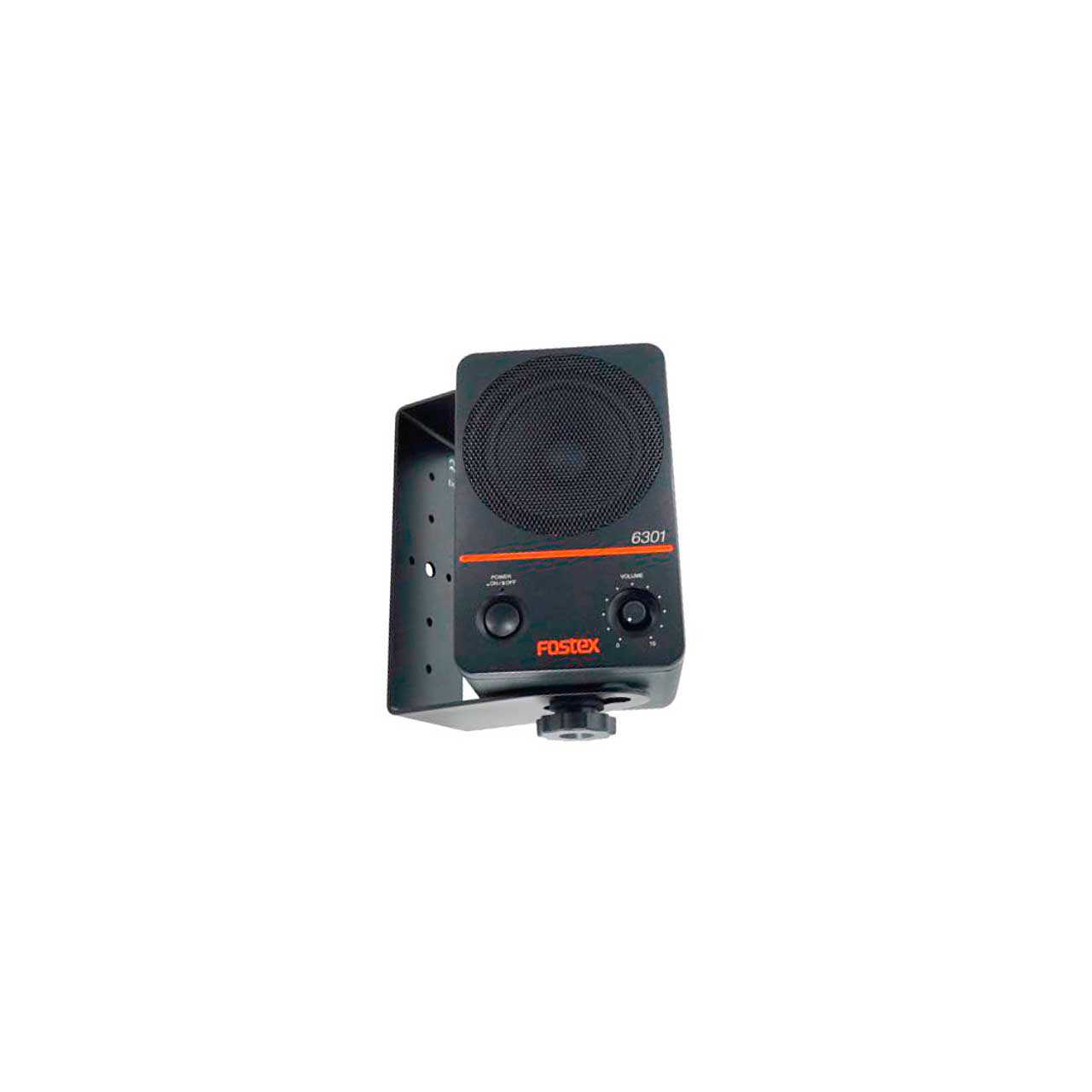

  • Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments - not included


• Specifications:

  • Speaker:
  • Enclosure Type: Closed
  • Unit: 4" full range
  • Frequency response: 70 Hz - 15k Hz
  • Sound Pressure Level: 85dB / W (1m)
  • Maximum SPL: 98dB

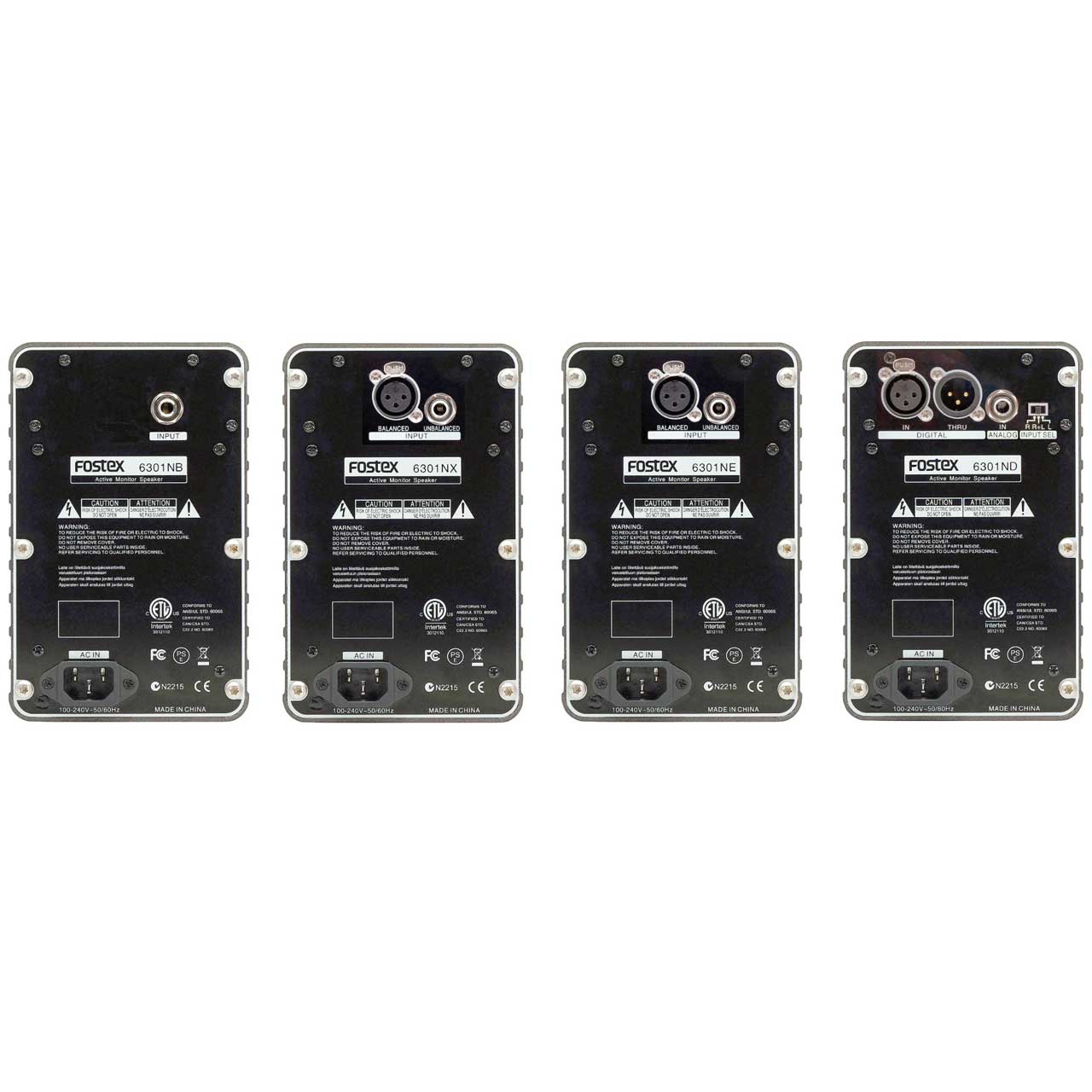

    Amplifier Section:
  • Connector: 1/4" TS Phone (unbalanced)
  • Input Impedance: 10k ohm or more
  • 6301DT Connector: RJ45 (Dante)
  • Rated Output: 20W
  • Distortion (T.H.D.): 0.05% (1kHz / 1W output)
  • Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT), -65dBV or less (ND)
  • Input Sensitivity: 1/4" TS phone: -14dBV (0.2Vr.m.s.)
  • XLR: +4dBu (1.2Vr.m.s.)
  • XLR(Digital): -12dBFS
  • Auto Stand-by: Active after approx. 25 min. of continuous input lower than the threshold level

    General:
  • Dimensions: 4.72 (W) x 7.44 (H) x 4.72 (D) Inches
  • Weight: 5.07 Lbs
  • Power Requirement: AC 100 - 240V (50/60Hz)
  • Power Consumption: 10W (less than 0.5W in stand-by mode)


• Item Includes:

  • 1x Fostex 6301 DT Speaker
  • 1x Power Cord


• Warranty:

  • Limited 1-Year Warranty


• GTIN:

  0636827304641
