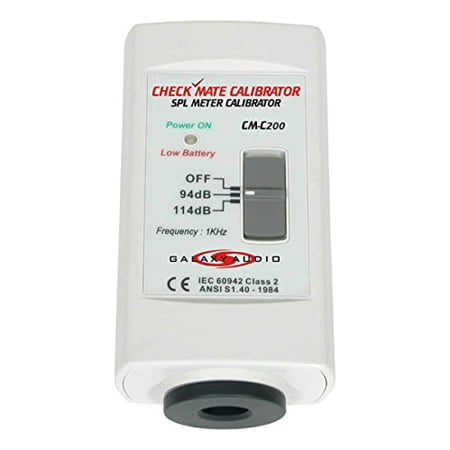

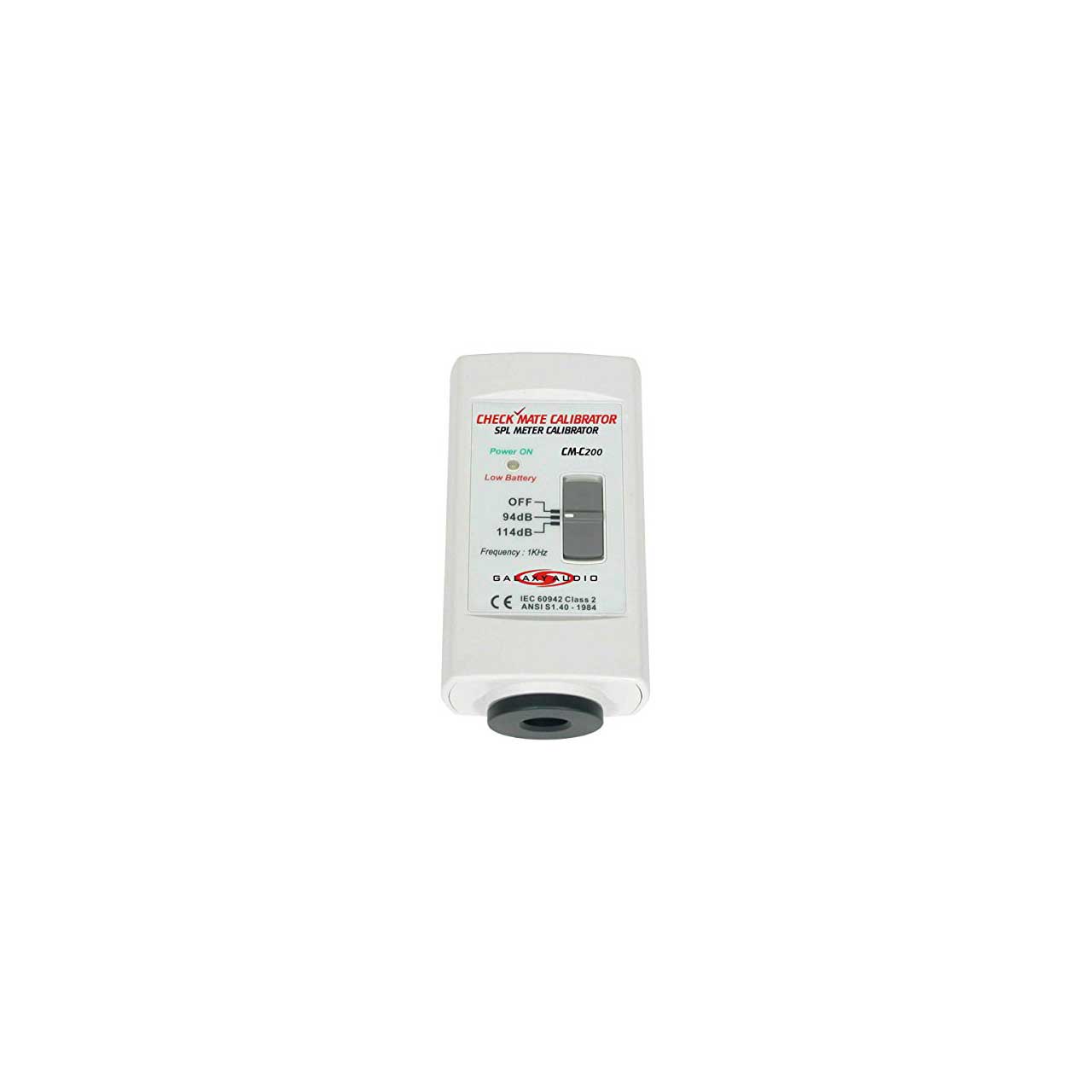

Galaxy CM-C200 Check Mate SPL Meter Calibrator

ITEM #: GA-CMC200 MFG #: CM-C200

Primary Image
Galaxy Audio
Free Shipping with $49 Minimum Order

List Price:

$419.99

Our Price:

$279.99

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CM-C200 - Overview

Over time, all SPL meters lose their calibration. The CM-C200 is an SPL meter calibrator. The CM-C200 meets IEC 60942 2003 Class 2 and ANSI S1.40-1984 standards. The CM-C200 can calibrate 1", 1/2" and 1/4" microphone capsules at 94dB and 114dB.

The calibrator is designed to calibrate SPL Meters with a microphone diameter of 1/4", 1/2" and 1". The CM-C200 will work with any of the CheckMate SPL Meters and many other brands. The CM-C200 has a test tone at 1kHz at both 94dB and 114dB. The CM-C200 includes 2 adaptors a protective zipper pouch and manual.

  • Features:

    • Accurate and simple to use
    • Calibration levels of 94dB and 114dB at 1kHz
    • Fits 1", 1/2" and 1/4" diameter microphones
    • onforms to IEC 60942 2003 Class 2 and ANSI S1.40-1984
    • Weight: approx 0.41lbs (186.4g) (including battery)


  • Specifications:

    • Output Sound - Pressure Levels: 114dB and 94dB re 20 uPa under reference conditions.
    • Output Frequenc: 1000Hz ±4%
    • Total Harmonic Distortion: < 3%
    • Accuracy of Sound-Pressure Level: Under stated reference environment conditions ±0.5dB
    • Power: One 9V battery 006P or IEC 6F22 or NEDA 1604
    • Dimensions: 4.62" x 2.47" x 1.72" (117.36 x 62.75 x 43.73mm) (LxWxH)
    • Weight : Approx. 0.41lbs (186.4g) (include battery)


  • GTIN:

    0691281412004
