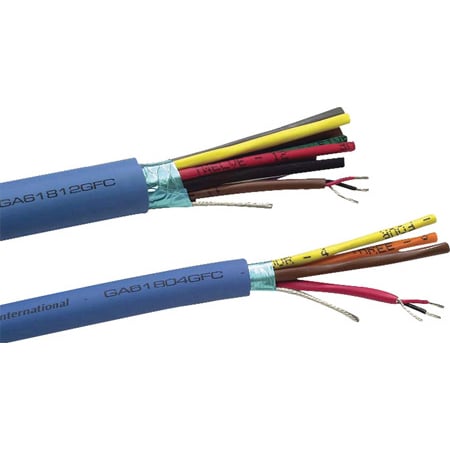

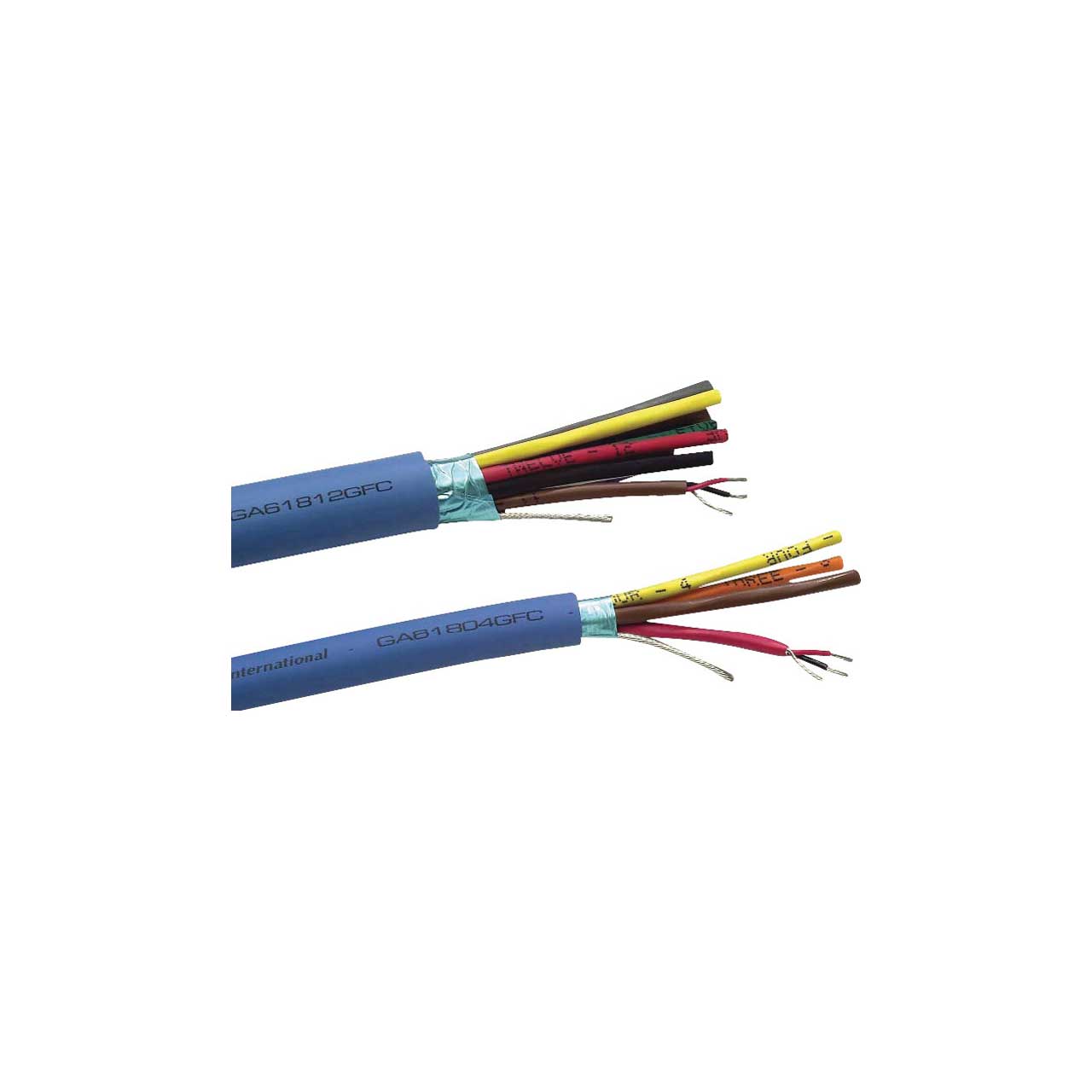

Gepco Gep-Flex Multi-pair Analog Audio - 16 Pair - Per Foot- Blue

ITEM #: GA61816GFC MFG #: GA61816GFC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$10.66

Our Price:

$8.25

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


GA61816GFC - Overview

The original Gepco multi-pair cable. Designed for low noise and attenuation, GA series multi-pair is durable, easy to terminate, and UL listed. A high grade polyethylene dielectric is used to minimize high frequency attenuation, while excellent process control and tight pair twisting achieves superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the new Riser Rated Gep-Flex master jacket is both flexible and easy to pull through conduit. The twenty-two gage conductors offer the lowest DCR available in any of our multi-pair products, making the GA618 series ideal for extended distance runs of mic level signals.

  • Features:

    • Low Attenuation & Crosstalk
    • Flexible
    • Easy to Terminate
    • Polyethylene Dielectric
    • Individually Shielded & Jacketed Pairs
    • Color Coded & Alphanumeric Pair Identification
    • Additional Overall Foil Shield
    • All-weather GEP-FLEX Master Jacket
    • CMR Riser Rated

    • Applications
    • Microphone or Line Level Balanced Analog Audio
    • Studio Interconnect, Portable Snakes, or Permanent Installation
    • Ideal for Extended Distance Runs

  • Specifications:

    • Conductors: 22 AWG (7x30) stranded TC
    • Insulation (type, wall thick)/Color Code: PE, .010" (red and black)
    • Pair Shield: 100% foil
    • Pair Drain: 22 AWG (7x30) stranded TC
    • Pair Jacket/Color Code: PVC .140"/base 10
    • Overall Shield: 100% foil
    • Overall Common Drain: 16 AWG (19x29) stranded TC
    • Master Jacket: Gep-Flex TPE, blue
    • Nominal OD: .710"
    • UL Type: CMR

  • GTIN:

    0612825388876
