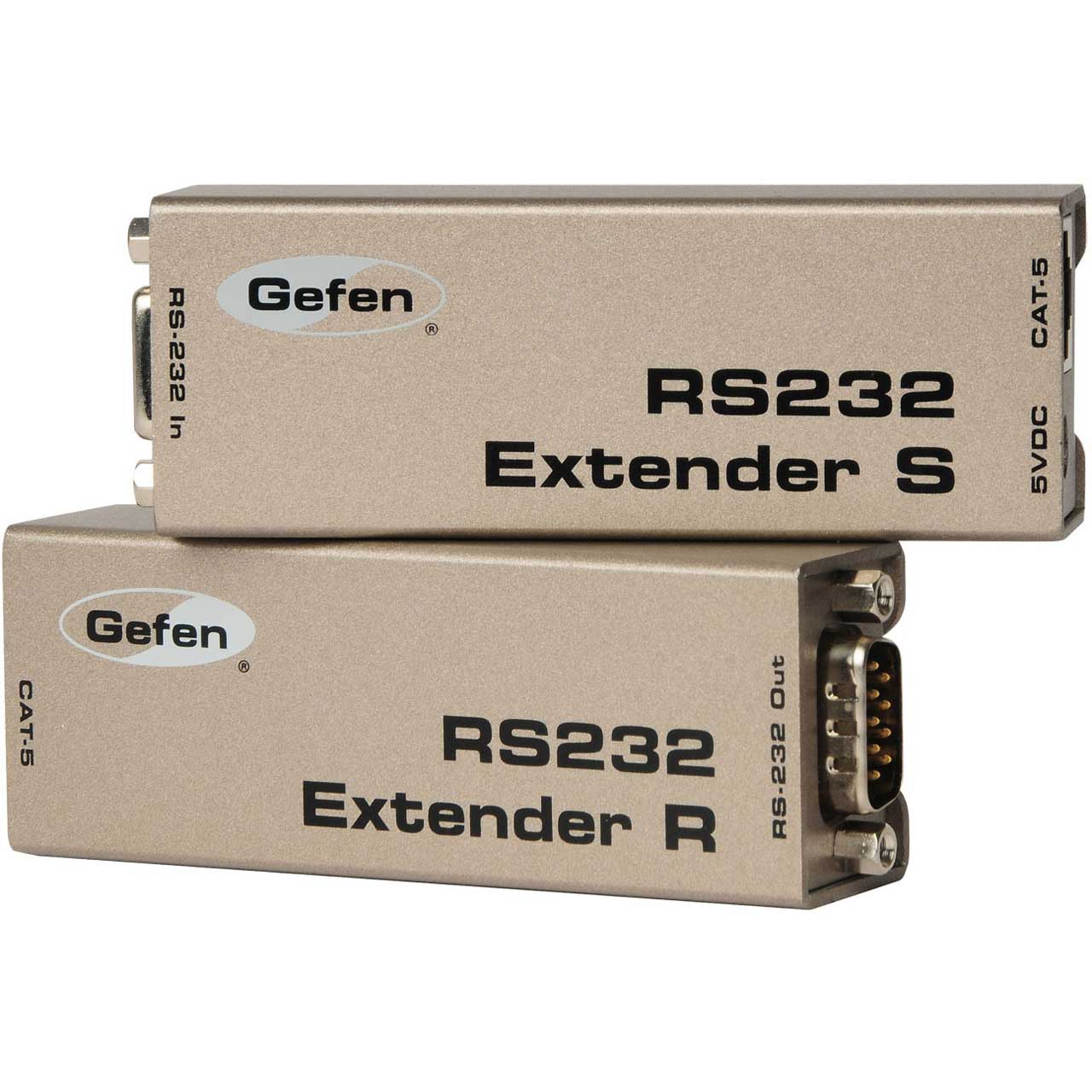

Gefen EXT-RS232 RS232 Over CAT5 Extender

ITEM #: GEF-RS232 MFG #: EXT-RS232

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Gefen Inc
Free Shipping with $49 Minimum Order

List Price:

$269.85

Our Price:

$188.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EXT-RS232 - Overview

Extend your RS-232 device up to 1000 feet away from your computer

Extend your RS-232 device up to 1000 feet away from your computer.
Now you can extend your RS-232 peripherals to a remote location1000 feet away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.

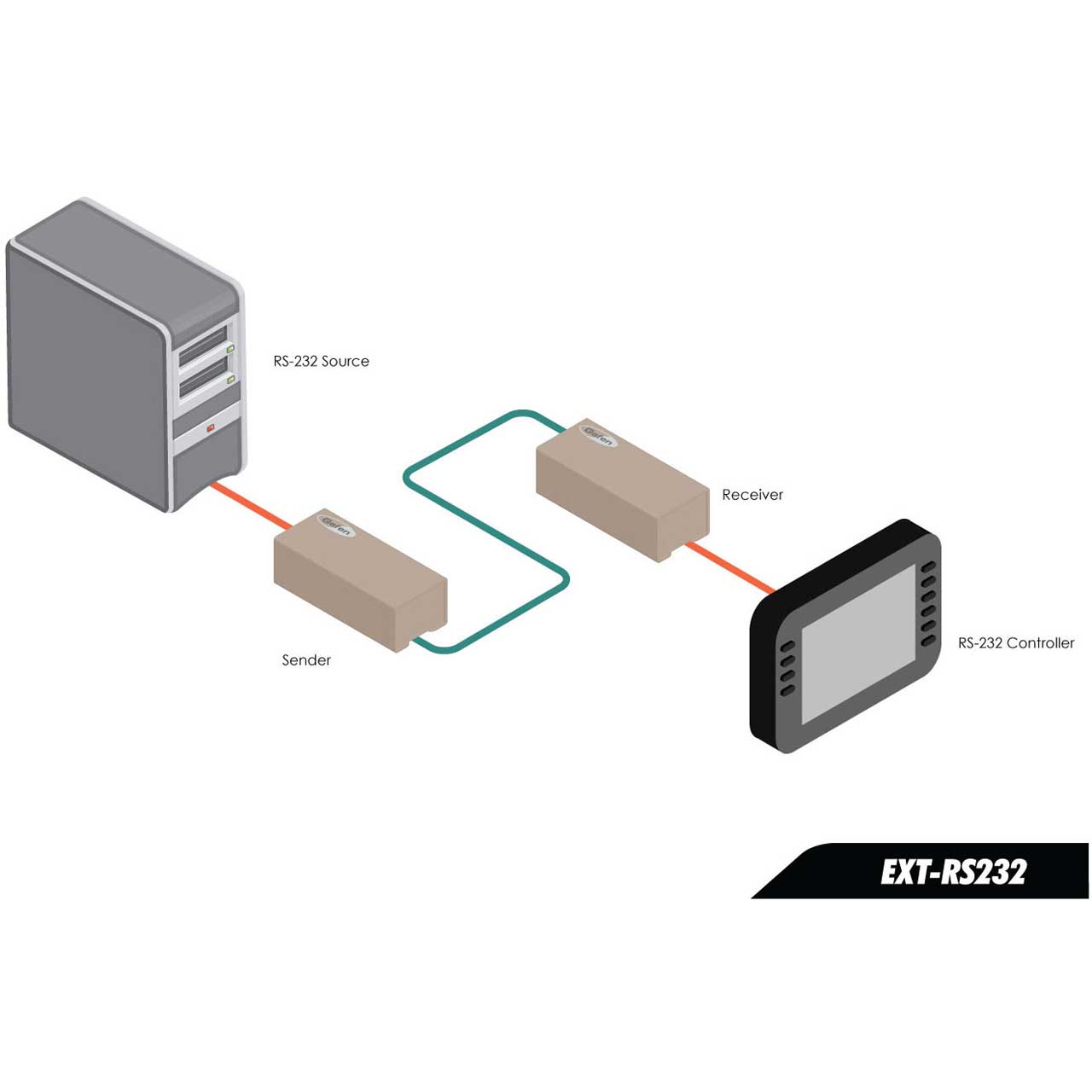

How It Works
The RS232 Extender sender unit connects to your computer using the supplied cable. The extended RS-232 device connects to the receiver unit. CAT-5 cables connect the send and receive units - up to 1000 feet away. The sender is powered by a 5 volt power supply, which will also power the receiver via the CAT-5 cable.

  • Features:

    • Extends any RS-232 compliant device up to 1000 feet (300 meters) from the computer.
    • Supports the full 9-pin RS-232 standard with a maximum data transfer rate of 115,200 baud.
    • Perfect for digital signage applications.
    • Only one CAT-5e cable required for extension.
    • Power only required on Sender unit.


  • Specifications:

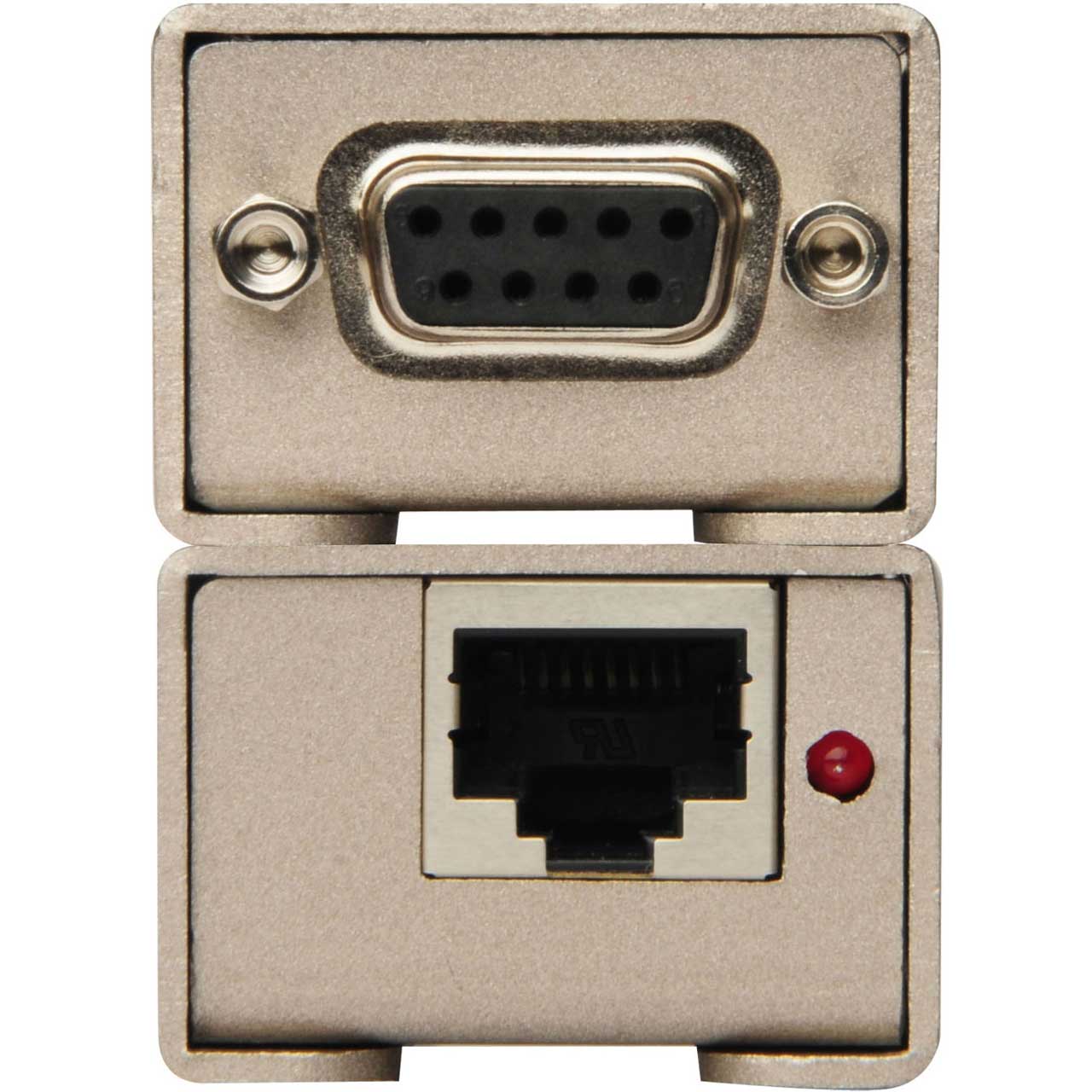

    • RS-232 Input Connector: DB-9 female
    • RS-232 Output Connector: DB-9 male
    • Link Connector: RJ-45 Shielded
    • Conforms to the full 9-pin RS-232 standard
    • Maximum data transfer rate: 115,200 baud
    • Operating temperature range: +5 to +45 deg. Celsius
    • Operating humidity range: 5 to 65% RHL, non-condensing
    • Storage temperature range: -20 to +70 deg. Celsius
    • Storage humidity range: 5 to 95% RHL, non-condensing
    • Power Supply: 5V DC
    • Power Consumption: 5W (max)
    • Dimensions: 3.8" W x 1.2" H x 1.4" D
    • Shipping Weight: 2 lbs


  • Item Includes:

    • (1) RS232 Extender (Sender Unit) (EXT-RS232S)
    • (1) RS232 Extender (Receiver Unit) (EXT-RS232R)
    • (1) 6 ft. DB-9 Cable (CAB-DB9-6MF)
    • (1) 5V/1A DC Power Supply (EXT-PS526AIPN)
    • (1) Quick-Start Guide (QSG-RS232)


  • GTIN:

    0845344000015
