MuxLab 500459-100 HDMI/RS232 100m Extender Kit - HDBT - 4K/60

500459-100 - Overview

• Features:

  • Supports 4K @ 24/25/30/60Hz (4:4:4) to distances of up to 230ft (70m) over single Cat5e/6
  • Supports 1080p and full 3D to distances of up to 330ft (100m) over single Cat5e/6
  • Uses visually lossless light compression at 4K/60 (4:4:4)
  • HDCP 2.2 Compliant
  • Supports HDR
  • Supports RS232 and Bi-directional IR pass through
  • Supports all digital audio modes
  • Includes IR emitter and IR sensor (carrier-wave)
  • Supports PoC


• Specifications:

  • General
  • Environment: HDMI 2.0
  • Devices: DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
  • Transmission: Transparent to the user
  • Signals: HDMI 2.0 protocol
  • Cable One: (1) Category 5e or better twisted pair cable required.

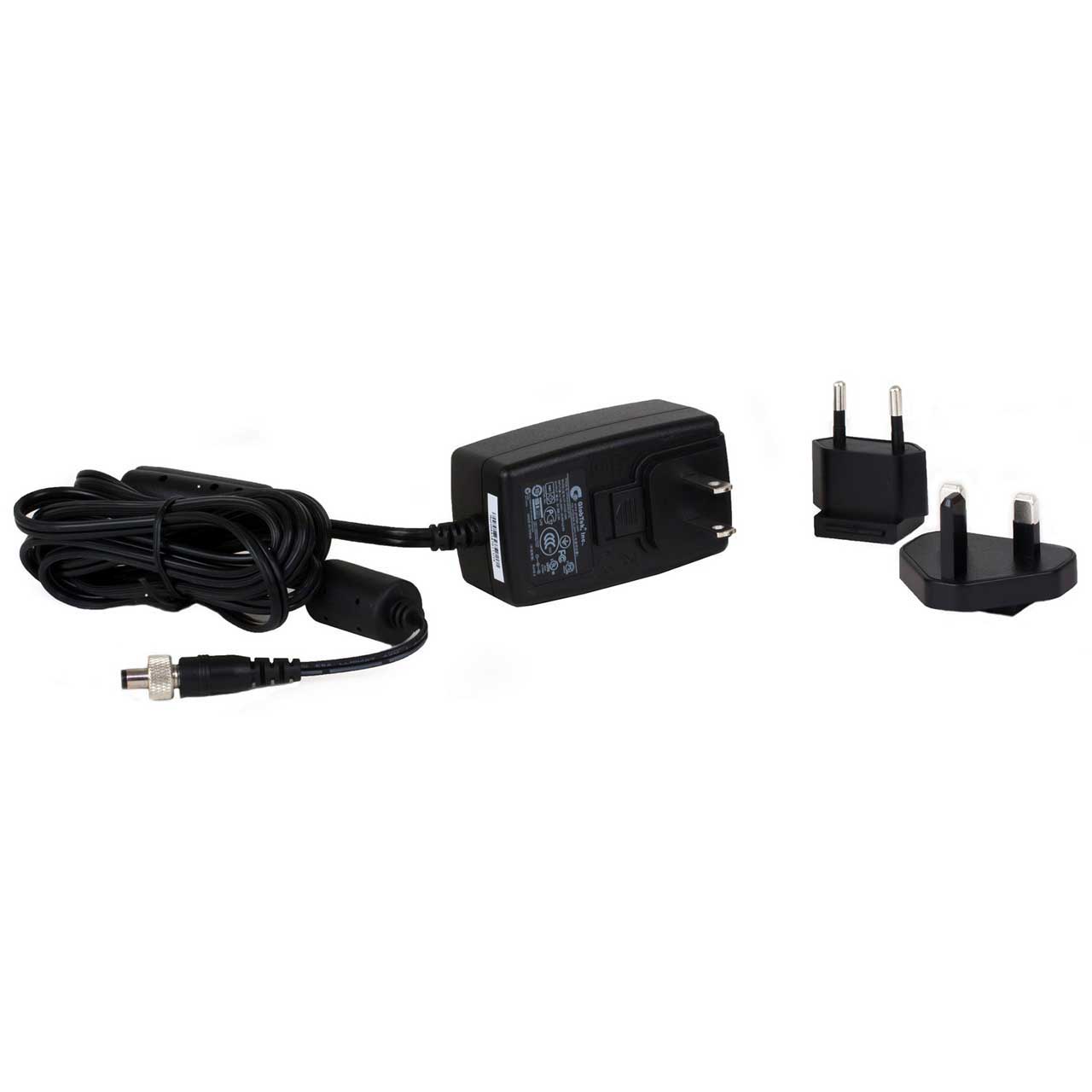

  • Power Supply: One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades.
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 185°F (-20° to 85°C)
  • Humidity: up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.72 x 2.87 x 1" (12.0 x 7.3 x 2.5cm)
  • Weight: 1.75Lbs (0.79kg)
  • Regulatory Compliance: FCC, CE, RoHS

    Connectors Cables not included
  • One (1) HDMI receptacle.
  • One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
  • One (1) 3-Position Terminal Block for RS232.
  • Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave).
  • One (1) 2.1mm locking power connector.

    Max. Distance Based on a maximum length of 6.6' (2m) of HDMI cable per end
  • 4K/60 (4:4:4): Cat 5e/6: 230' (70m)
  • 1080p/60: Cat 5e/6: 330' (100m)
  • When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

    RJ45 Pin Configuration Reverse Polarity Sensitive - Use EIA/TIA 568 A or B, straight-through wiring.
  • RJ45
  • Pin 1 (R) Pin 2 (T)
  • Pin 3 (R) Pin 6 (T)
  • Pin 4 (R) Pin 5 (T)
  • Pin 7 (R) Pin 8 (T)

    Power Consumption
  • Transmitter: 10.44 Watts
  • Receiver: 10.44 Watts


• Item Includes:

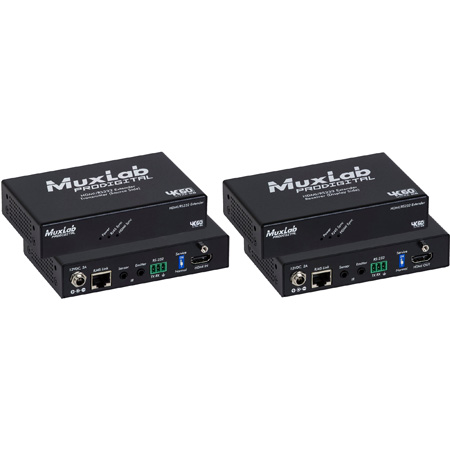

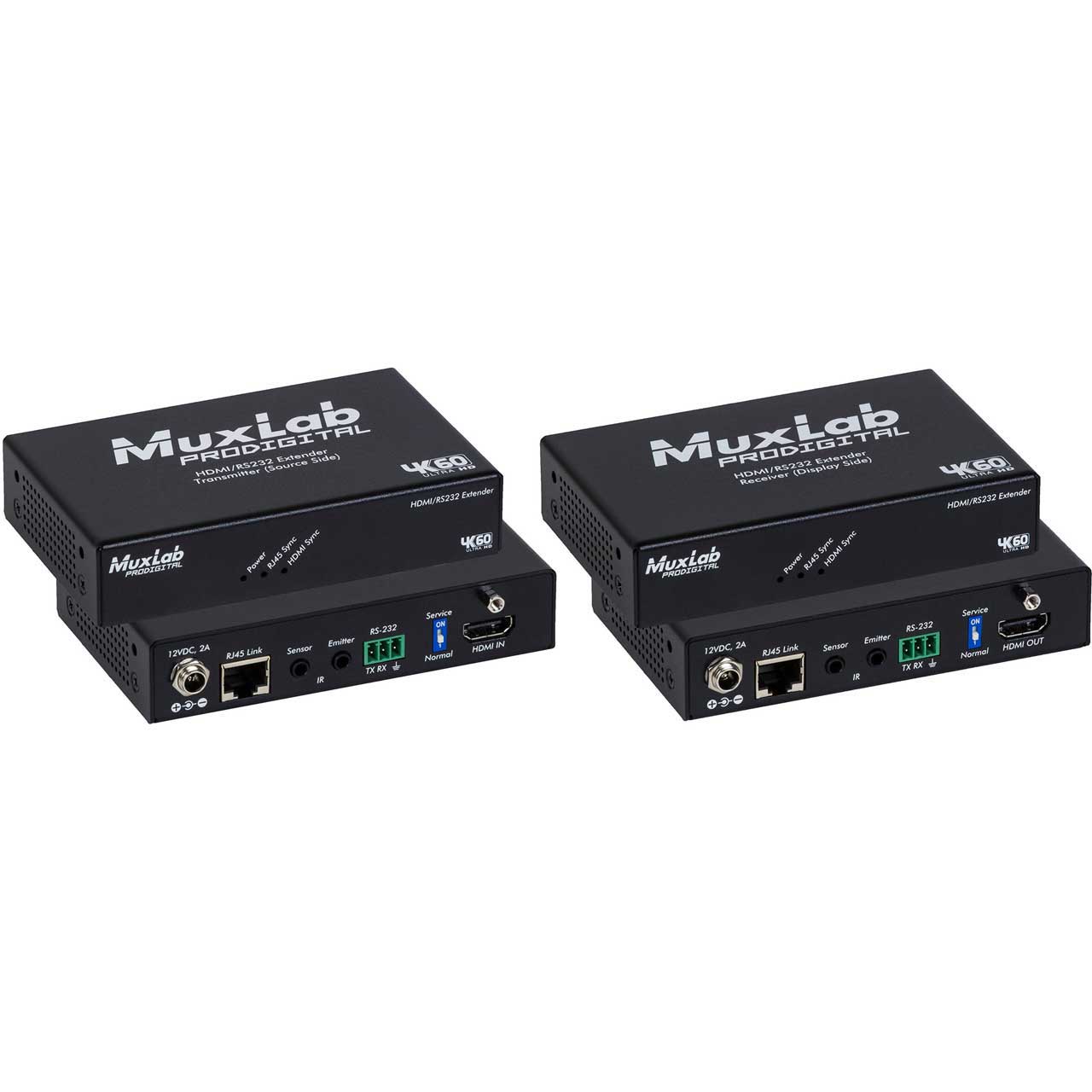

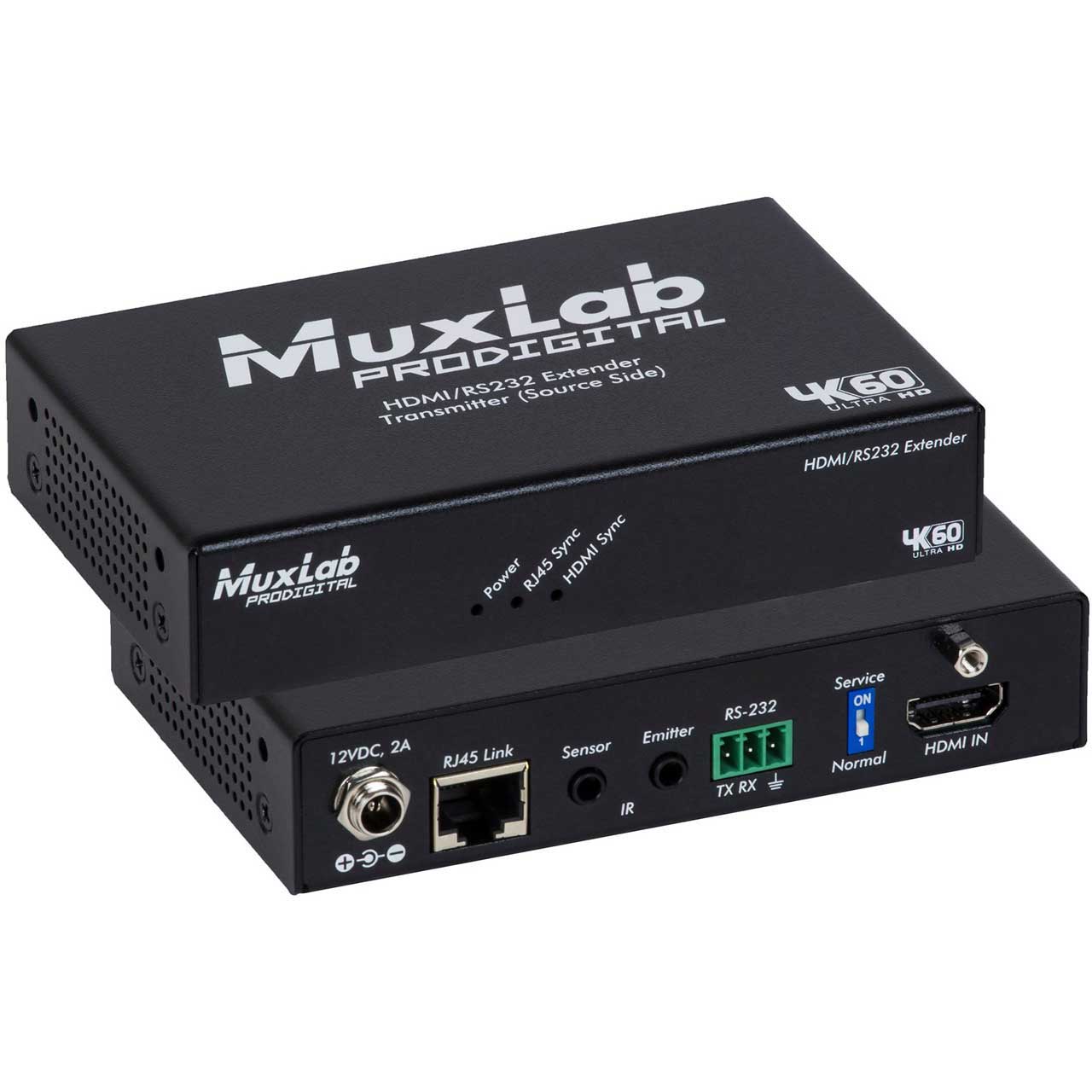

  • 1x Transmitter

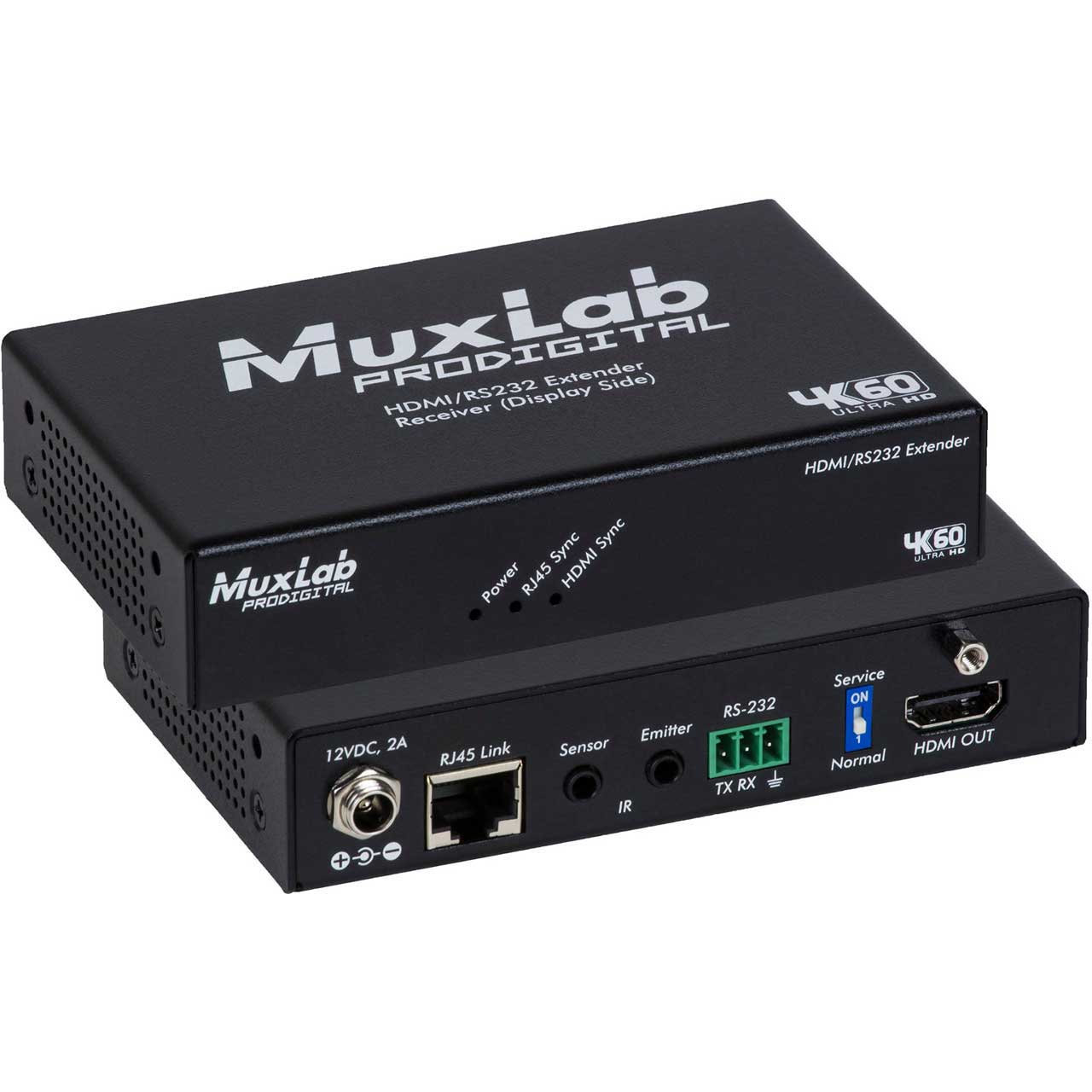

  • 1x Receiver

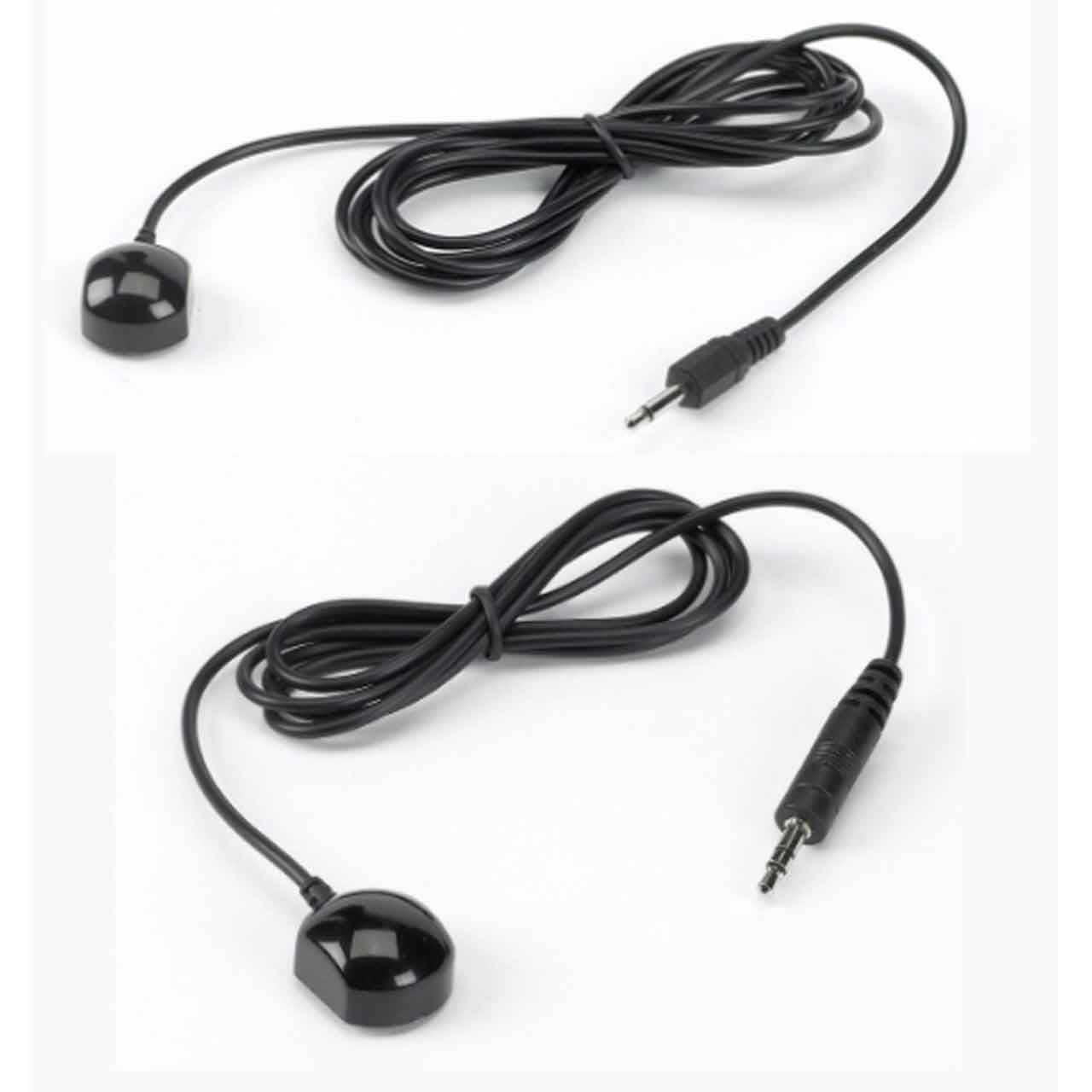

  • 1x IR Emitter
  • 1x IR Sensor
  • 1x Power Supply


• Warranty:

  • 2 Year Warranty


• GTIN:

  0627699014592
