Vertiv Geist SP104-10 Rackmount 10 Outlet 15A Surge Suppressed AC Power DA

Name: Vertiv Geist SP104-10 Rackmount 10 Outlet 15A Surge Suppressed AC Power DA
Brand: Vertiv
SKU: GES-SP104-10
Price: 147.66 USD
Availability: PreSale

ITEM #: GES-SP104-10 MFG #: SP104-10

Vertiv

List Price:

$198.00

Our Price:

$147.66

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SP104-10 - Overview

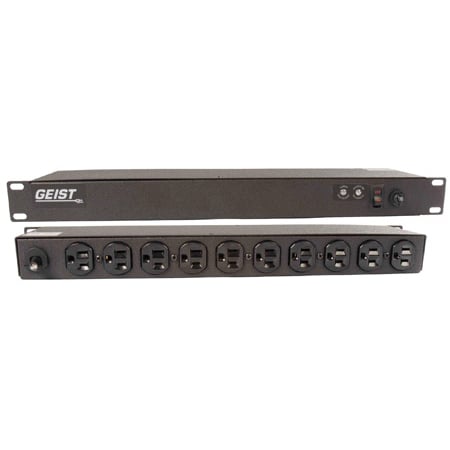

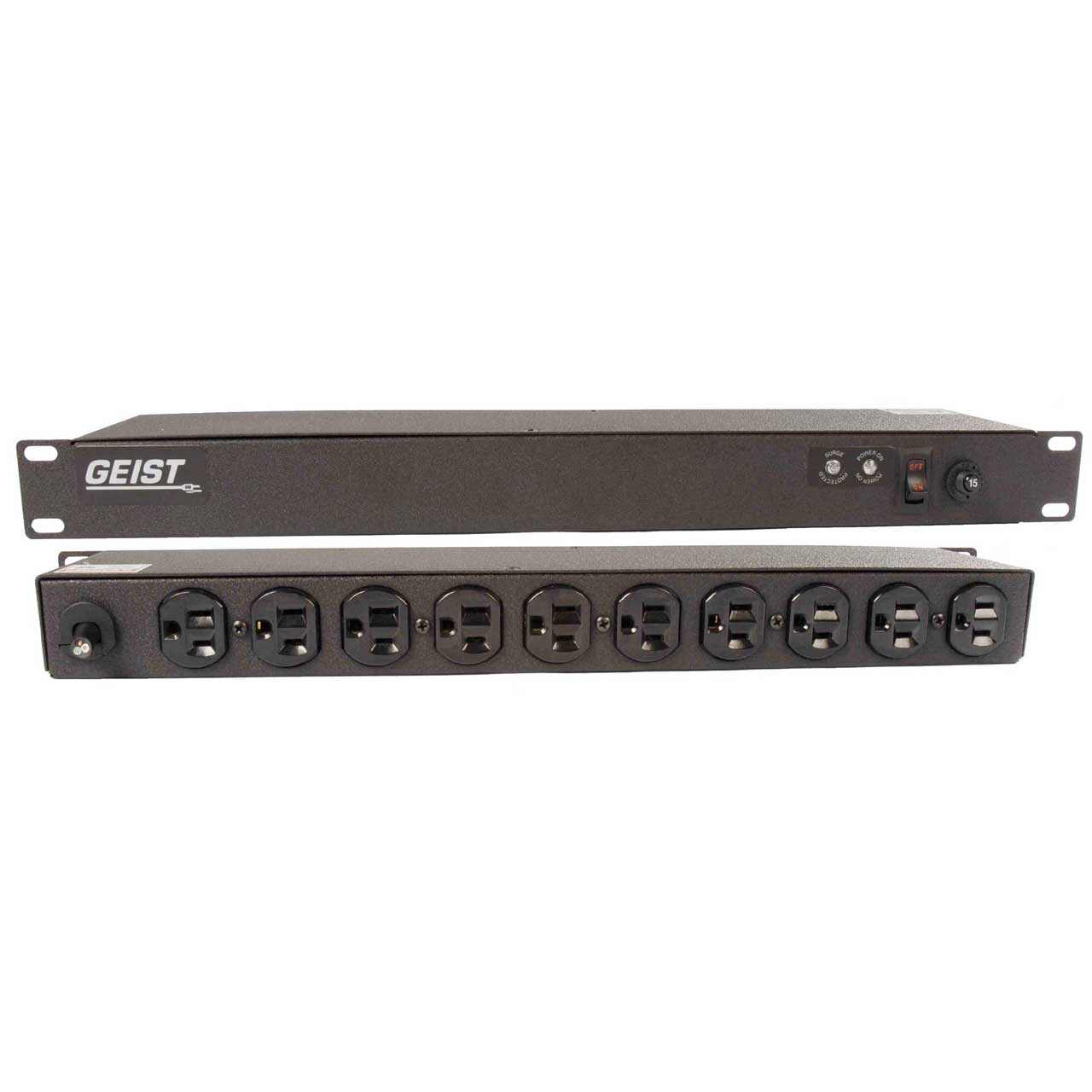

Vertiv Geist SP104-10 is a rack-mountable power distribution unit ideal for use in data-centers, industrial and laboratory environments and more. This 15 amp breaker unit, contains 10 outlets on the rear (5 duplexes), a standard 10 foot power cord, LED power-on indicator, LED surge-active indicator, and power switch.

Made in the USA

Specifications:
- AC Rating Volts: 125
- AC Rating Amps: 15
- AC Rating Watts: 1875
- AC Rating Frequency: 50/60 Hz
- Over Current Protection: 15 AMP Thermal Breaker
- Power Switch: Yes - Embossed
- Indicators: - Power ON Green LED 1
- Power Cable AWG: 14/3
- Cord Length: 10'
- Plug Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Style: Duplex
- Receptacles on Rear: 10
- Maximum Output per Receptacle: 15A
- Joule Rating: 720
- UL 1449 Rating (500 AMPS): 330 Volts
- Clamping Level: < 315 Volts
- Response Time: < 5 nanoseconds
- Surge Technology: Used Super MOVS
- Surge Indicator: Red LED
- Connected Equipment Warranty: Ten Year - $10000
- Product Warranty: Lifetime
- Certification/Agency Approvals: UL & c-UL
- Chassis Dimensions (HxWxD): 1.72" x 17" x 3.75"
- Unit Weight: 6 lbs.

SP104-10 - Recommended Accessories

Klein Tools ET310 Digital Circuit Breaker Finder
KLT-ET310
Our Price: $54.97
Middle Atlantic 10-32 Rackscrews - Truss Head - 100 Pieces
HP
Our Price: $37.35

SP104-10 - Reviews

SP104-10 - Attachments

See Geist SP104-10 Manual/Specs (PDF)
See Geist SP104-10 Specifications (PDF)
