Vertiv Geist Vertical IEC-320 10 Outlet 30A Power DA with Current Meter

ITEM #: GES-V30ADCM-10 MFG #: VRELCN100-103C13TL6

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$617.00

Our Price:

$446.69

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VRELCN100-103C13TL6 - Overview

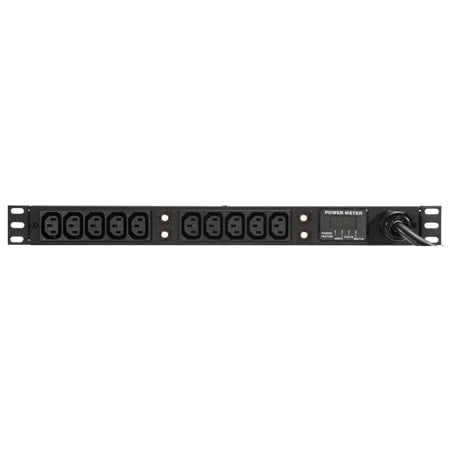

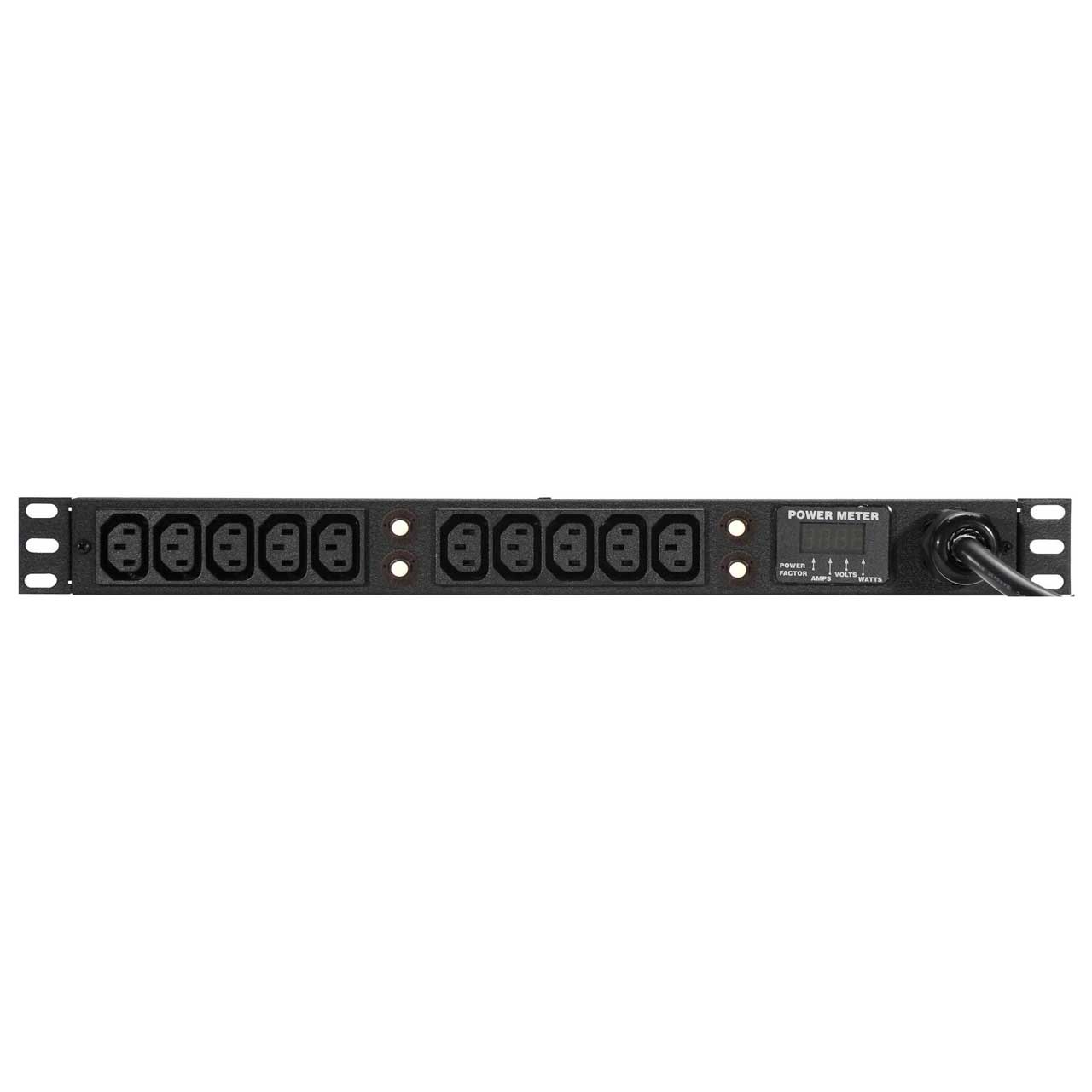

The Vertiv Geist VRELCN100-103C13TL6 is a 17 inch vertical AC Power Distributor with TEN IEC320 type C-13 outlets (2 banks of 5) and a Digital Current Meter. This unit is ideal for use in data-centers, industrial and laboratory environments, anywhere power is needed. It has a 10 foot cord with a NEMA L6-30P twist-lock plug, four 15 Amp thermal breakers (2 per 5 outlets), NO power switch and 2 SLB-4 L-shaped brackets for vertical mounting as well as horizontal/panel mounting brackets.

  • Specifications:

    • AC Rating Volts: 250
    • AC Rating Amps: 30
    • AC Rating Watts: 7500 de-rated to 6000
    • AC Rating Frequency: 50/60 Hz
    • Power Switch: None
    • Over Current Protection: (4) 15 AMP Thermal Breakers
    • Power Switch: No
    • Power Cable AWG: 10/3
    • Cord Length: 10'
    • Receptacle Type: IEC320 C-13
    • Receptacles on Face: 10
    • Maximum Output per Receptacle: 15A per receptacle bank
    • Monitoring: Current Meter Local - Digital RMS Current Meter 0-30.0 AMPS; Accuracy: +/- .1 AMPS; +/- 1 VOLT
    • Made in the USA
    • Product Warranty: 3 Year
    • Certification/Agency Approvals: UL & c-UL Listed Accessory 1950
    • Chassis Dimensions (HxWxD): 117.00" x 1.72" x 1.61"
    • Unit Weight: 6 lbs.
