Chauvet DJ GIGBAR MOVE + ILS 5-in-1 Lighting System with ILS / Moving Heads / Pars / Derbys / Strobe and Laser Effects

GIGBAR MOVE + ILS - Overview

GigBAR Move + ILS

• Features:

  • 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
  • Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
  • Use the included RF remote to trigger the built-in shows without needing line of sight
  • Powerful moving heads with separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dance floor
  • Easy navigation and access to all moving head functions directly from the full-color LCD display
  • Safely mounts to truss or ceilings using the 3/8 in threaded inserts
  • System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
  • Individual control of each effect ensures your show looks the way you need it to
  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch


• Specifications:

  • DMX Channels: 3, 28, or 50DMX Connectors:3-pin XLRPan and Tilt:540°/180°Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds
  • Gobos: (moving head): 9 + open, continuous scroll at variable speeds
  • Light Source:
    (Pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A) 50,000 hours life expectancy
    (Strobe): 4 LEDs (cool white) 5 W (1.2 A) 50,000 hours life expectancy
    (Derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A) 50,000 hours life expectancy
    (Moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
    (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
  • Strobe Rate: 0 to 30 Hz
  • Beam Angle: (moving head): 17°, (pars): 22°, (strobe): 30°
  • Field Angle: (pars): 33°, (strobe): 62°
  • Coverage Angle: (derby): 131°, (laser): 93°
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Illuminance: (pars): 1,205 lux @ 2 m (per par), (moving head): 5,140 lux @ 2 m (per head), (strobe): 130 lux @ 2 m
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 250 W, 3 A @ 120 V, 60 Hz, 248 W, 1.8 A @ 230 V, 50 Hz
  • Weight: (bar only) 31 lbs (14 kg)
  • Size: 43 x 5.7 x 17.7 in
  • Approvals: CE, UKCA, RoHS, FCC, FDA
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Footswitch Operating Frequency: 433 MHz
  • Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
  • Max Unobstructed Distance (D-Fi): 600 ft (183 m)
  • Footswitch Battery: 9 V alkaline
  • Included Controllers: RF remote, wireless footswitch
  • Cable Length: 10 ft (3 m)
  • Tripod Thickness: 1.37 in (35 mm)
  • Optional Controllers: RFRF Remote Battery: 23A, 12 V alkaline

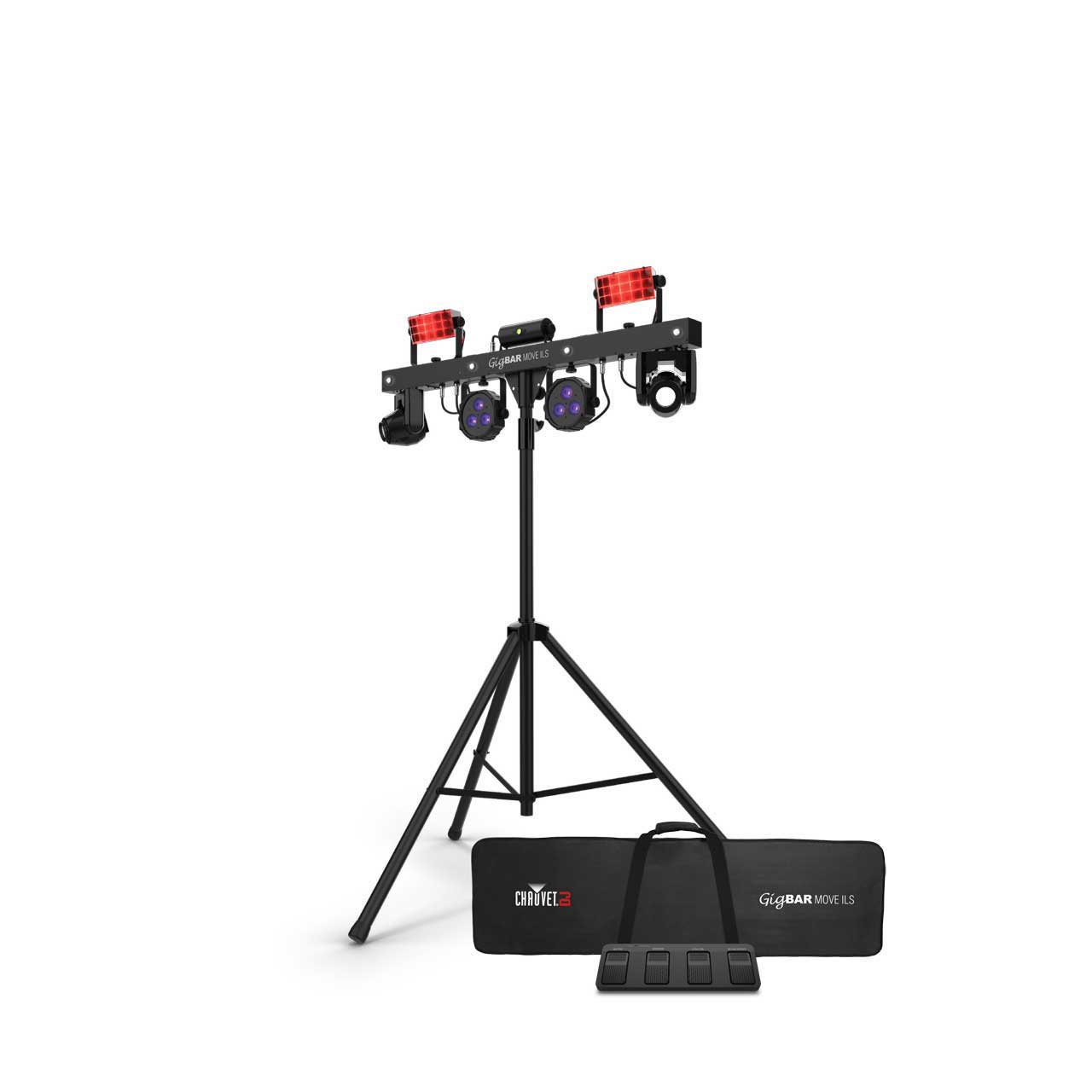

• Item Includes:

  • 1x GigBar Move Plus ILS
  • 1x Power cord
  • 1x RF Remote
  • 1x Carry bag
  • 1x Tripod
  • 1x Tripod carry bag
  • 1x Footswitch
  • 1x User Manual
